Archery Backpack Arrow tube separator
Print Profile(1)
Bill of Materials
Description
I was really not happy with my new arrows hitting the walls of an arrow tube with a central 30" stabiliser.

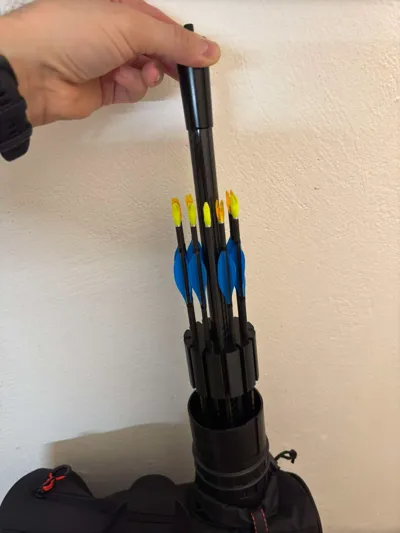

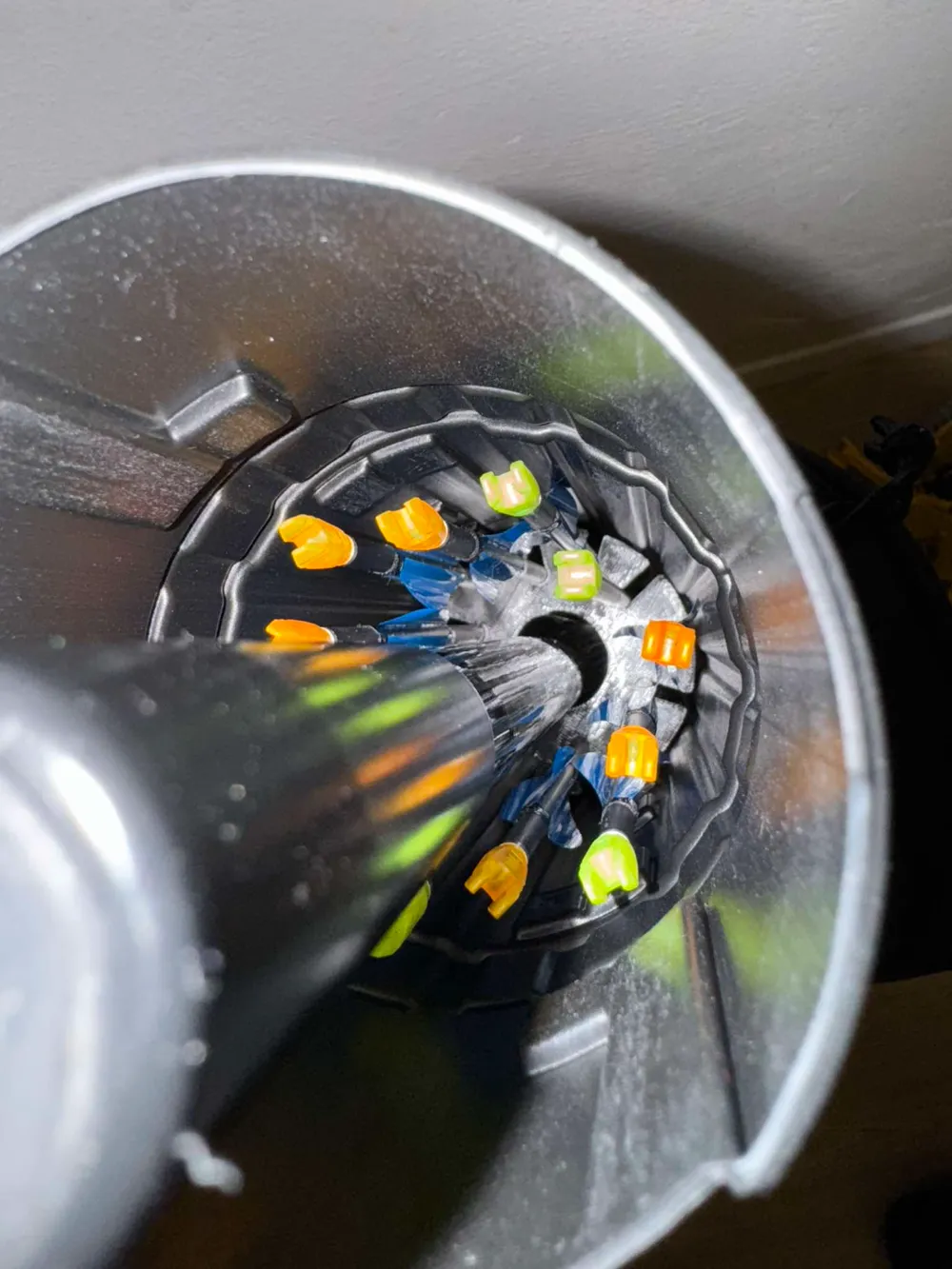

So I designed an arrow separator for the backpack tube. (It should fit most tubes, OD of the separator is 73mm)
It is mandatory to print it from TPU, default setings (2 walls and 10% infil is fine), it needs to be flexible.
I use Bambulab TPU 95A HF, but I print it on TPU 95A profile, not HF version! The HF material profile version do not work as I like. (Not nice finish and infill)

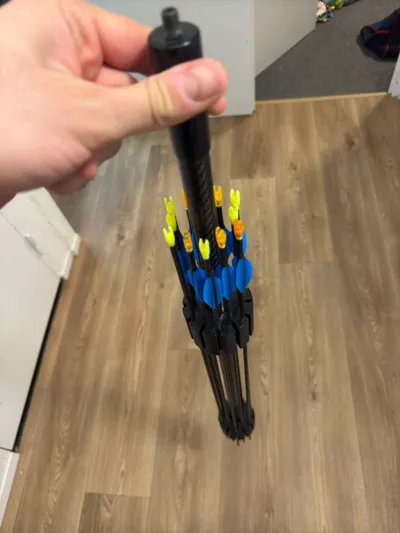

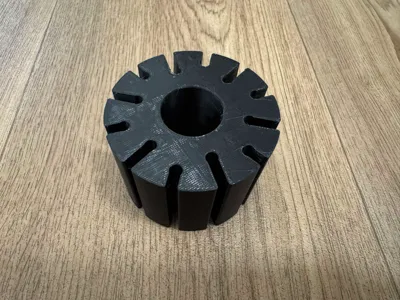

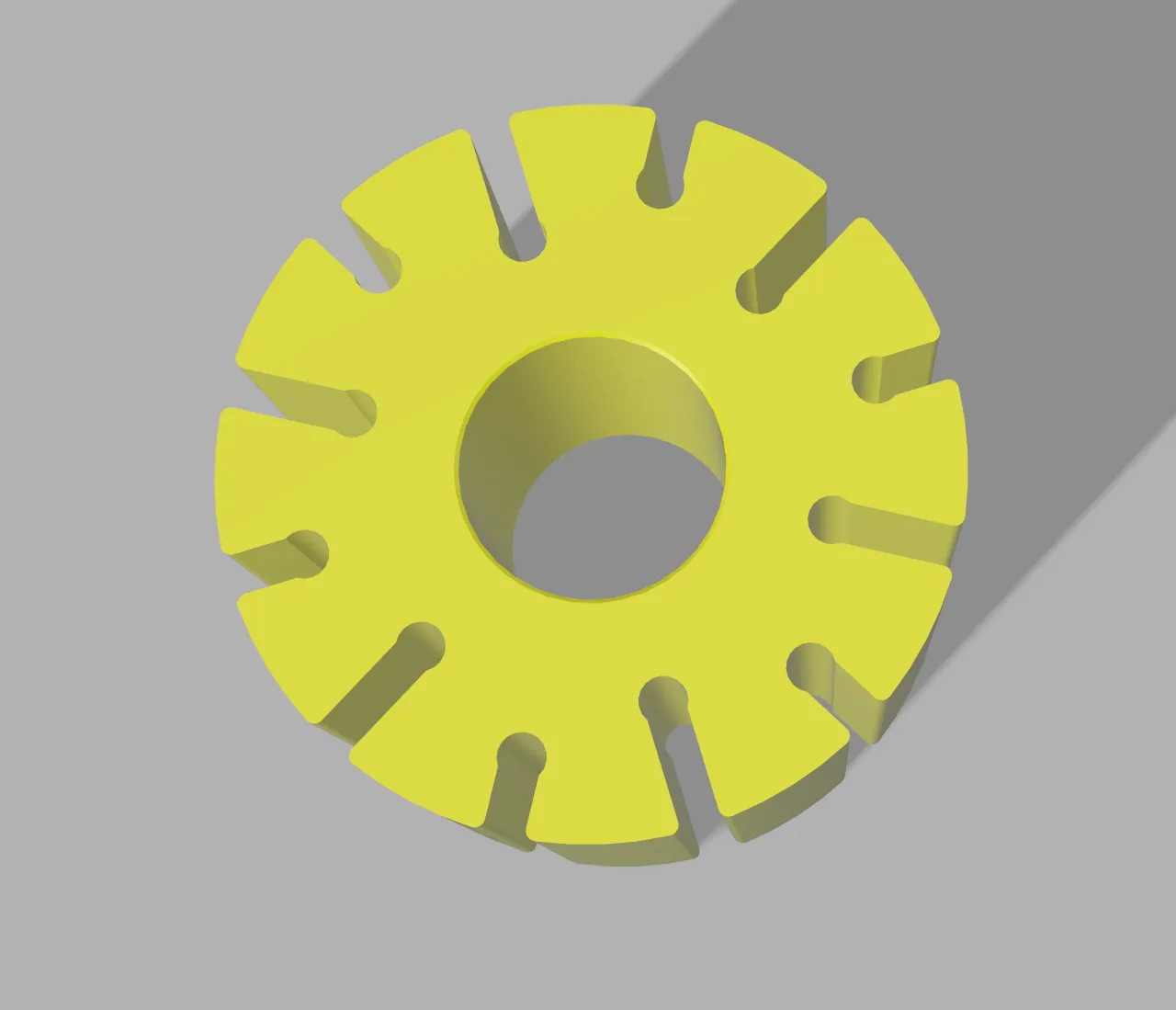

Each groove in the separator is for 1 arrow and there are 12 of them + bigger hole in the middle (26mm) for the central stabiliser..

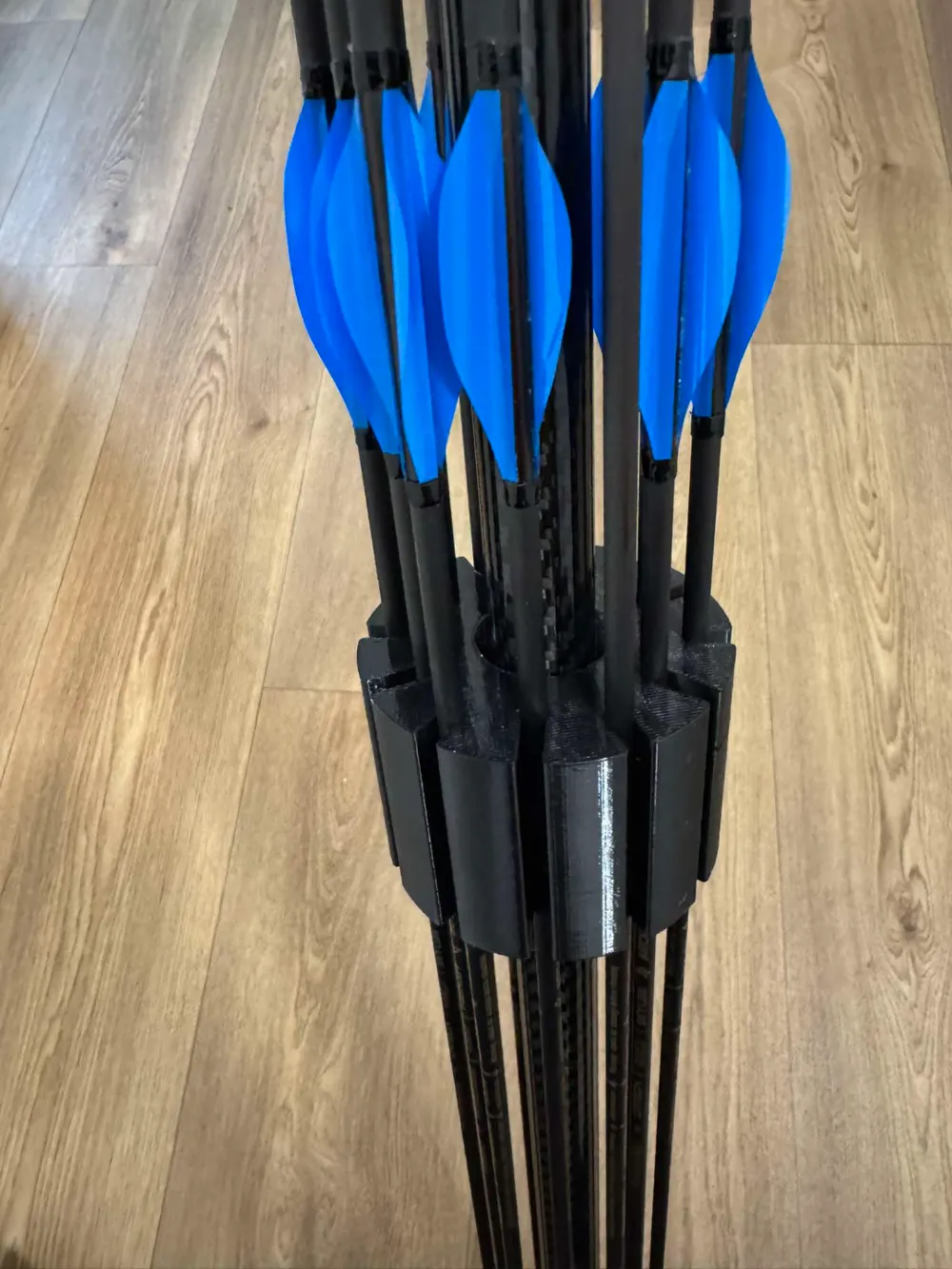

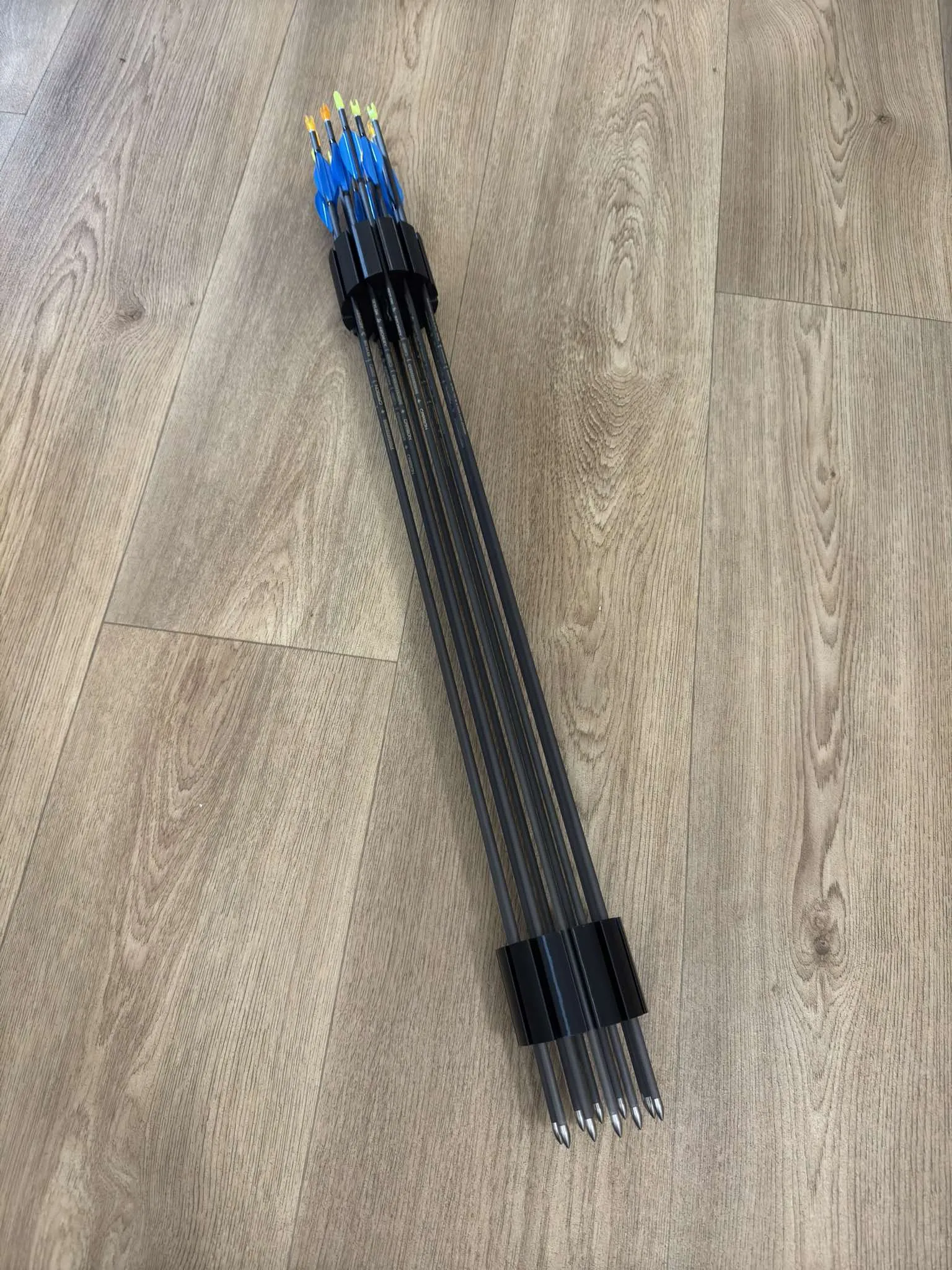

The OD of the arrows should be between 4.8-5.8mm. (My Skylon paragon 550 and X10 450-550 fit very well).
It is mandatory to print it from TPU, default setings (2 walls and 10% infil is fine).
I use Bambulab TPU 95A HF, but I print it on TPU 95A profile, not HF version! The HF material profile version do not work as I like. (Not nice finish and infill)
For other sizes, please feel free to send me a request and I will add a new print profile.
