Description

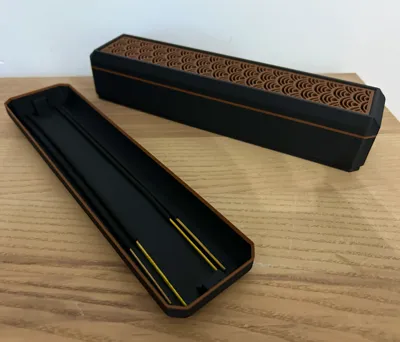

This box is designed to hold a 23cm long incense stick with a diameter of 1.5mm.
It prints in 4 parts
- Top cover
- Insert for the cover: choose the one you like, there are 3 japanese themed ones I have designed and one where you can choose the infill (for example hexagons, triangles or hilbert curve). After printing simply glue it to the top cover. Mine came out as a push fit, so you can skip the glueing and exchange different top designs as you wish.
- Middle box
- Bottom - storage part for spare incense sticks
There are holes and pauses in the print to insert magnets to the box and bottom part. It uses 4 rectangular 5x10x3mm magnets (mine were actually smaller so the holes are 4.8x9.2x3mm, i can adjust them to different sizes if necessary). They weren't really important in my case as the bottom had a good friction fit, but I have added them to make sure the storage part stays attached.
