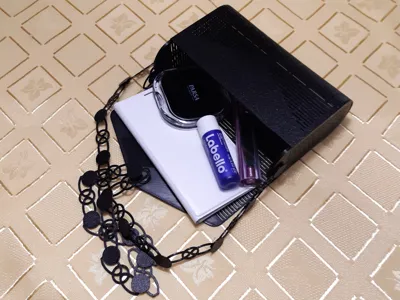

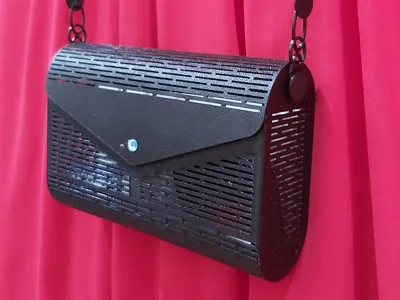

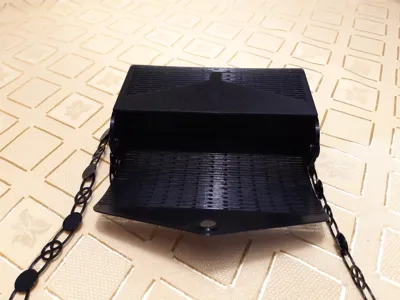

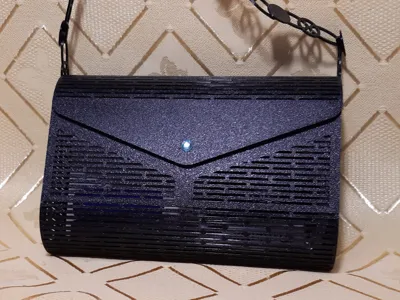

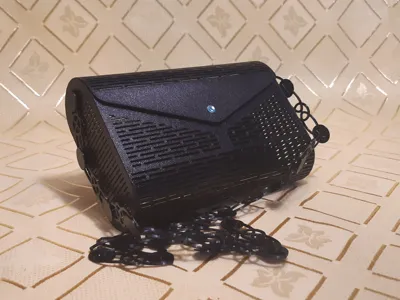

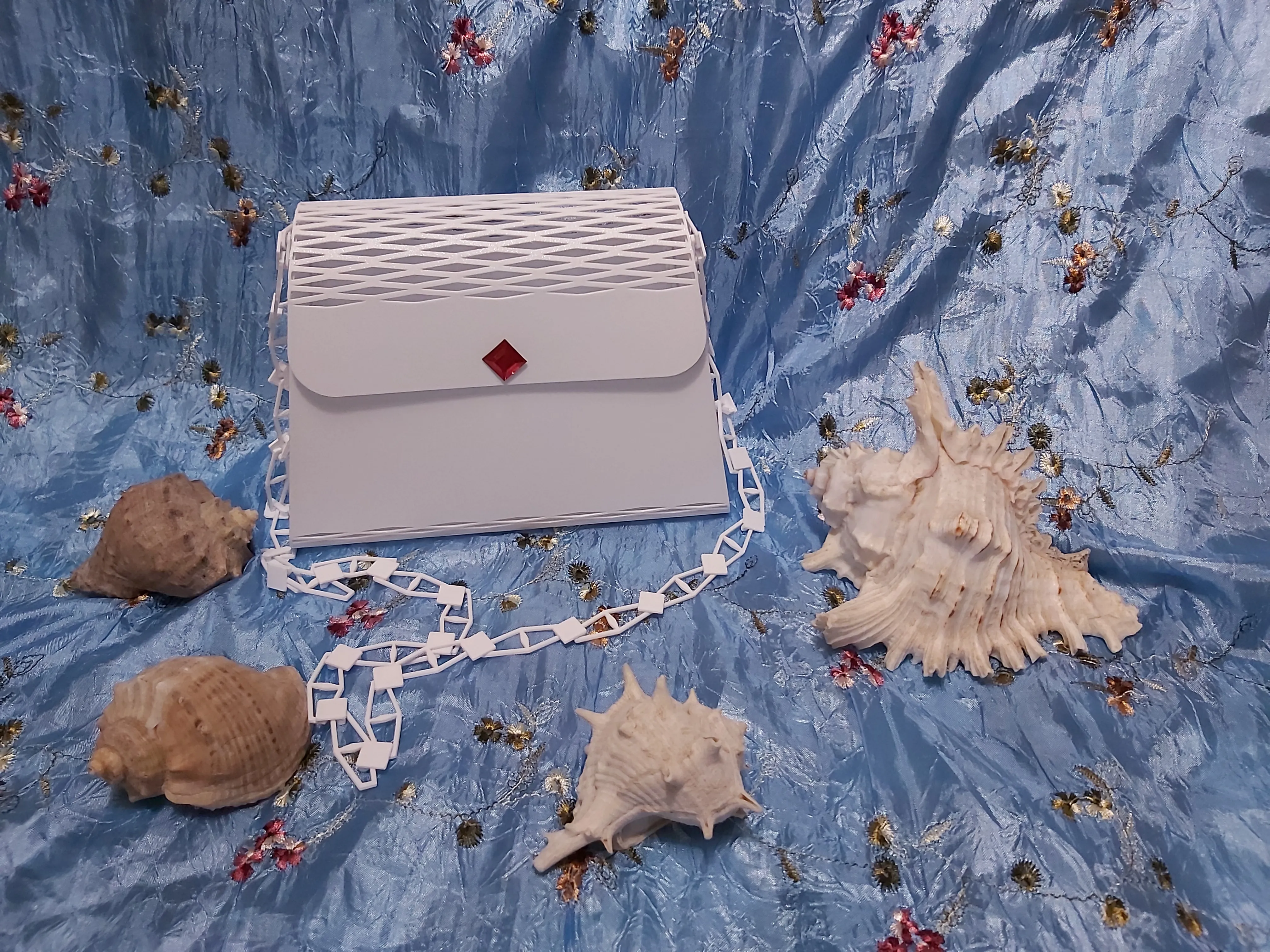

Women's handbag with magnetic closure

The modern women's handbag is completely printed on 3D printer, including a shoulder strap. Additionally you need only 2 magnets 10x2 mm.

The structured sheet gives the handbag a very attractive look.

Print instructions

Handbag is printed from PETG on textured steel sheet. If your printer is corectly calibrated you no need glue for assembling.

Layer thicknes - 0,2 mm.

All parts are printed without supports except for the upper part, where it is necessary to add forced supports under the locks on the longer side.

Magnets are inserted during printing. To pause printing, you must enter the pause command in gcode before layer Z2.4.

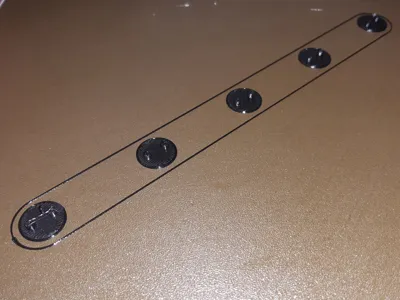

The shoulder strap can be printed in any length. You must first print all the long links of the strap - file shoulder_strap_long_part.stl.

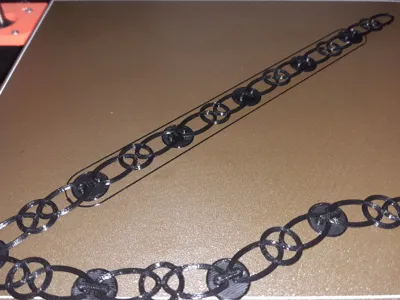

In the next step, with the help of a 3d printer, you will combine these parts into one strap. Generate gcode shoulder_strap_short_part.stl and add pause before layer Z3.0. When the printer stops, insert the strap links and continue printing. Repeat this step until the strap is the required length. It is possible to join several parts at once. The connecting parts must be placed on the heated bad at a distance of 44.6mm.

Follow the enclosed illustration when assembling the handbag.
