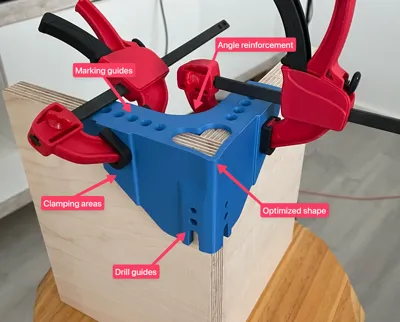

Cabinet assembly tool for plywood or particle boards. Features:

Different versions for different board thickness: 18mm, 16mm, 15mm, 12mm
Optimized shape: extra space at the outside corner to allow for wood cut imperfections
Extra material to keep the angle square
Reinforced clamping areas (you might want to add infill modifier for those if you're using your own print profile)
Three edge drilling holes: 6mm, 5mm, 4mm
Extra edge marking holes: 40mm distance from the corner, with 10mm spacing
Open source: OnShape link

Changelog:

23 Jan 2025: added 19mm (¾ inch) version
30 Dec 2024: adjusted parametric design to account for wider range of board thickness values

woodworking

furniture

cabinet

Comment & Rating (126)

@user_1117437008

hello can you make 18.3 mm version, since 18 mm too tight and not comfortable to use. thanks in advance

The designer has replied

@vlad.ivanov

hey, is that for some boards made for imperial units? if so, what is the fractional inch value? Every version actually leaves 0.2mm of gap, so it would be good to know what the spec of the board was

@user_1117437008

Replying to @vlad.ivanov :

no, it is metric 18mm osb board. i can put it but veri tight and not comfortable to use. may be in photo you can see how it oprn this end because of bottom part very tight
