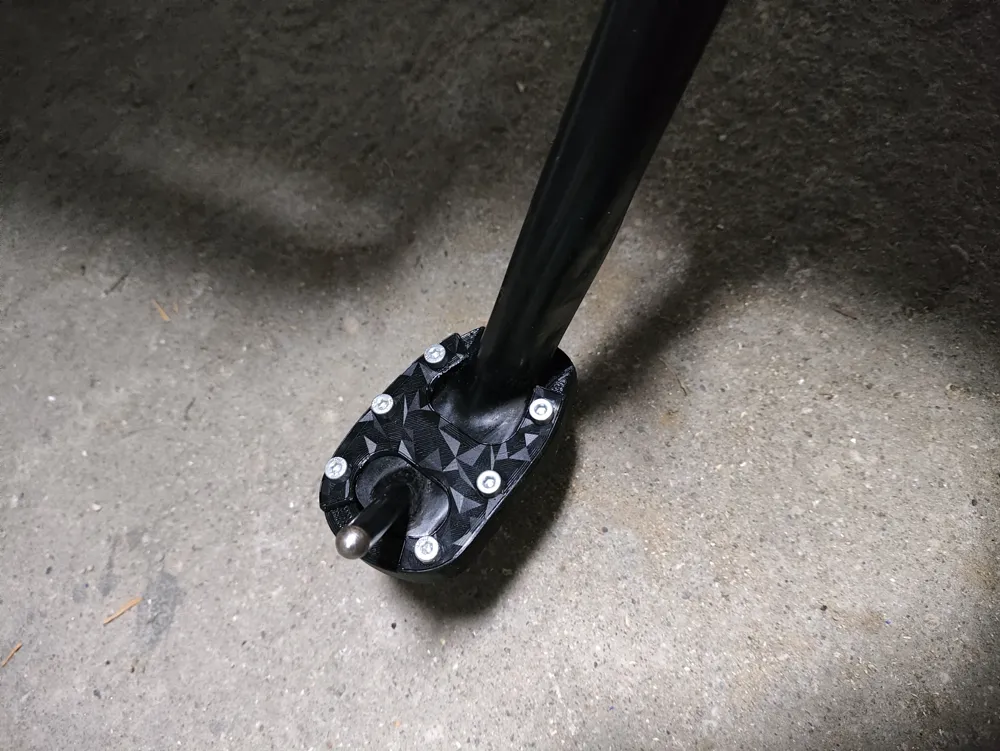

Side stand extension Yamaha MT 07, XSR 700, R7
Print Profile(1)
Description
It should fits models:
YAMAHA YZF R7 2021-2023
YAMAHA YZF R3 2015-2023
YAMAHA YZF R25 2014-2023
YAMAHA MT-25 2015-2023
YAMAHA MT-03 2016-2023
YAMAHA FZ-07 2014-2017
YAMAHA MT-07 2014-2023
YAMAHA Tracer 700 2016-2020
YAMAHA Tracer 7 2021-2023
YAMAHA XSR700 2016-2023
YAMAHA XJ6N 2009-2016
YAMAHA XJ6 dywersja 2009-2016
YAMAHA XJ6 dywersja F 2010-2017
YAMAHA FZ-6R 2009-2017

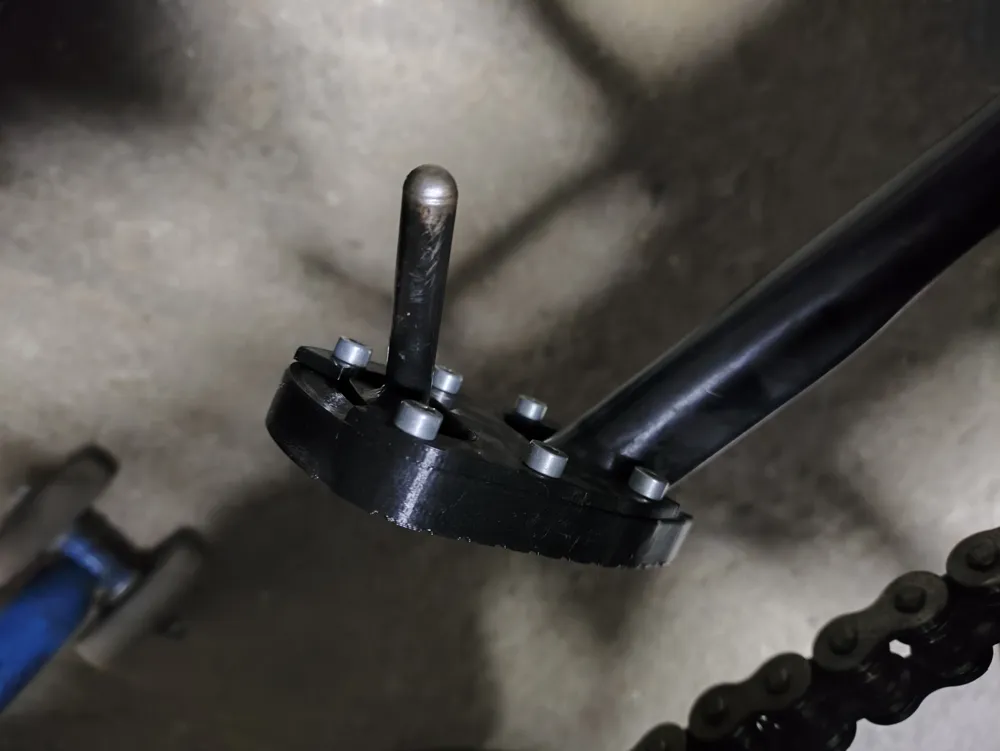

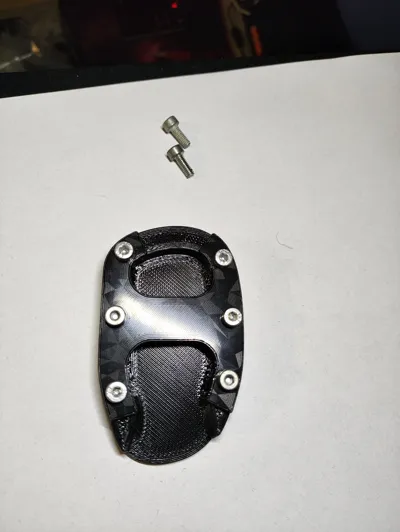

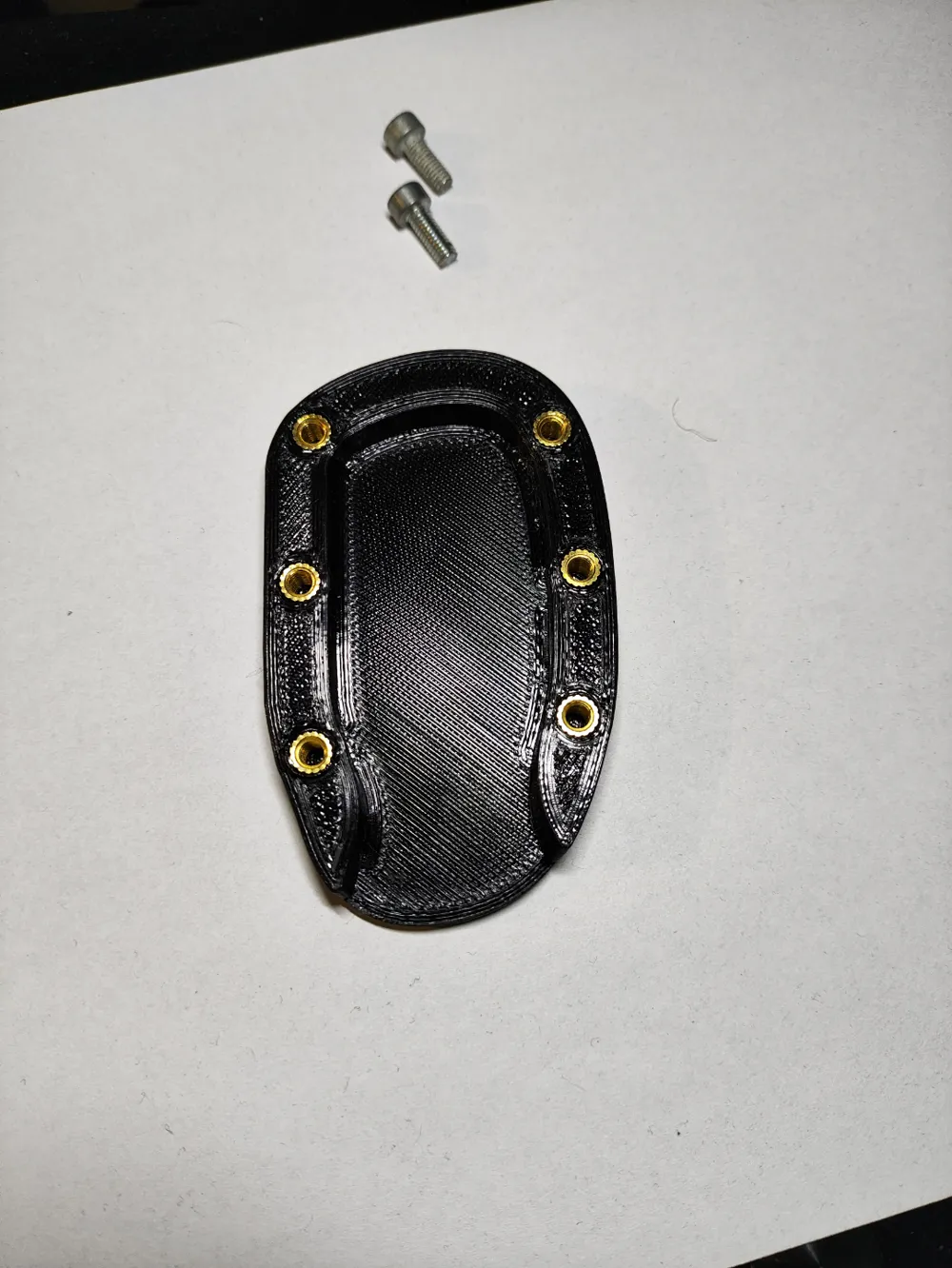

I made a 0.1 gap at the inner walls to strengthen the print. It fits tightly, so I suggest printing a partial measurement first. I used m4 inserts and bolts for assembly. However, it should be possible to screw them together directly by using short m6 screws. I provide a step. model for editing if needed.
print settings:
0,4 nozzle, PET-G
0,2 layer hight, 4 perimeters
100% infill
