AMSLite_slidemount_kit

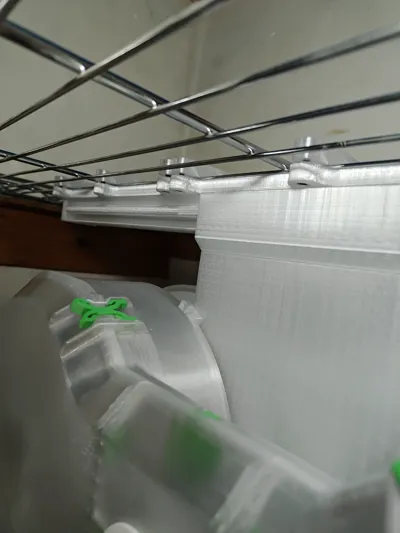

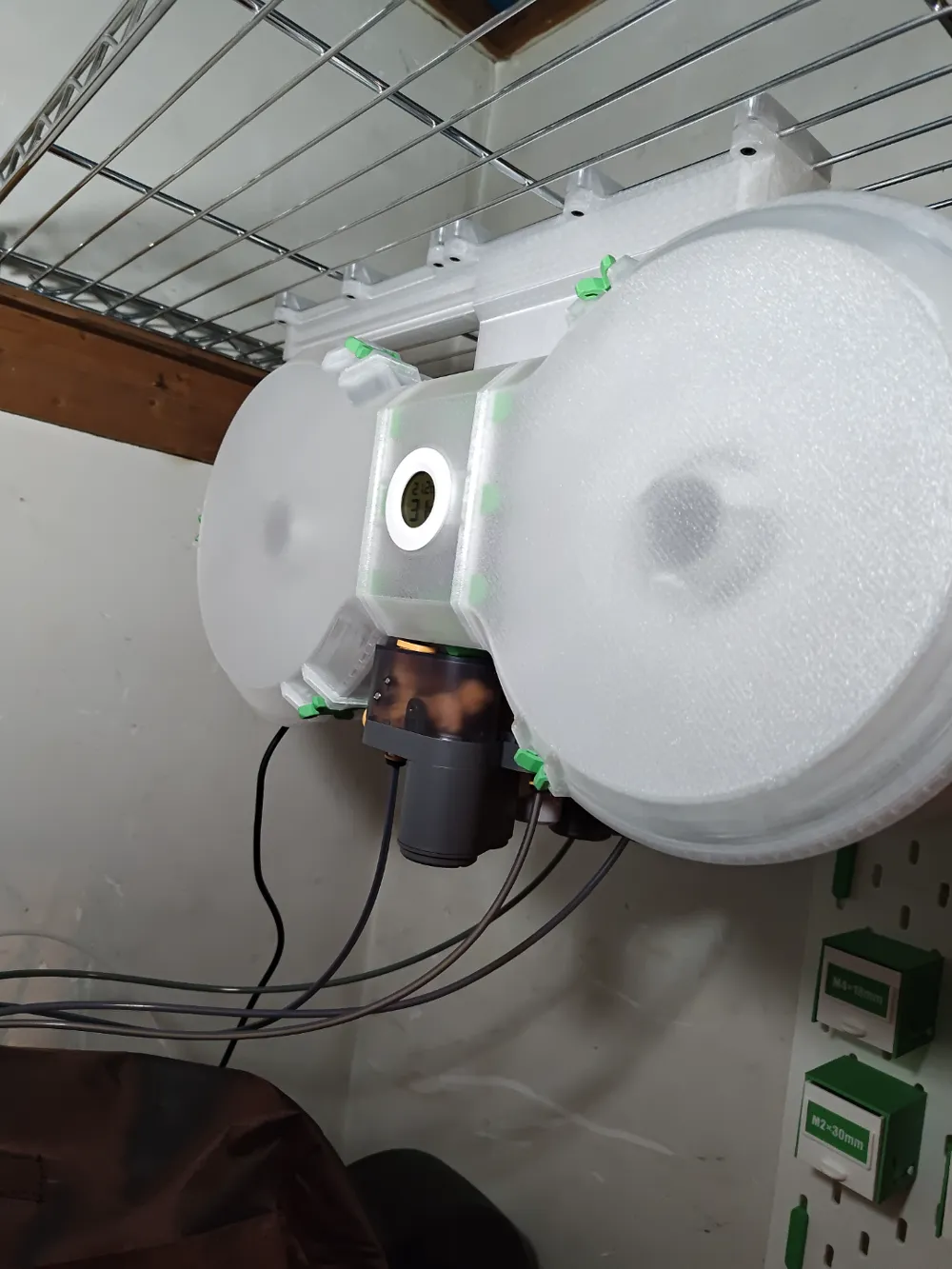

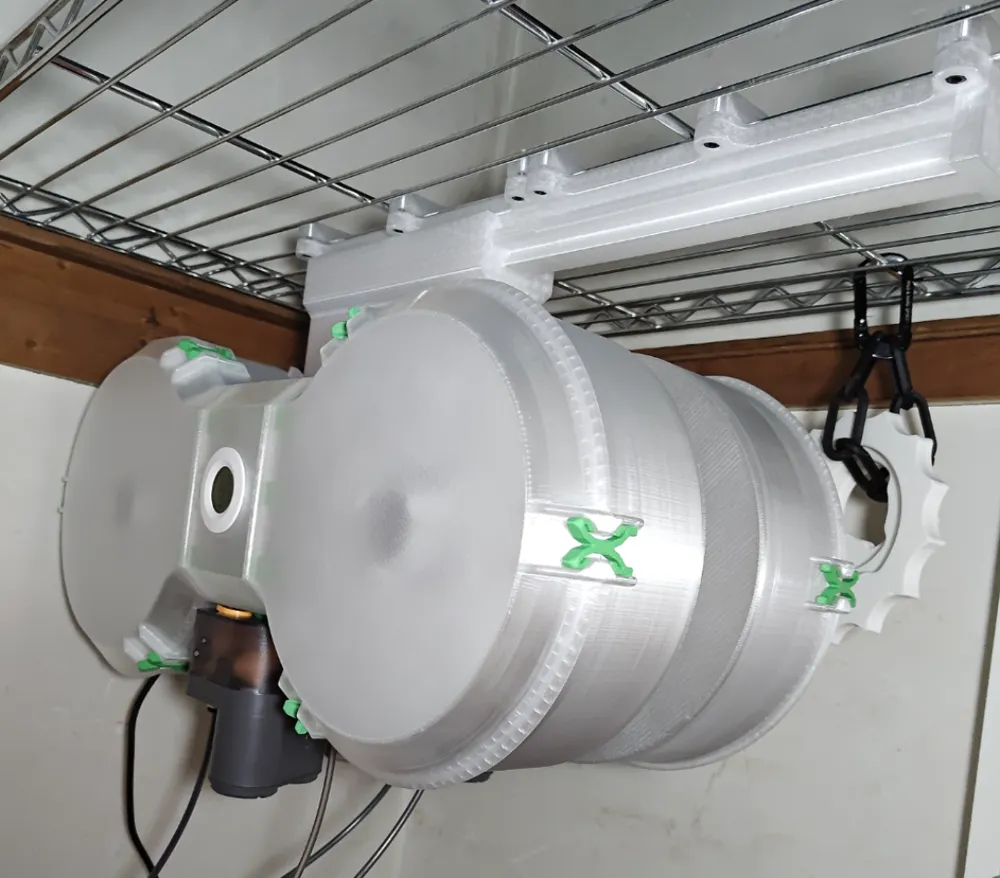

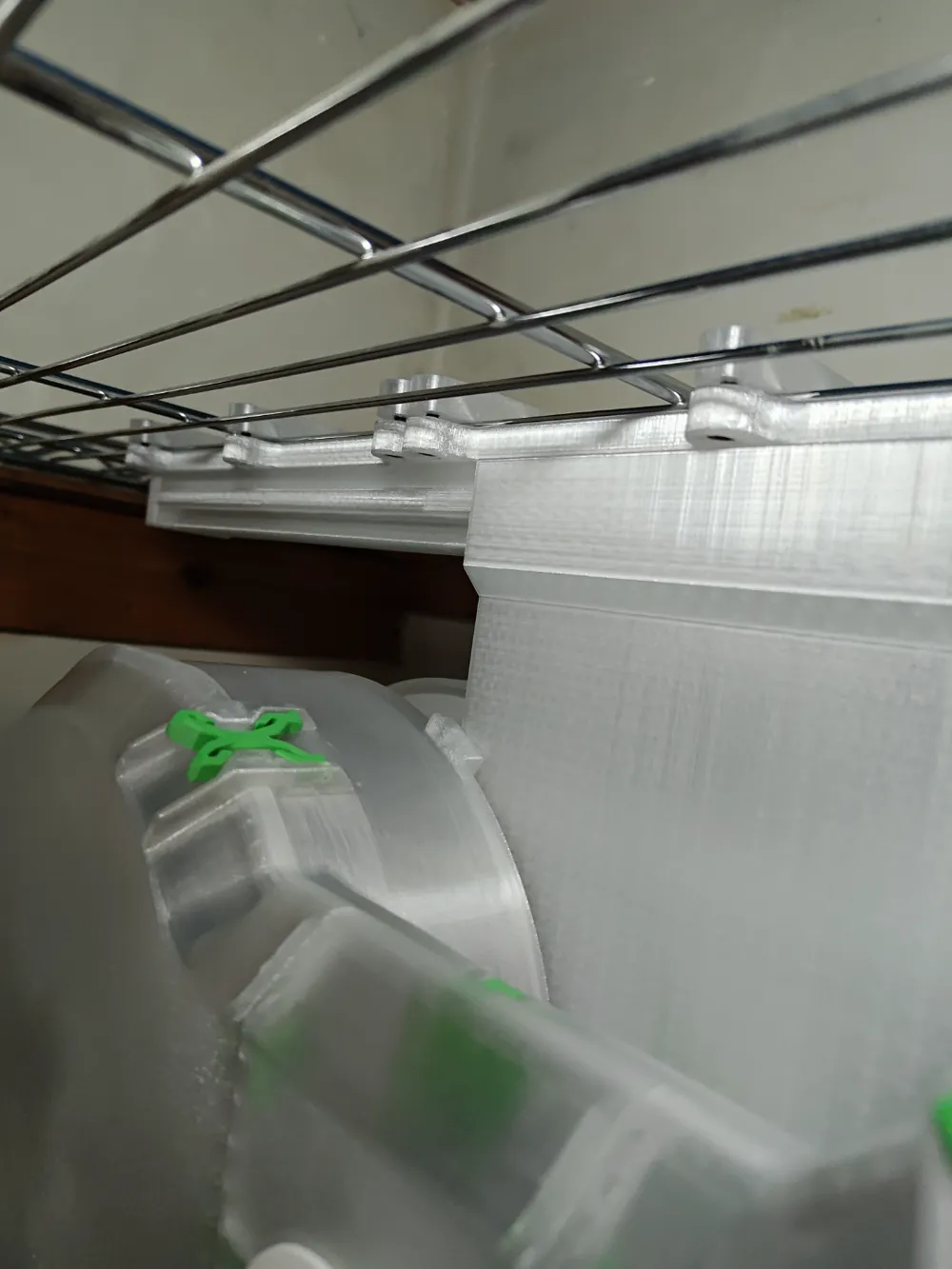

This is a mounting kit for fixing the AMSLite to the ceiling or a tabletop, allowing it to slide back and forth. The number of parts has been minimized as much as possible. The profile is made of PETG for strength. M4 screws are used. If attaching it to a steel rack like I did, you’ll need bolts and nuts of at least 18mm. For tabletop mounting, you’ll need M4 self-tapping screws. The bolts connecting to the AMSLite itself are genuine parts. There are eight screw holes in total, so if you’re concerned about stability, you can secure all of them. Applying grease to the rail section will reduce noise during sliding. It is designed so that it won’t interfere even if a filament dehumidifier box is attached, as shown in the images, but compatibility with all dehumidifier boxes has not been verified. This is recommended for those who don’t have much space in their workspace!
