AMS lite PTFE tubing feed protector compatible with PC4-M5, PC4-M6, and PC4-M10 models
Print Profile(3)
Description
Boost Me (for free)
If you like this design, please boost me
Design Description:

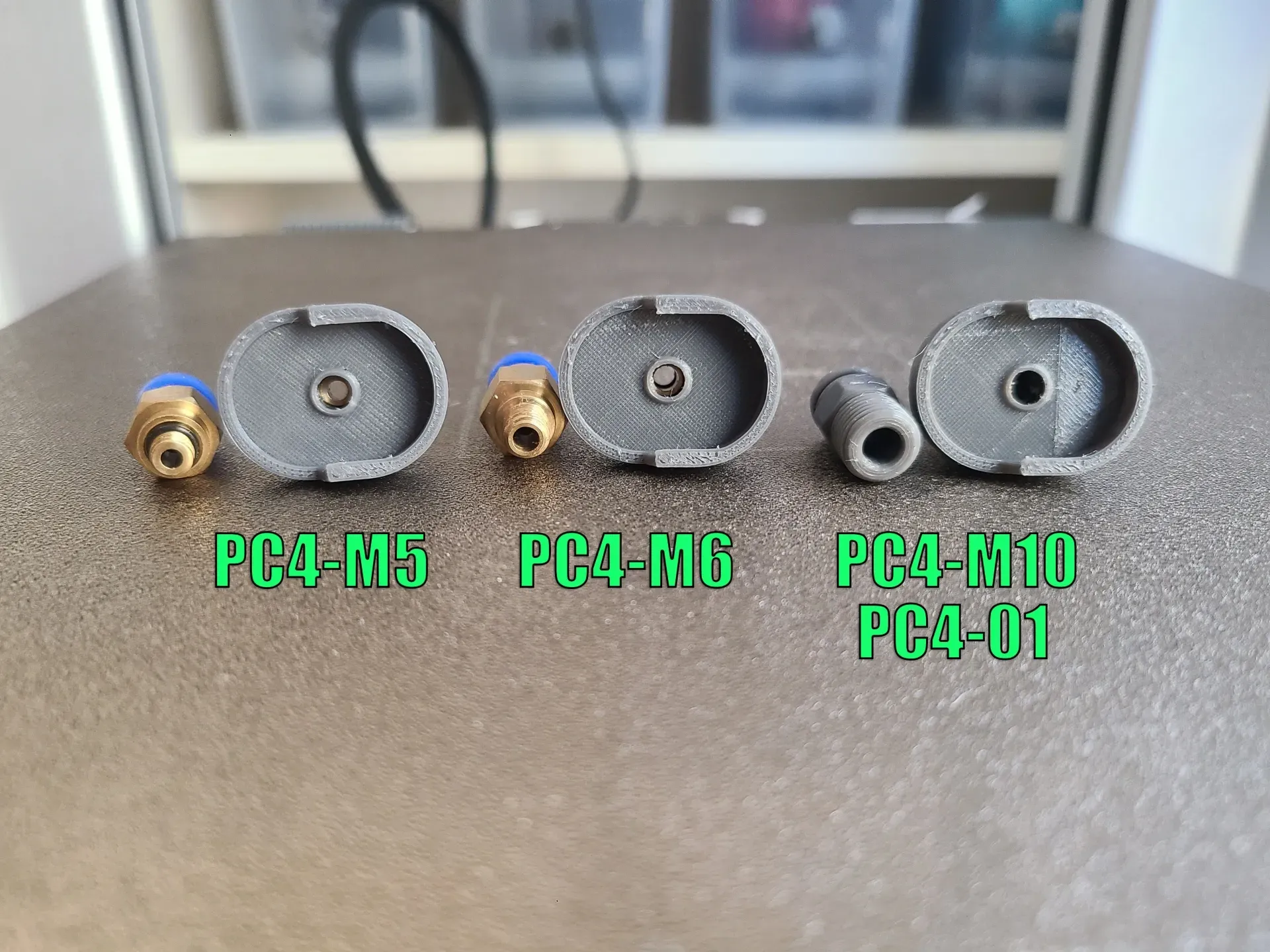

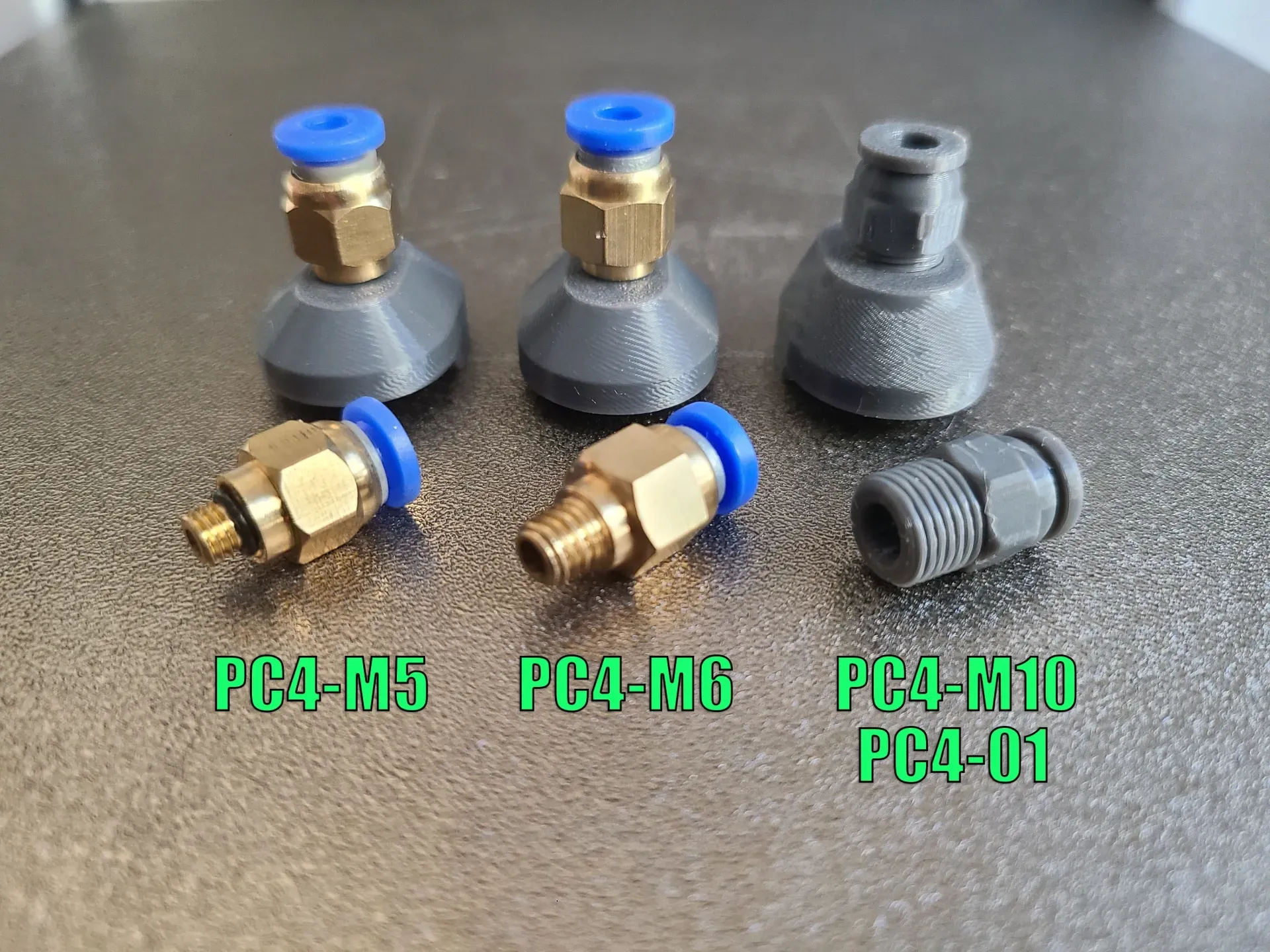

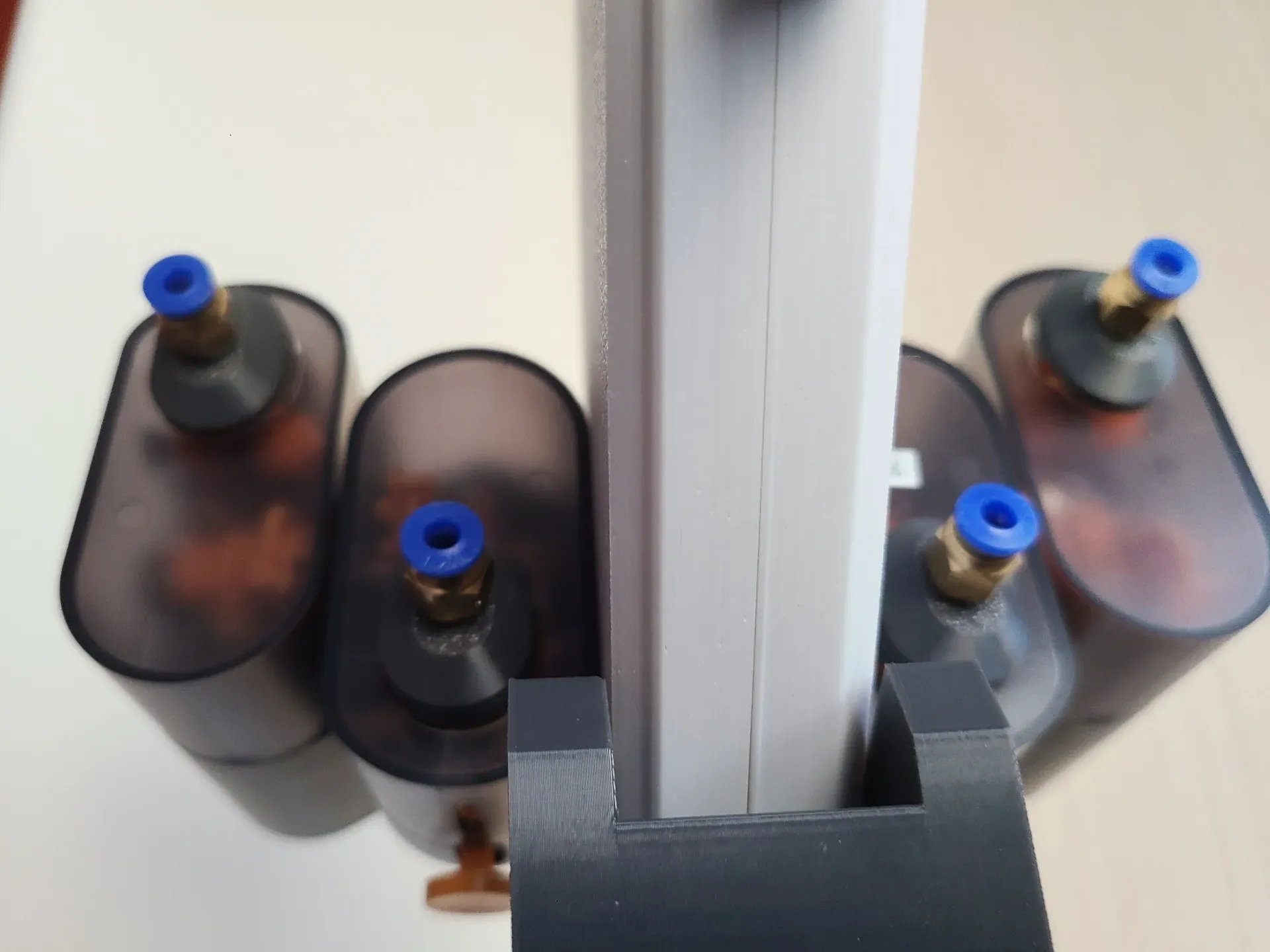

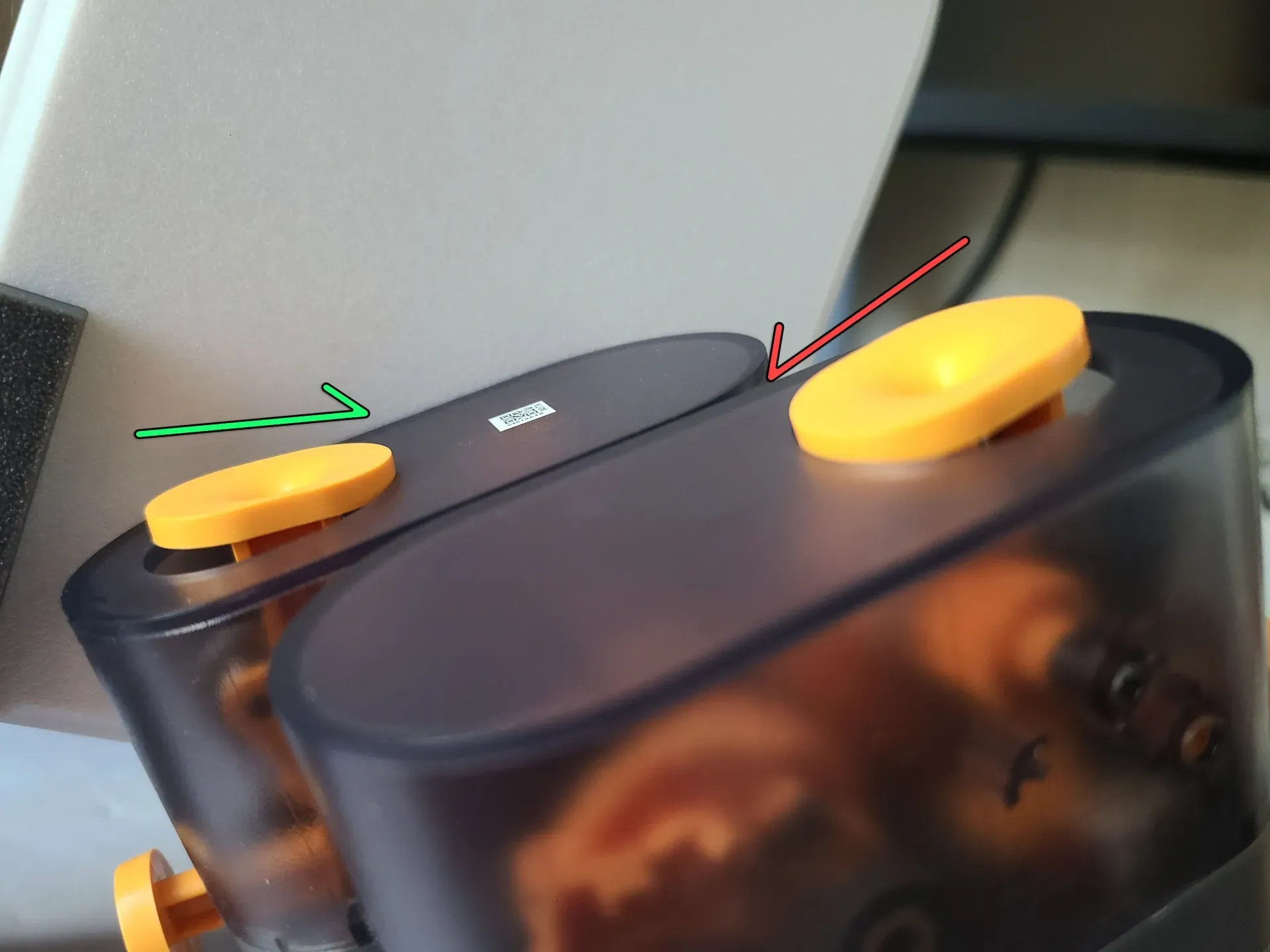

I heard that the AMS lite's feed inlet wears down over time. Since I haven't used mine for long, I haven't experienced this yet, but I have had issues with inconsistent feeding. In combination with my other design, a self-tightening 4mm PTFE/Teflon tube mount for rice bucket dryer (no hardware needed) from RH - MakerWorld, this provides excellent material feeding for the AMS lite, provided you have a rice bucket. I've seen other designs online that mentioned the clips breaking, but I've never experienced this unless the installation is improper. When installed correctly, it fits snugly against the AMS lite's feed inlet, much like a well-fitting shoe, and is compatible with PC4-M5, PC4-M6, and PC4-M10 pneumatic connectors.
Installation Instructions (GIF animation at the bottom, may take a moment to load):

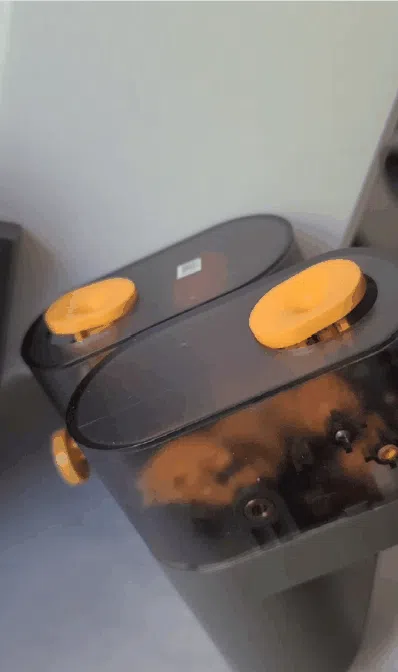

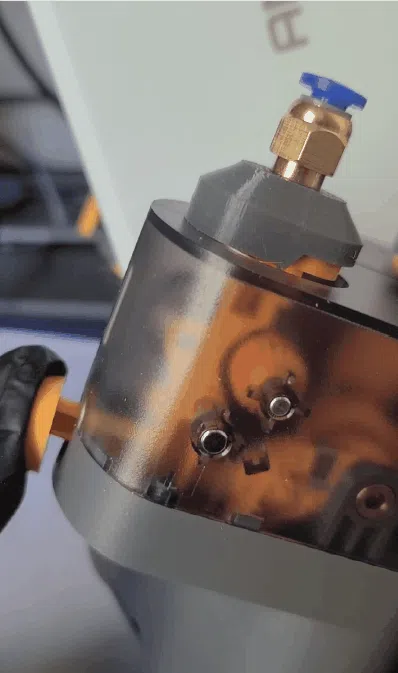

Installation GIF:

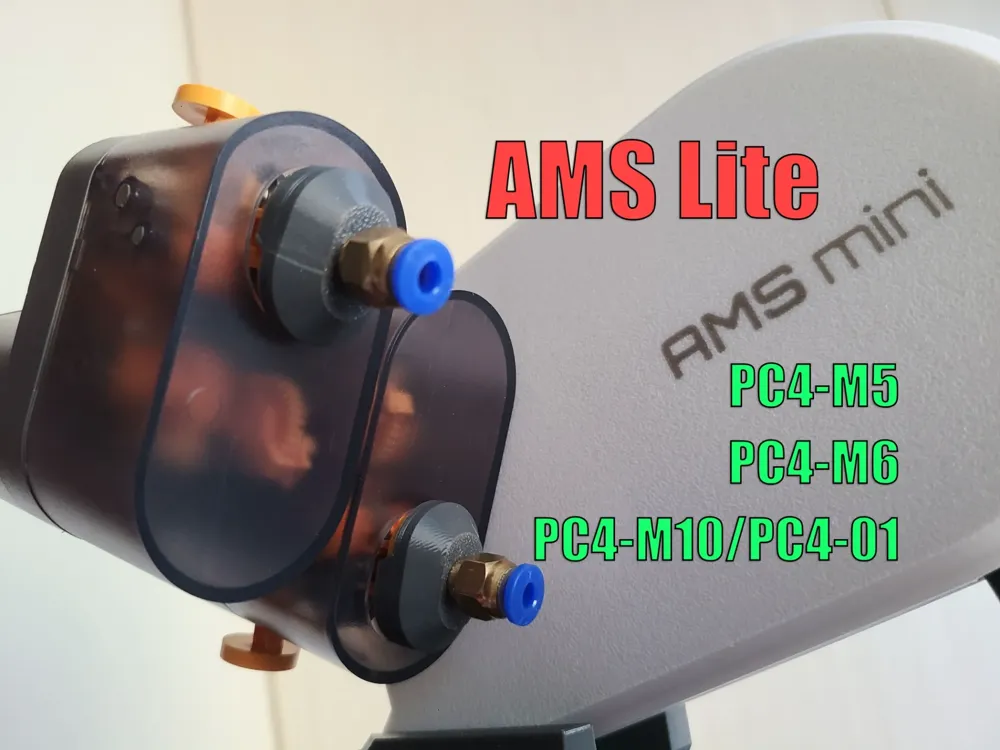

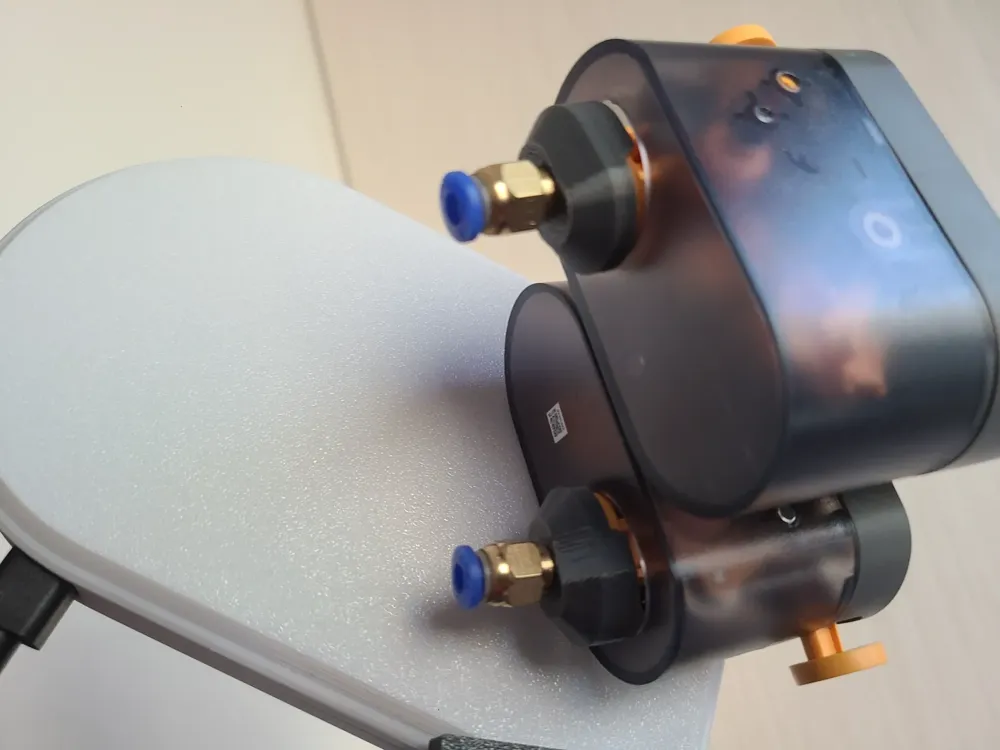

Finished Product:
