CAVE CV1000 Case & Protective Shell

Spent your last pennies on expensive games you suck at? Want to protect your ‘investment’. Here's a cheap, easy to print protective shell for you CAVE CV1000 PCBs.

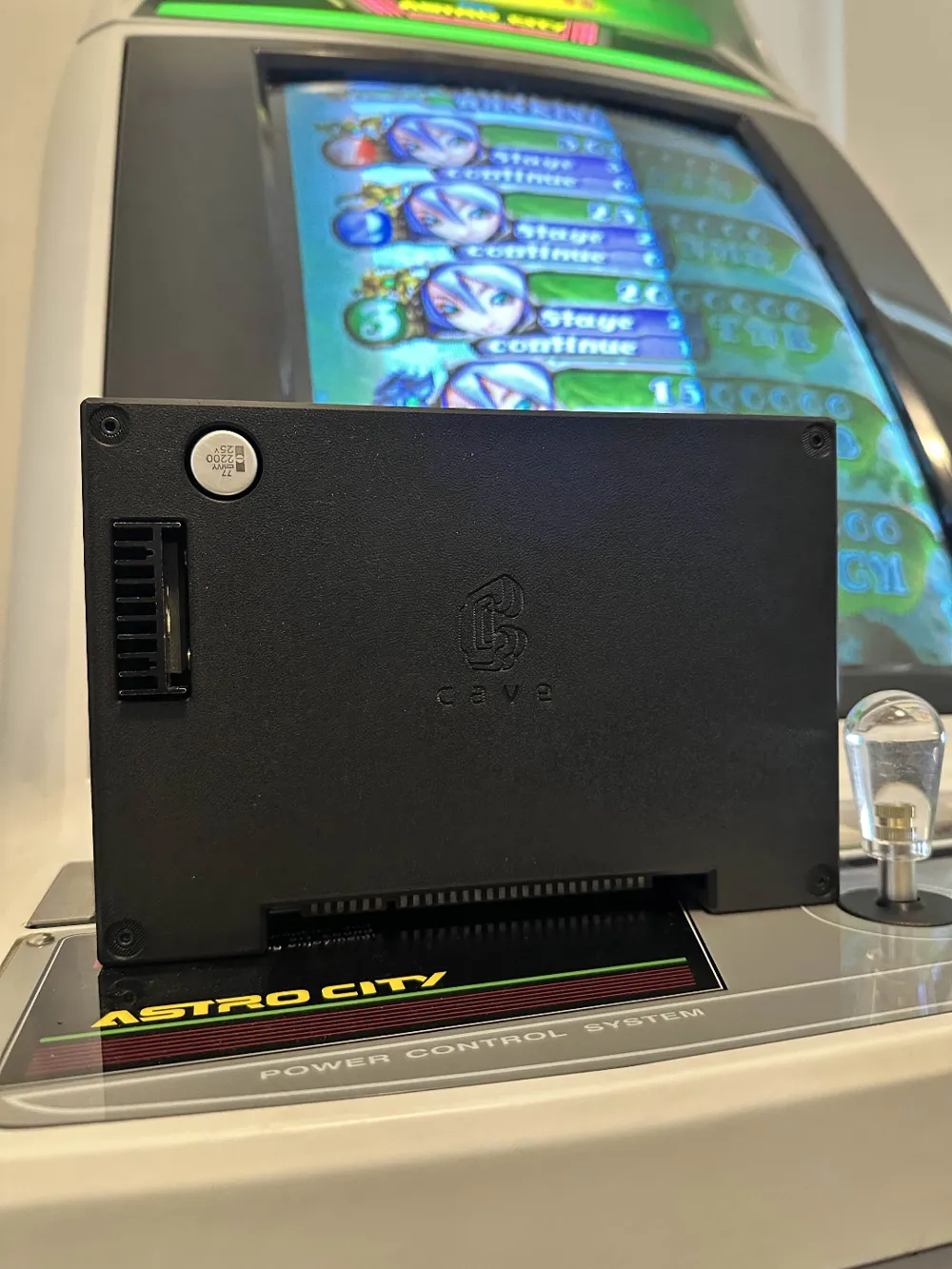

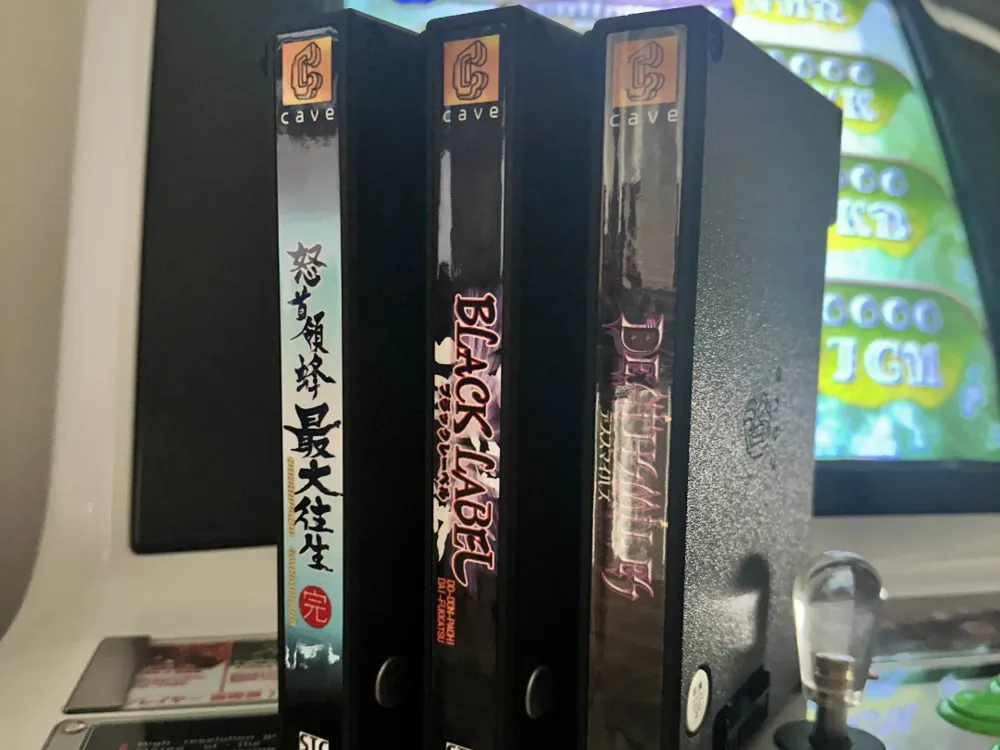

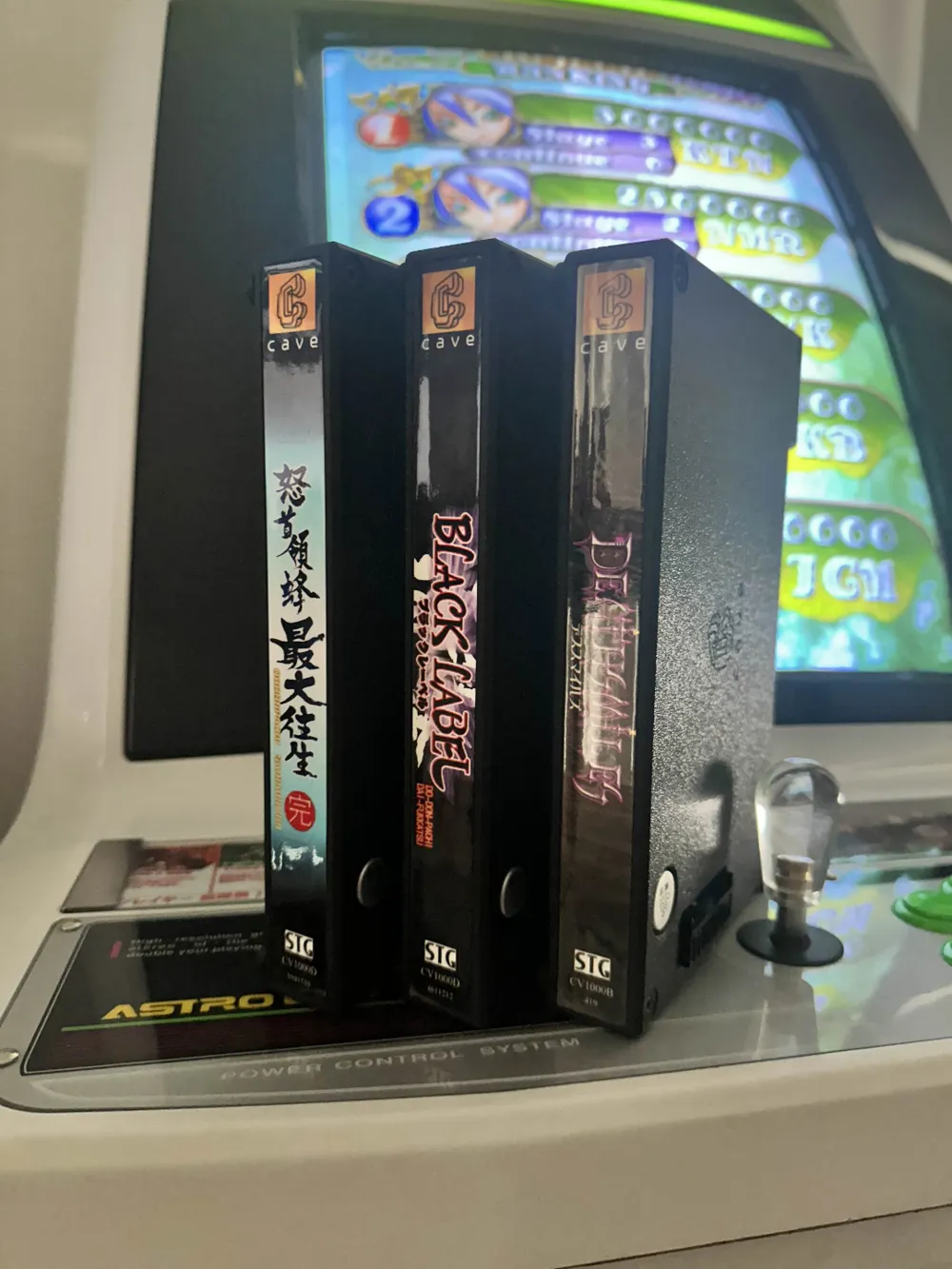

This shell is designed to print with no supports at 0.15mm. if printed correctly you should be able to push the bolts for assembly through the thin layer above their hole. Pictured shells are printed in bambu labs matte black PLA.


TO SEE ALL VARIATIONS OF THE MODEL, PLEASE SELECT “DOWNLOADS STL/CAD FILES” FROM THE DROPDOWN

Additional models:

• Vented case for those concerned about cooling
• Cab mount feet for use in a arcade cabinet

Requirements:

• Printed Top shell
• Printed Bottom Shell

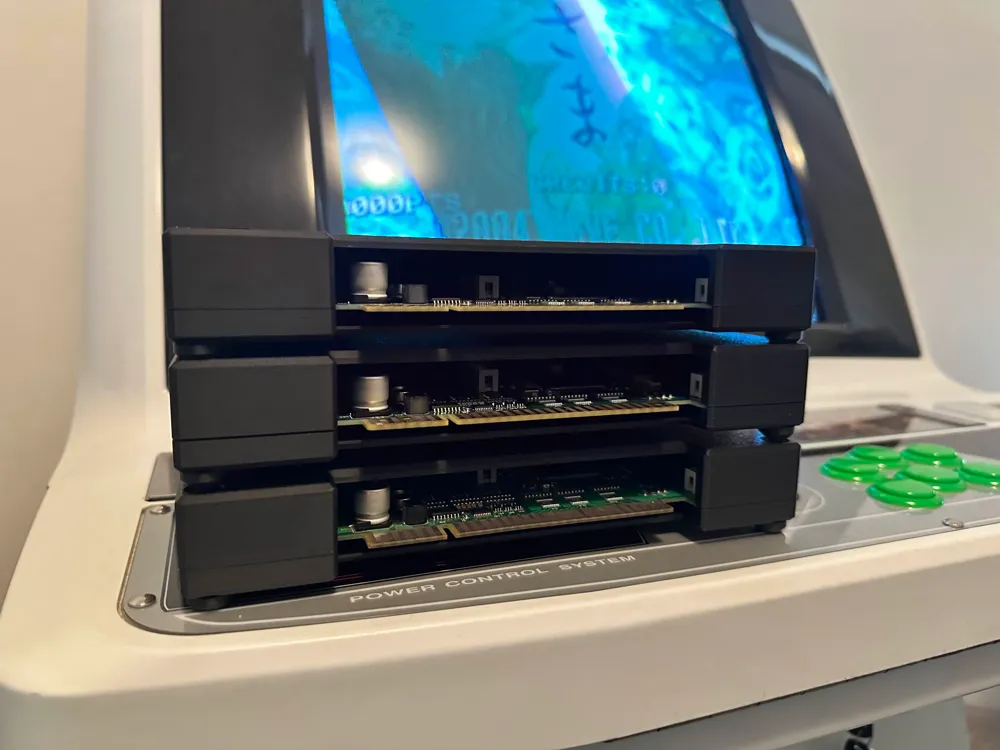

• 4 Printed feet (optional)
• 30mm m3 Cap head hex bolts
  • or optionally  heat set m3 nuts installed into the inside the top shell (FYI tolerances werent really made for this but it does work), and shorter m3 bolts installed through the bottom of the feet
• M3 nuts
