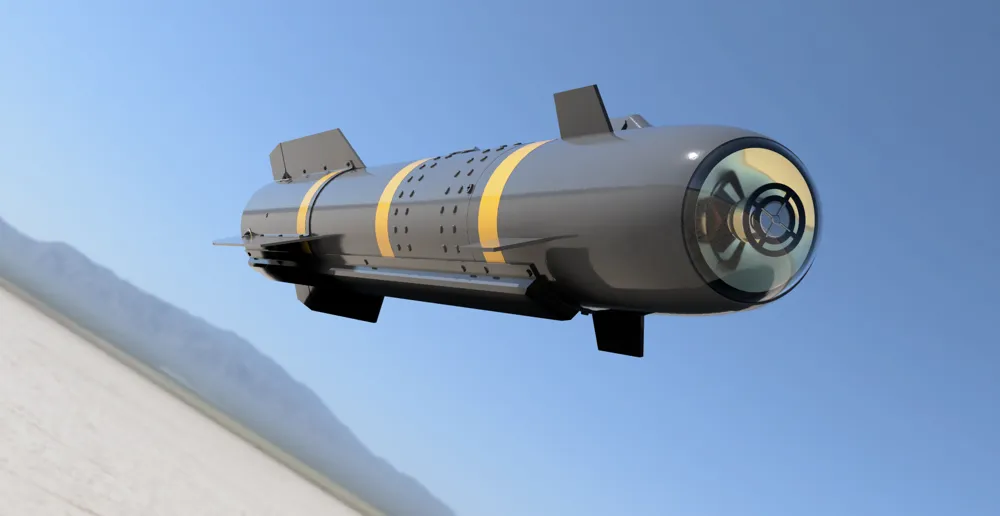

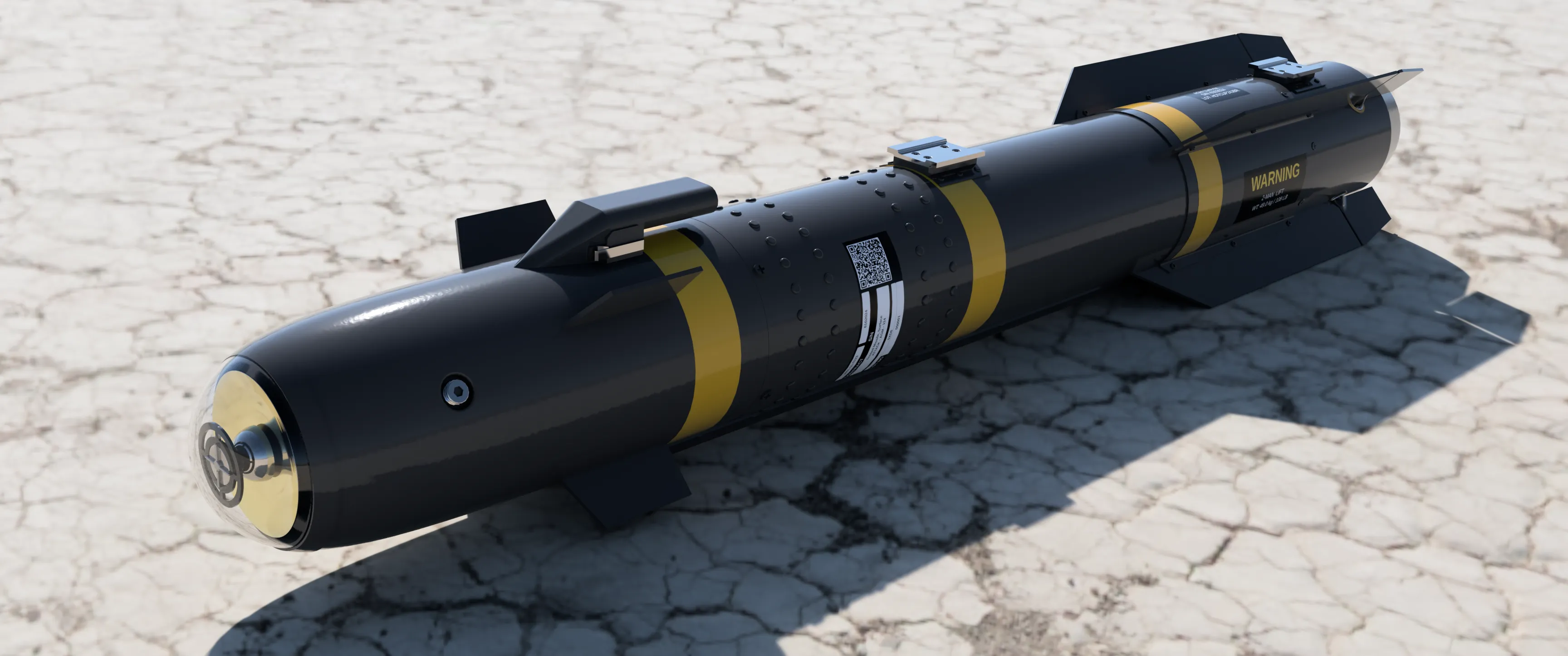

AGM-114 Hellfire Missile - Full size PROP
Print Profile(2)
Bill of Materials
Description

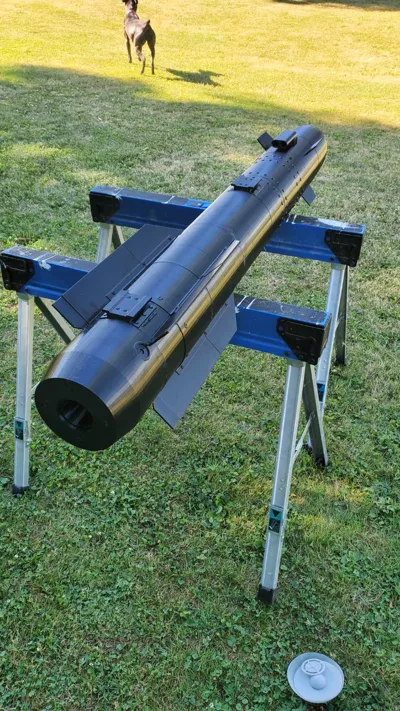

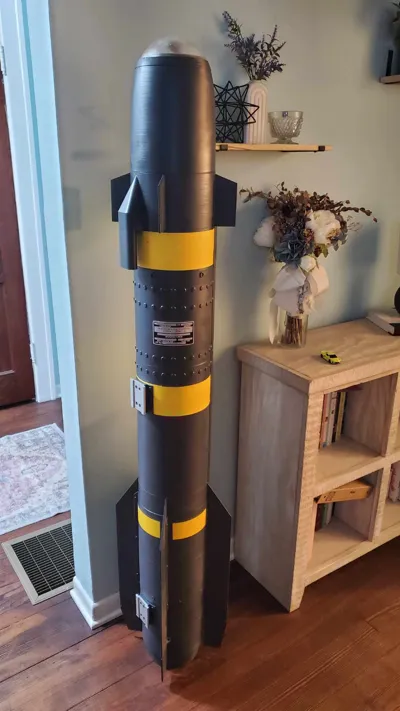

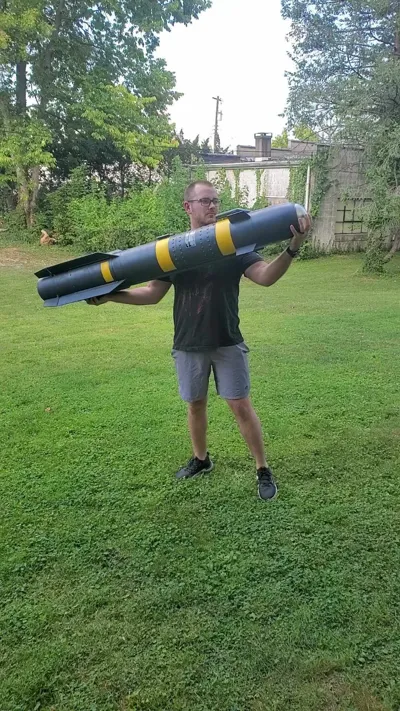

Full size missile is approximately 5.3 ft long. Scale accordingly as desired.
Boost Me (for free)
I greatly appreciate boosts! They help me continue to work great models such as this one.
Recommended print specs. For best results, sand all PTEG with 120 grit sandpaper, give it a couple coats of filler primer, sand more with 220 grit, and paint with your color of choice.
Note: if you plan on using this for anything other than display, I strongly suggest beefing up my recommendations.
| File name | Material | Notes |
| Nose | Clear resin | After printing, sand with 600 grit sandpaper. Spray with gloss clear coat for the transparent effect. After assembling Seeker_Dish and Seeker_Main, glue this to Missile_1. This should be your last step. |
| Seeker_Dish | resin | Print the dish with supports on the convex side of the dish. The base of the dish is intended to be glued to Missile_1. Sand with 600 grit sandpaper and paint with primer and gold. |
| Seeker_Main | resin | Similar to Seeker_Dish, print oriented in such a way that supports are touching bottom areas that will not be seen. Sand, prime, and paint with a dark grey |
| Missile_1 | PTEG | 3 walls, 20% lightning infill, normal supports |
| Missile_2 | PTEG | 3 walls, 20% lightning infill, normal supports |
| Missile_3 | PTEG | 3 walls, 20% lightning infill, no supports |
| Missile_4 | PTEG | 3 walls, 20% lightning infill, no supports |
| Missile_5 | PTEG | 3 walls, 20% lightning infill, no supports |
| Missile_6 | PTEG | 3 walls, 20% lightning infill, no supports |
| Missile_7 | PTEG | 3 walls, 20% lightning infill, normal supports. This is the largest piece |
| Missile_8 | PTEG | 3 walls, 40% lightning infill, infill line multiplier: 2, normal supports. After post-processing, insert 10x3mm neodymium magnets into the 4 cavities that attach themselves to the 4x Guidance_Fin's. |
| Guidance_Fin | PTEG | Print 4x of these. After post-processing, insert a 10x3mm neodymium magnets into the cavity that comes in contact with Missile_8. |
