CNC Alignment Pin - Single Peg
Print Profile(1)
Description

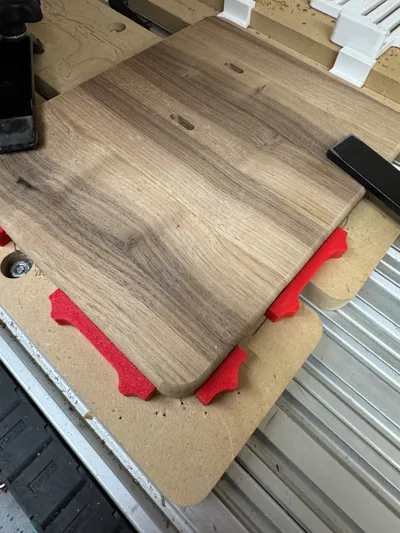

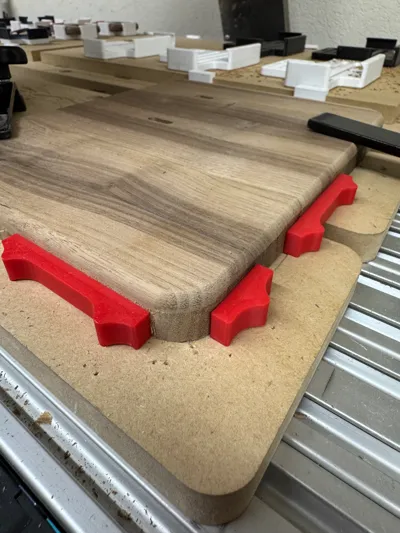

Keep your workpiece aligned with these removable CNC alignment pins. Take a look at my profile for other configurations.

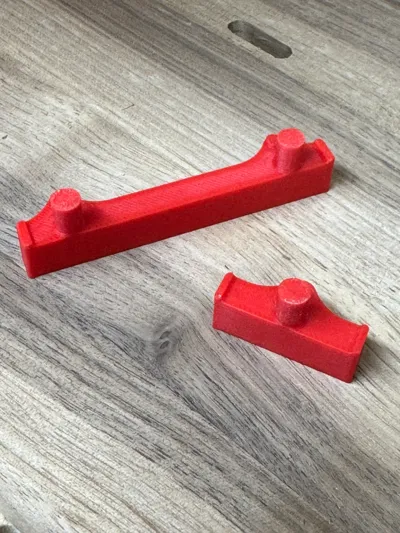

Peg is .25" in diameter. Peg depth is .31" (though I would go deeper if possible to leave a little room for sawdust without vacuuming every time you swap them.) Suggest placing holes 2" on center to be compatible with other pins in my collection.

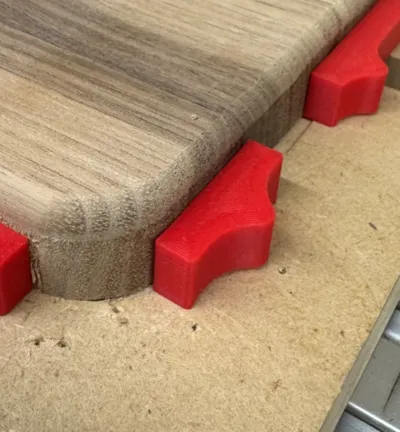

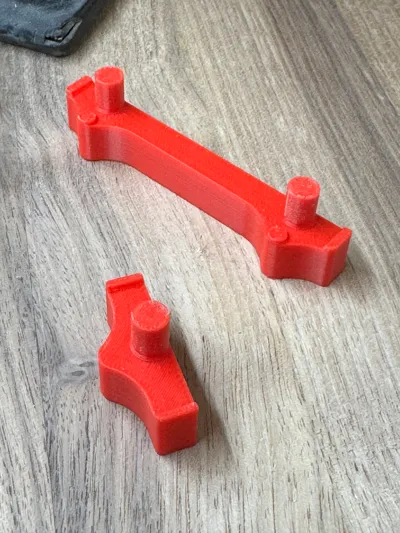

Space under the pins allows for sawdust to move under and help keep proper alignment.
**PLEASE REMEMBER that machine tolerances (BOTH 3D PRINTERS AND CNC) will vary and it is highly suggested to run test holes prior to final placement in your spoilboard.
