X/P HEX Door Handle
Print Profile(1)
Description

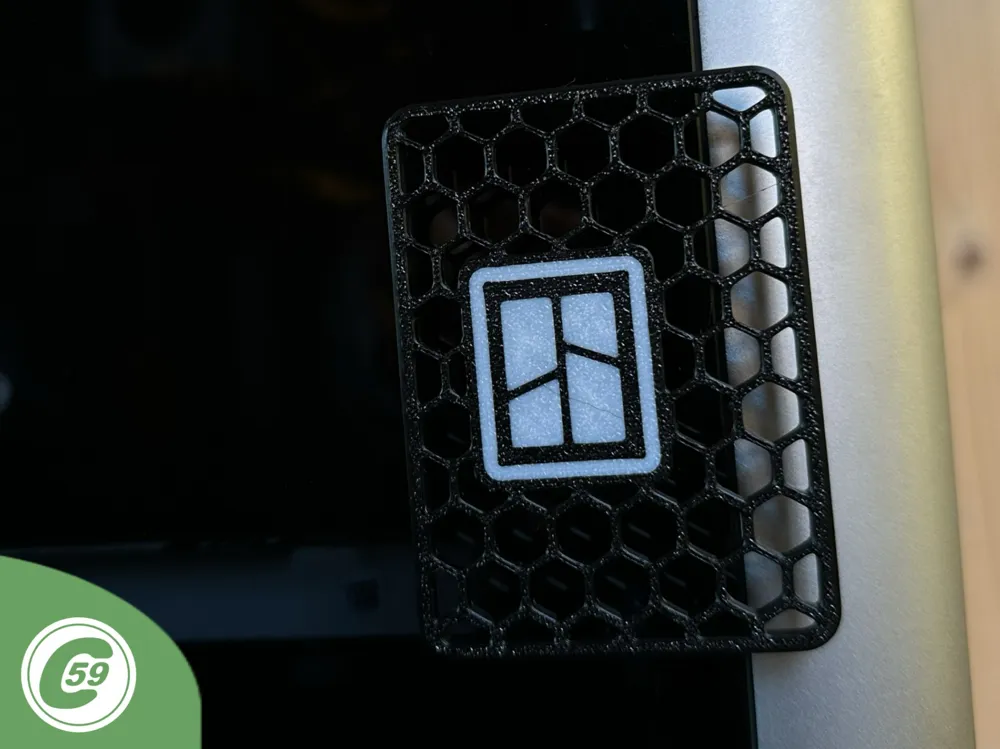

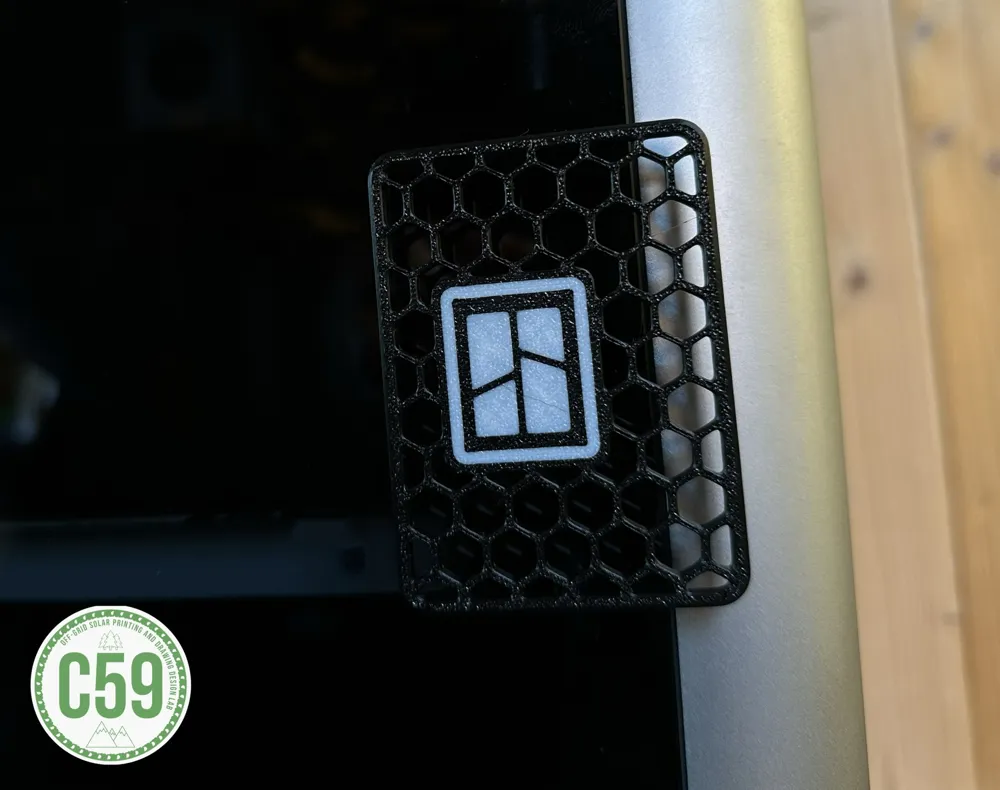

X/P Series Door Hex Handle XPHH
Oversized HEX Door Handle
I designed this handle to replace the original small lever, offering more space for your fingers and multiple ways to pull the door. Inspired by the original, it uses an almost identical mount but features an oversized paddle-style grip for easier and more convenient opening.
The design includes both a sleek HEX pattern and the 'Bambu' logo, combining style and functionality to transform the look and feel of your printer!
Installation Instructions
- Remove the Original Handle:
- Loosen the two hex screws inside the door to detach the original handle.
- Install the New Handle:
- Align the holes of the new handle with the mount.
- Tighten both screws into the self-threading holes of the new handle.
- Be cautious not to overtighten, as you are working with glass.
- Check Fitment:
- A slight up-and-down wiggle in the paddle is normal when applying force. This is due to the rubber mounting of the screws.
Enjoy the enhanced functionality and comfort of your new oversized door handle!
Install Action HD Video:

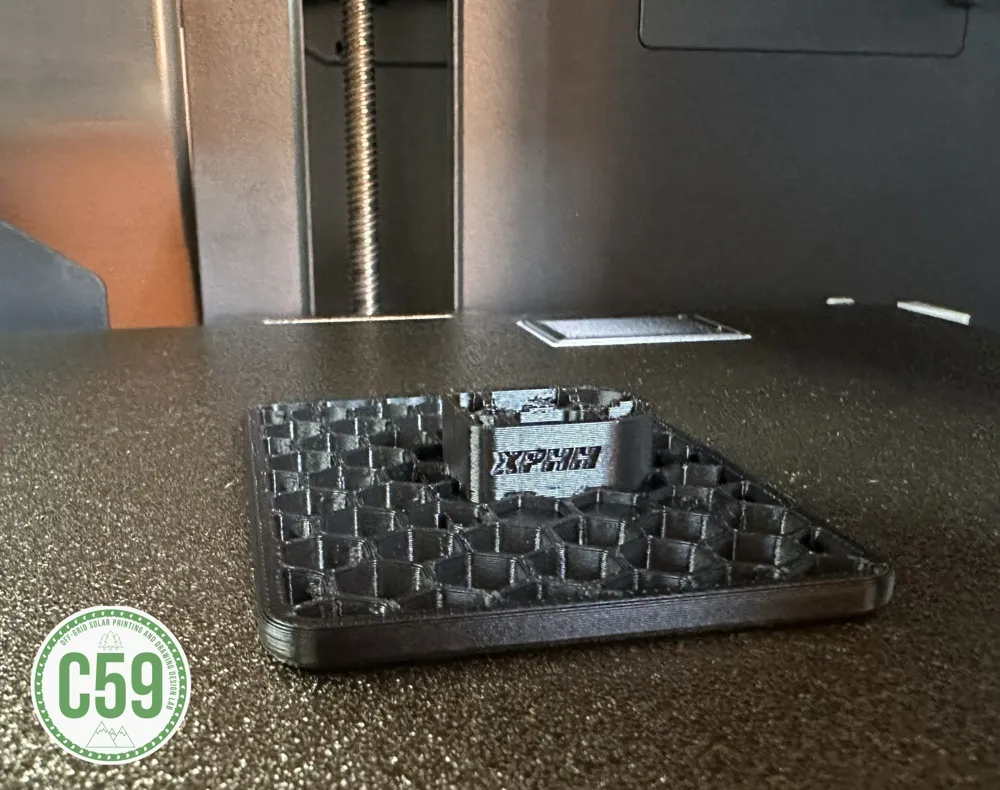

V1.0 Specifications
Material: Whatever you like !
Printer Settings:
- Profile: Standard
- Layer Height: 0.20 mm
- Mode: CERTIFIED LUDICROUS
- Infill: 100%
- Walls: 2
- Bottom Layers: 3
- Top Layers: 5
Printing Details:
- Supports: Not required
- Print Time: 00:50:43
- Filament Usage: 0.49 oz
- Estimated Cost: ~$0.35 (based on a $26 PETG spool)
Boost Me (for free)
🚀 Boost Your Project! 🚀
If you love what I'm working on, hit the Boost button! Your support helps me continue to create, improve, and share even more exciting designs. Thank you for being part of this journey!
Enjoy your printing journey, and remember—keep your fingers away from the poop chute, she's angry!
"I’ll be sure to keep you updated with any future developments. If you come across any issues or need assistance, don’t hesitate to reach out—I’m here to help!"
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
Current ver.1.0_12/22/2024
© 2025 C59 Design Lab. All rights reserved.
