Levitation Energy Reactor

I wanted to tell you that your messages have helped me improve, don't hesitate to write to me for anything. I just ask you to read my descriptions carefully especially if you have doubts, thank you :)

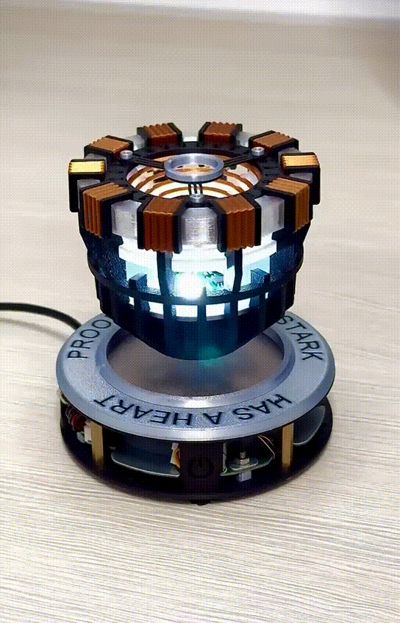

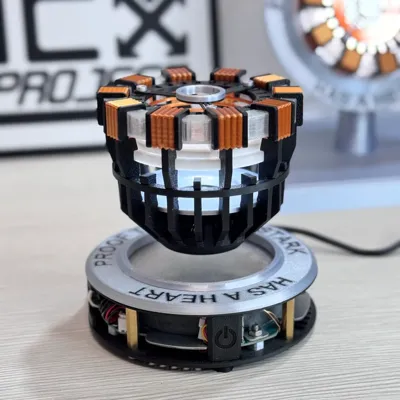

I created the Magnetic Levitation Arc Reactor, as always very simple to print and assemble.

After the success of my first Arc Reactor I decided to design a magnetic levitation one.

COLORS USED: PDF ATTACHMENT

-Black

-White

-Silver (grey)

-Copper

-Transparent

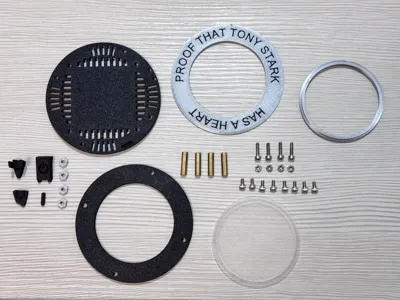

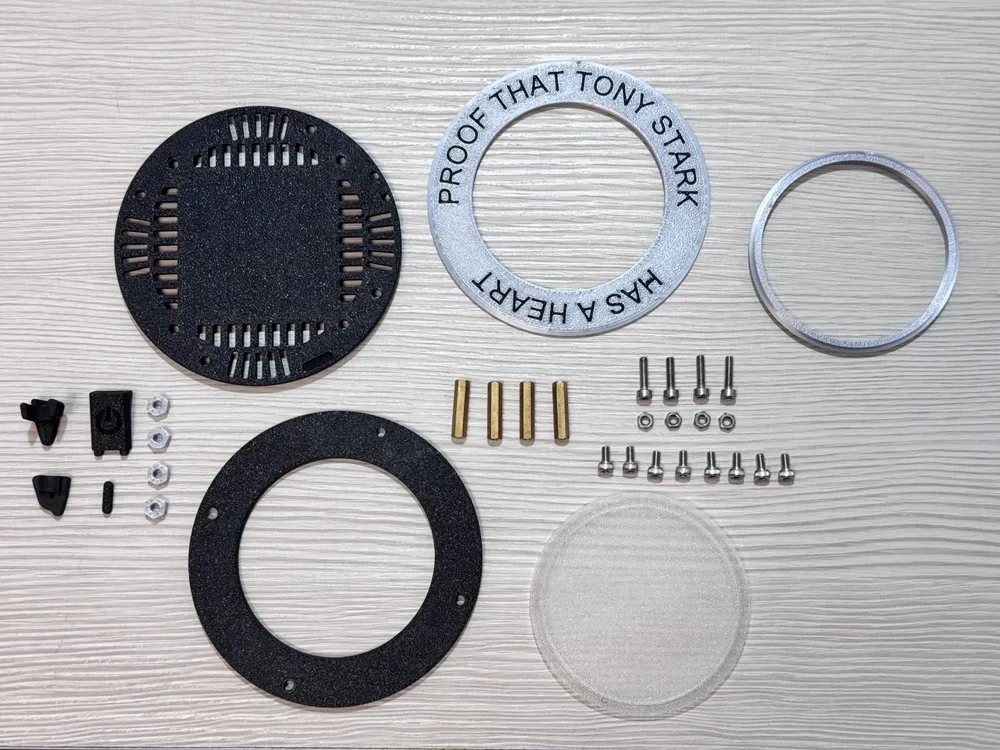

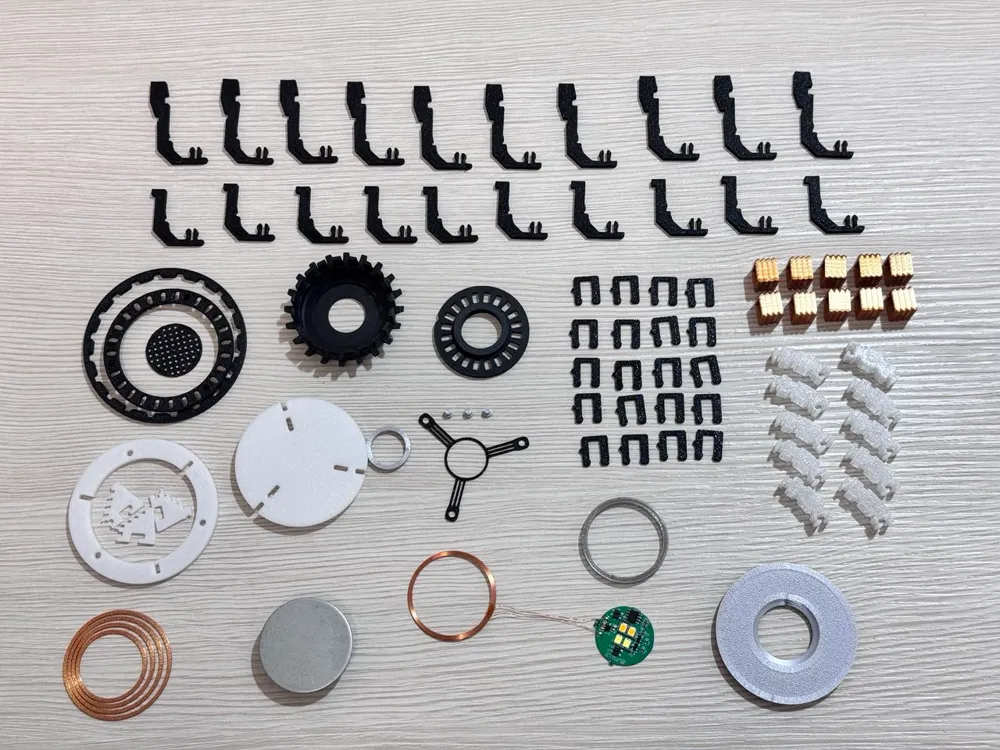

ACCESSORIES KIT:

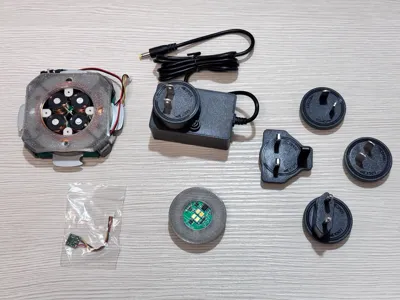

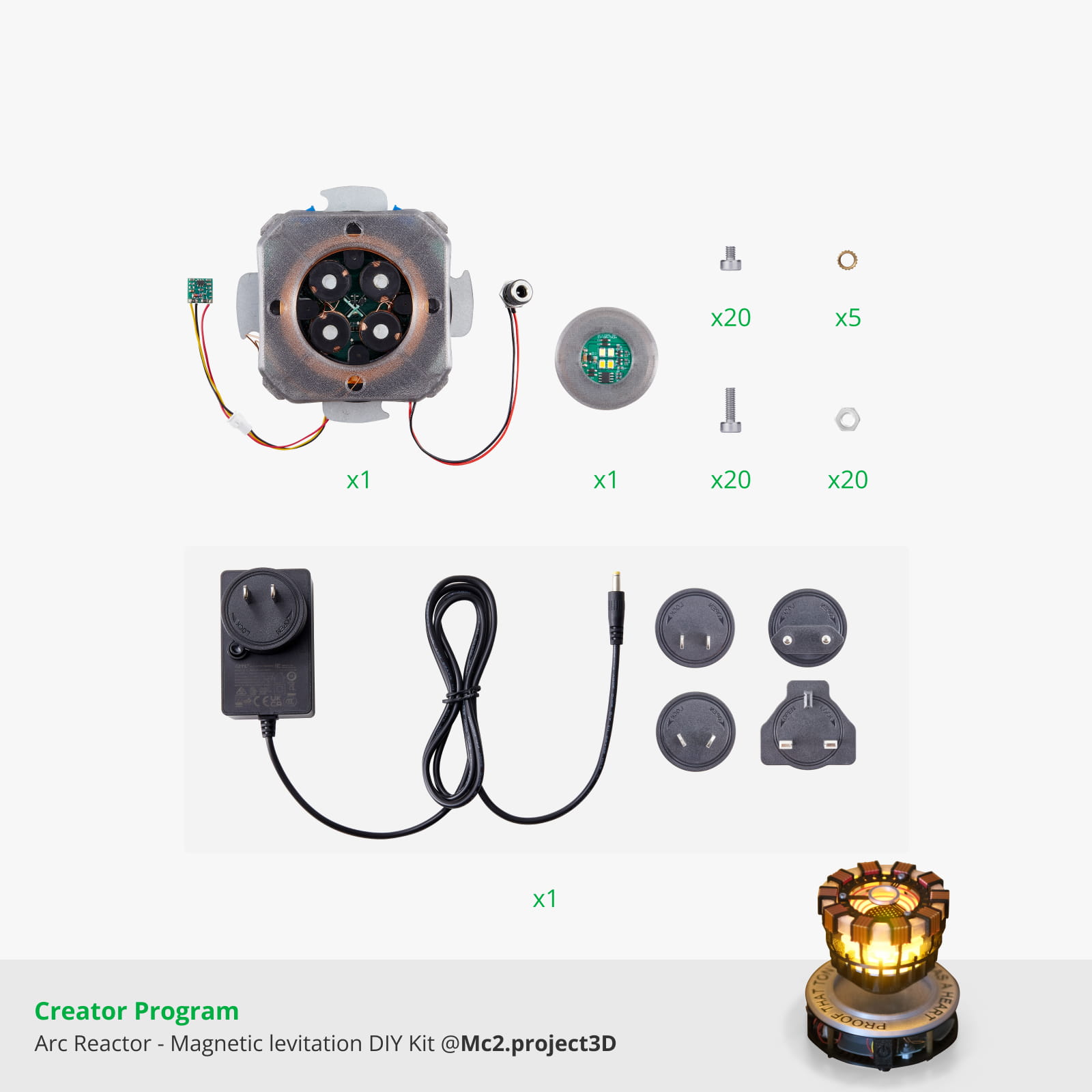

-ZC008 Magnetic Levitation (1 piece) only use electrical parts. Note: I reused a component printed by them, you'll see it in the reactor video

-Screw M3x12 (4 pieces) --- (/kit AA038)

-Screw M3x5 (8 pieces) --- (/kit AA158)

-Nut M3 (4 pieces) --- (/kit AB005)

-Duble-pass M3 (4 pieces) --- (/kit AD019)

SETTINGS:
-Nozzle 0.4mm

-Layer height 0.2mm
-no supports

-walls (I modified the .3mf to have a better finish on the prints, creating a single wall on the first layer)

DESIGNED WITH FUSION 360:

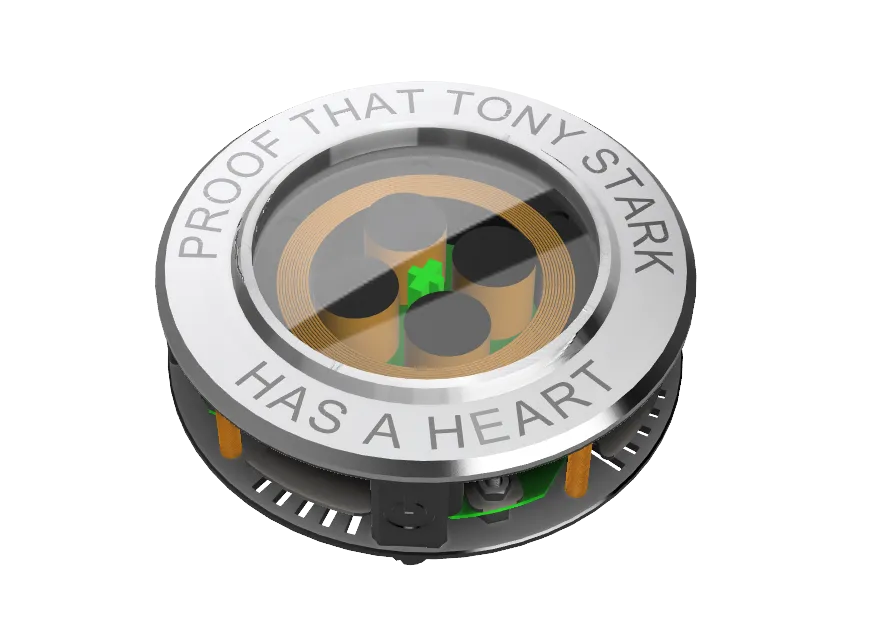

BASE

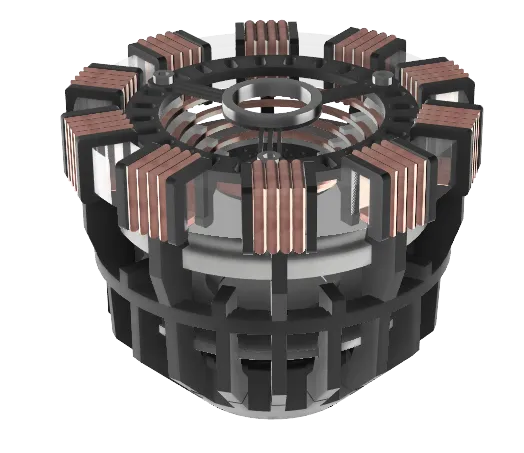

REACTOR

BASE ASSEMBLY INSTRUCTIONS:

REACTOR ASSEMBLY INSTRUCTIONS:

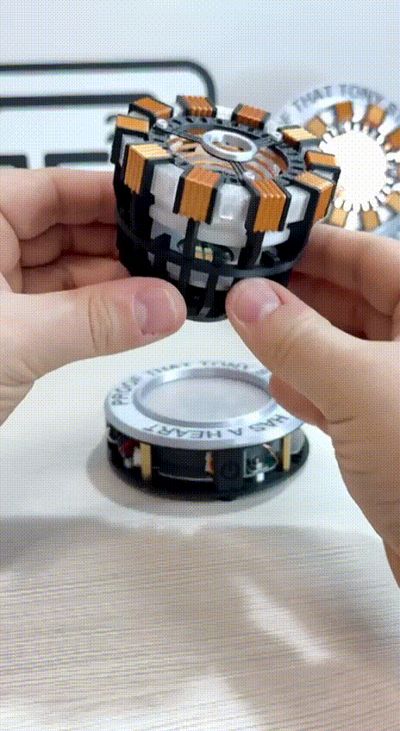

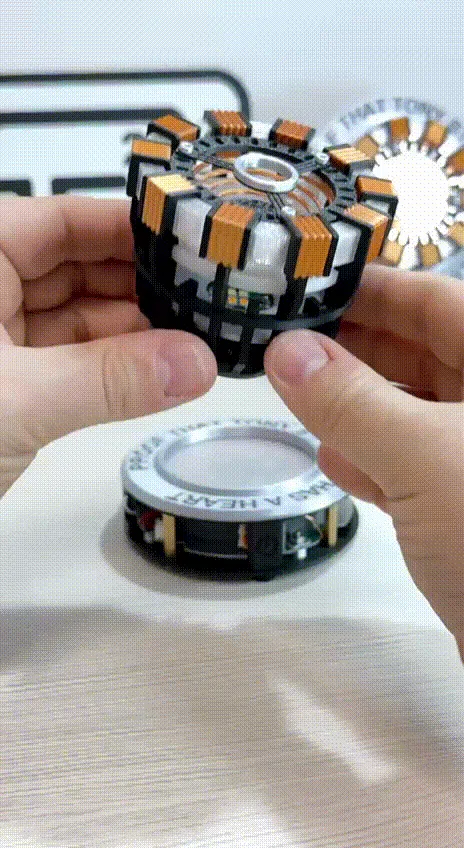

PLACE THE REACTOR:

I initially didn't know how to use the kit well, but Bambu Lab offers some great descriptions.

It may help you to know these things:

-use a little patience
-If you fail multiple times, the device will overheat and will not work the placement for the memento. Allow the base to cool.

-with a little practice it will be easy for you to position the reactor
- slowly approach the rector, don't let go until you find the center, if you hear a strange noise it means that you are almost in the correct position

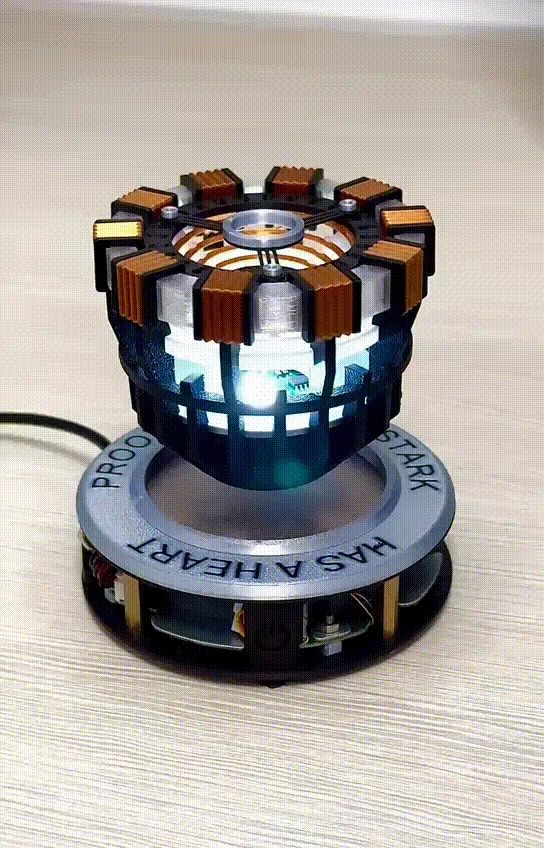

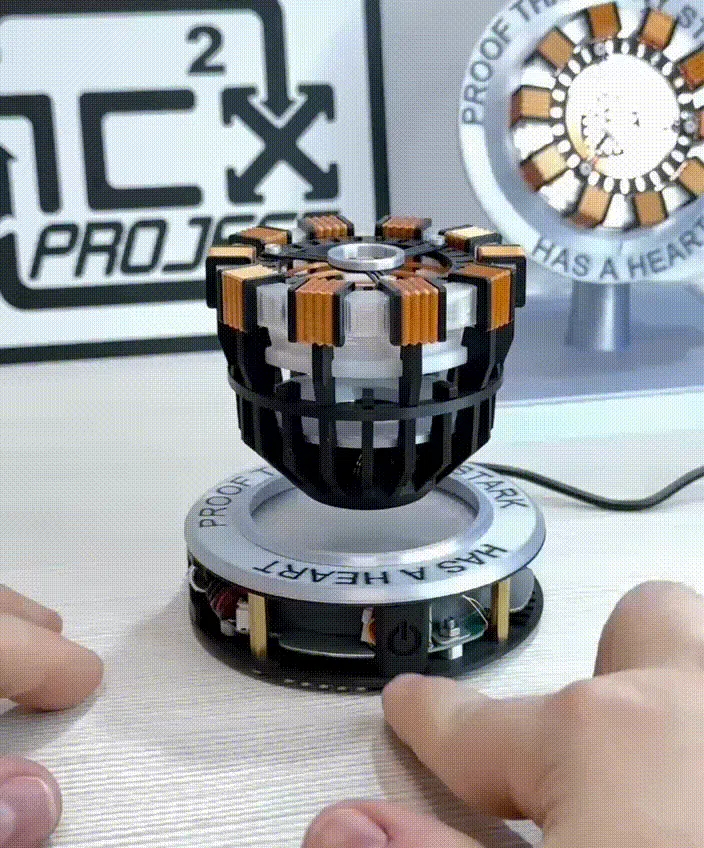

OPERATION:
The touch button will allow you to use 4 step reverses

1-cold light

2-warm light

3-cold light / warm light

4-off light

OTHER DETAILS:

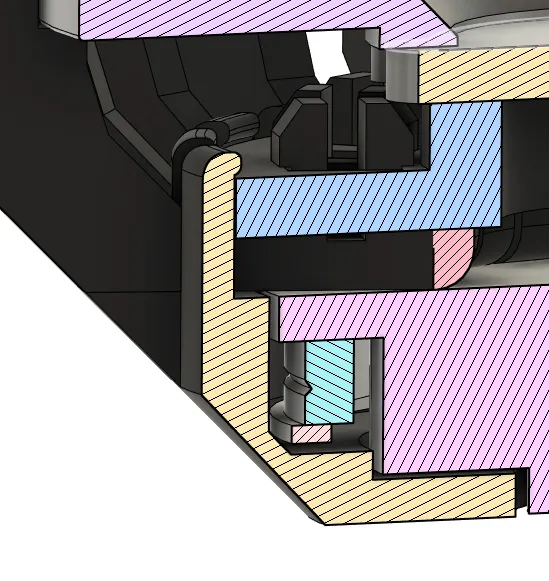

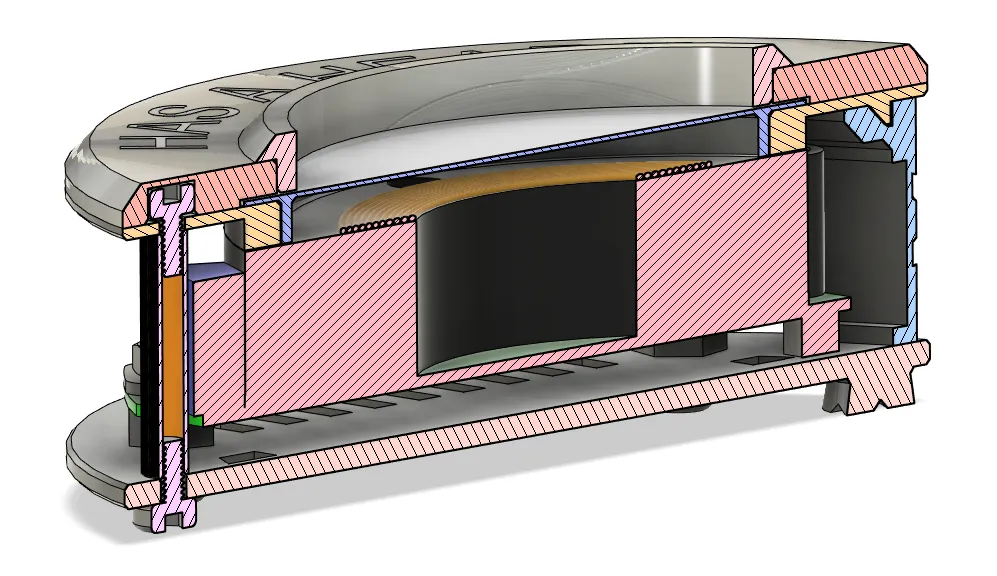

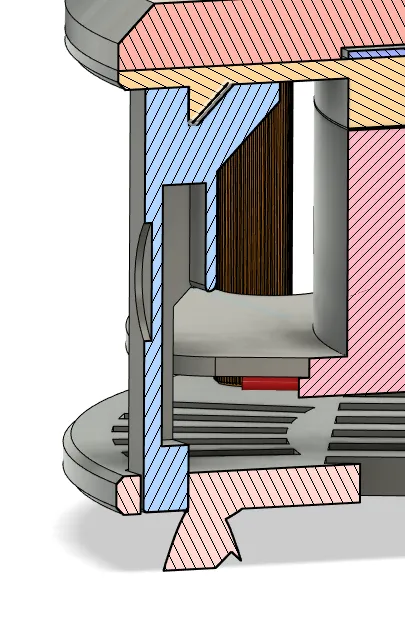

SECTIONED BASE

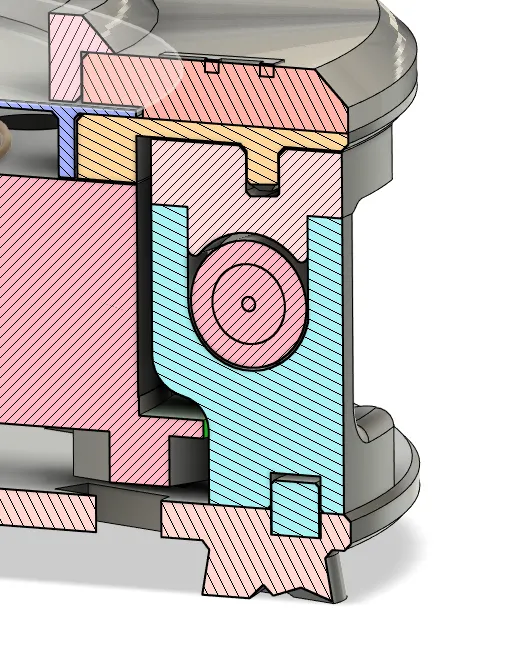

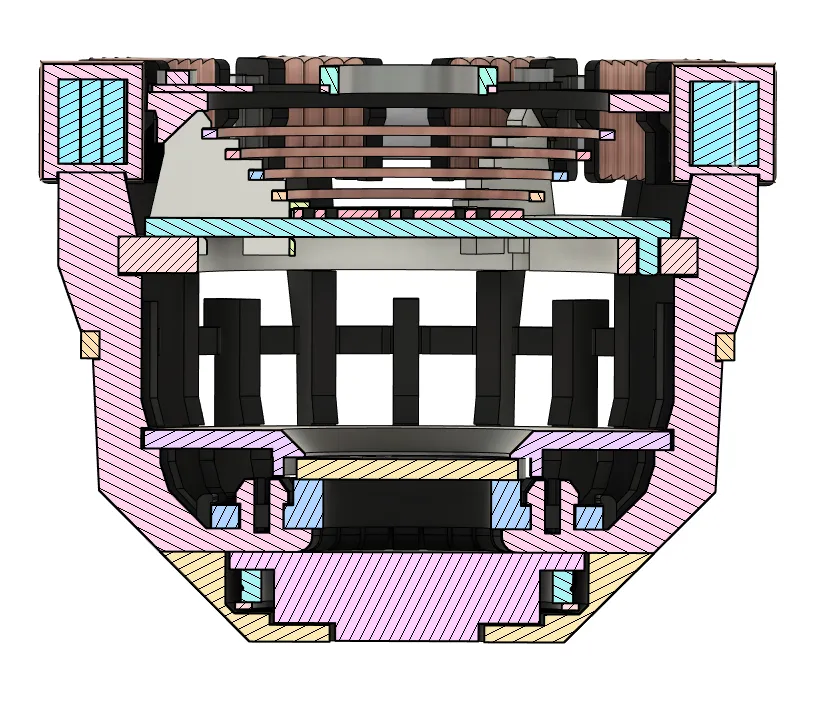

REATOR SECTIONED

POWER CONNECTOR

TOUCH ON-OFF SEAT

REACTOR SITE

Happy printing, if you like follow me for other projects.

See you next time from MC2.project3D
