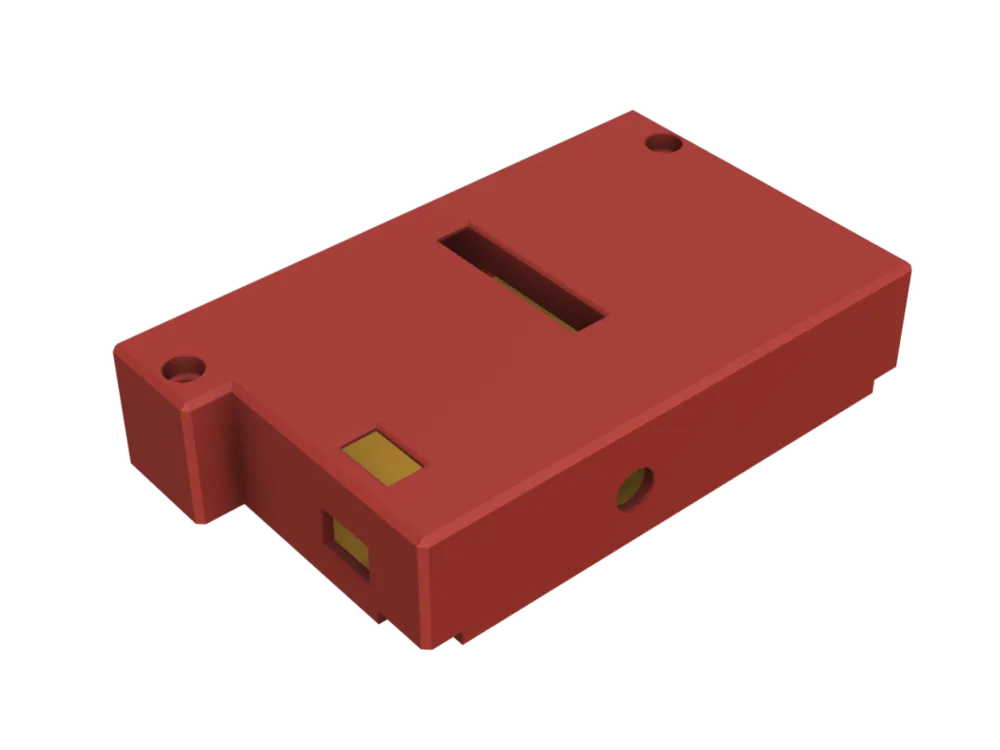

BL Led Controller Extended Plus Mountable Case

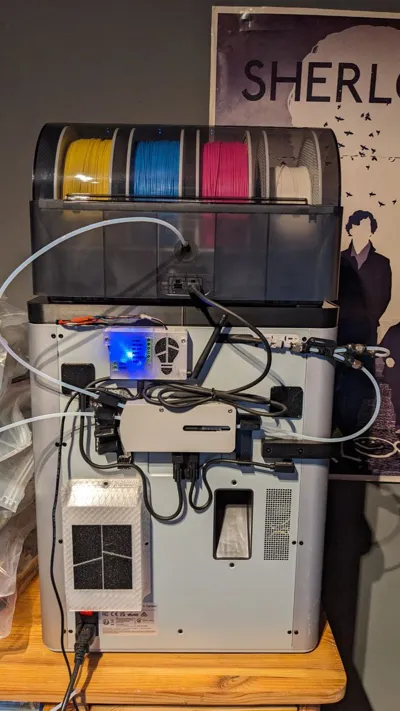

I wanted to mount my BLLED Controller on the back of my X1C but most of the designs I found are using magnets or wasn't for the extended plus version of the BLLED. So I made my own and flipped the controller such that the barrel plug is pointing downwards.

Materials

• I printed mine in PETG from Sunlu but it should be printable for one filament you want.
• 2 x M3x25 screws

CAUTION

• On the back one screw has to be tapped first before mounting the case

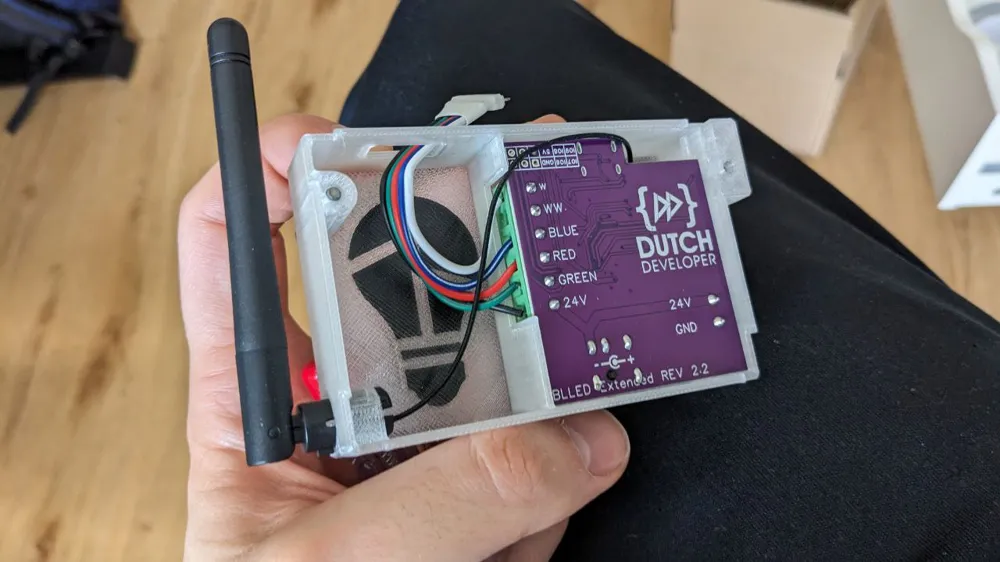

• The antenna cable was routed around the back of the ESP (look at images)
• Screw in the LED cables before putting the ESP into the case (thats the weak point of the design)
• Make sure that the cables to the LEDs are long enough

Models in Pictures

• (AMS Hub Organizer) https://makerworld.com/en/models/542919?from=search#profileId-460611
• (Chamber Fan Muffler) https://makerworld.com/en/models/495437#profileId-413696
• (Light Riser with Diffuser) https://makerworld.com/en/models/99746#profileId-106353
• (Side Spool Holder Foldable) https://www.printables.com/model/602020-bambu-x1-foldable-side-spool-holder-with-guide
• (PTFE Y-Splitter) https://www.printables.com/model/541678-bambu-ams-no-catch-y-splitter-pc4-m10

• (Belt Dust Cover) https://makerworld.com/en/models/718380#profileId-756048



Thanks for leaving a comment for ideas and ratings. 😊
