附件.pdf

cover

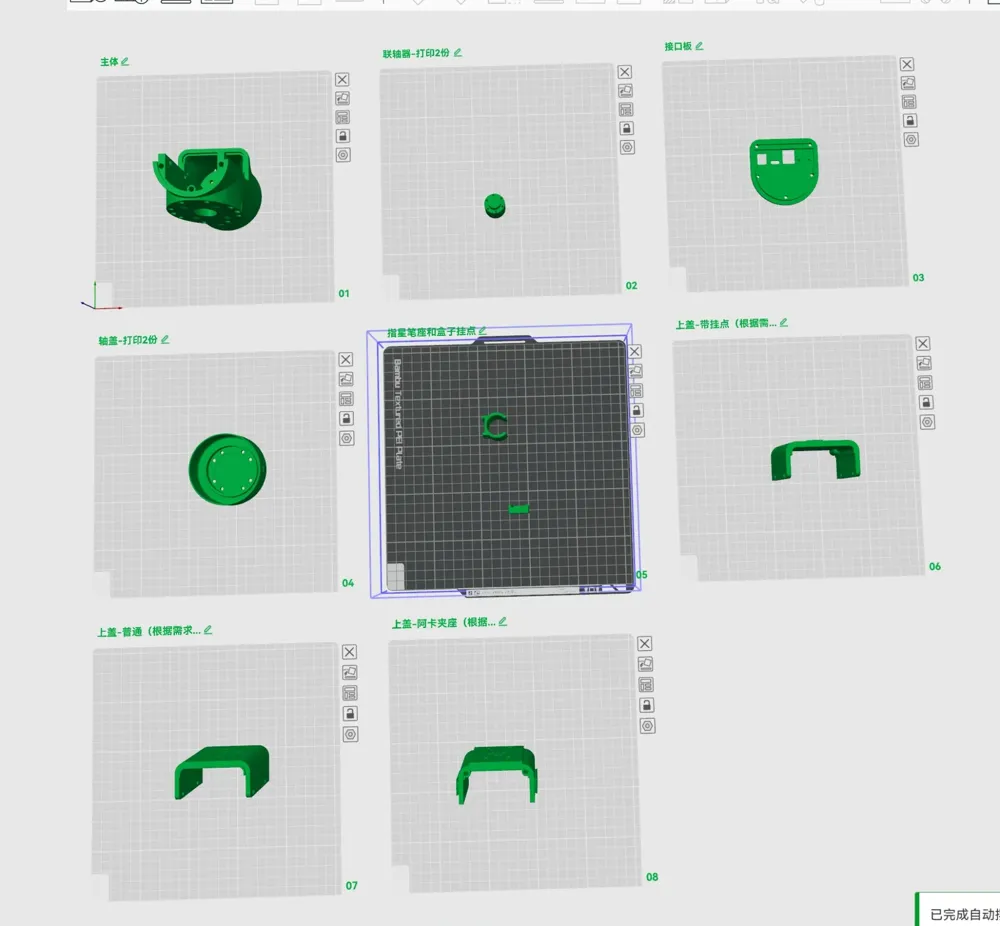

主体


联轴器-打印2份


接口板


轴盖-打印2份


指星笔座和盒子挂点


上盖-带挂点（根据需求选择打印）


上盖-普通（根据需求选择打印）


上盖-阿卡夹座（根据需求选择打印）












尽量使用碳纤增强材料，可以适当提高打印温度增加层间结合力

Employ carbon fiber reinforced materials whenever possible, and consider slightly increasing the printing temperature to enhance interlayer adhesion

0.2mm layer height, 8 walls, 100% infill

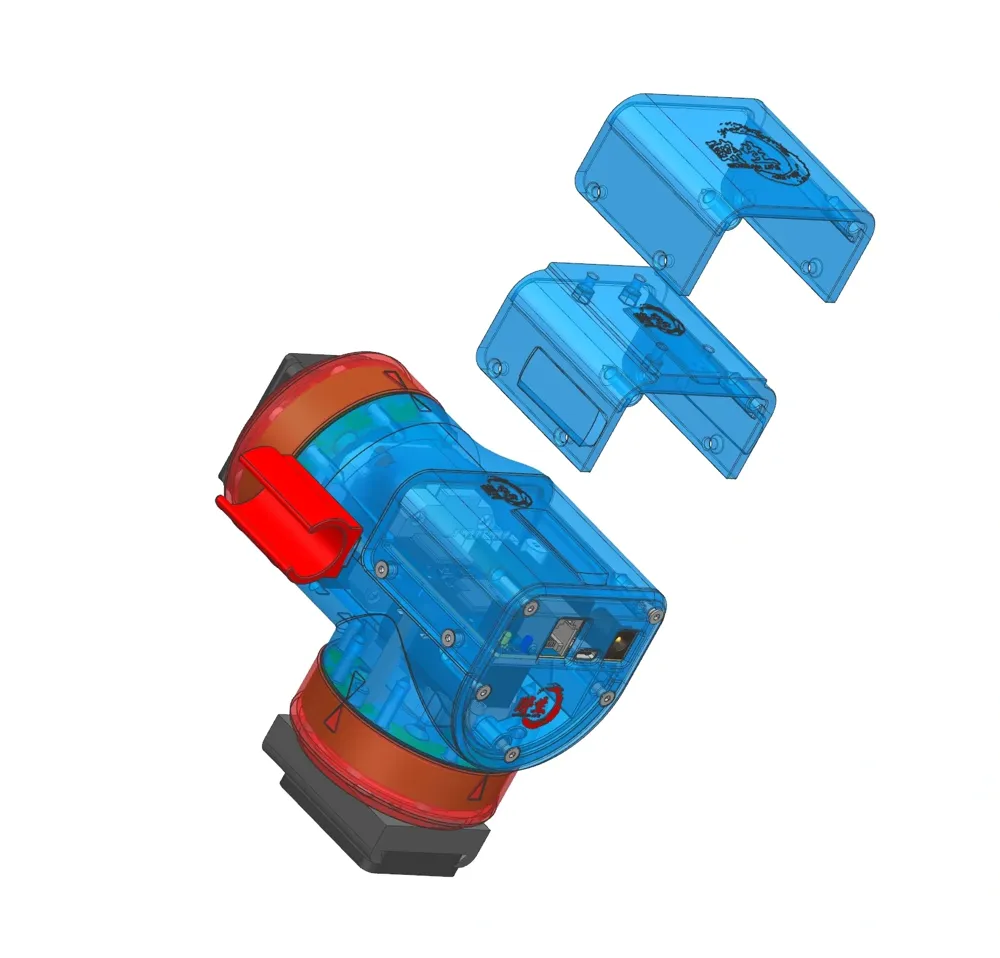

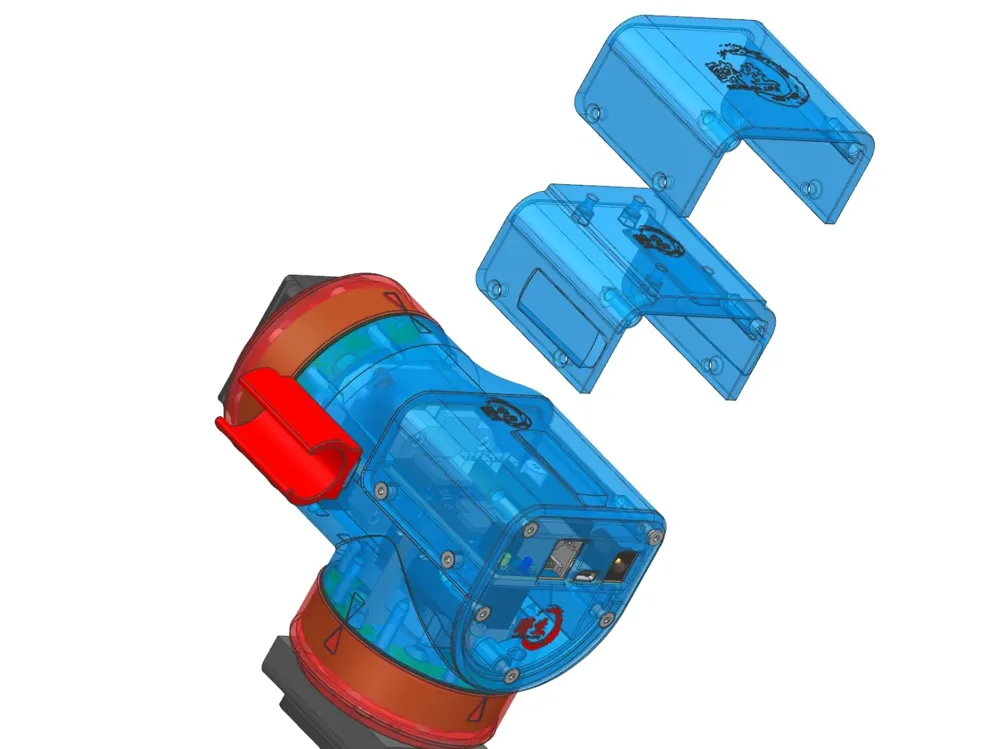

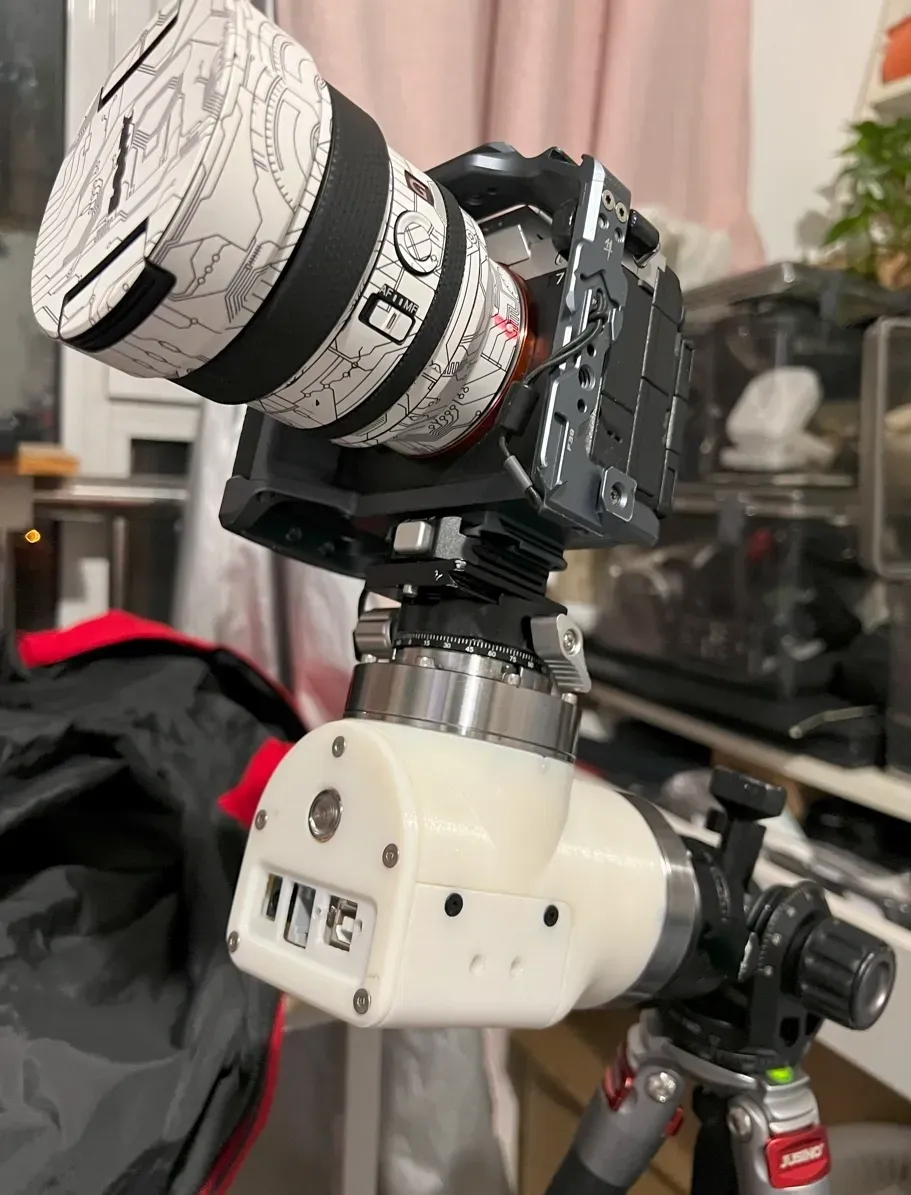

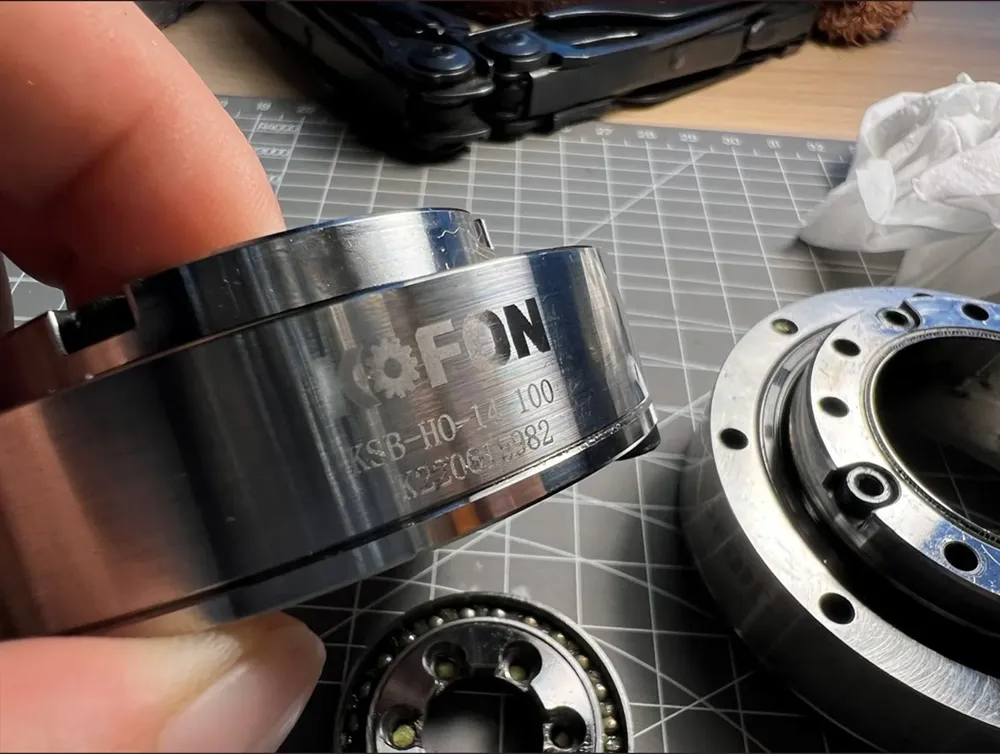

基于14-100谐波减速器制作的轻量化双轴谐波赤道仪相关视频连接：<a target="_blank" href="https://www.bilibili.com/video/BV1LKB4YME2n/" rel="nofollow noopener">看看手搓的双轴谐波赤道仪咋诞生的-赤道仪组装记录_哔哩哔哩_bilibili</a>PCB地址：<a target="_blank" href="https://github.com/TASKTSQ/Harmonic_equator" rel="nofollow noopener">TASKTSQ/Harmonic_equator: Harmonic_equator Based on OnsetpX</a>

A lightweight dual-axis harmonic equatorial mount based on a 14-100 harmonic reducerRelated video link: <a target="_blank" href="https://www.bilibili.com/video/BV1LKB4YME2n/" rel="nofollow noopener">Witness the creation of a hand-crafted dual-axis harmonic equatorial mount - Equatorial mount assembly record_bilibili</a>PCB address: <a target="_blank" href="https://github.com/TASKTSQ/Harmonic_equator" rel="nofollow noopener">TASKTSQ/Harmonic_equator: Harmonic_equator Based on OnsetpX</a>

14-100 Dual-Axis Harmonic Equatorial Mount
