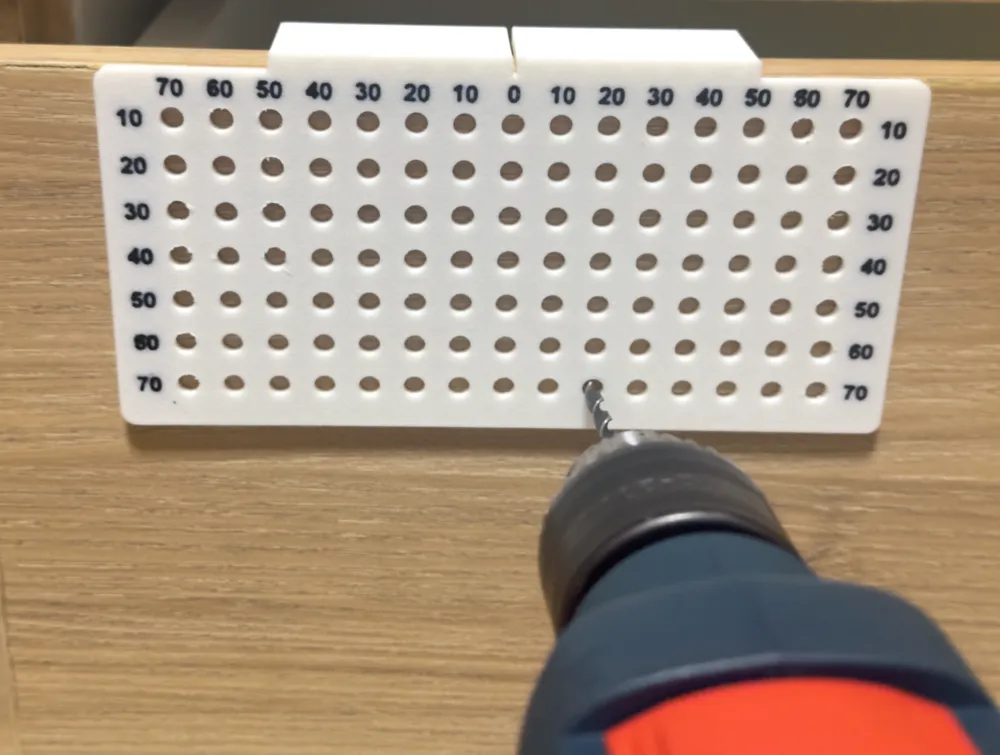

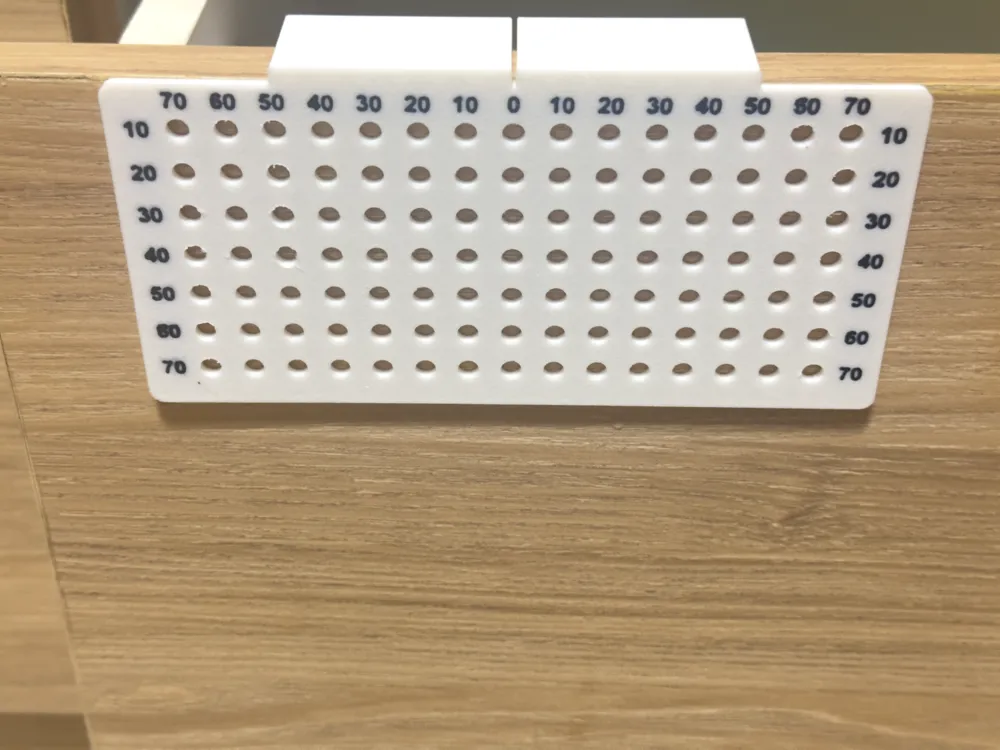

This is a drilling guide template specifically designed for installing drawer and door handles. The template features a grid layout with precise millimeter markings, making it ideal for adjusting hole positions to ensure accurate alignment and improved installation efficiency.
Features:
- Standard Grid Design: Holes are arranged in a 10mm grid pattern with clear numerical markings, enabling quick measurements and positioning.
- Versatile Compatibility: Supports common screw sizes such as M3, M4, and M5, suitable for various drawer, cabinet, and door handle installations.
- High Precision Positioning: Designed for use with hand drills, ensuring vertical drilling accuracy and reducing alignment errors.
- Easy to Use: Includes a centerline alignment mark, making it perfect for symmetrical designs. Users can flexibly adjust positions based on requirements.
- Durable Material: Made with 3D printing technology or high-strength plastic, offering durability and reusability.
Applications:
- Furniture assembly and modifications
- Installation of drawer, cabinet, and door handles
- DIY home improvement projects
