Boilie Cutter - Fish Food
IP Report
Print Profile(1)
0.12mm layer, 2 walls, 50% infill
Designer
2.8 h
1 plate
Open in Bambu Studio
Boost
46
67
6
6
138
72
Released
Bill of Materials
List other parts
- Senkkopfschrauben (Gewindedurchmesser 2,5mm) x 4:
- M2 Mutter x 2:
- M2x6mm Schraube x 2:
- Spiralfedern x 2: Durchmesser von 5-5,5mm und einer ungestauchten Länge von 50-53mm. Die Drahtdicke sollte 0.5mm nicht überschreiten
- Klinge eines Teppich oder Küchenmessers x 1: 44mm Lang, max. 11mm hoch, 2 Löcher von 2,5mm Durchmesser in einem Mitte Mitte Abstand von 36mm um die Klinge zu befestigen
Description
Content has been automatically translated.

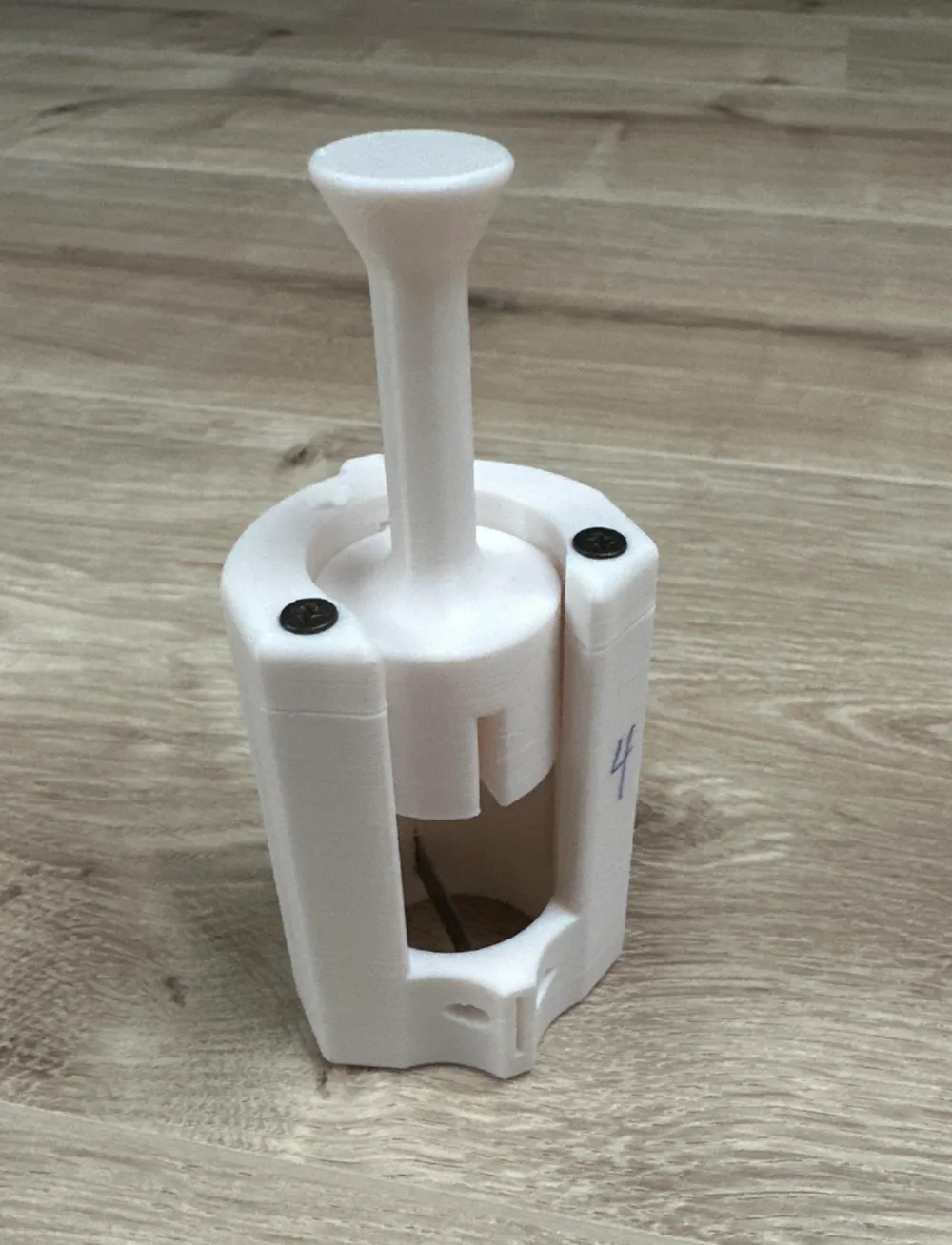

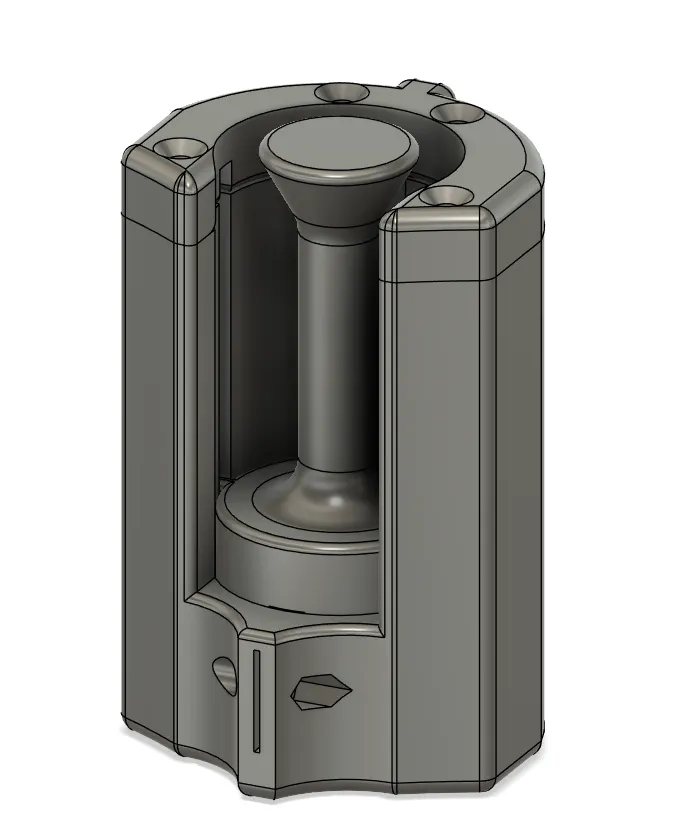

Here you get a cutter to halve boilies. For this, the stamp is repeatedly pushed back up by springs.
Insert boilie, press down, split, done.
What else do you need?
- 4 countersunk screws (thread diameter 2.5mm) to attach the lid.
- 2x M2 nut
- 2x M2x6mm screw
- 2 coil springs with a diameter of 5-5.5mm and an uncompressed length of 50-53mm. The wire thickness should not exceed 0.5mm
- a blade from a carpet or kitchen knife: 44mm long, max. 11mm high, 2 holes of 2.5mm diameter at a center-to-center distance of 36mm to attach the blade
I recommend a minimum infill of 50% to ensure strength/stability
I also recommend ABS as material
Have fun printing
