adjustable stand, holder for the Clock Kit011

Model Description:

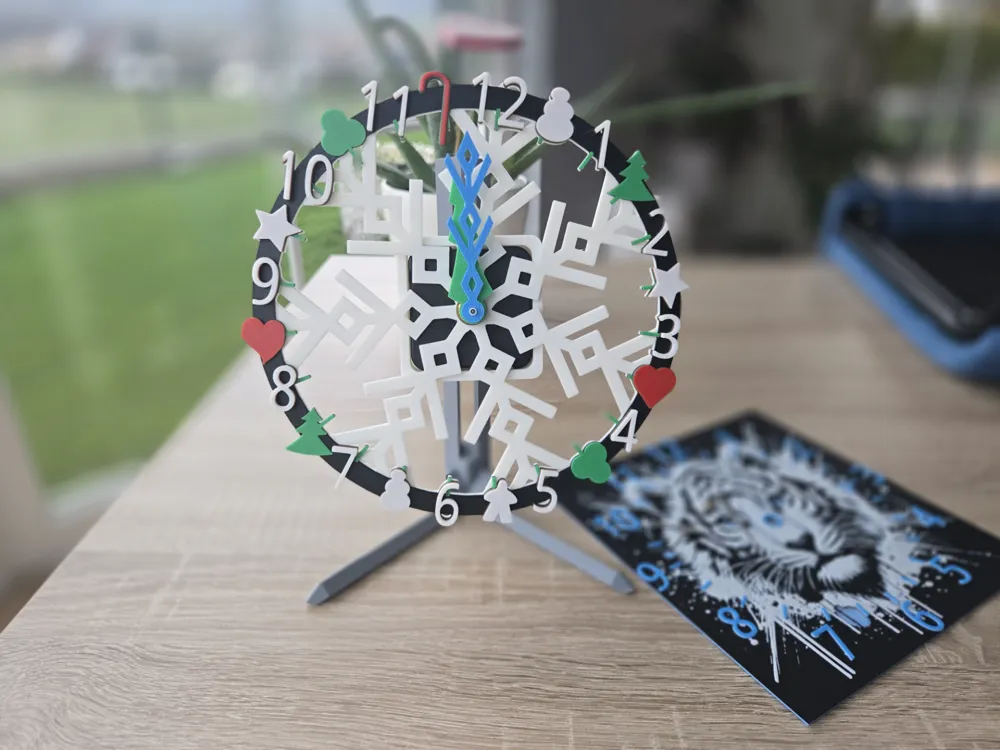

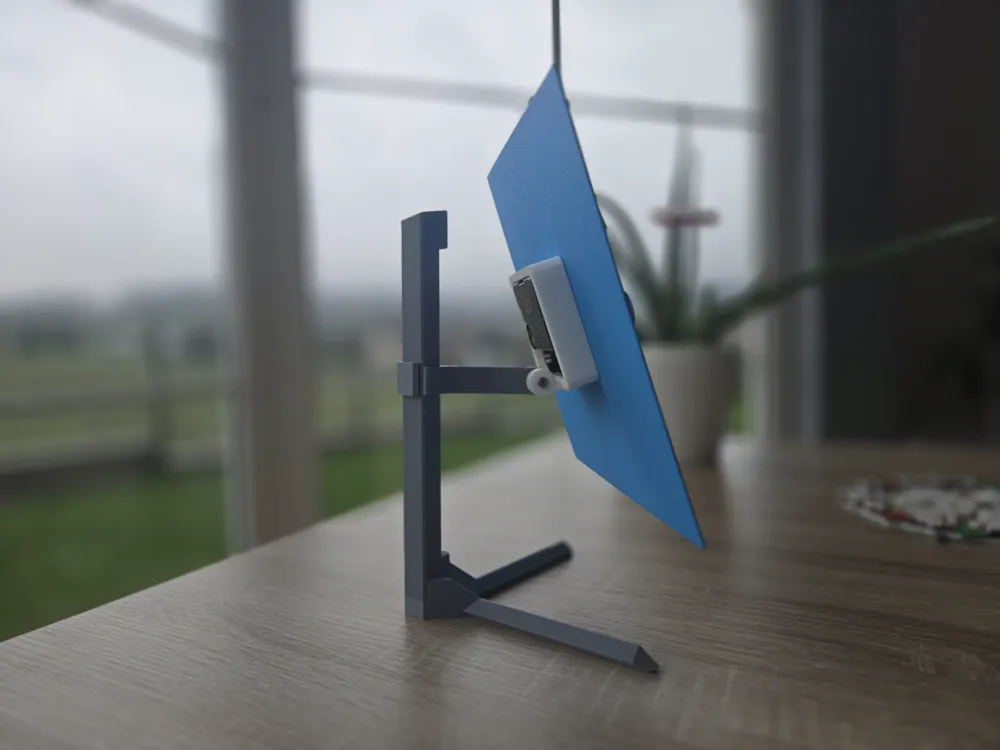

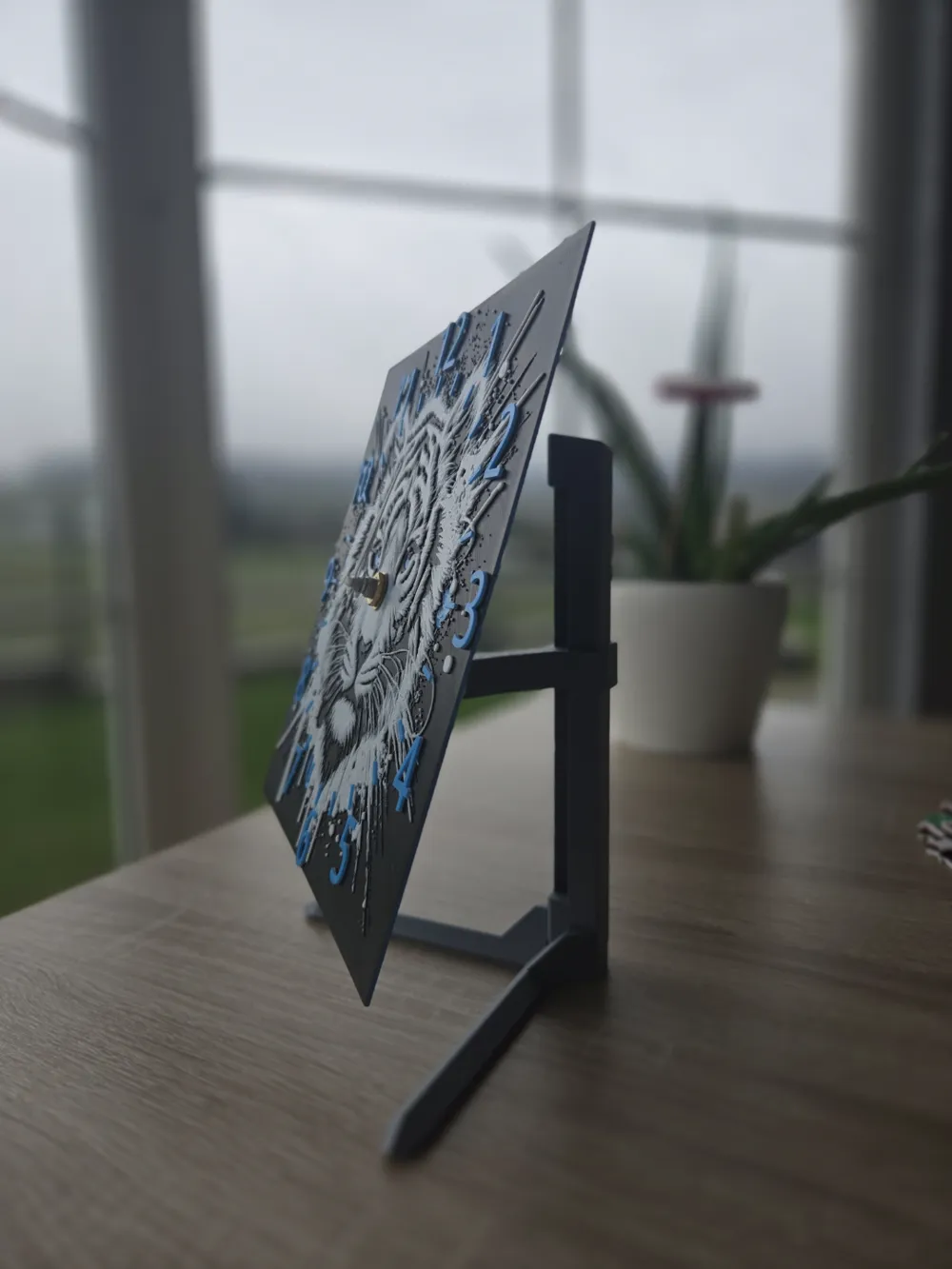

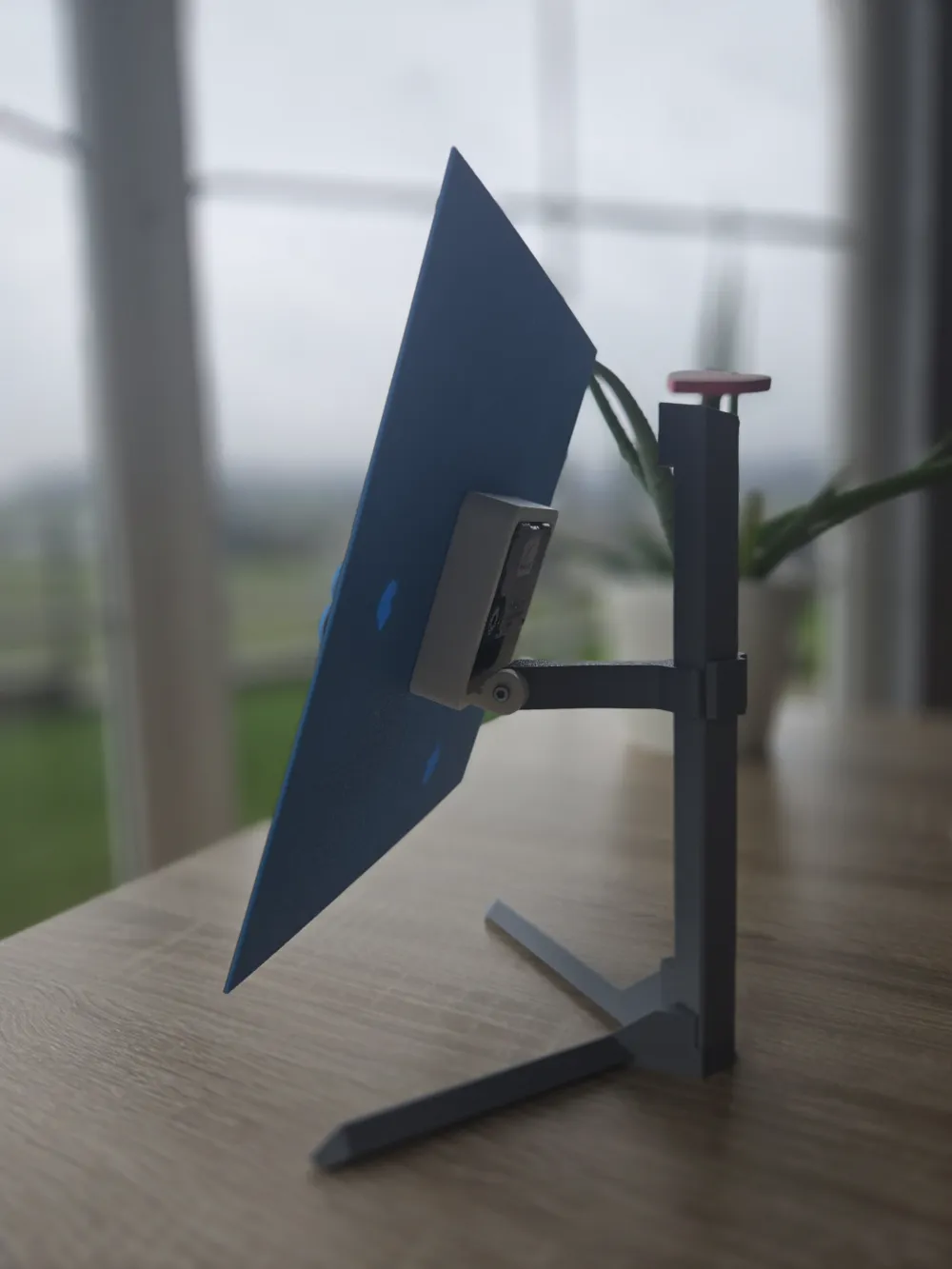

This adjustable watch holder is inspired by a monitor stand and offers flexible height and tilt adjustment. The attractive design and modularity enable individual adaptation to different needs.

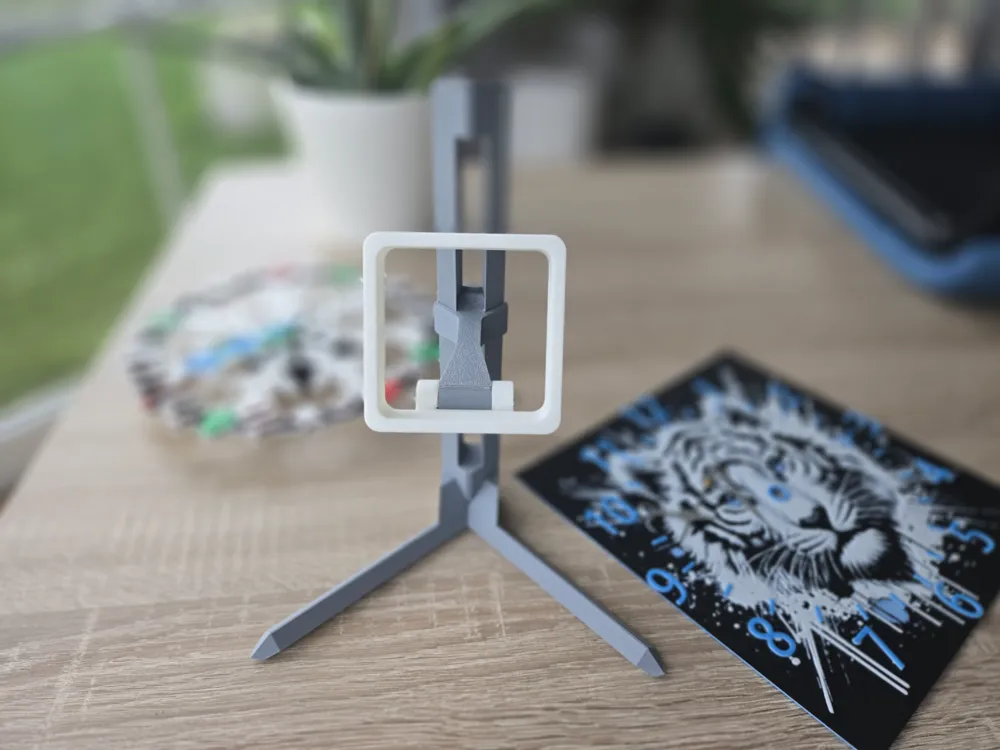

The model consists of the following components:

• Base: Stable foundation of the stand.
• Stand: Facilitates height adjustment
• 3D-Printed Screw: Connects the base to the stand.
• Center Piece: Adjustable element in the guide rail of the stand.
• Clamp: Secures the center piece in the stand.

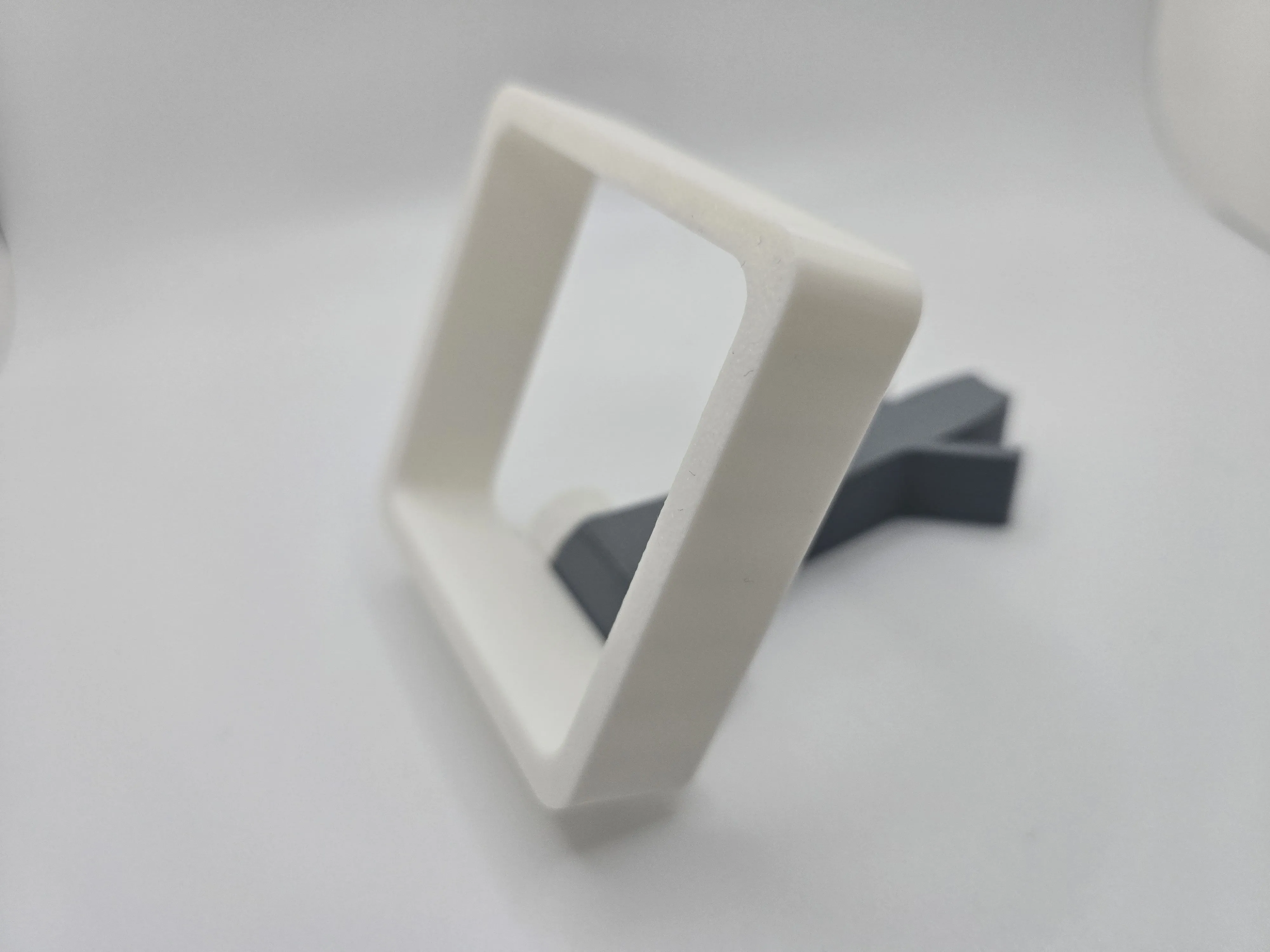

• Holder: For Clock
• Stand Sizes: 200mm.
• Adjustment Ranges: 160mm.

Assembly Instructions:

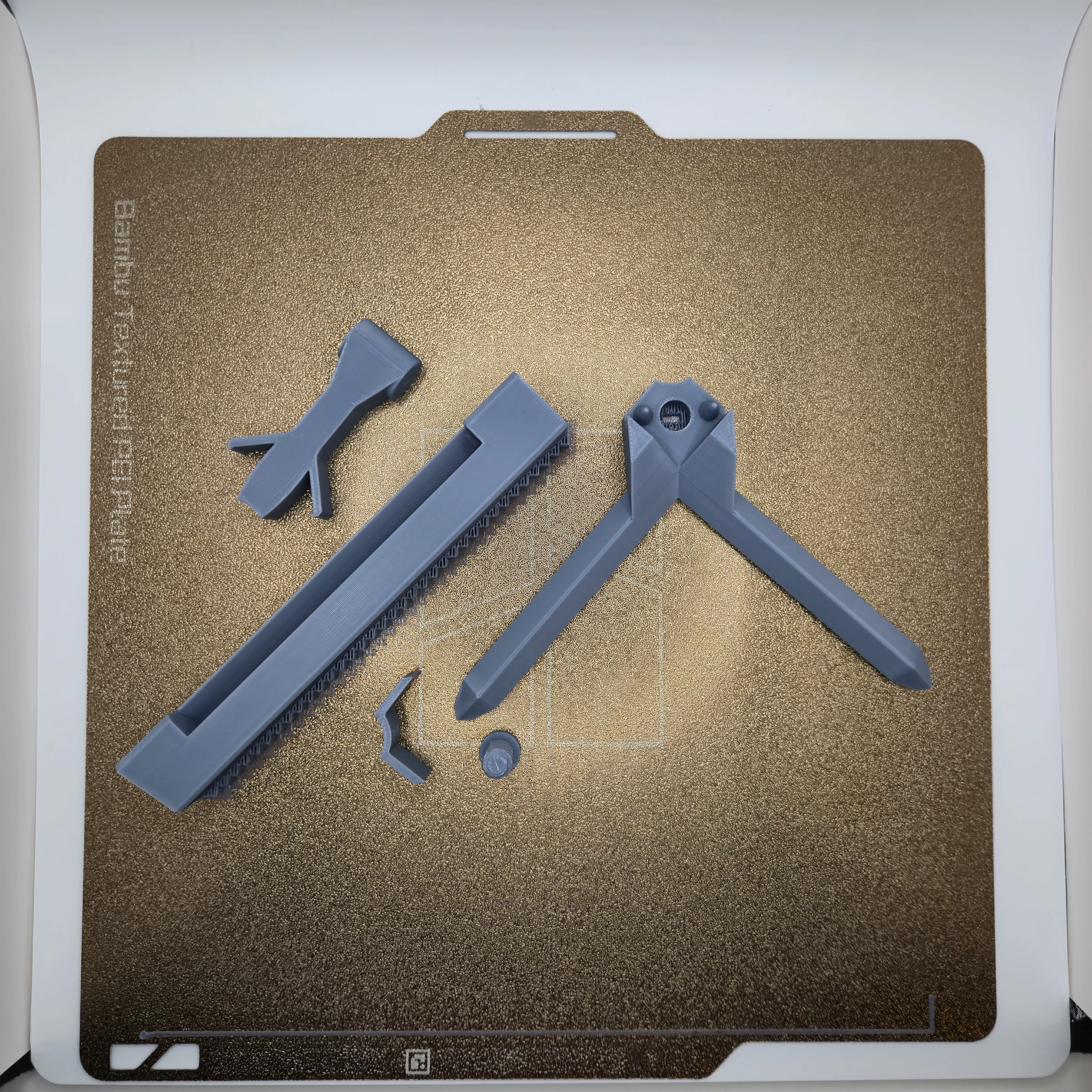

Step 1: Print the Parts

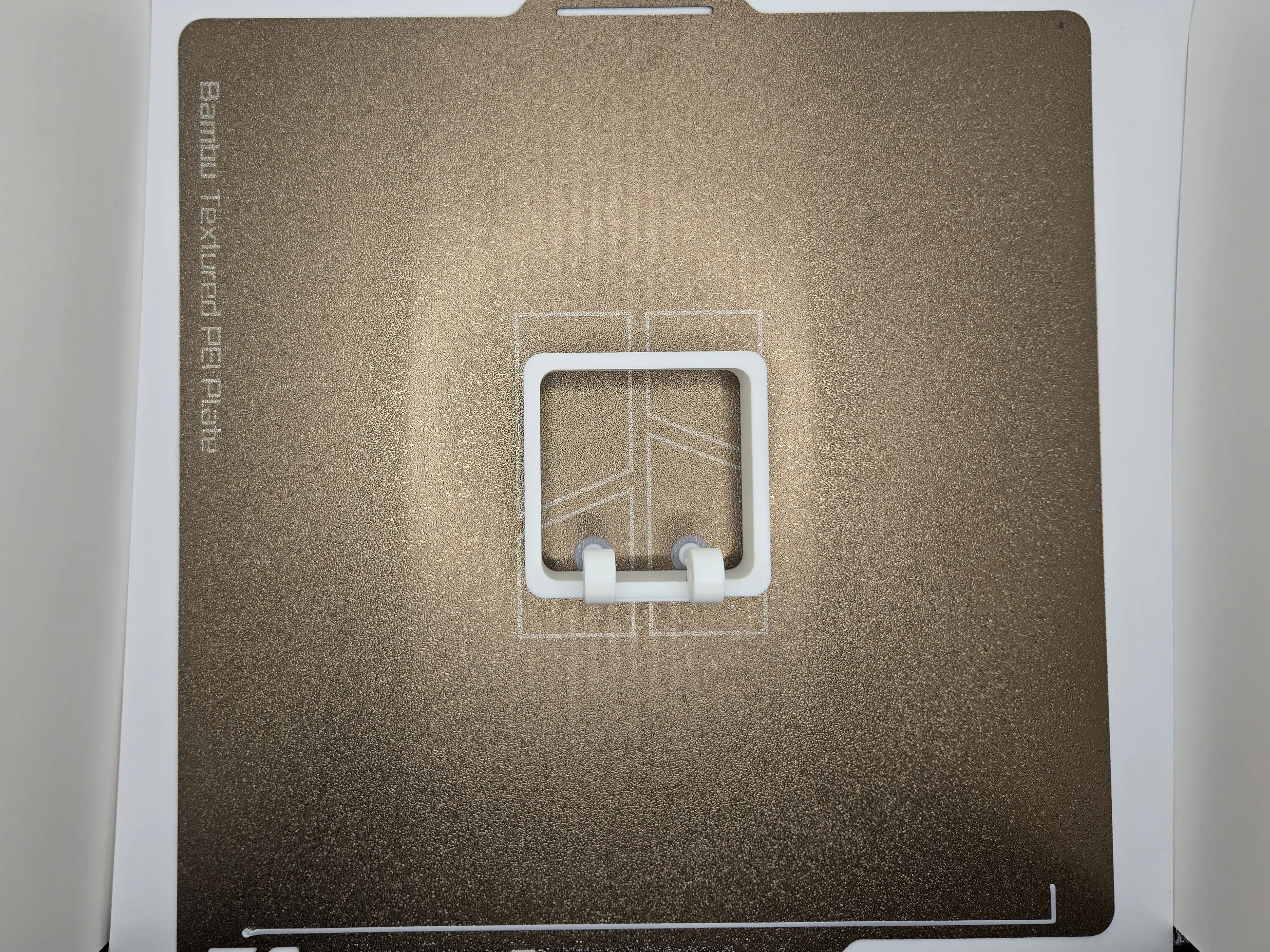

Print the required parts.

Step 2: Prepare the Printed Parts
- Carefully remove the models from the print bed.

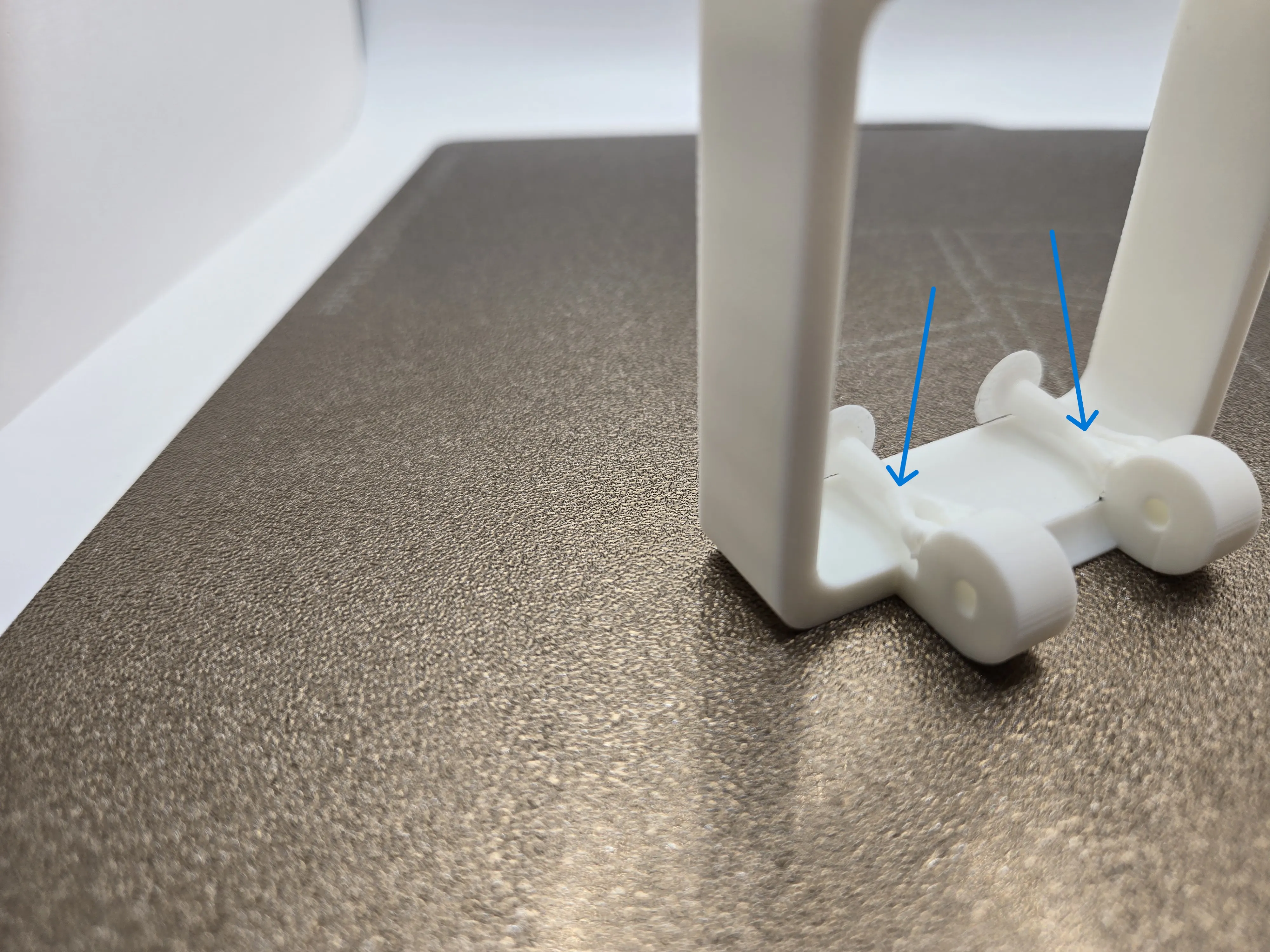

- Remove the support material, e.g., from the clamp and guide elements. Here is an example.
- Remove the brim (if present) for a clean finish.

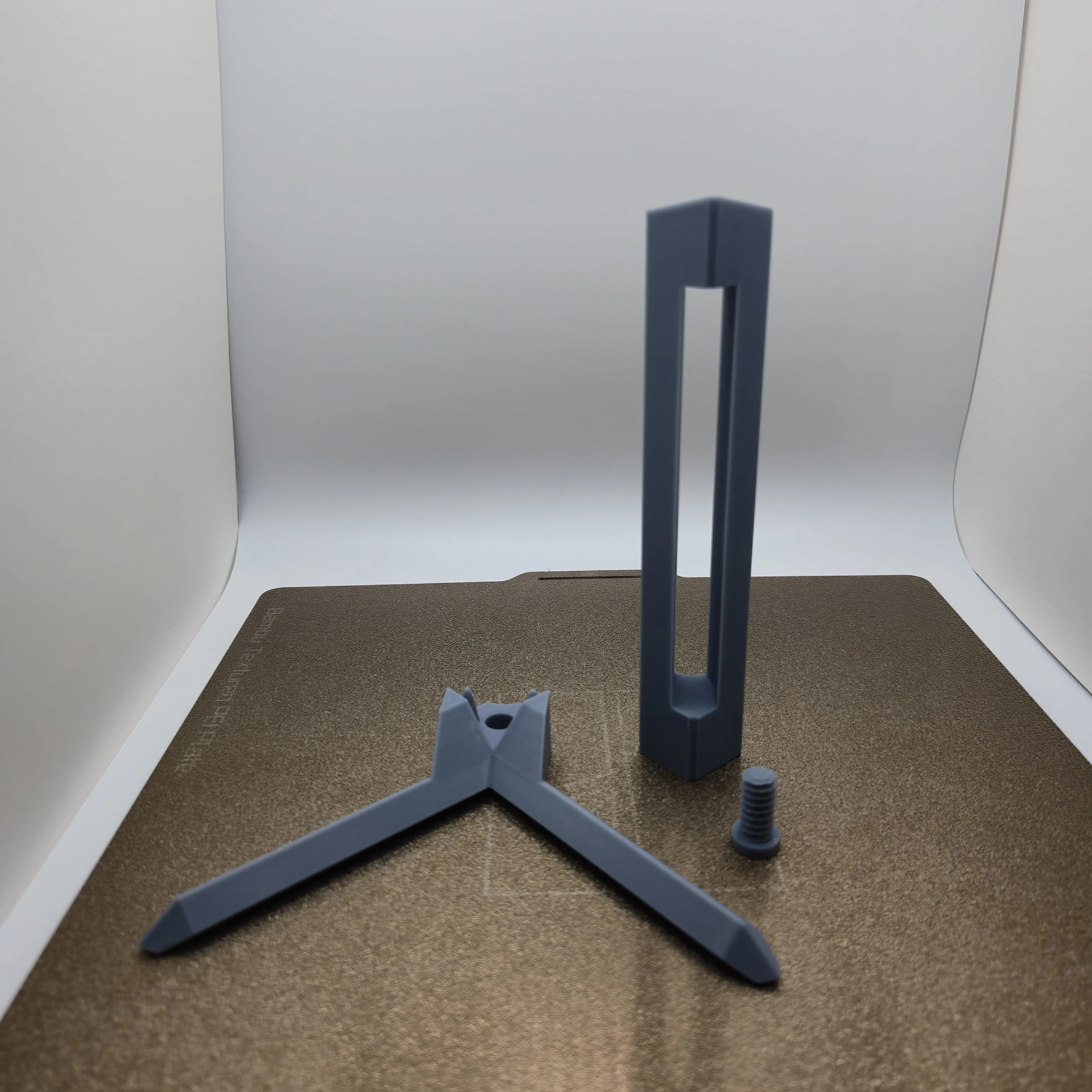

Step 3: Assemble the Base and Stand

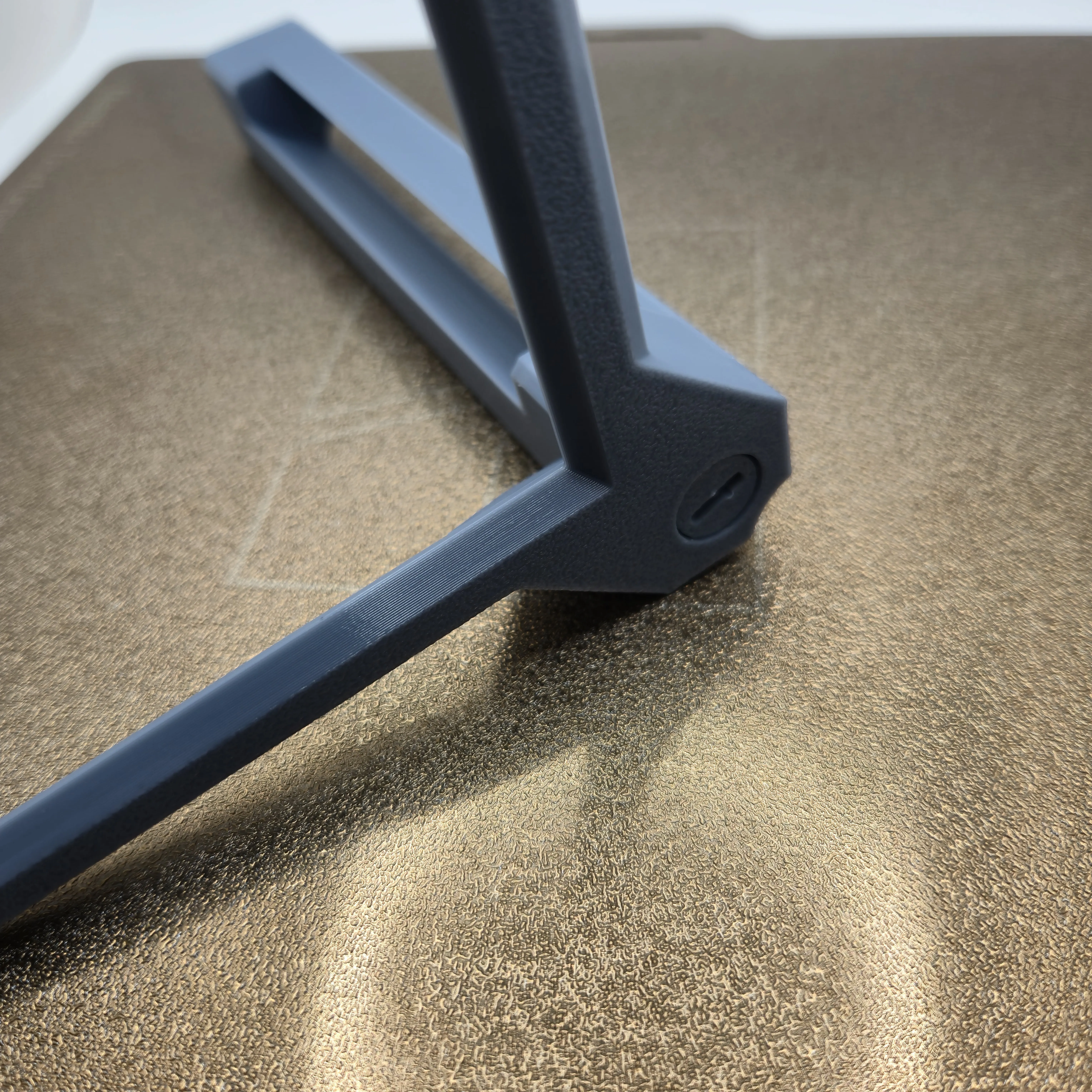

- Connect the base to the stand.

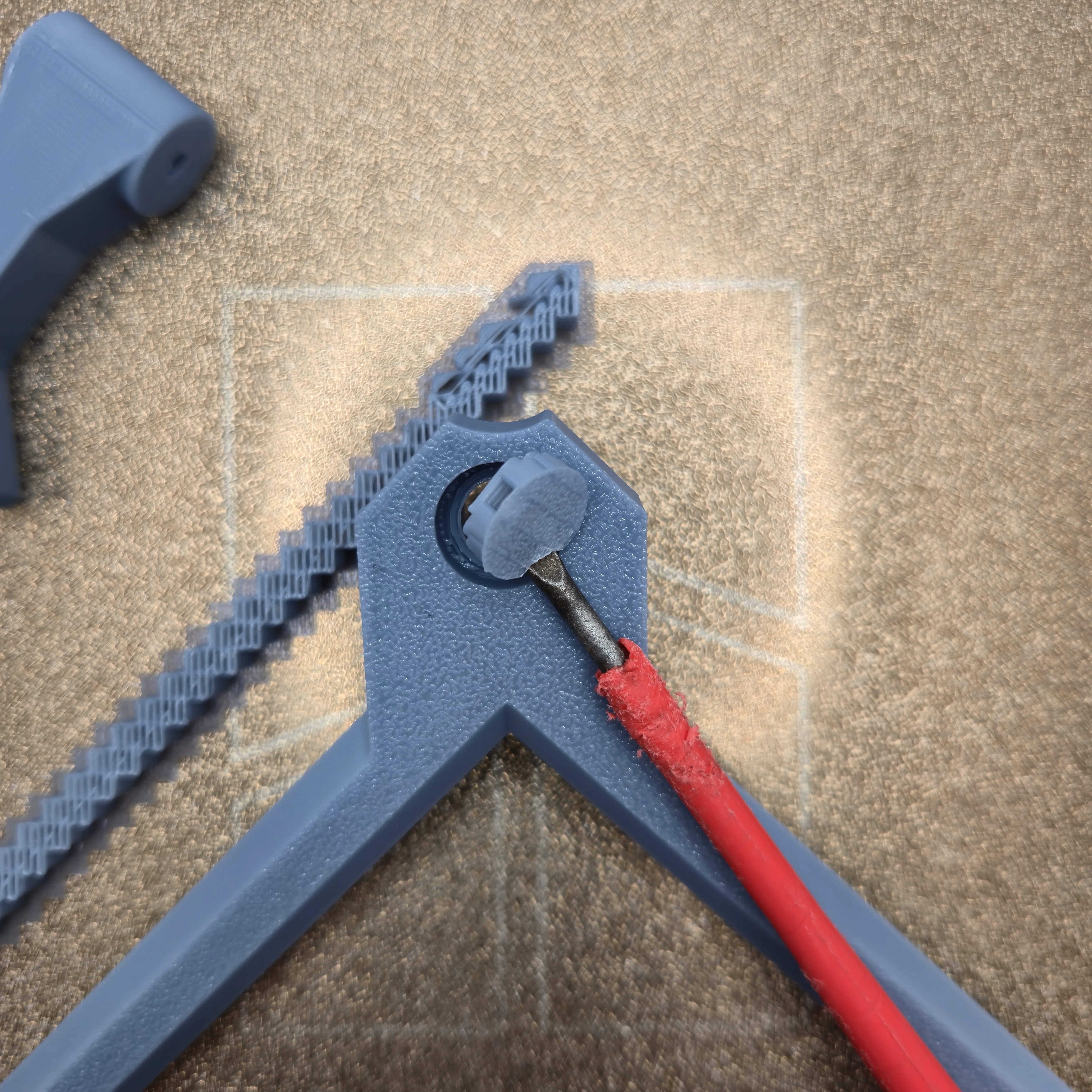

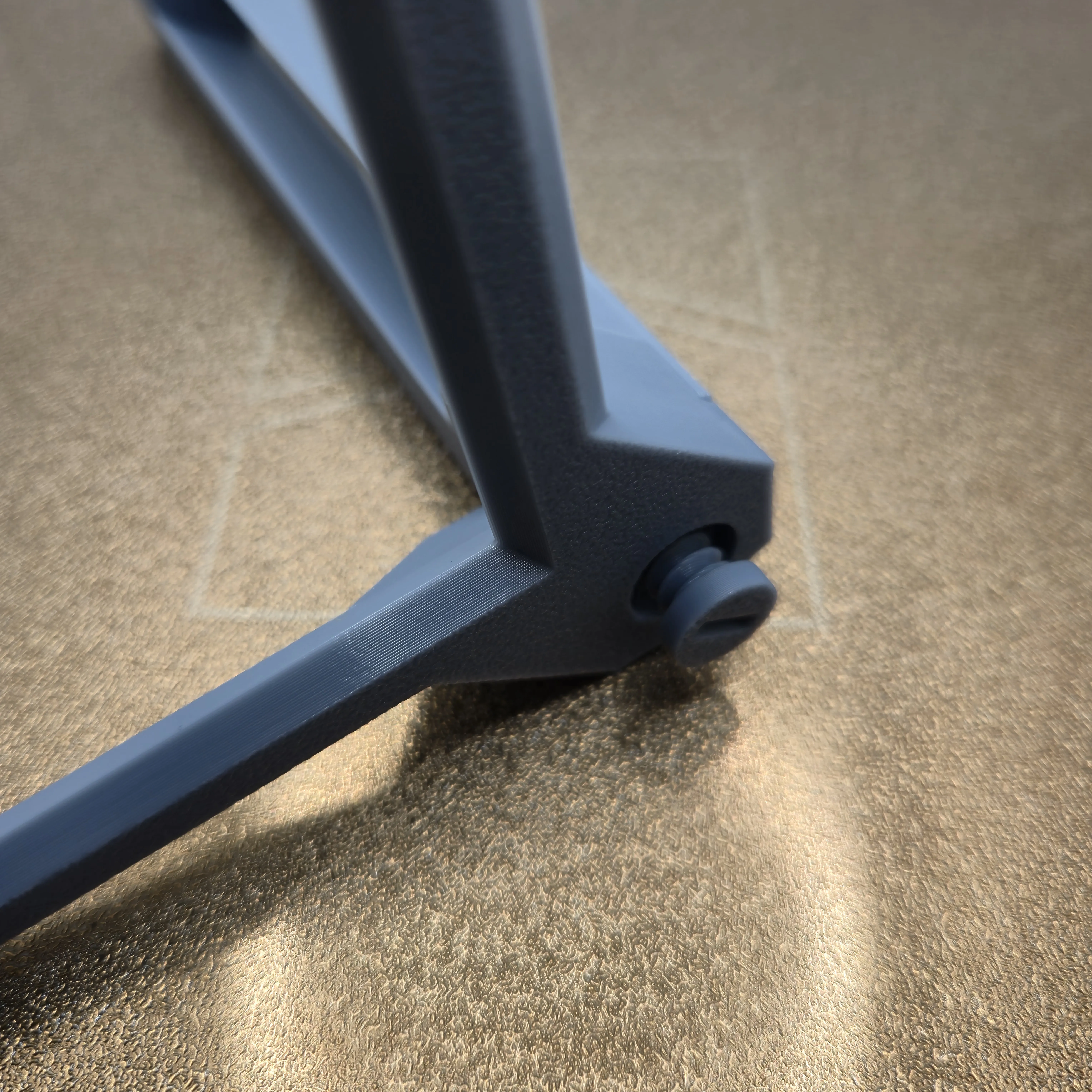

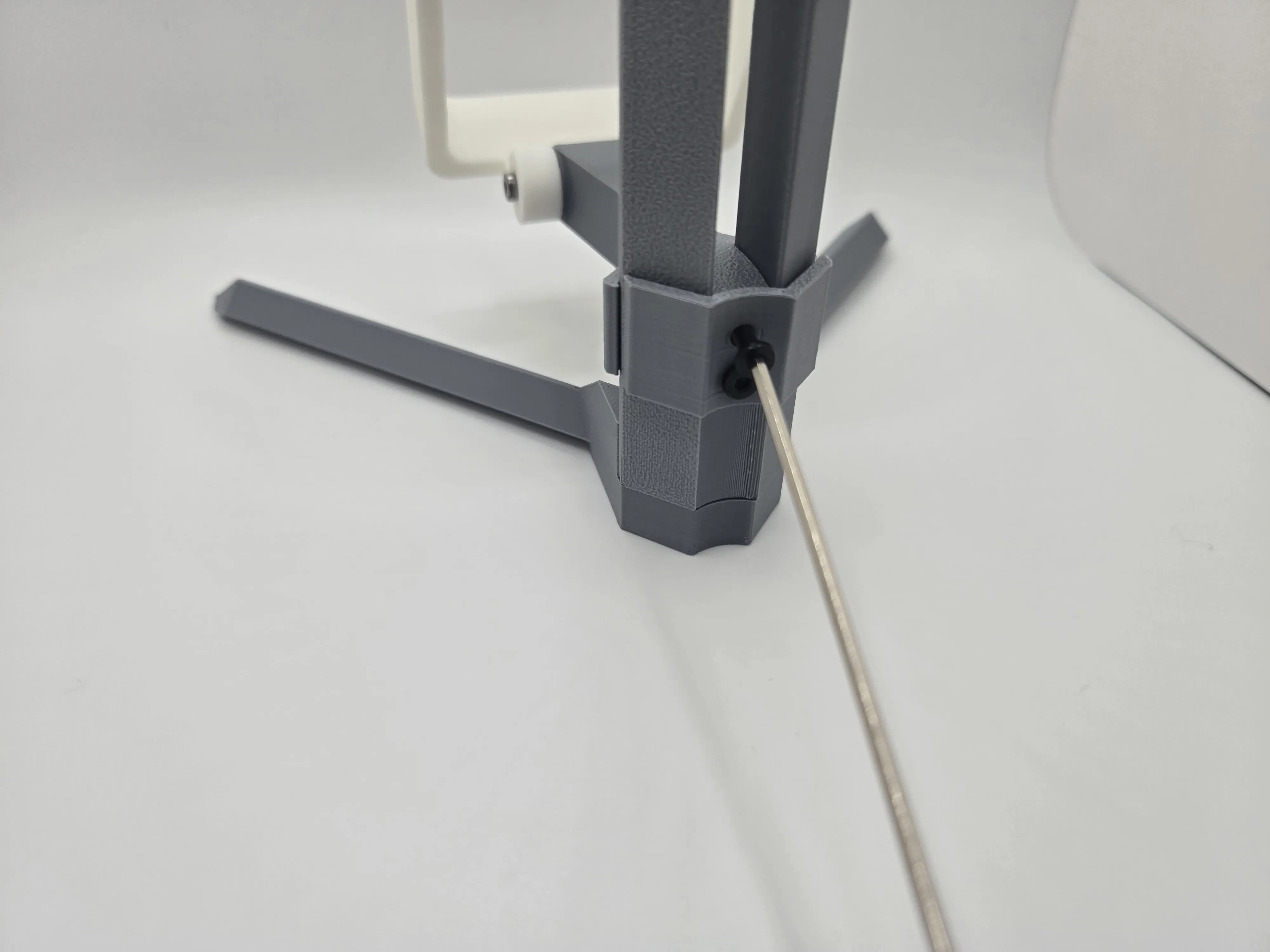

- Secure them with the 3D-printed screw.

Step 4: Attach the Center Piece to the Holder

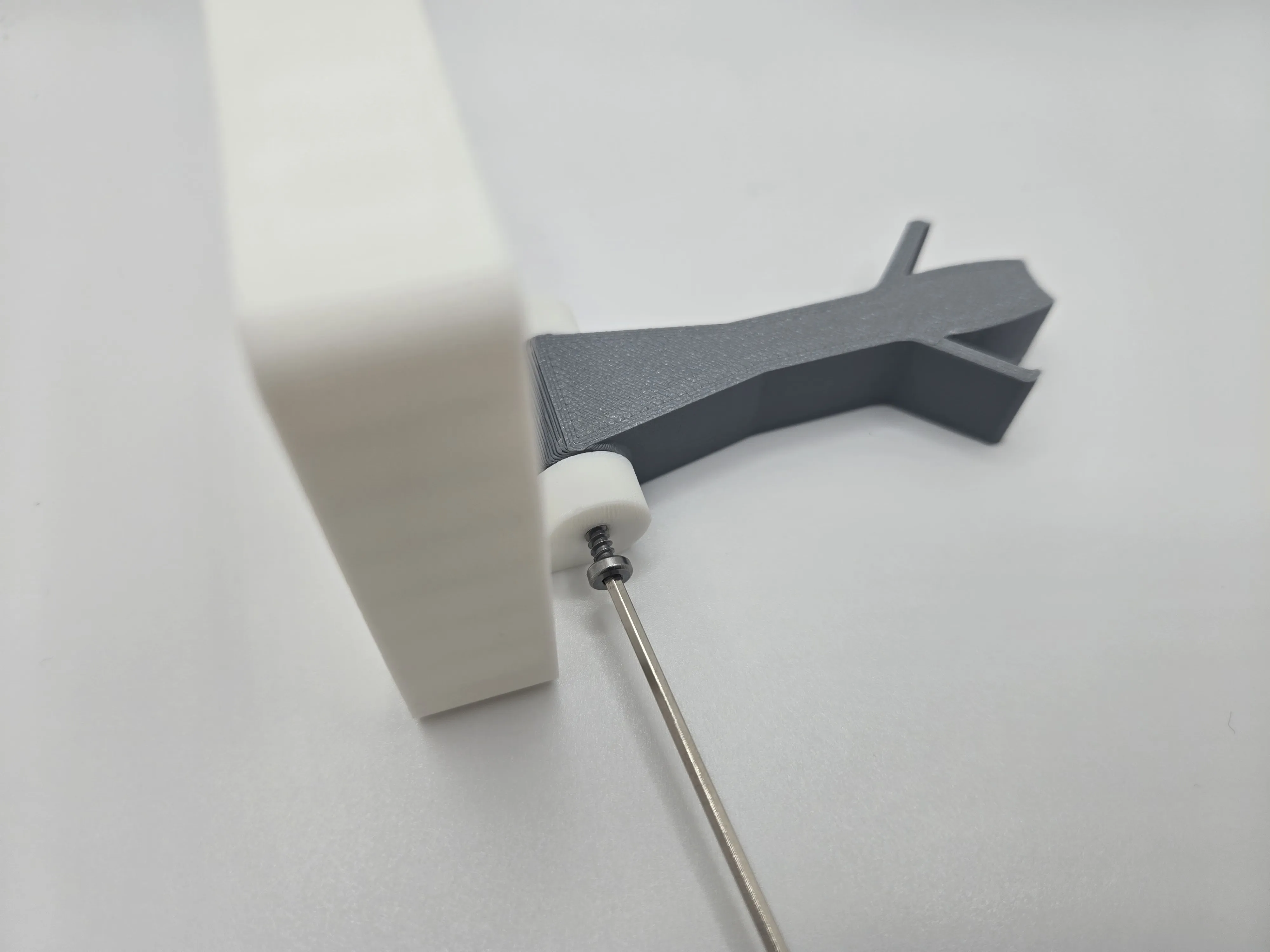

- Screw the center piece to the selected holder.
- Use two M3 x 16mm screws.

- Ensure that the tilt adjustment is neither too loose nor too tight.

Step 5: Insert the Stand and Holder

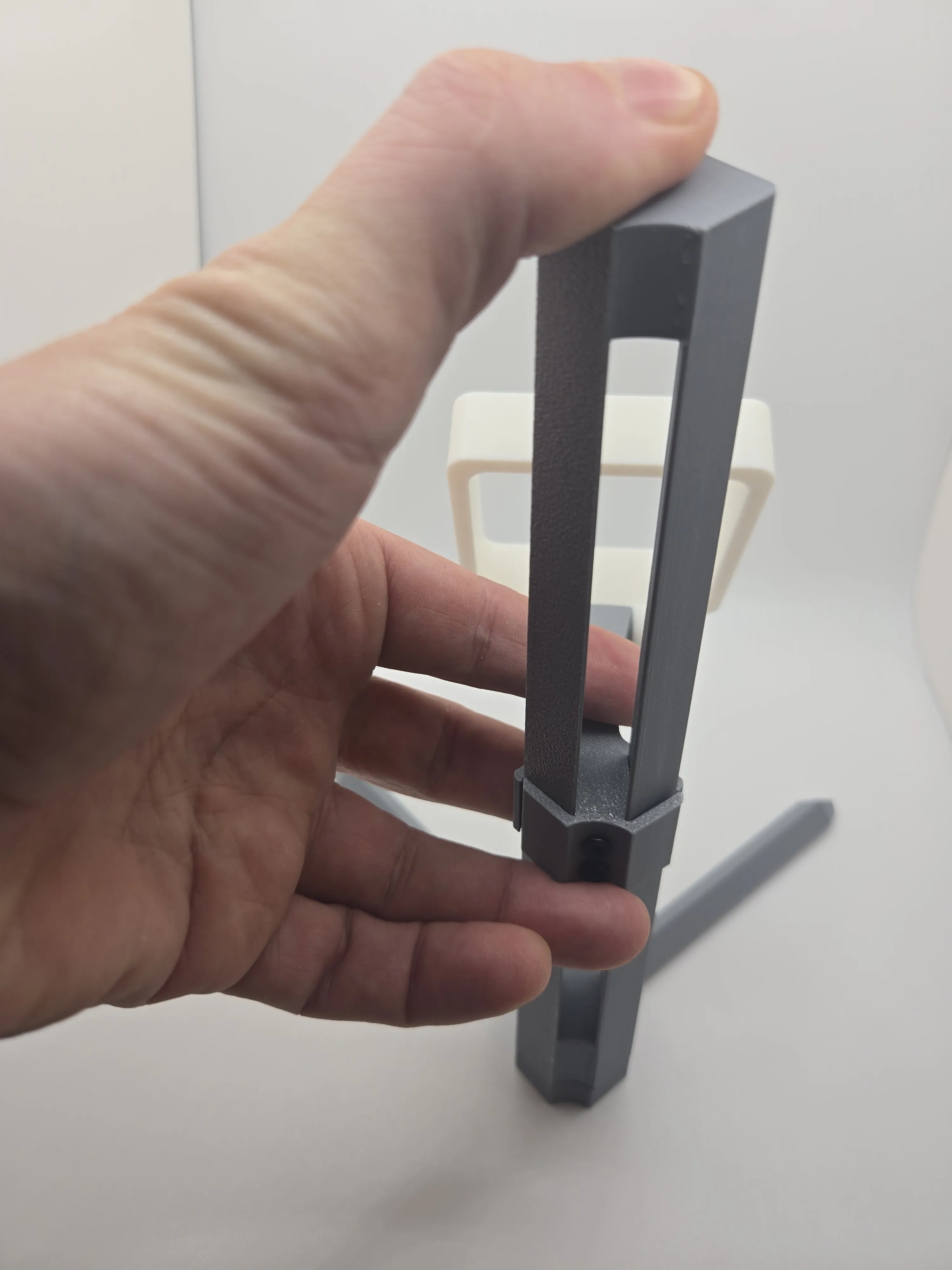

- Insert the holder with the center piece into the guide rail of the stand.

- Secure the clamp to the stand with two additional M3 x 16mm screws.

- Check the height adjustment for suitable tightness.

Step 6: Fine-Tuning
- Adjust the angle and height as needed.
- Tighten the screws if necessary to ensure stability.

Important Notes

- Ensure all screws are securely fastened to avoid wobbling.
- Fully remove support residues to ensure optimal functionality of moving parts.
