Mini Suitcase

Mini Suitcase

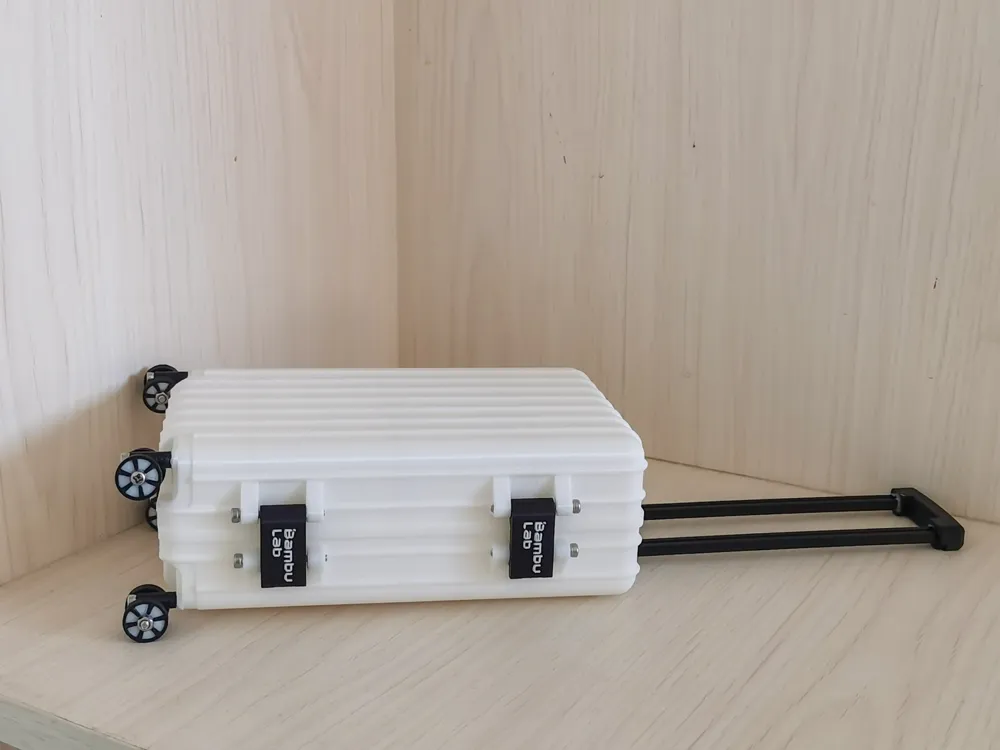

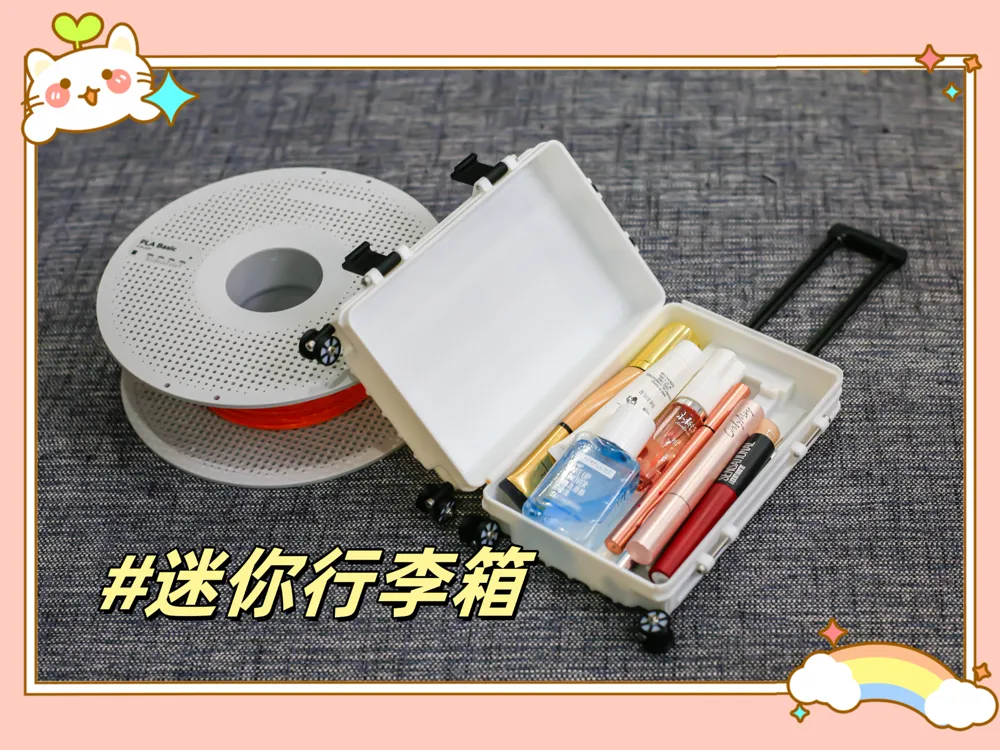

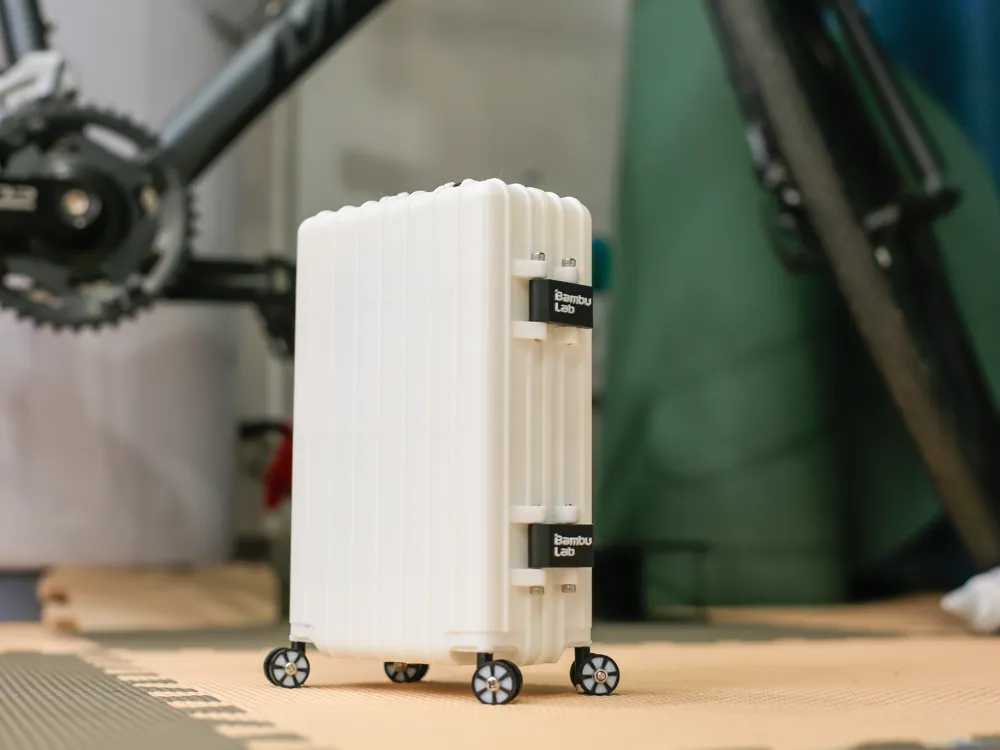

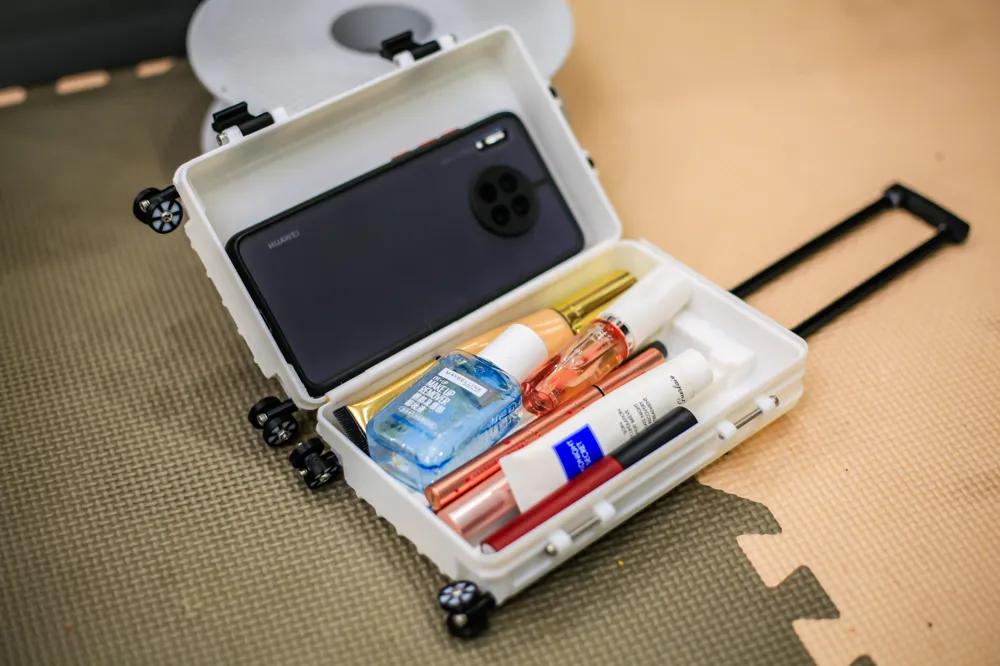

• Suitable for travel storage, with a realistic appearance that faithfully recreates the look of a suitcase, including the handle and swivel wheels. It can accommodate most smartphones and cosmetics on the market, featuring a secure buckle and locking mechanism;

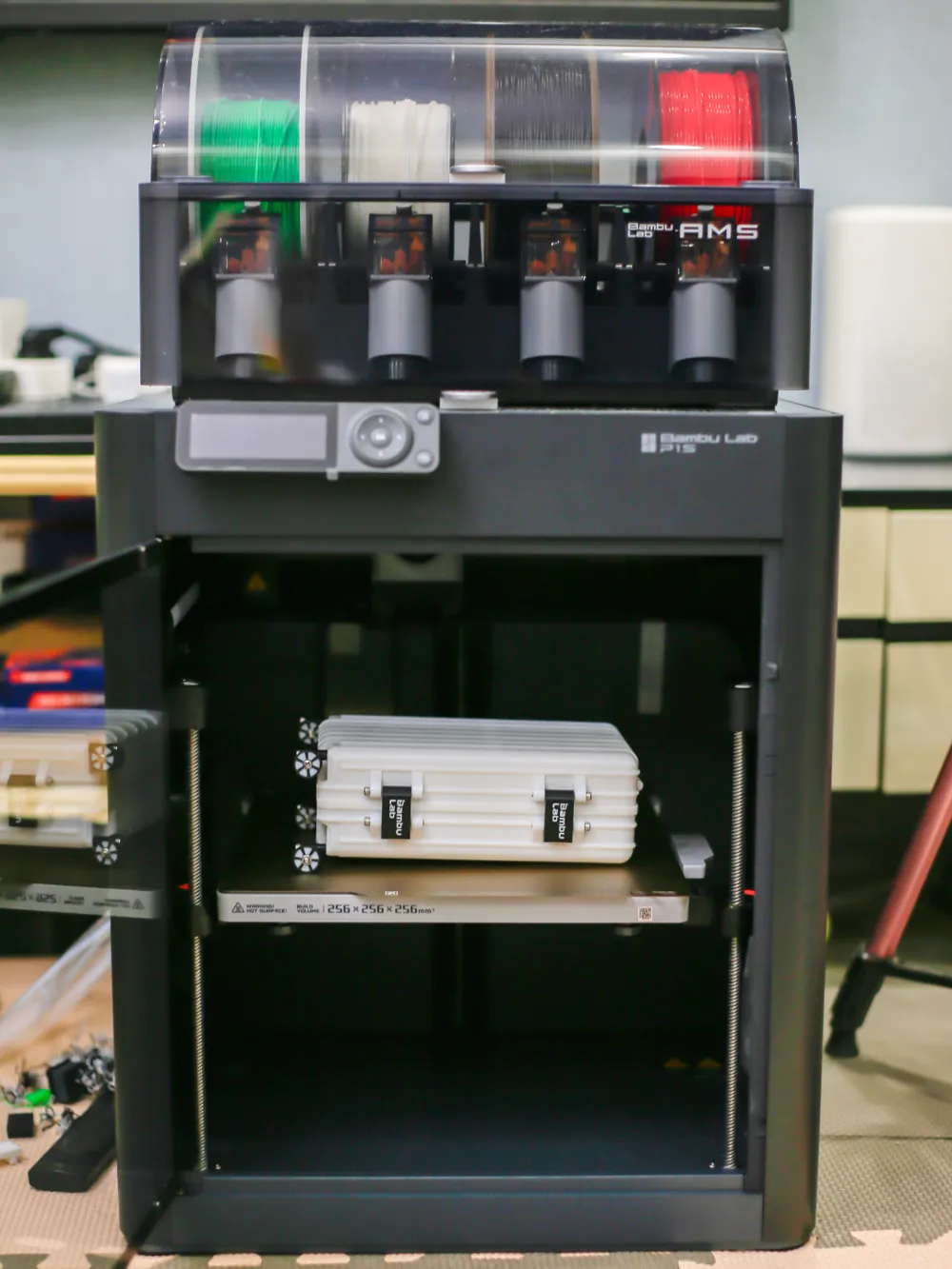

• Actual printing: The shell requires vertical printing for optimal results, exhibiting minimal layer lines. Support structures are manageable, typically removable within five minutes;

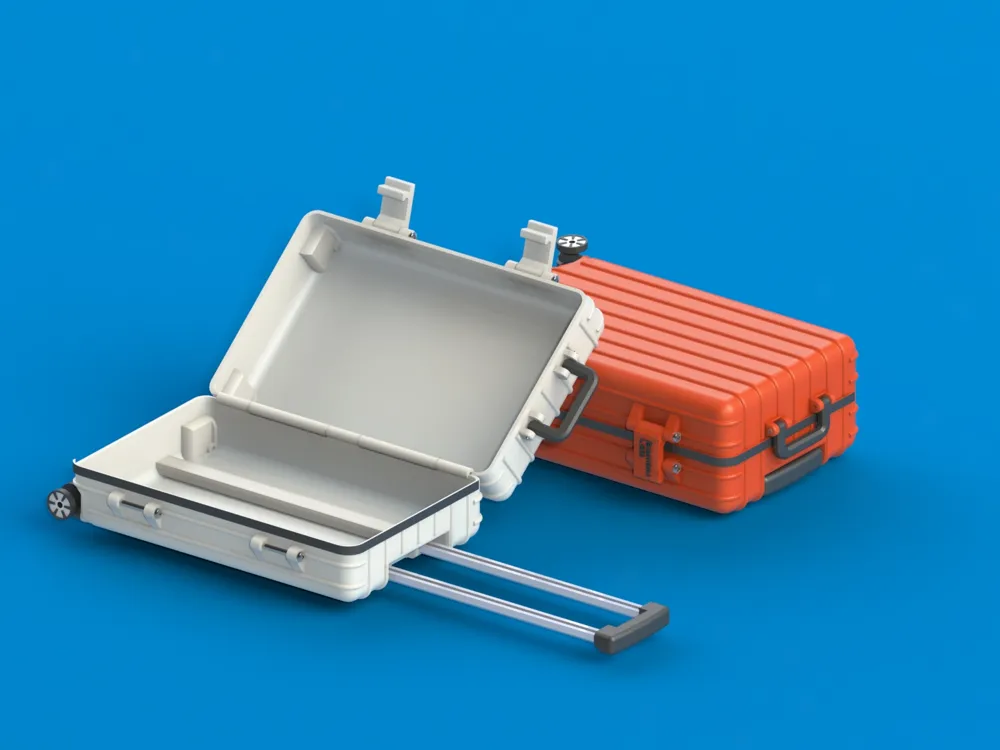

• The STEP file is available for download, enabling further customization or independent slicing; the image below shows the assembled dimensions.



• Required components:

  M3 x 30 screws x 4 (for buckle fastening)

  M3 x 20 screws x 8 (for wheel assembly and wheel fixation)

  502 adhesive or similar (for handle and pull-handle attachment)

  A short length of filament (for hinge application)

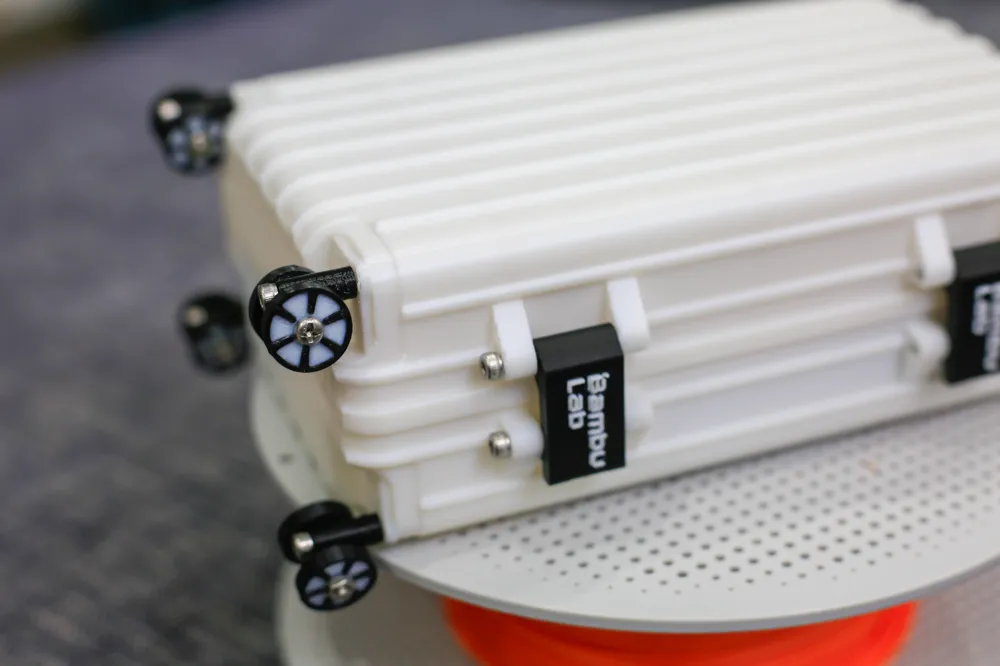

• Handle installation: After inserting the handle, two circular holes are present inside the case. Use a thin rod, under 2mm in diameter, to firmly tap inward, creating protrusions to secure the handle.

Mini suitcase
Can be used for travel storage, with a realistic appearance that almost restores the appearance of a suitcase, including luggage handles and swivel wheels. It can hold the vast majority of mobile phones, cosmetics, buckle design, and secure locking on the market;
Actual printing: The shell needs to be printed vertically, with excellent results and almost no layer patterns. The only consideration is support, which has been tested and can be removed within 5 minutes;
The STEP file has been uploaded, and those who continue to create or slice it themselves can download it;
Required accessories:
M3 * 30 screws * 4 (used for buckle fixation)
M3 * 20 screws * 8 (used for fixing wheel sets and wheels)
502 glue or other glue (used for fixing the pull rod and pull rod handle)
A small piece of consumables (for hinge use)
Pull rod installation: After inserting the pull rod, there are two circular holes inside the luggage compartment. Use a thin rod with a diameter of less than 2 to smash it inward, and if there are protrusions inside, the pull rod can be stuck
