Bulkhead Hose Fitting for 1/4 inch PVC tubing - Free 3D Print Model

Search models, users, collections, and posts

Household>Garden

IP Report

Print Profile(1)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 6 walls, 25% infill, 2 sizes

Designer

1.1 h

2 plates

5.0(21)

Open in Bambu Studio

Boost

145

341

634

394

Released

Description

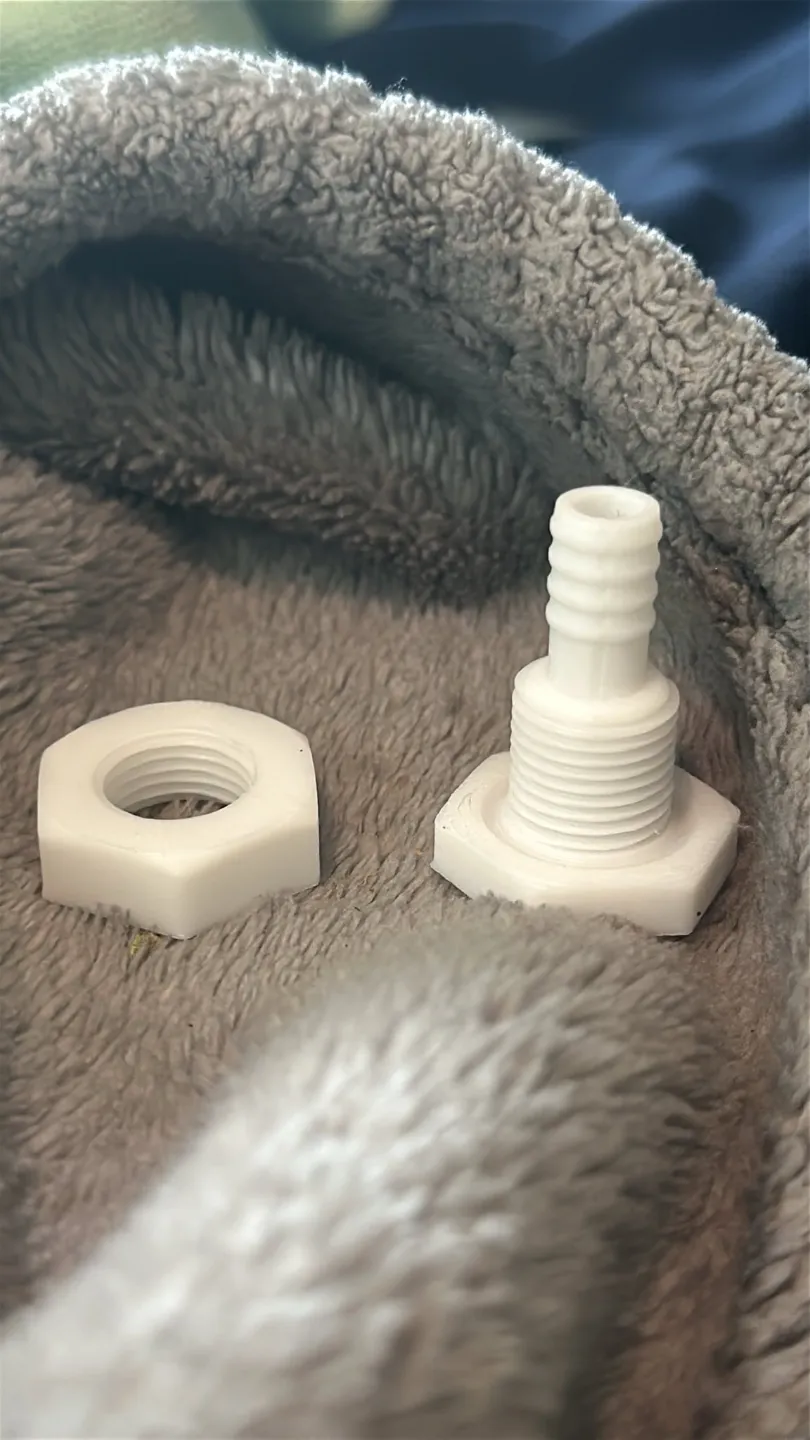

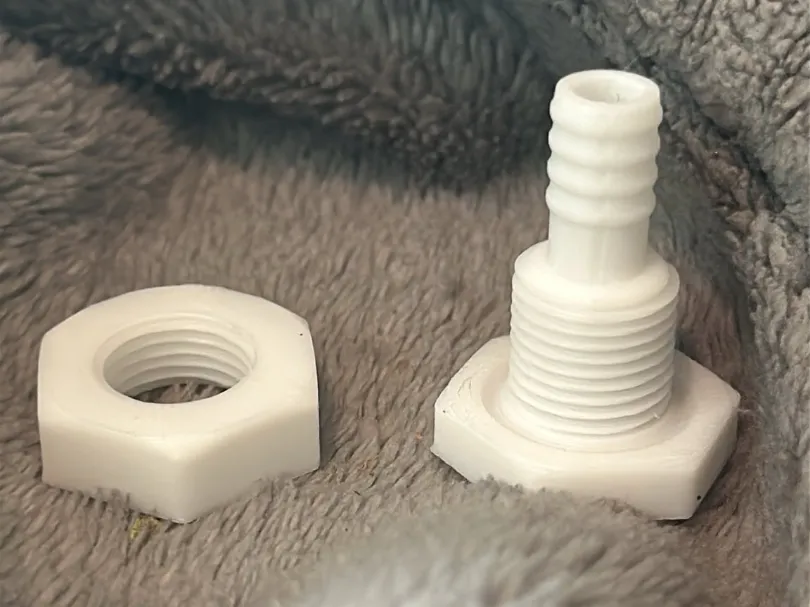

Bulkhead hose fitting that fits ¼ inch PVC tubing. I printed several of these to connect my water reservoirs to refill my “self-watering” planter beds (which use a float to indicate the refill level). I do highly recommend printing this in food-safe filament if using for gardens with edible plants. I personally use eSUN PLA which does break down with constant contact with water and sunlight in ~7 months, but I have not found another affordable brand/filament with FDA NSF documentation. I also use food-safe silicone to “pad” both the nut and the main part to make sure there are no leaks since my water reservoirs are 5 gallon water tanks.

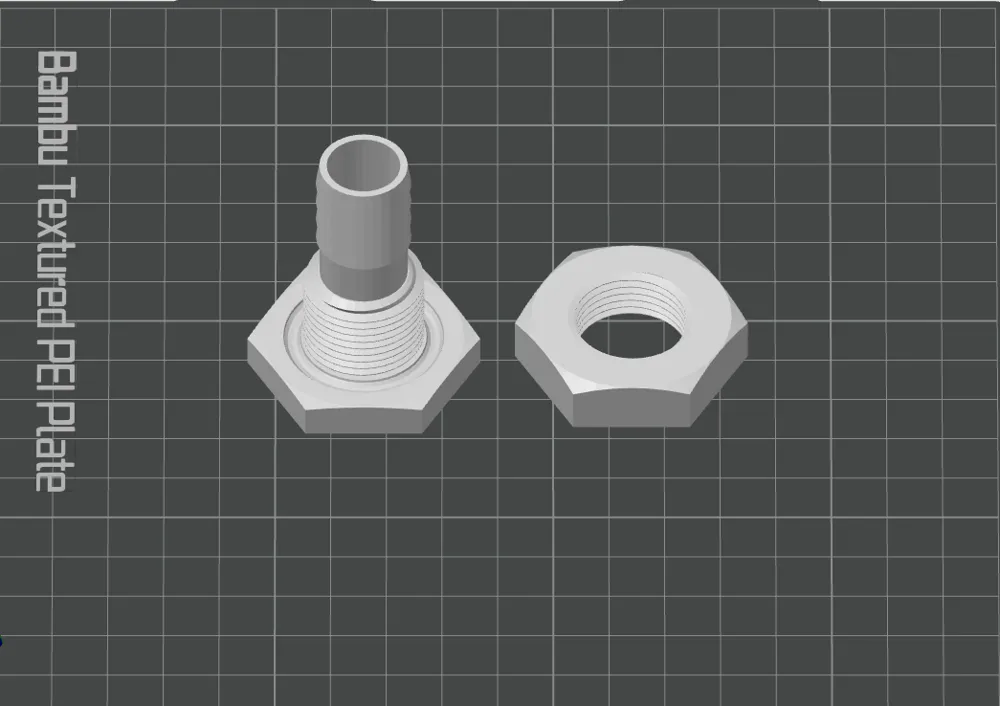

There are two sizes available - both will fit ¼ inch tubing, the only difference is the size of the thread piece/nut.

Comment & Rating (30)

@A1BaTrOs

Boosted

Print Profile

0.2mm layer, 6 walls, 25% infill, 2 sizes

Well, for my case i had to scale it by 4 more mm to fit the hose but print profile is amazing, the only problem there was, was a layer that was left behind inside the adapter, just keep in mind to refresh that if you have the chance, thank you.

The profile uploader has replied

@i_aint_no_bot

@a1batros Thank you for letting me know! The ID of the hose being used sometimes varies a little bit depending on the brand but 4mm is more than I would expect. I will do a test print of this to see what’s going on. I also have a few versions of the model with slightly different diameters which I can also upload later today.

@i_aint_no_bot

@A1BaTrOs Hi, just wanted to give you an update. I printed off some test pieces from the file and am getting consistent measurements of 7.7mm for the barbed attachment for all 4 prints in the file. I also do not see a layer inside of any of the parts. I'm not sure where the discrepancy in measurements that you experienced could be coming from, but I'm happy to troubleshoot further in Dm's!
