swapmod A1M - ramp extender and optional rails
IP Report
Print Profile(3)
original swapmod profile
Designer
4.7 h
2 plates
Two rail parts
2 h
1 plate
0.2mm layer, 2 walls, 0% infill
4.3 h
1 plate
Open in Bambu Studio
Boost
346
795
230
162
1.6 k
1.2 k
Released
Description

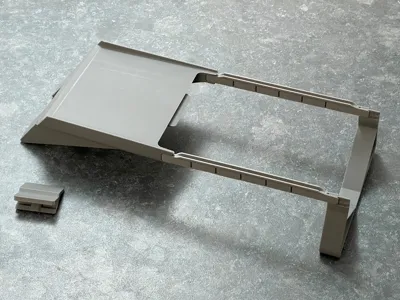

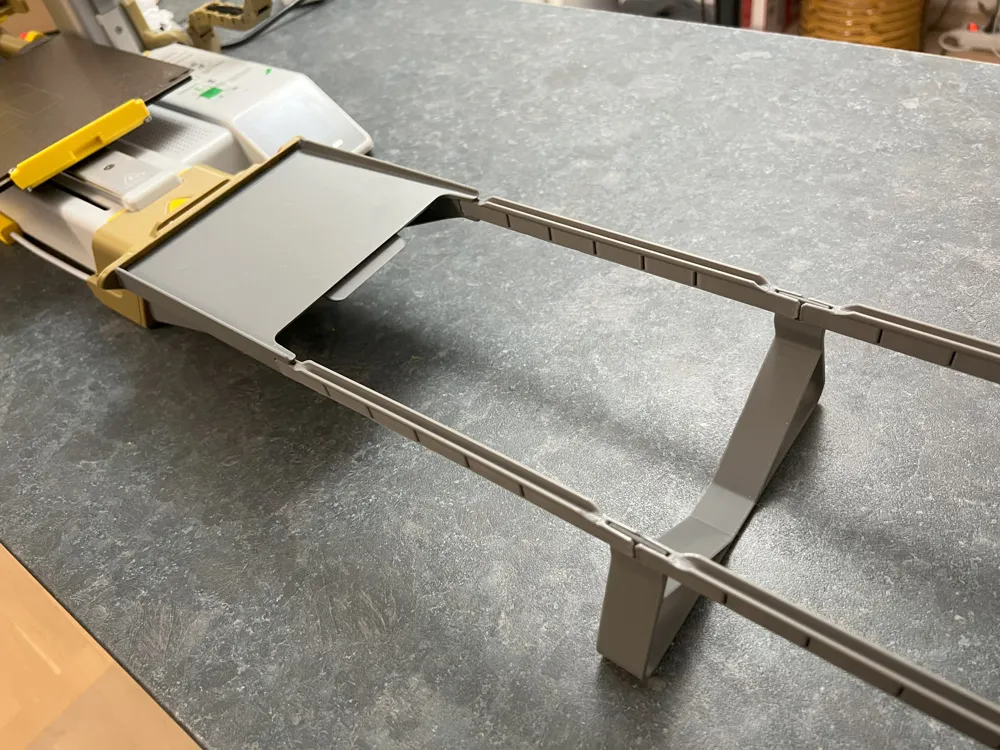

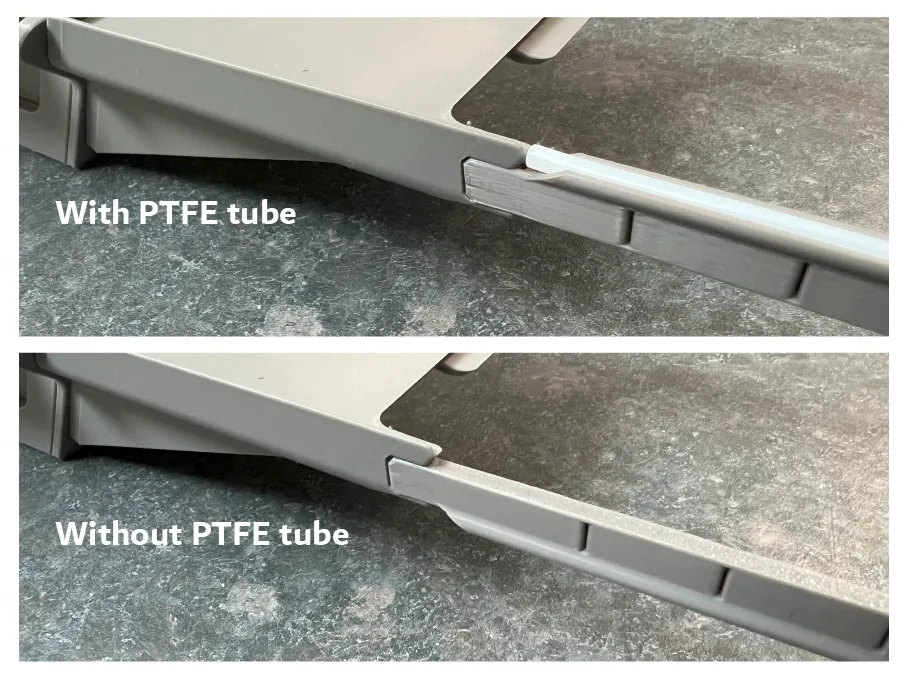

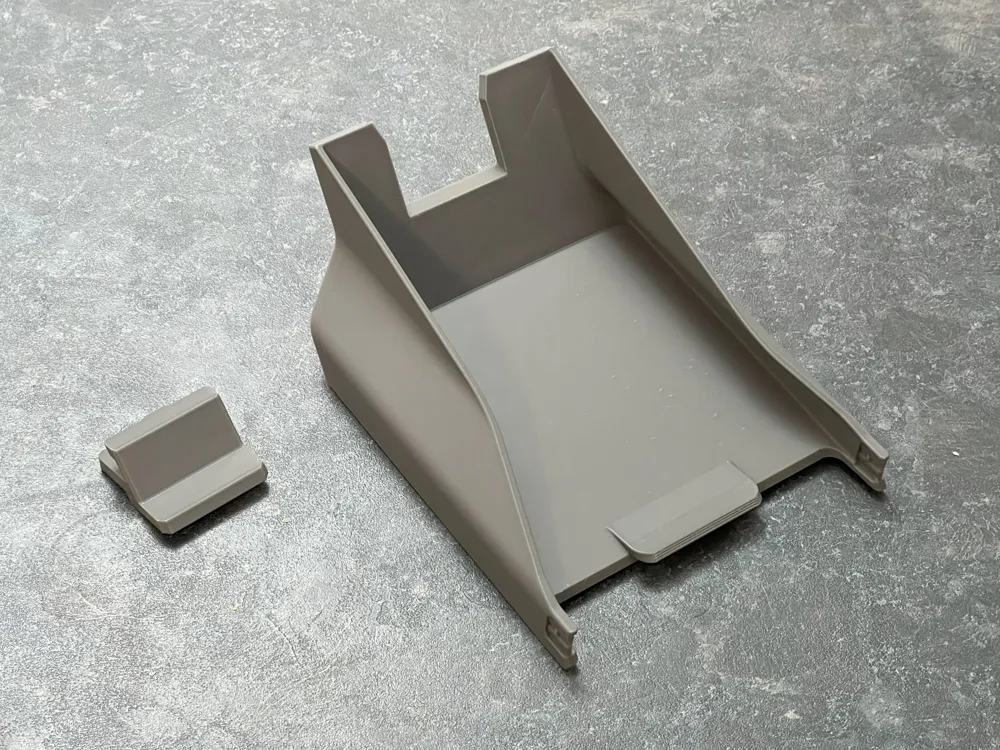

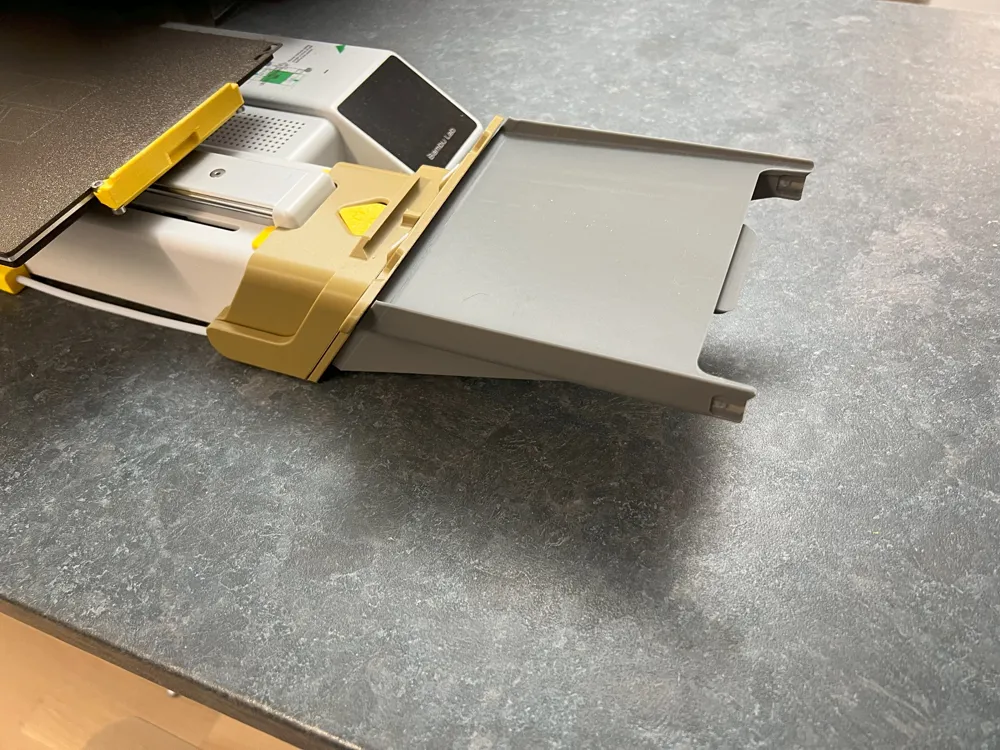

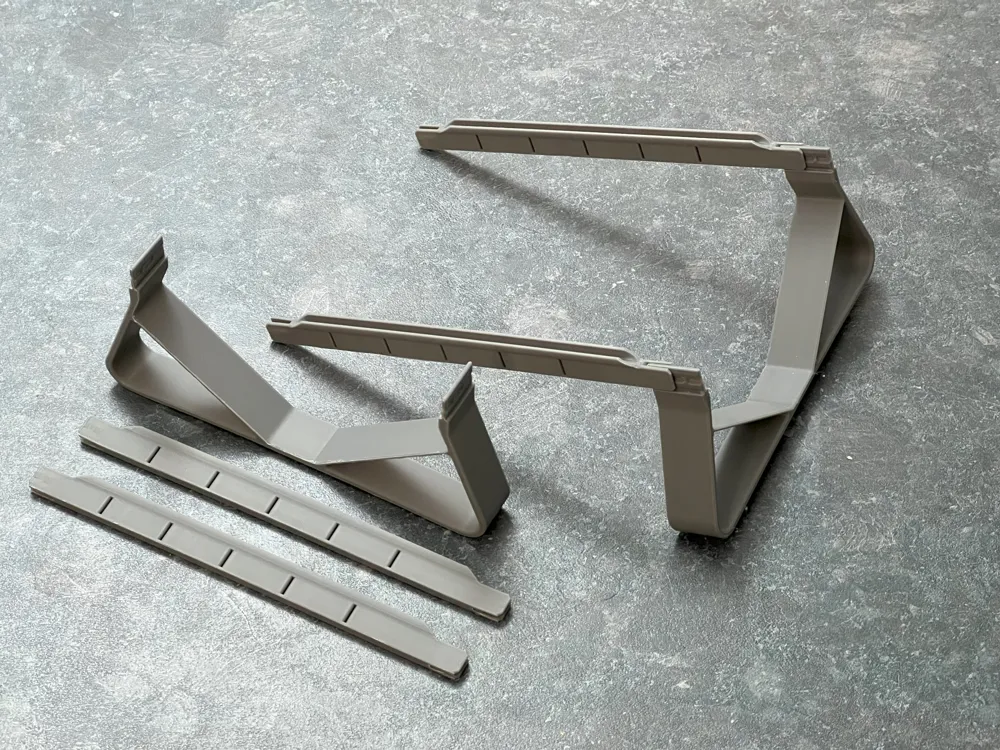

This ramp extender can be attached to the swapmod ejecting unit in order to be operated without collecting container. It can extended by optional rails if desired. Rails are modular and can be built in a needed length. The length of single segment is 175mm. When building a rail of more then 7 segments it's recommended to insert a 4mm PTFE tube into the rails (see pictures).

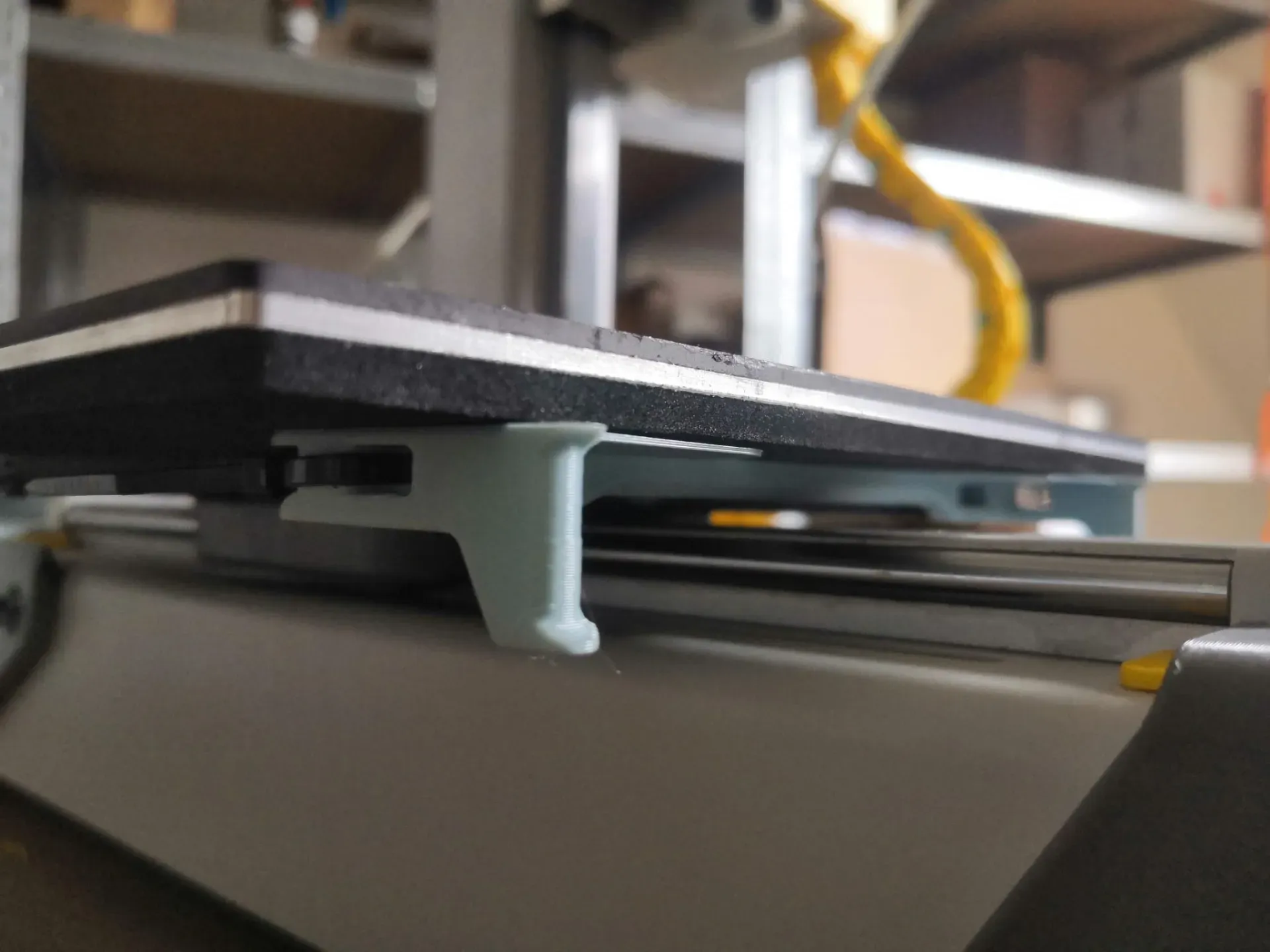

IMPORTANT: Because of reliability, I highly recommend using this rails ONLY in combination with this ado-on:
https://makerworld.com/en/models/1093569
