Profile using ASA instead of PETG for more extreme temperature resistance.<ul><li>0.4mm nozzle</li><li>0.12mm layer height</li><li>15% gyroid infill</li><li>slowed down speeds slightly for better print quality</li></ul>

ASA 0.12mm layer, 3 walls, 15% infill




nothing special needed. I did slow down the default petg speeds for quality.<ul><li>0.4mm nozzle</li><li>0.12 layer height</li><li>3 walls</li><li>15% gyroid infill (infill likely doesn't matter on this model)</li></ul>

0.12mm layer, 3 walls, 15% infill



Nothing special in this profile.<ul><li>0.2mm nozzle</li><li>0.06mm layer height</li><li>15% gyroid infill (doesn't matter for this model really)</li></ul>

HIGH QUALITY 0.2mm nozzle, 0.06mm layer, 4 walls, 15% infill

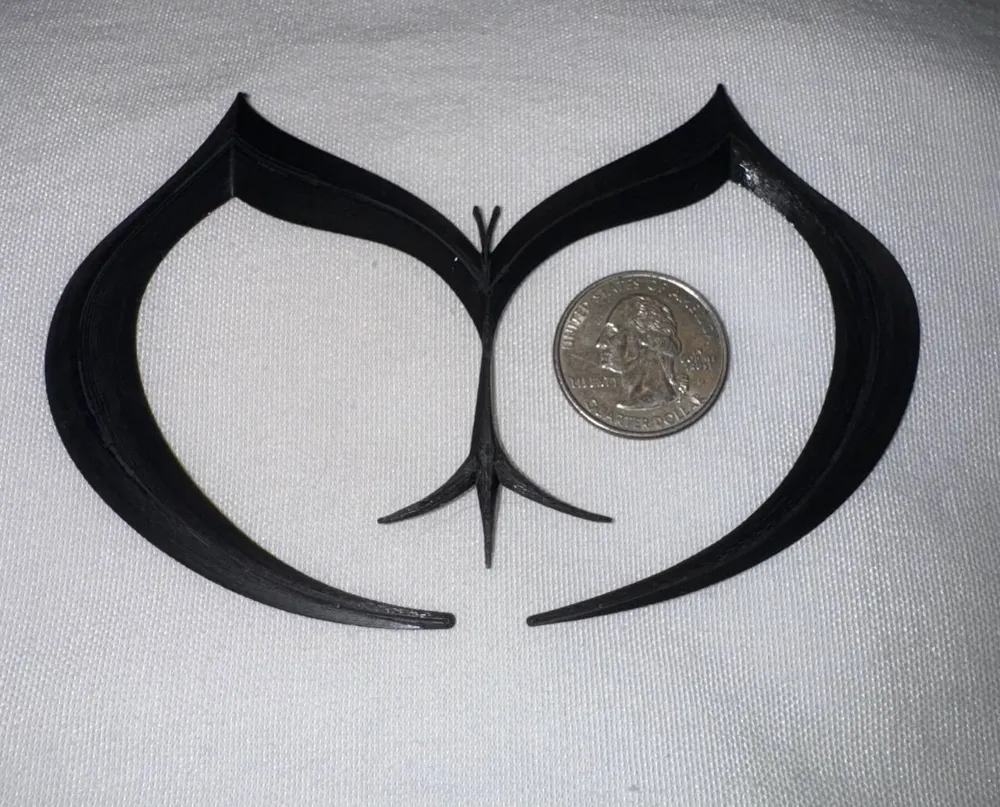

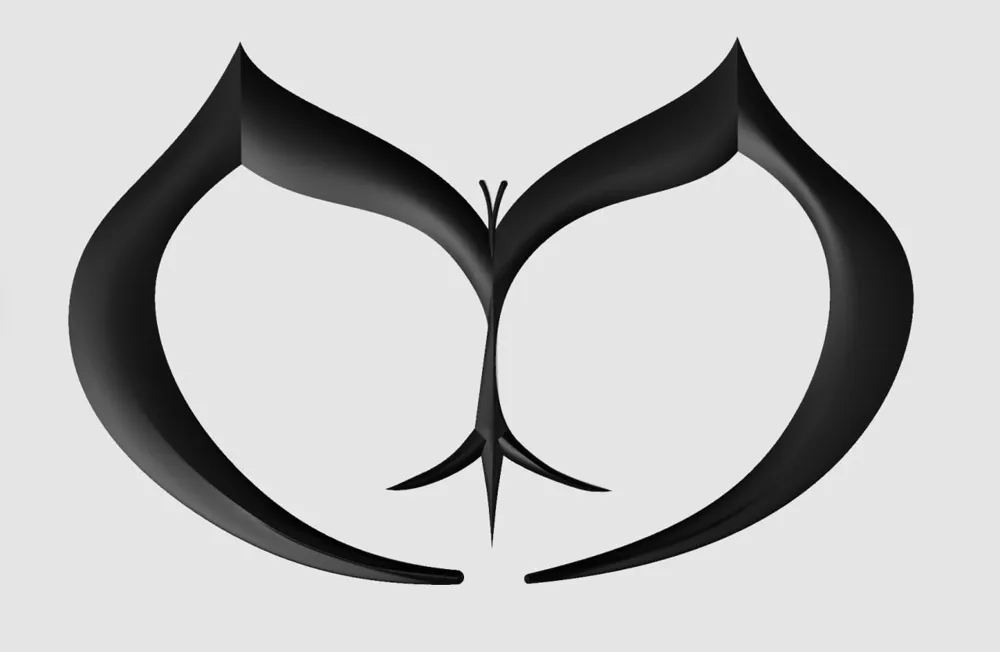

A friend of mine had a concept of this and asked me to bring it to life. This vehicle badge is ideally printed in ASA for weather durability. You are responsible for determining the best possible way to mount to your vehicle if you choose to do so. I will update with any options and solutions that work me for me.

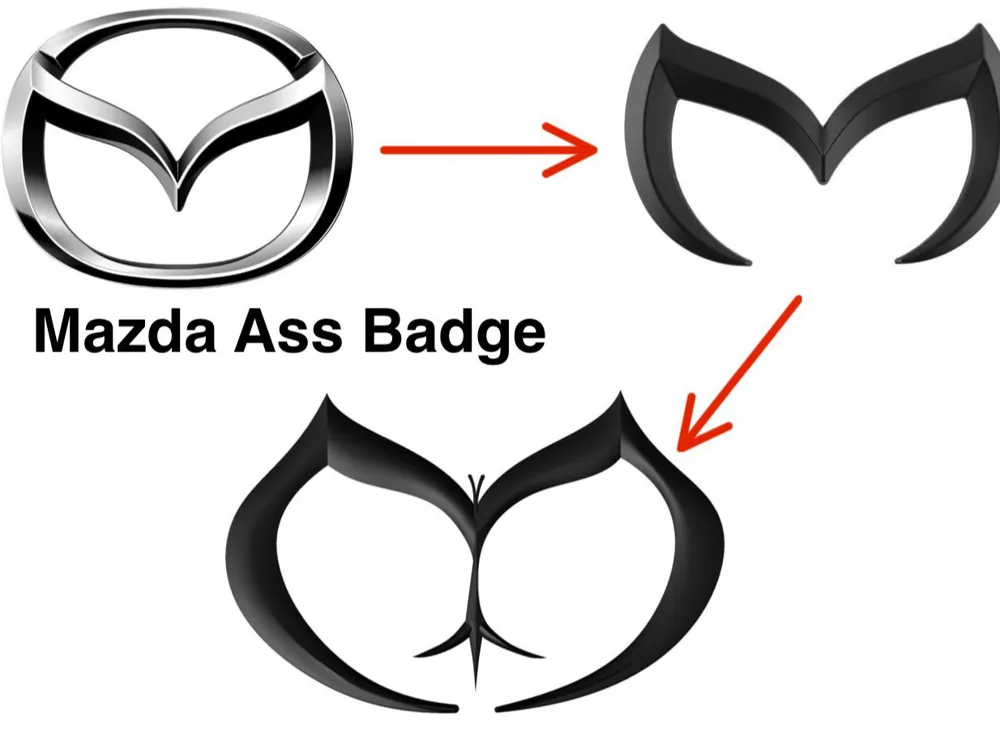

Mazda Ass Badge

ASIA
