Description

Overview

This bottle drying rack is specifically designed for stainless steel water bottles and tumblers, with a natural fit for the Owala FreeSip series. The design accommodates components from both the 24oz and 32oz versions, providing dedicated slots for the bottle, lid, straw, and gasket. Its compact design elevates components off the countertop, ensuring efficient drying and easy assembly.

Features

Tailored Design: Slots perfectly fit components of Owala FreeSip bottles, including the 24oz and 32oz sizes.

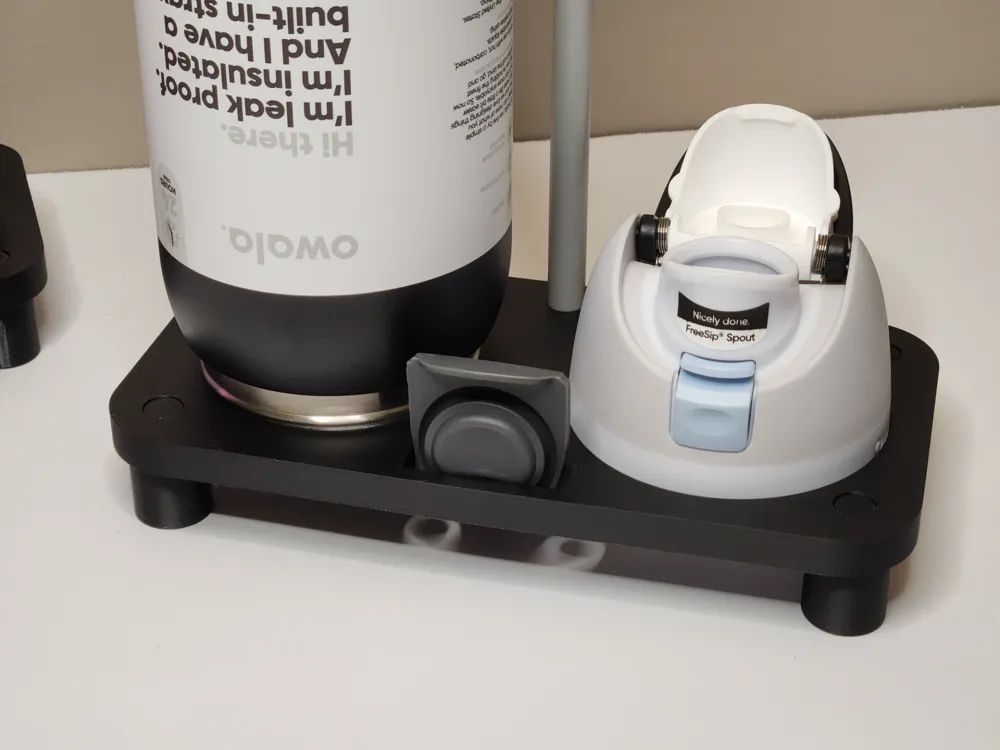

All-in-One Drying Solution: Dedicated spaces for the lid, bottle body, straw, and gasket.

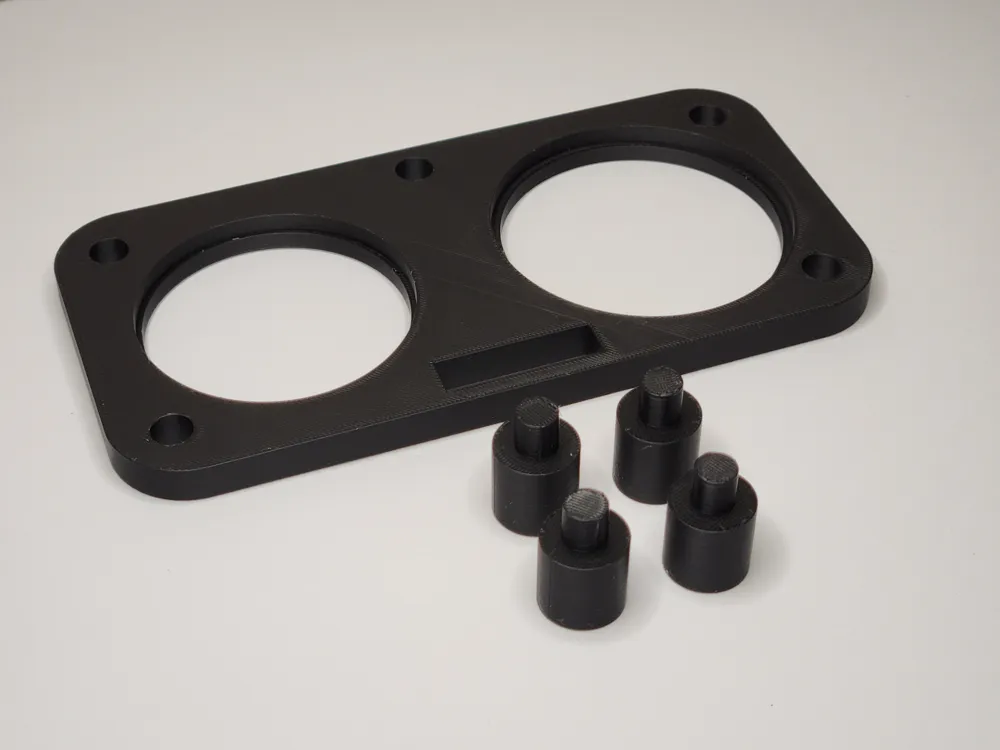

Modular Build: Includes a main drying rack body and 4 detachable legs for quick assembly and cleaning.
No Adhesives Needed: Legs fit snugly into the main body for a secure, glue-free connection.
Support-Free Printing: Optimized for 3D printing with no additional supports required.

Specifications

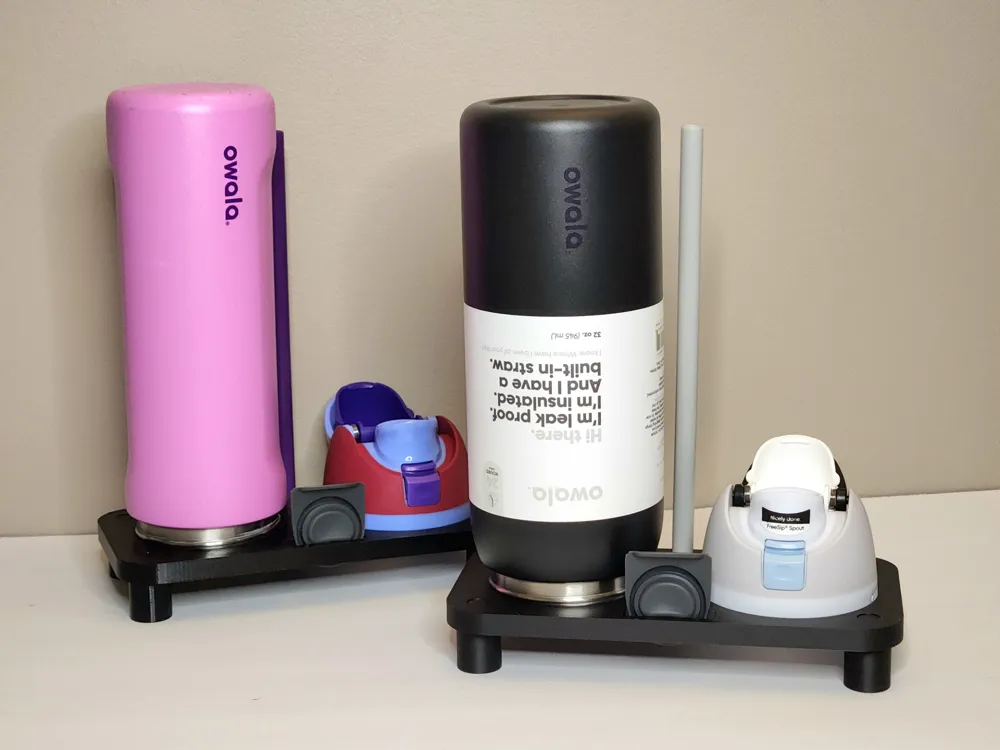

Compatible Bottles: Naturally accommodates the Owala FreeSip 24oz and 32oz; may also fit other similar-sized bottles.
Dimensions: 200mm (length) x 100mm (width) x 30mm (height with legs attached)
Assembly: Insert all 4 legs into the main drying rack body piece from the bottom side. The leg pieces are designed to fit securely and snugly into the base. This means they will need to be pressed into place with a small bit of force.

Suggested Print Settings

Layer Height: 0.28mm
Infill Percentage: 10%
Infill Pattern: Gyroid
Supports: Not required
Material: PLA or PETG
