Action camera/panorama camera zip line
Print Profile(3)
Description

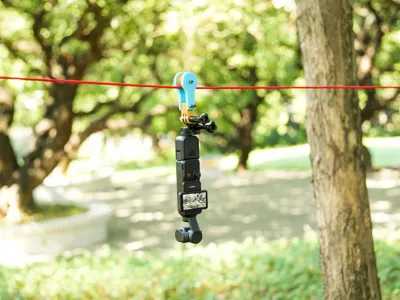

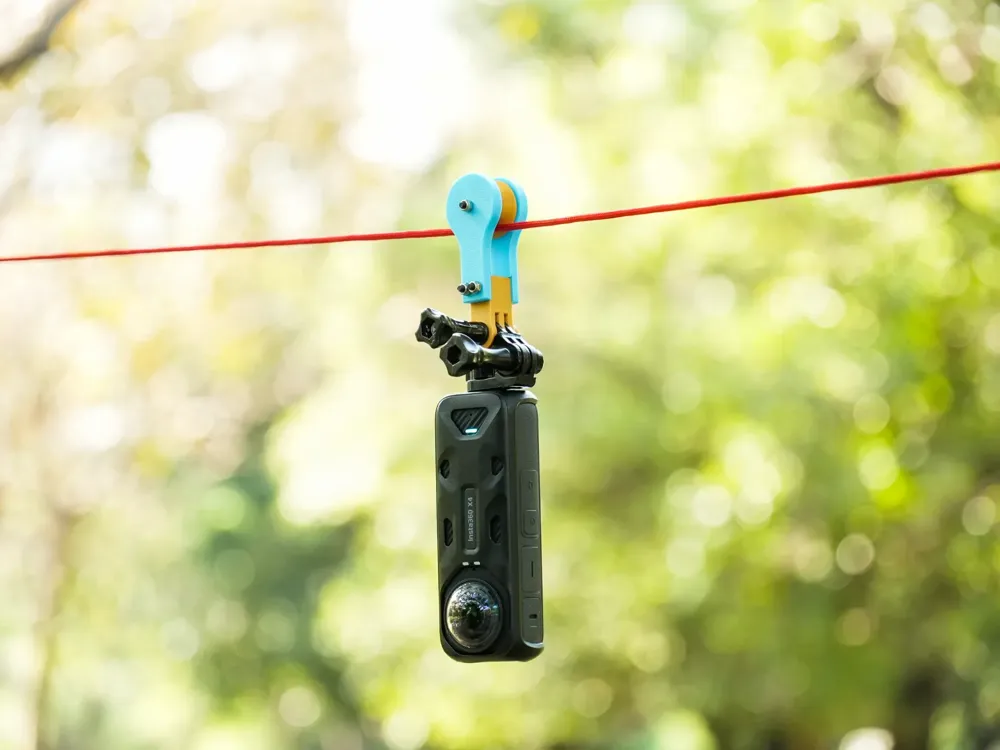

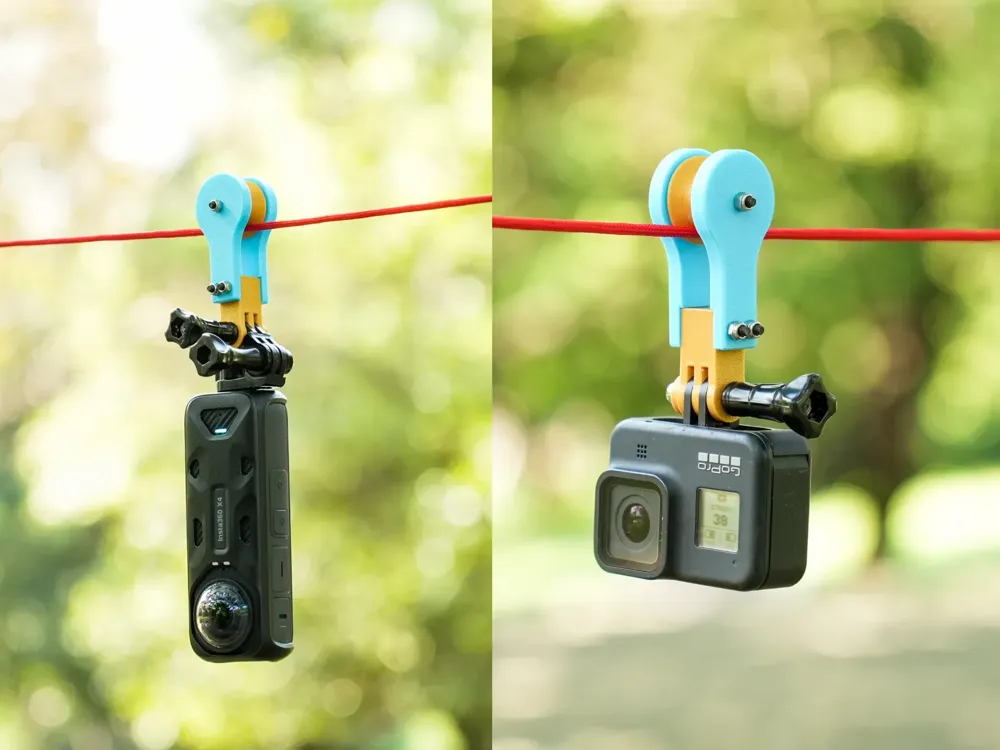

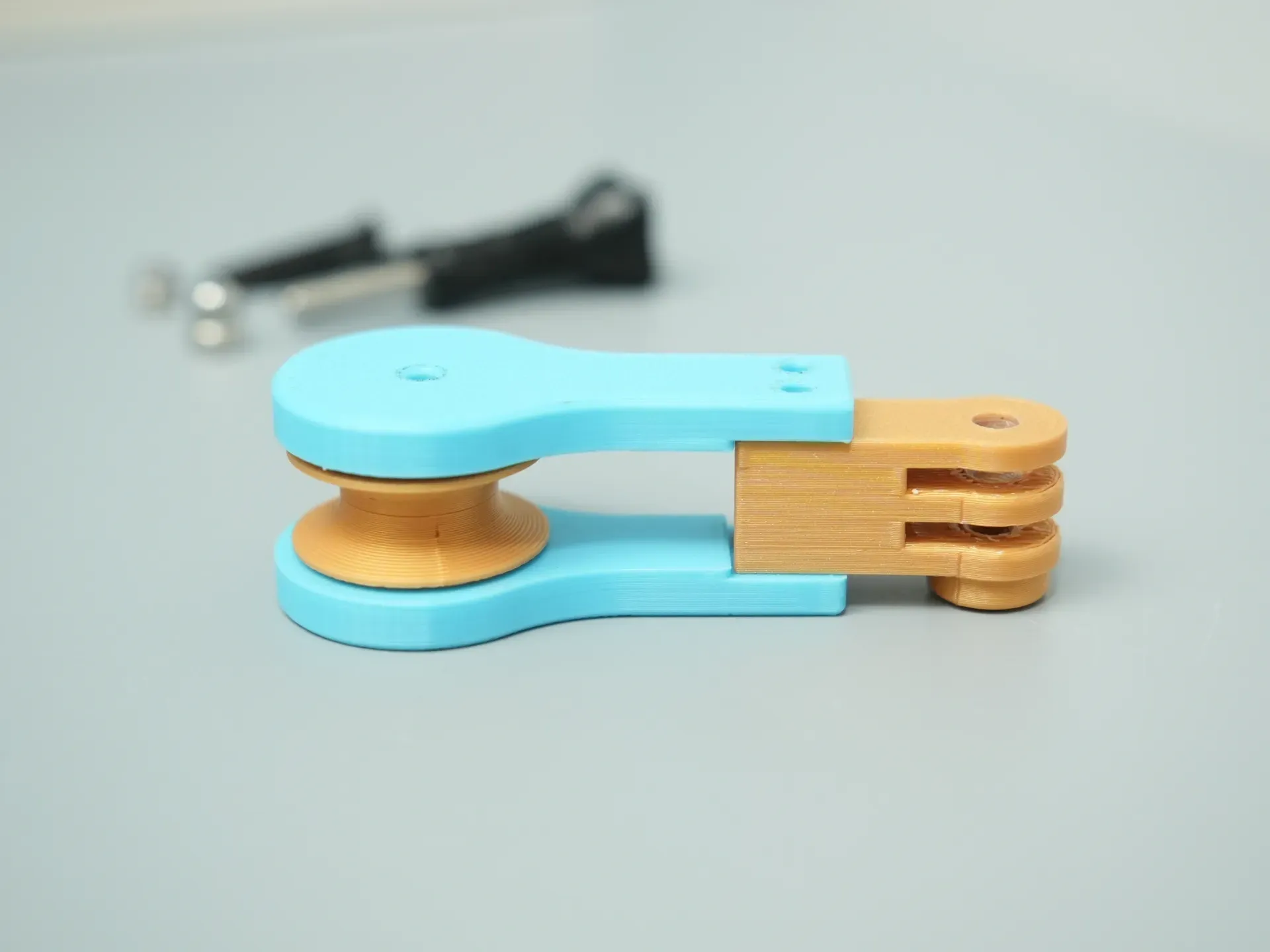

This action camera and panoramic camera zipline mount enables action cameras to transition from elevated positions to lower ones; incorporating a towline allows for horizontal movement

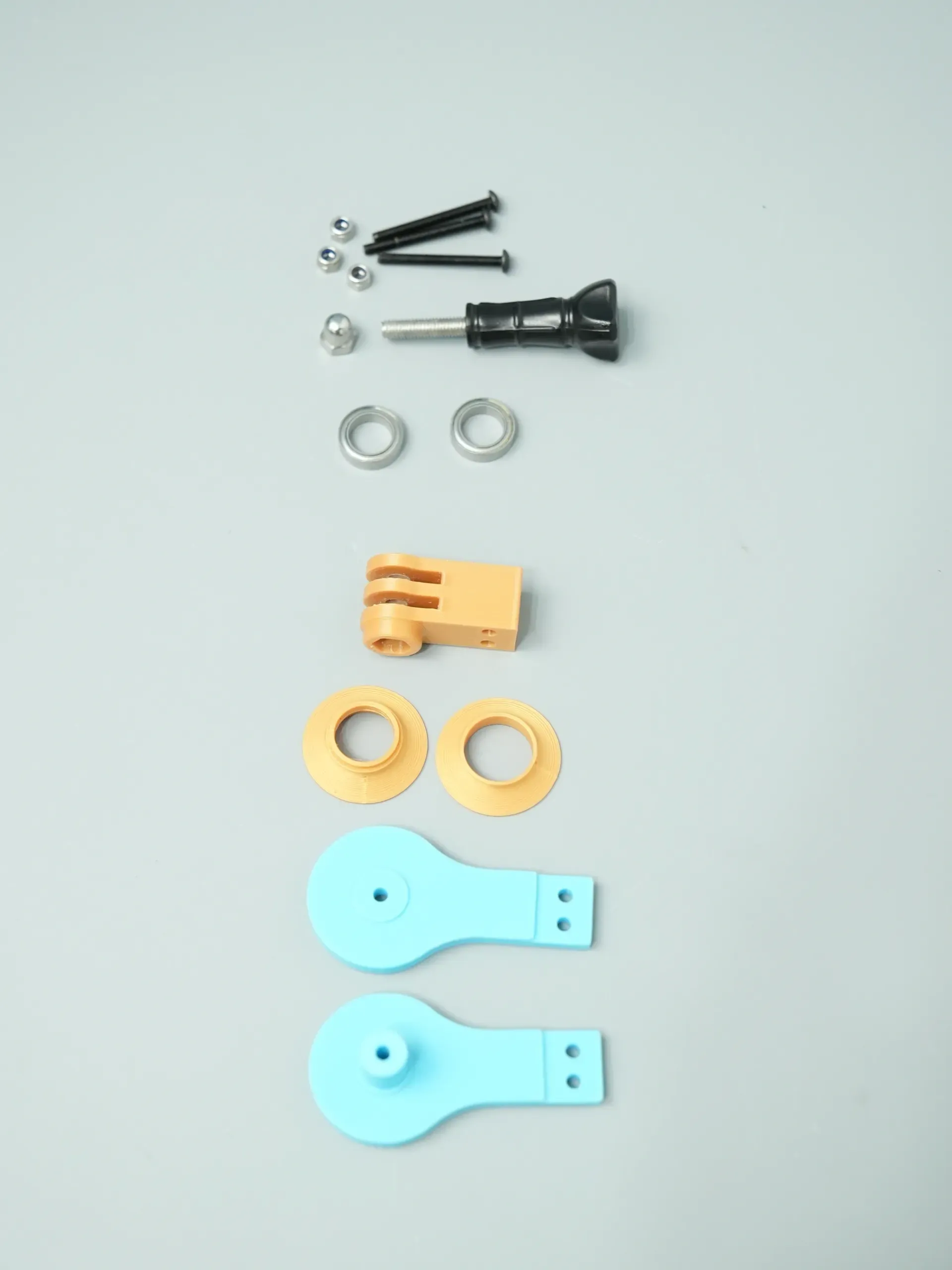

This requires two 10x15x4mm bearings, three M3x30 screws, and three M3 locking nuts

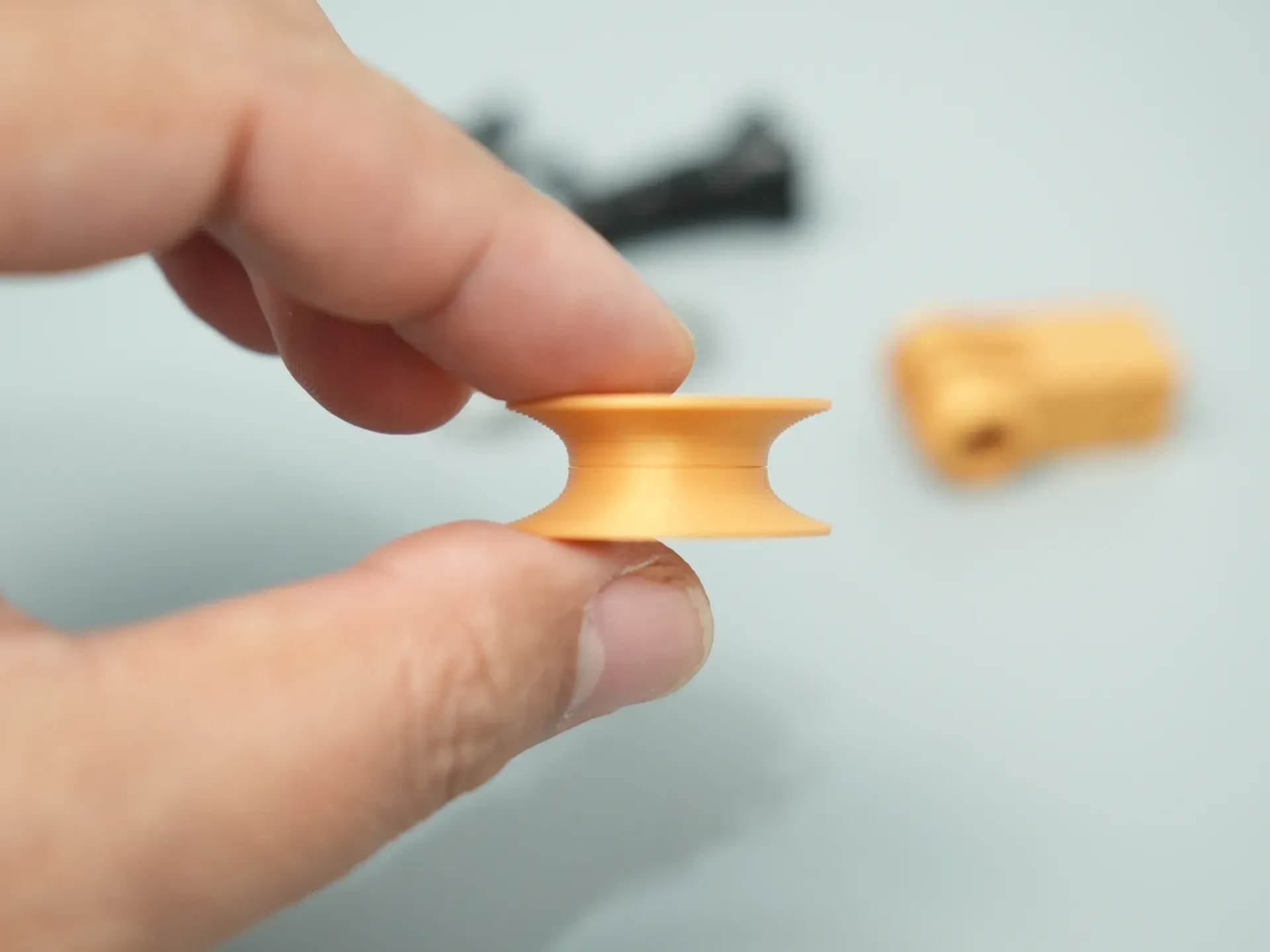

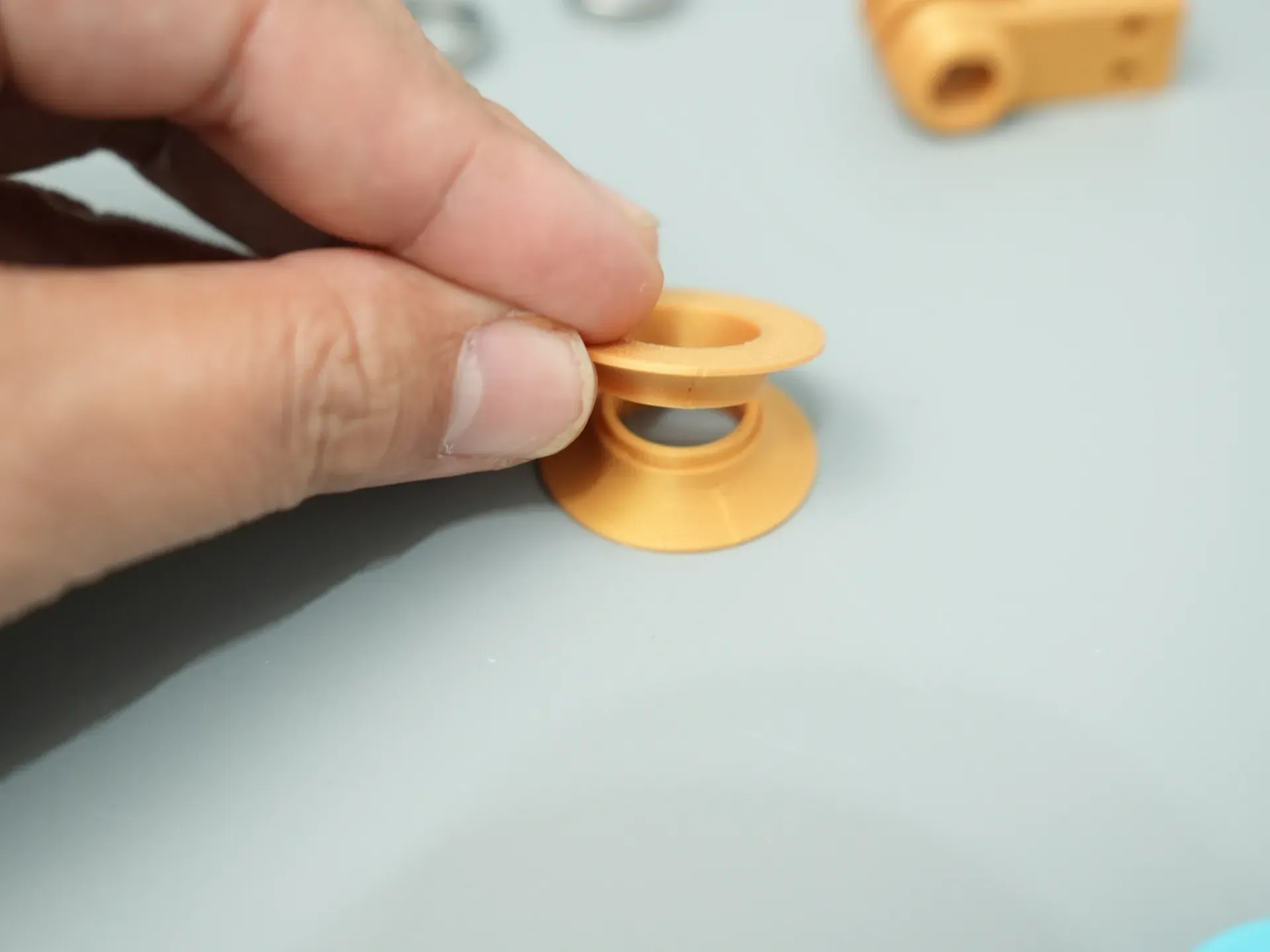

The pulleys are printed separately and must be bonded together using adhesive

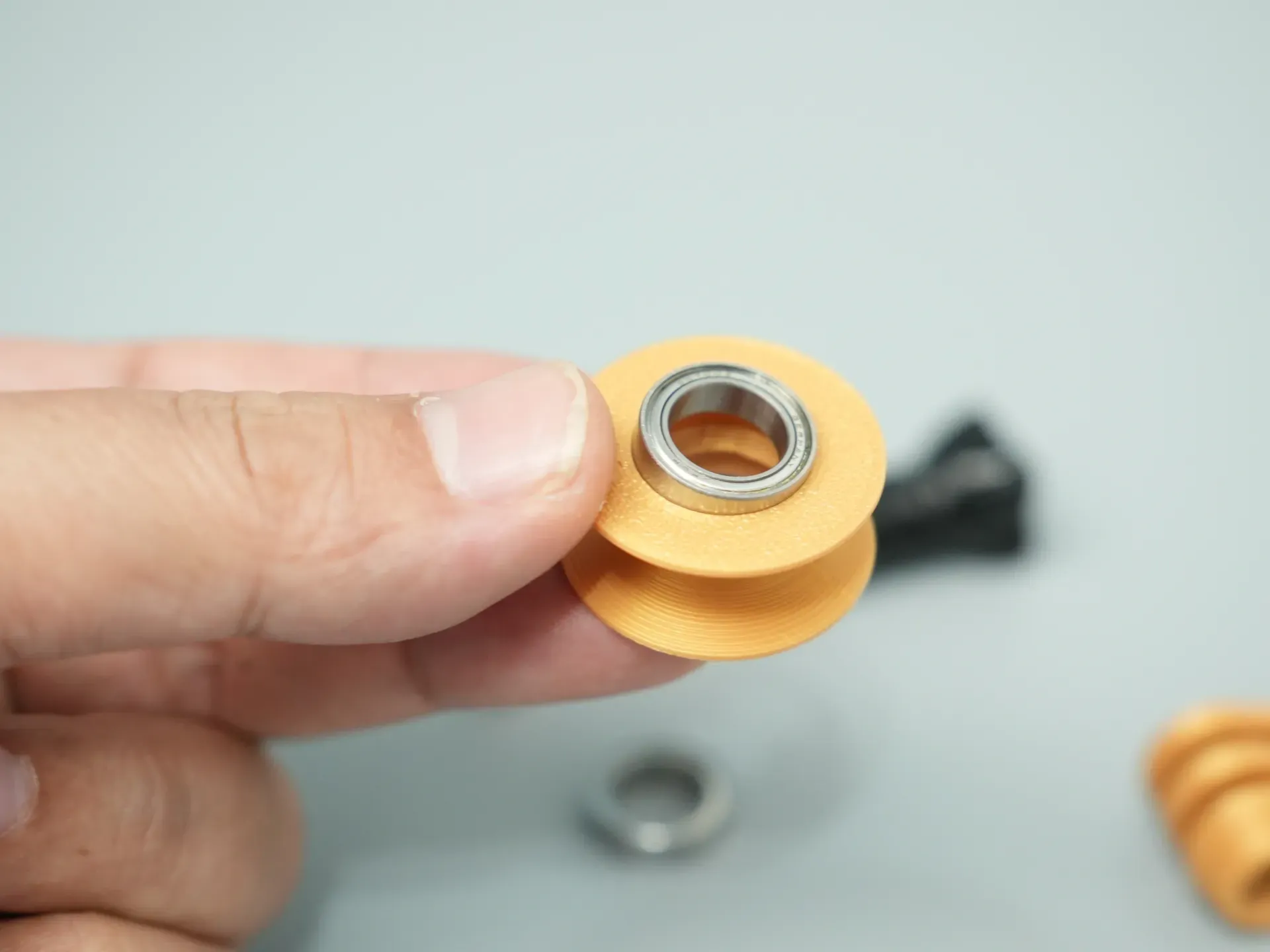

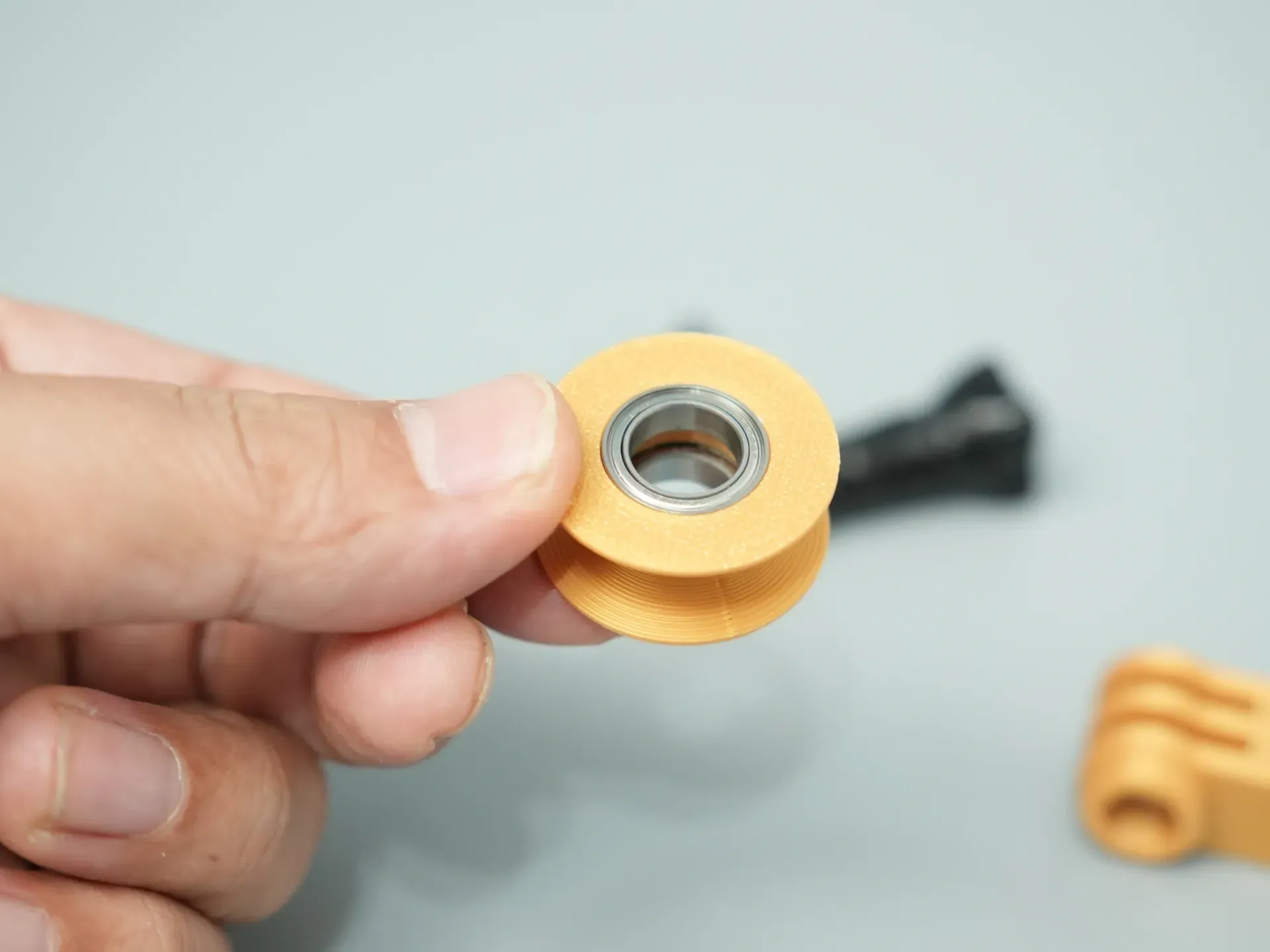

Install one 5x10x4mm bearing on each side

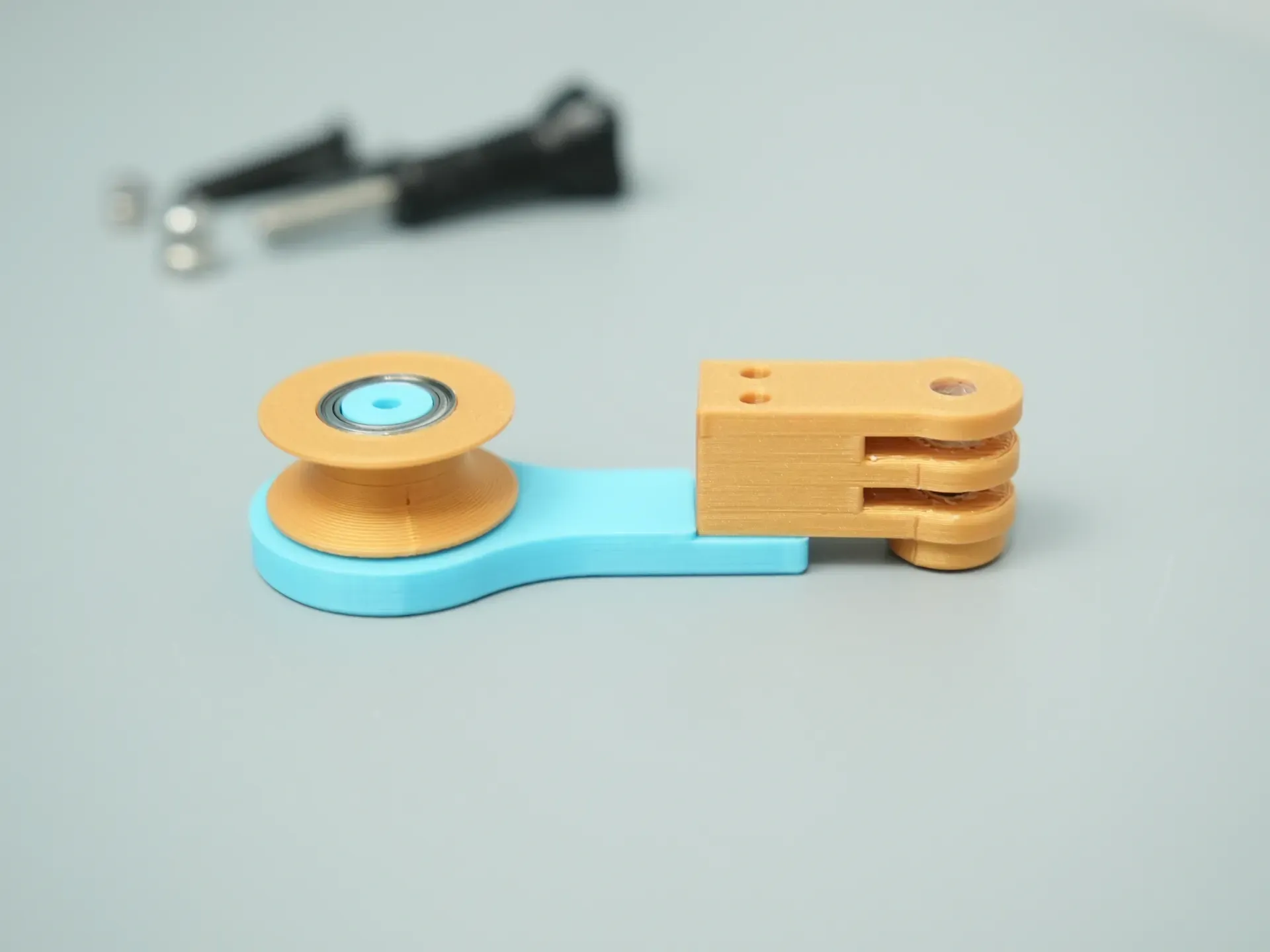

Assemble as shown and secure using M3 screws

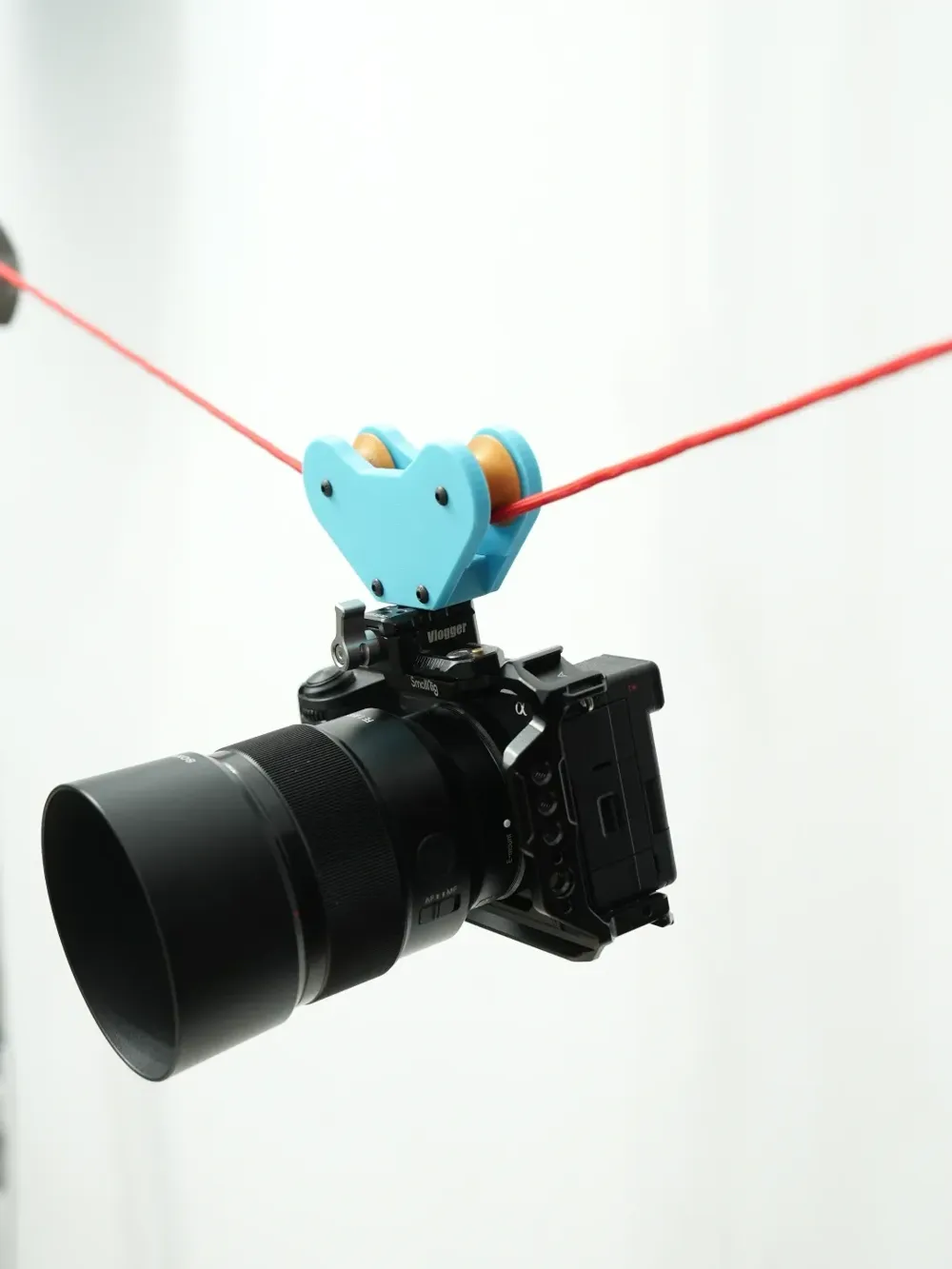

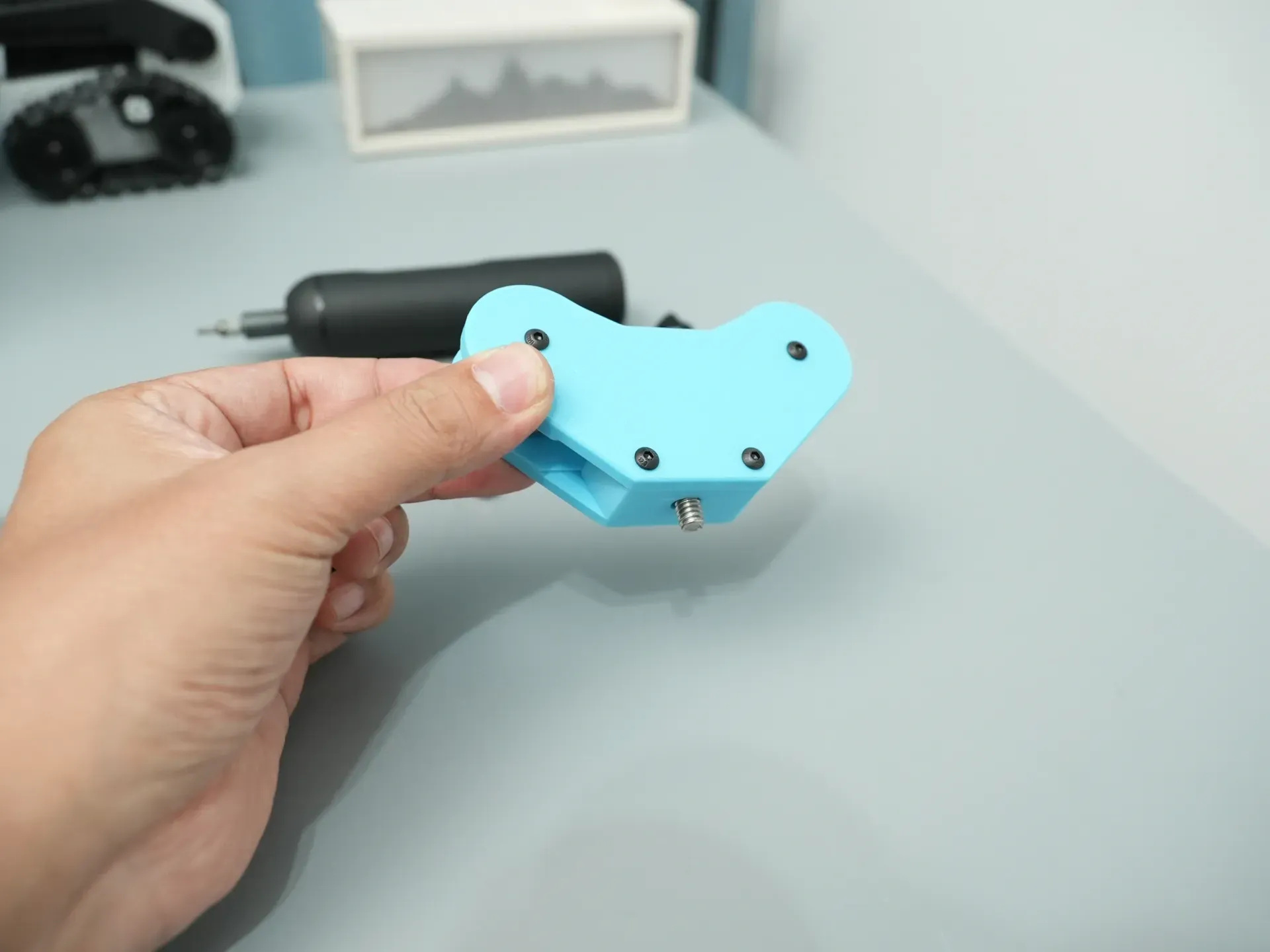

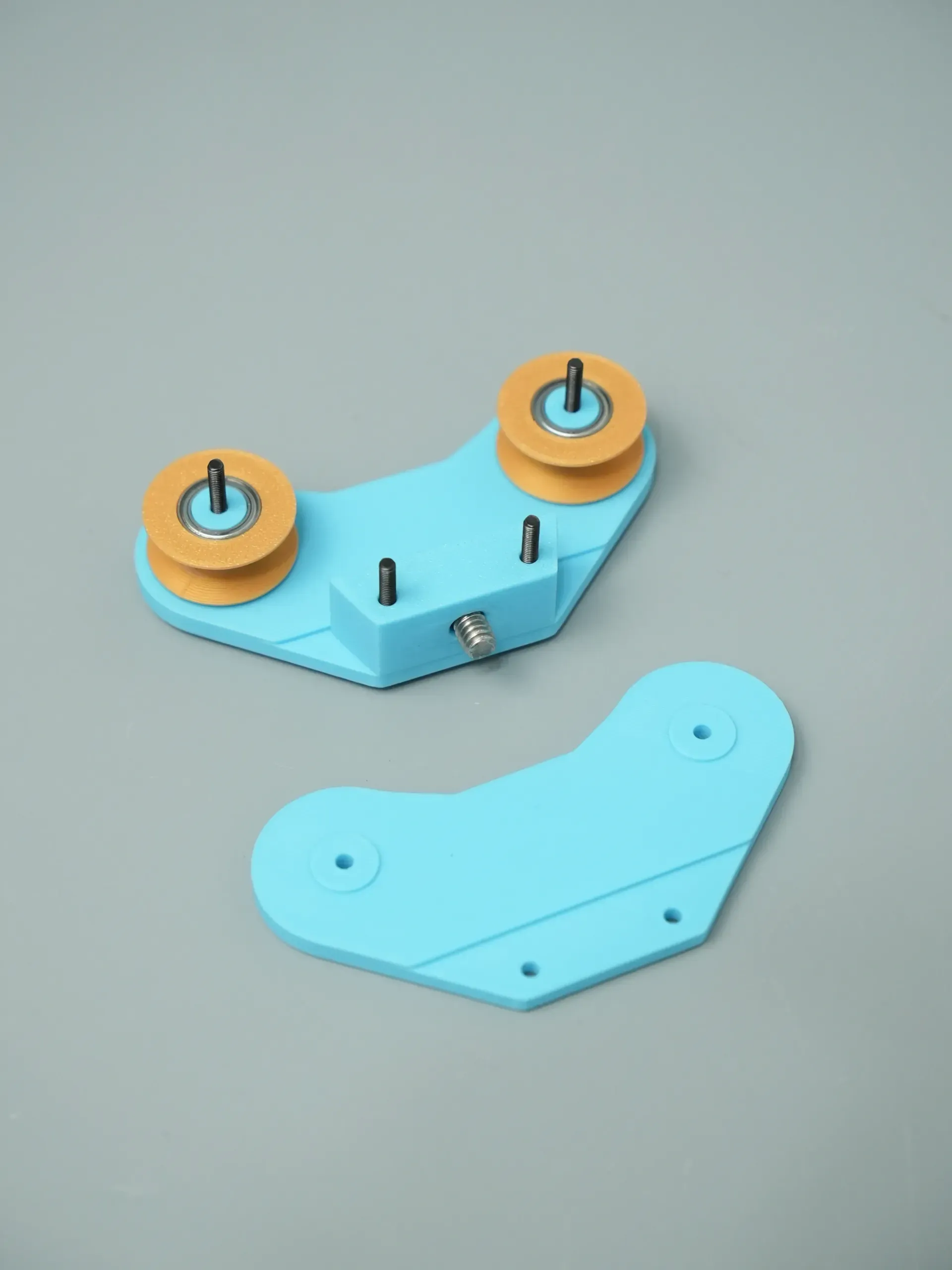

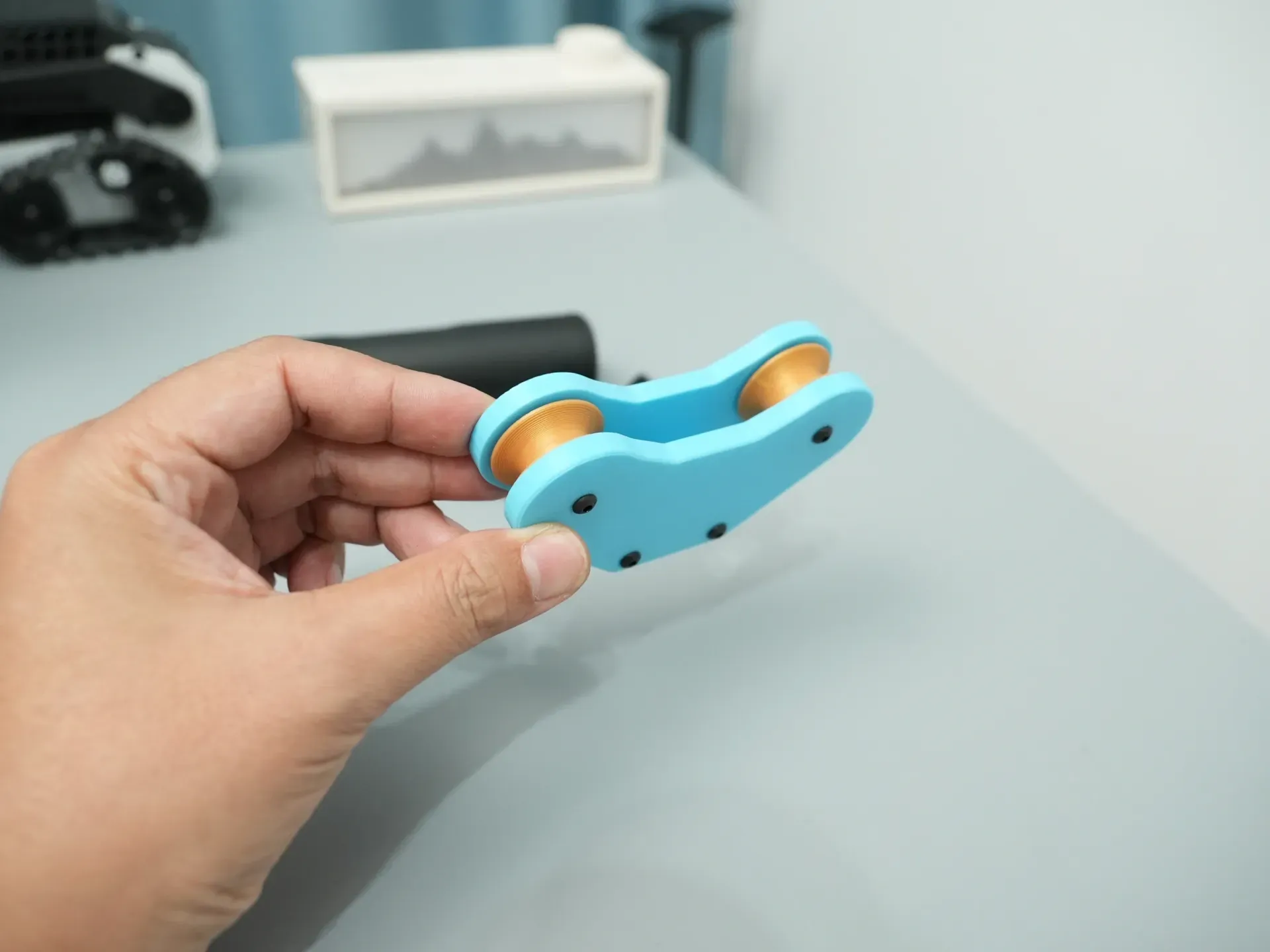

Practical application revealed lateral oscillation, prompting a two-wheel design requiring four 5x10x4mm bearings and an additional M3 screw. A universal 1/4 screw is used for camera mounting

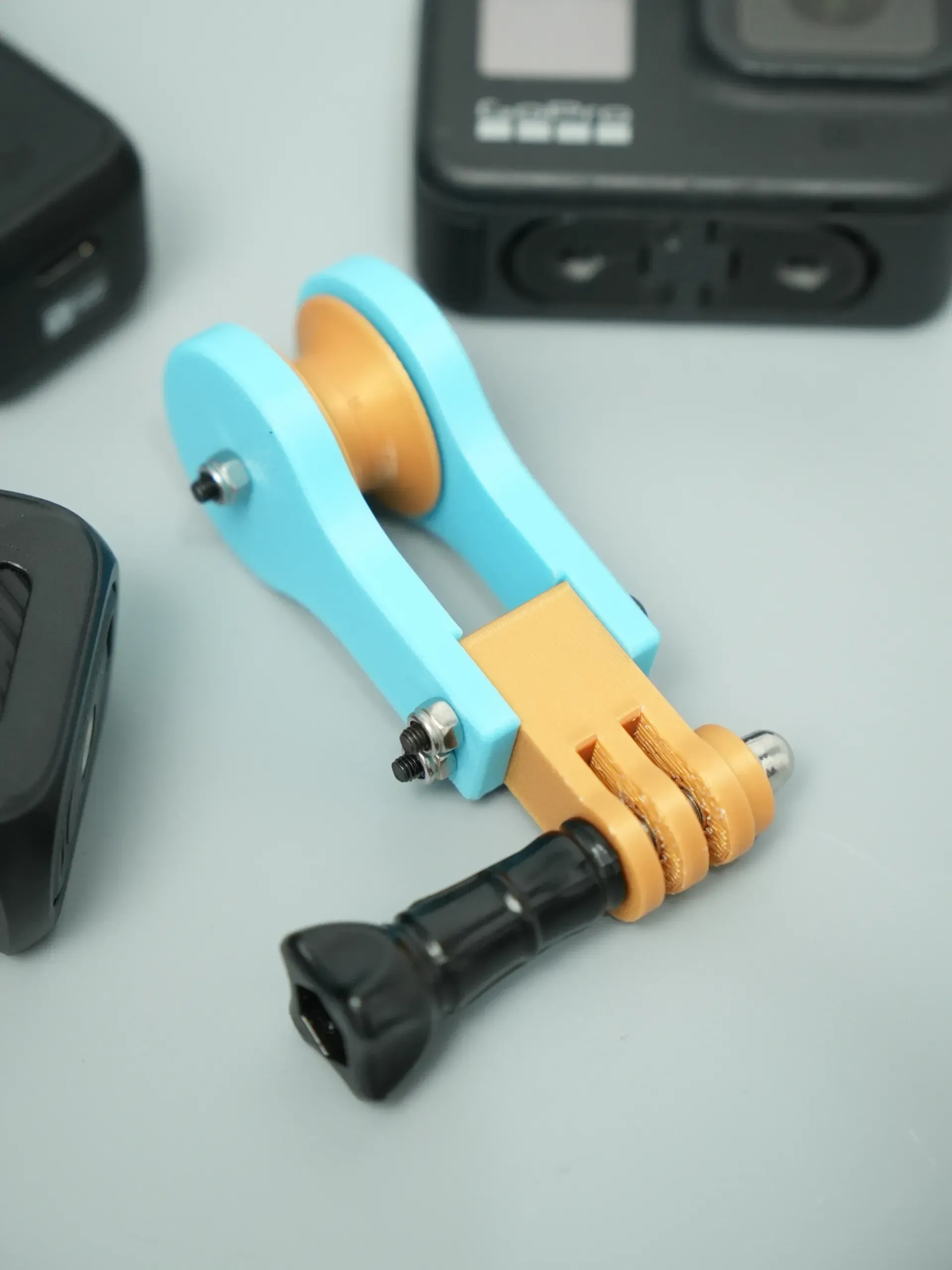

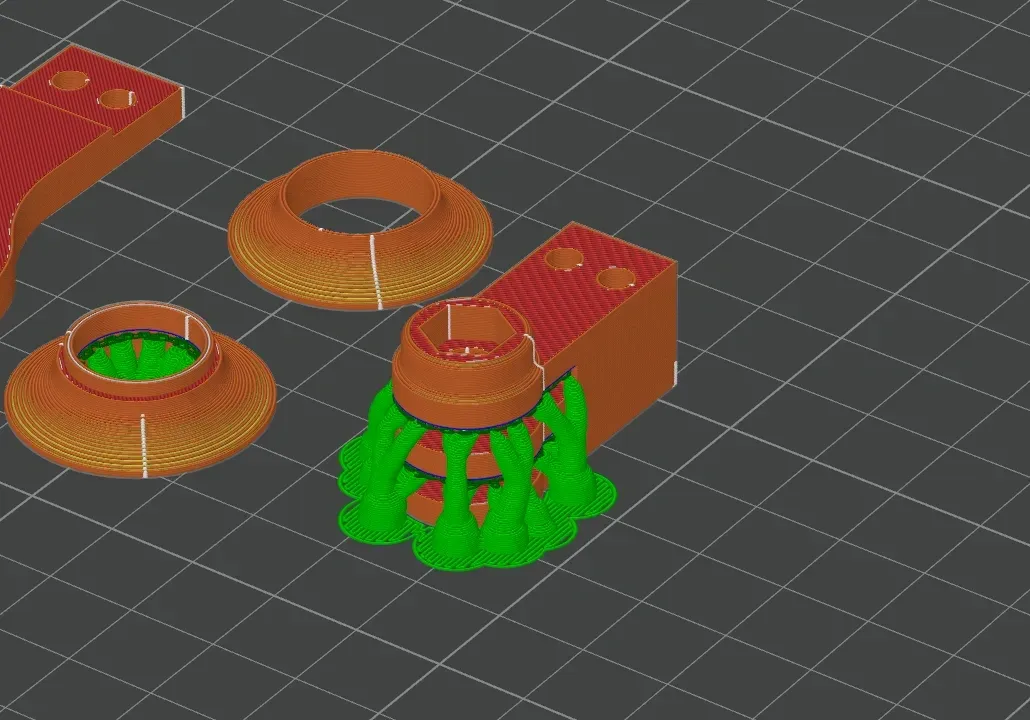

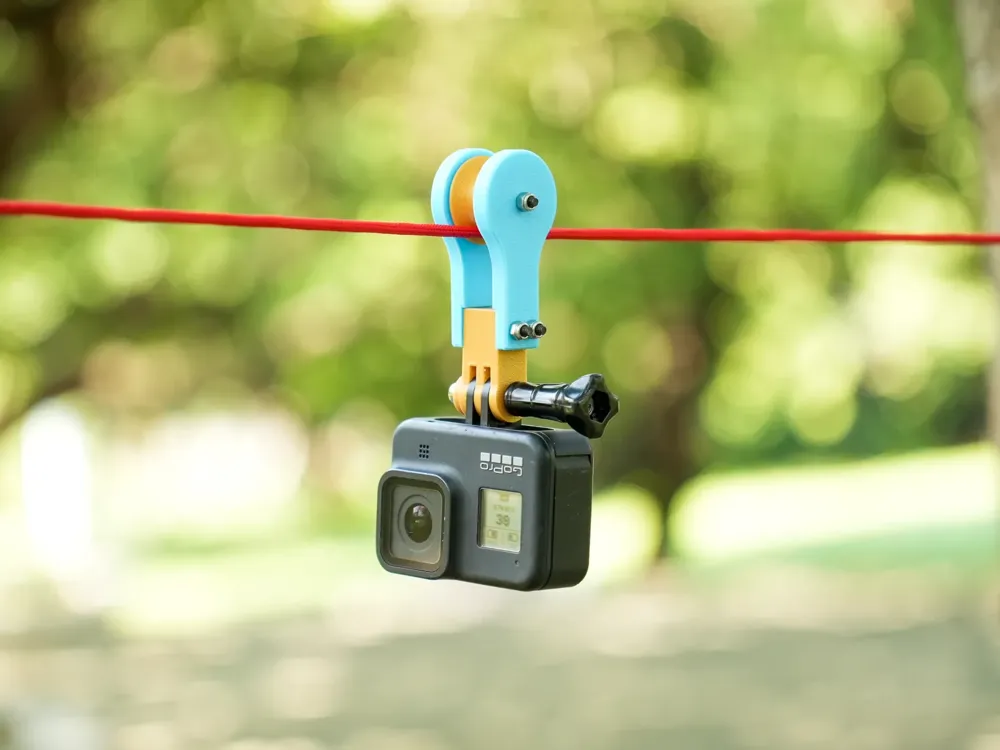

Finally, note the GoPro mount orientation as illustrated. While supported, removal requires slightly more effort, but this configuration maximizes material strength. Avoid altering the print orientation
