DFGT Magnetic Paddle Shifters
Remixed by
IP Report
Print Profile(1)
0.24mm layer, 2 walls, 15% infill
Designer
1.6 h
1 plate
Open in Bambu Studio
Boost
14
23
1
1
31
12
Released
Bill of Materials
List other parts
- Micro lever switch kw-10 x 2:
- Neodymium magnets 8x5mm x 4:
- M3 Cap socket screws 30mm x 10:
- M3 Cap socket screws 10mm x 4:
- M3 Nuts x 12:
- M3 Cap socket screws x 4: I Don't remember how long, I had an assortment and used what works to mount to the wheel.
Description
UPDATE: I've included a PDF showing how I designed this and how I attached it to my wheel.

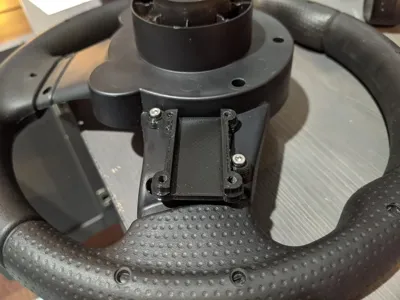

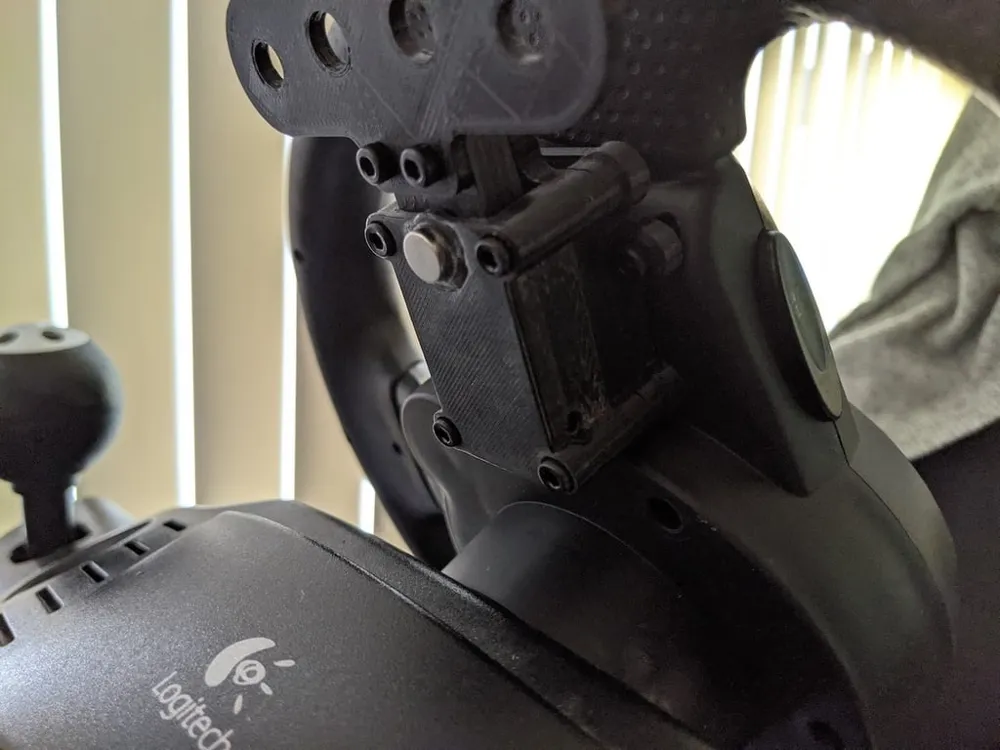

I remixed these paddle shifter baseplate to mount up to my Logitech Driving Force GT racing wheel. I also modified the top plate so that 25mm bolts would fit perfectly without sticking out the bottom. And while I was there I also notched the side pillars so that the bolt used as the pivot arm could bolt all the way in. And added a little more "meat" around where the magnet goes. Lastly I modified the paddles themselves to be a little more easy to adjust to how you like them.
Hope this is helpful for other people, it was a wonderful design JKOLJO made.
Documentation (1)
Assembly Guide (1)
DFGT_Mag_Shifters.pdf
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
