Oscillating tool dust attachment and depth stop
IP Report
Print Profile(1)
0.24mm layer, 4 walls, 15% infill
Designer
4.3 h
3 plates
Open in Bambu Studio
Boost
65
212
15
8
175
83
Released
Description

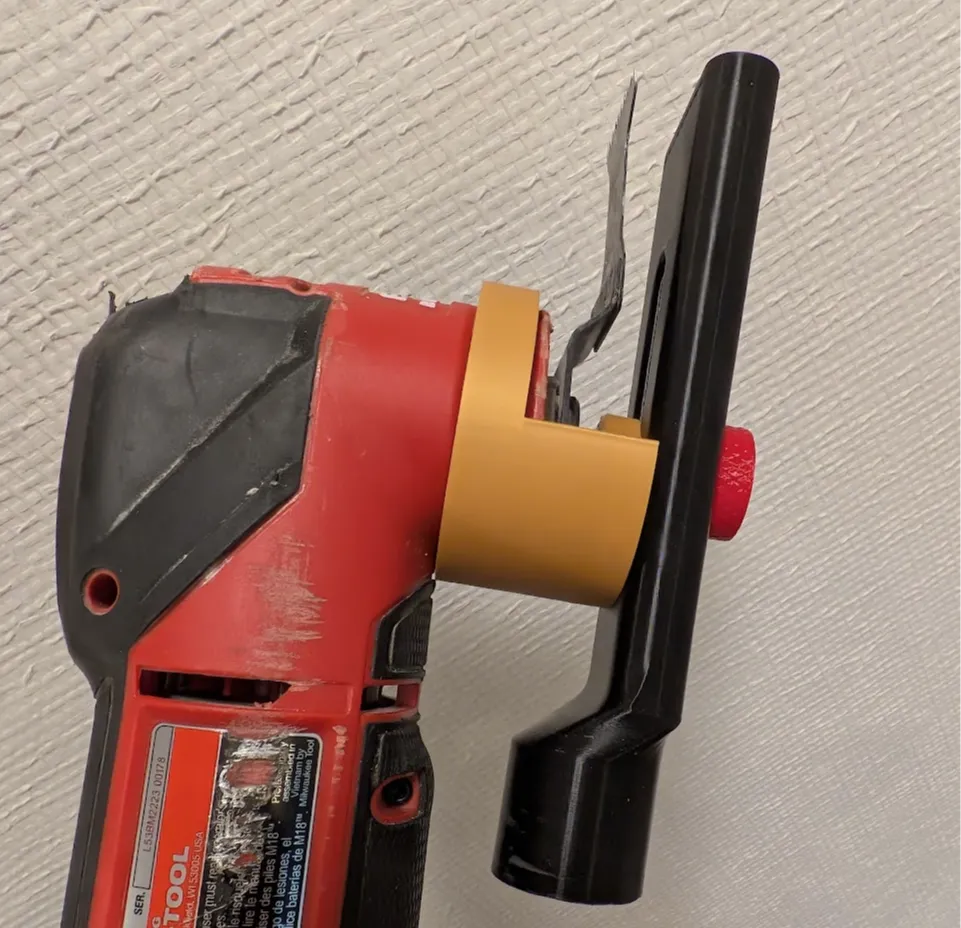

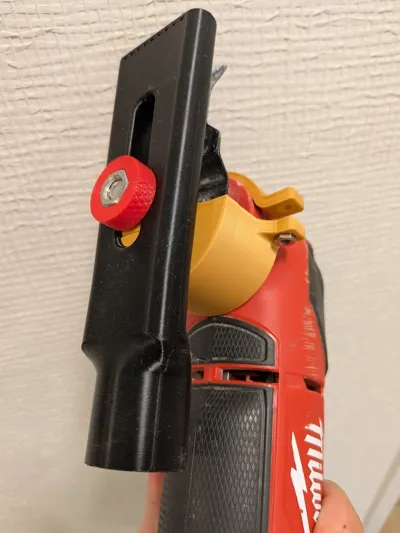

Want to create a dust adapter for my milwaukee M18 multi-tool. It will need one M8x30 hex bolt and nut for attachment. Also need a M6x40 hex screw for quick clamping.

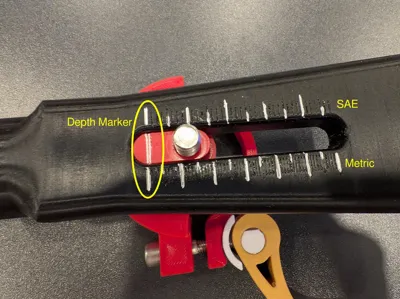

I also include the depth gauge scale(Metric & SAE) to set depth of cut.
The quick clamp part is modified from here:
https://www.printables.com/model/860826-quick-release-clamp/files
Feel free to use and modified it as long as you also share it. Please do not sell my deisgn for the profilt.
CAD file
https://cad.onshape.com/documents/8f9c2d0734797ce8964e372a/w/52888f6d670f705633e34c3c/e/b80ba194fc4faed36b903921?renderMode=0&uiState=676364fa69fe0a33ec8b8f67
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
