I've got a new racing cockpit Next Level Racing Victory. There was a basic cable management velcro tape set, but I didn't like it. So I decided to design my own cable management system for the cockpit.

Based on the suggestion from @JDub2899 I created a clip for the GT-Lite and GT-Lite Pro with 25mm tubing. Both of these are using 25mm steel tubes for the skeleton of the cockpit.

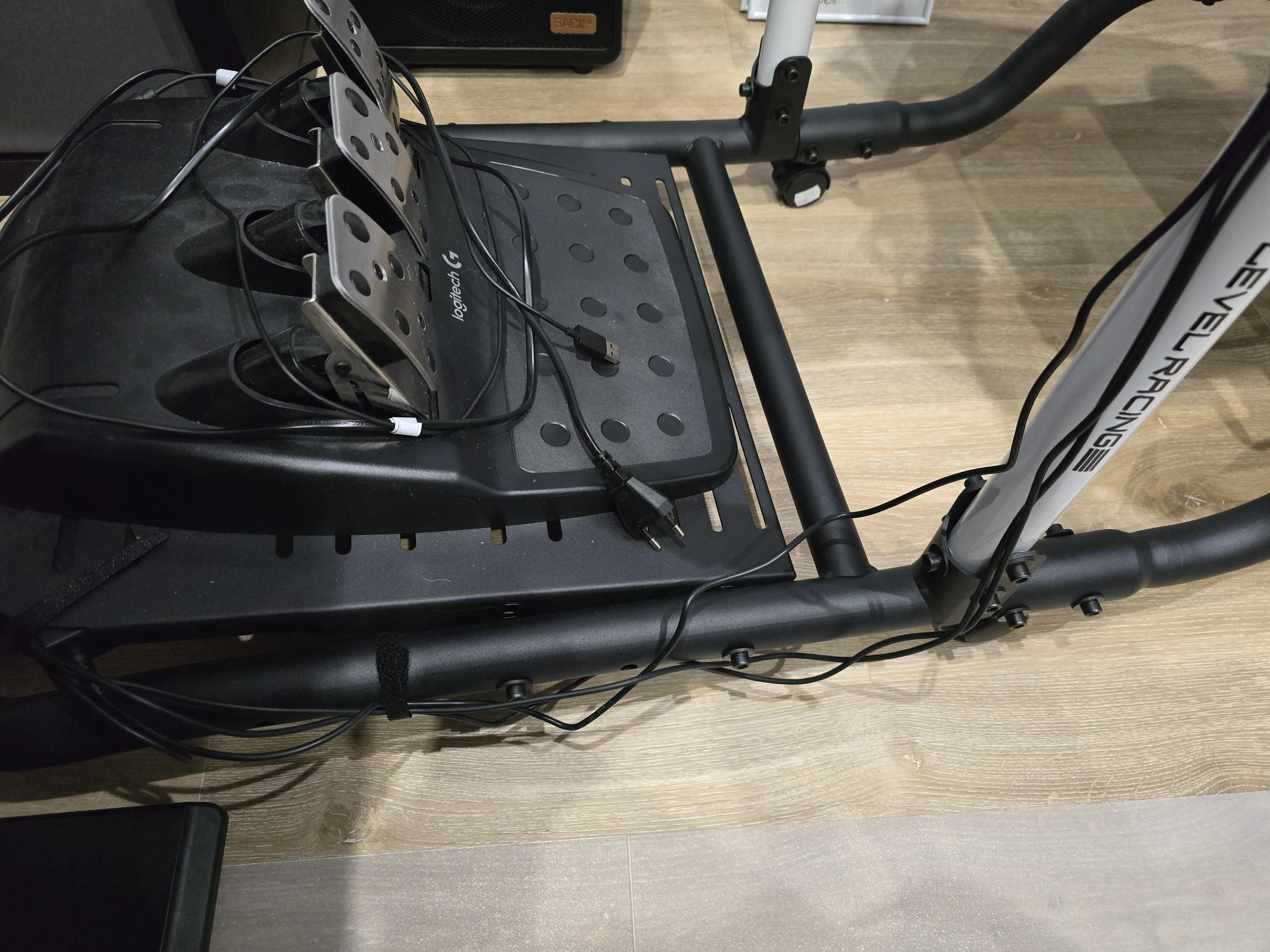

Here is a before:

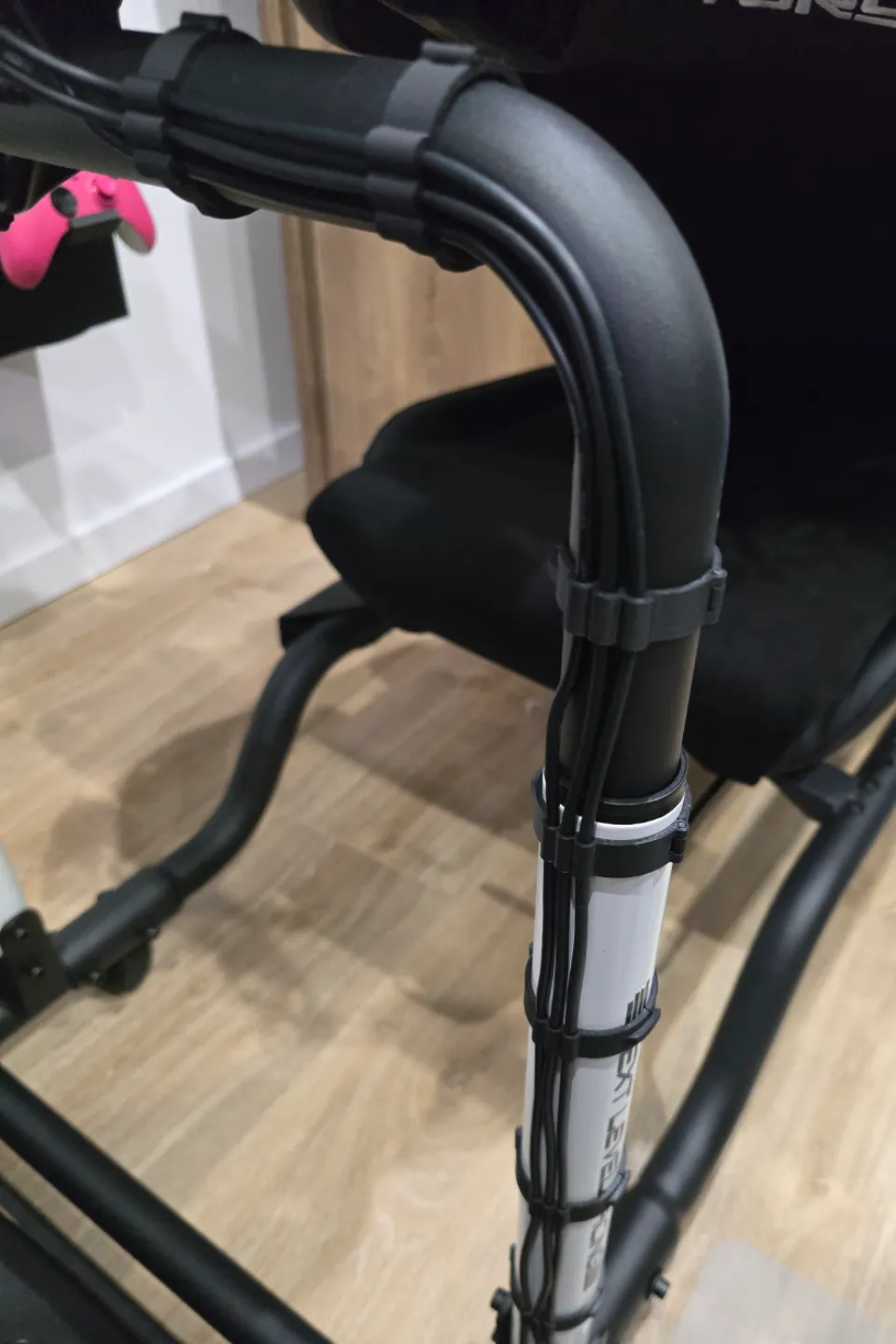

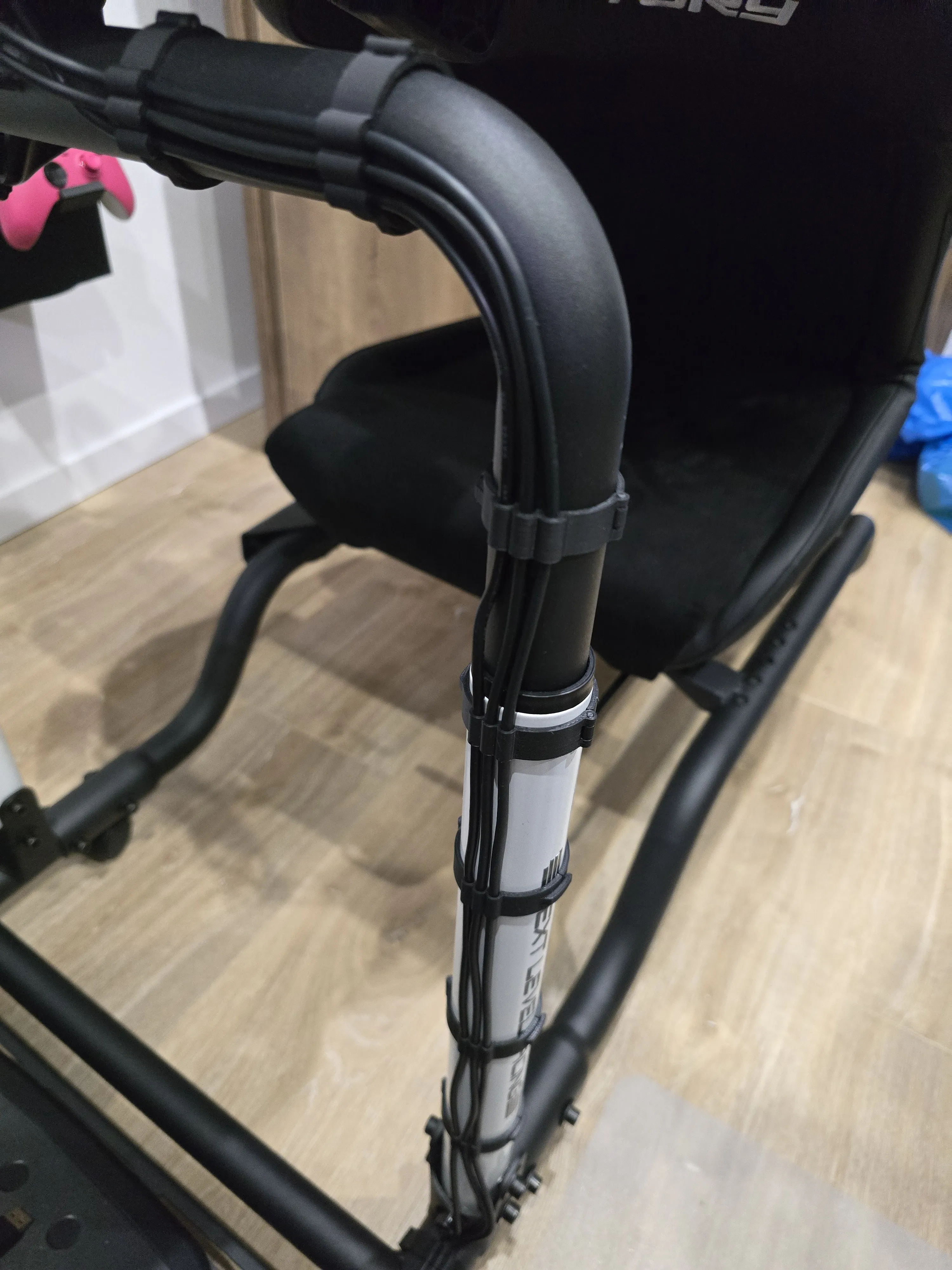

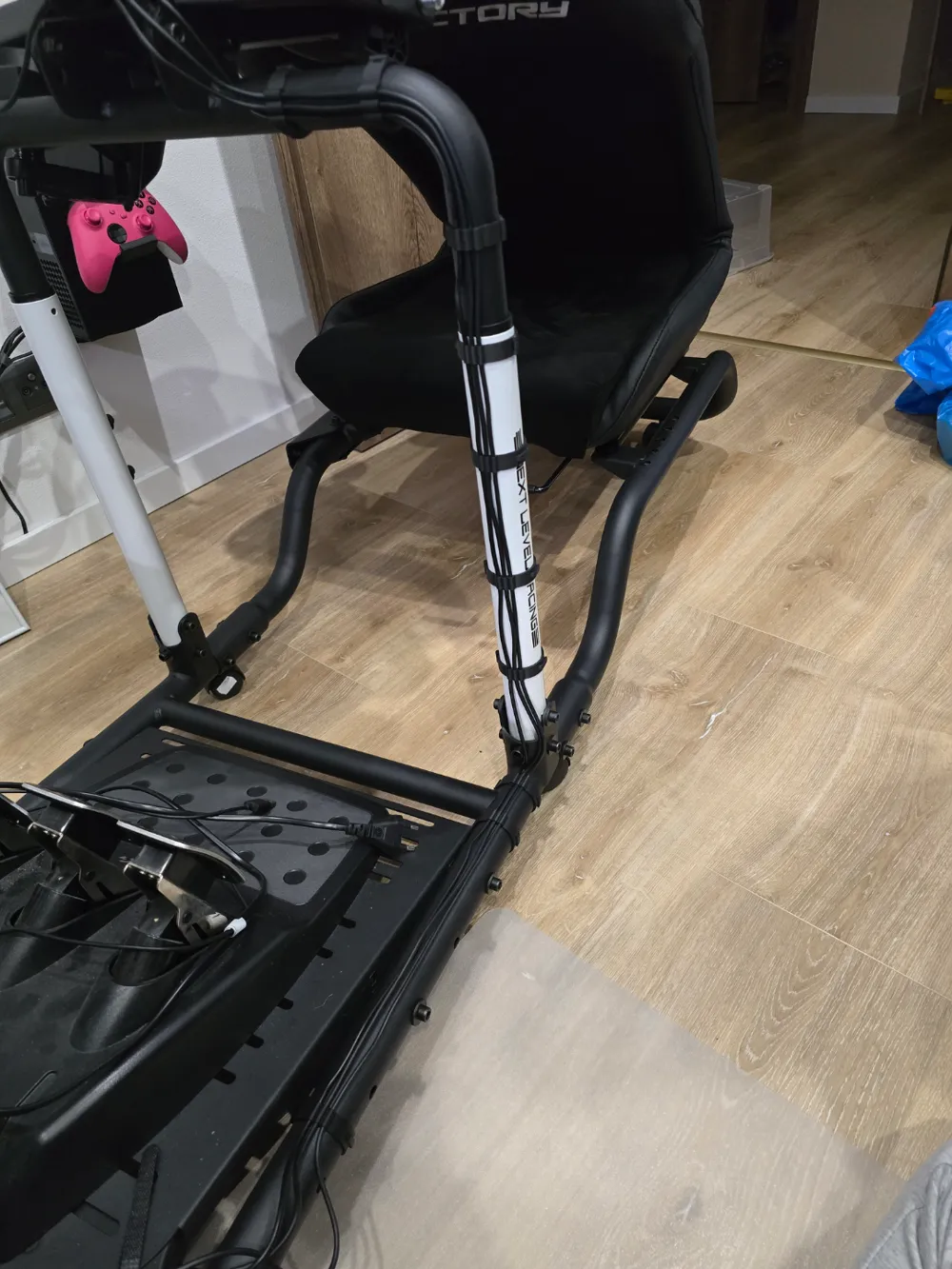

and after picture:

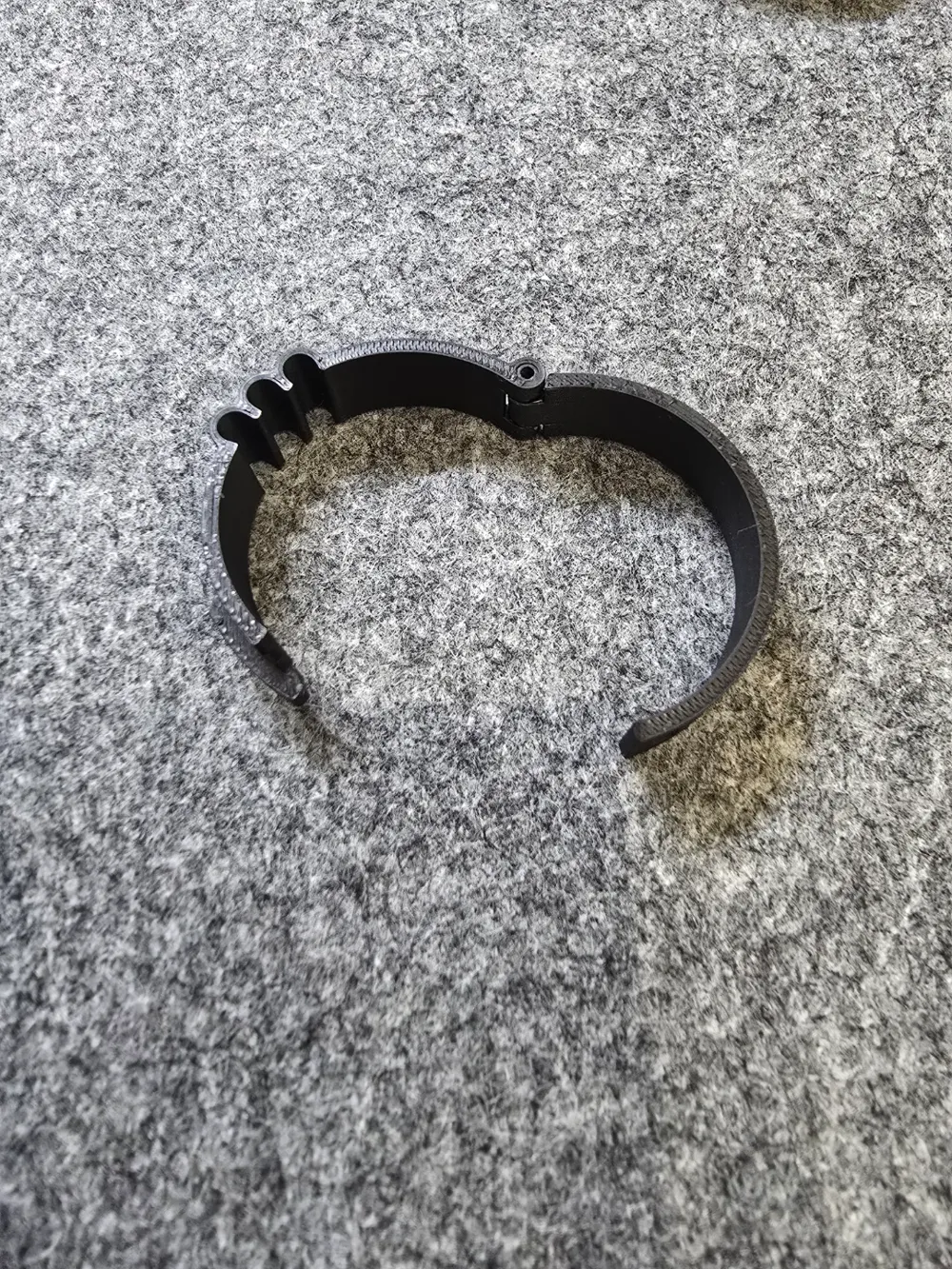

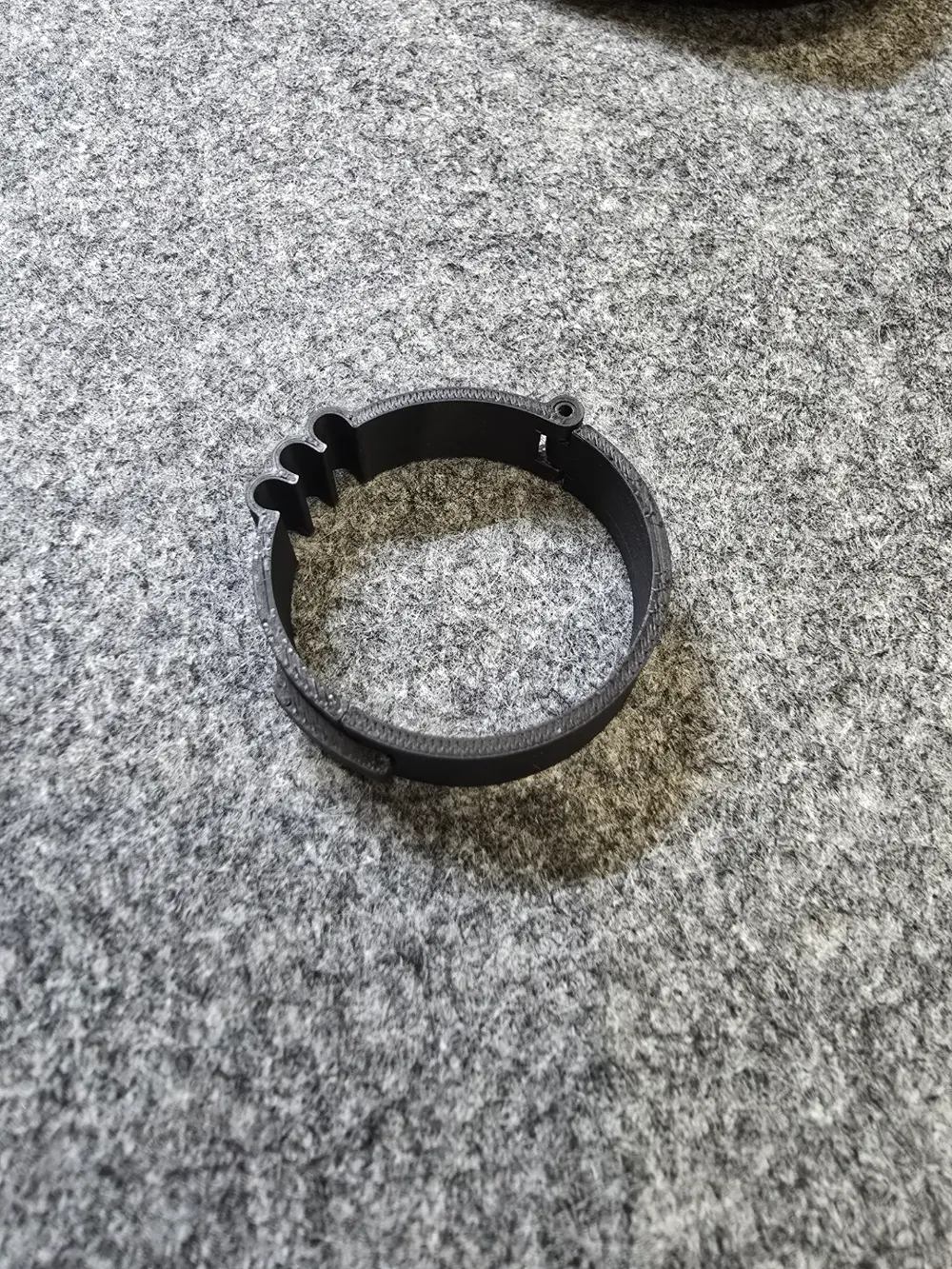

The print profiles are ready to print, just clone them based on how many you need. It requires support and you can assemble the two parts together with small pieces of filament. Just push them trough the holes but use pliers because the outher holes are pretty tight so the filament won't fall off the hole. If it is too tight for you then just increase the X-Y hole compensation field in Bambu Slicer.

The cable holes are for 3.8mm cables (my logitech g290 has 3.8mm cables). If you have other sets just reach out to me and I can create more for most commonly used wheel sets.

Also this maybe will fit the Next Level Racing Wheel Stand Lite 2.0. It looks like it is the same frame without the seat part.
