Fuji XT-5+lenses gridfinity for Ikea Alex drawer - Free 3D Print Model

Search models, users, collections, and posts

Gui Garcia

Tools>Organizers

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 2 walls, 15% infill

Designer

23.2 h

14 plates

5.0(3)

Open in Bambu Studio

Boost

158

674

375

Released

Description

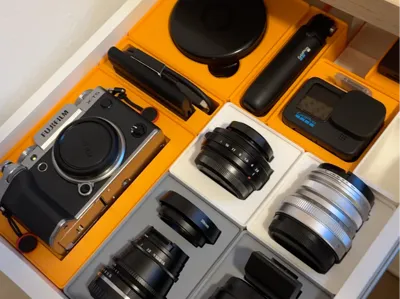

Gridfinity bins to fit in Ikea Alex drawer, designed to store Fuji XT-5 camera, lenses and accessories.

If you print all of the models, then you should fill one drawer.

Bins for:

Fujifilm XT-5
Fujifilm XF 50mm f/2
Fujifilm XF 16mm f/2.8
Fujifilm XF 28mm f/2.8
TTartisan 35mm f/1.4
Samsung T7 SSD
GoPro Hero 11
GoPro Shorty Tripod
Urth lense filter cases, fits 2
Sony Nex 3N
Other open bins to store small accessories

Check this model for the grids that fits into Ikea Alex drawer:
https://makerworld.com/en/models/28581#profileId-24968
