Description

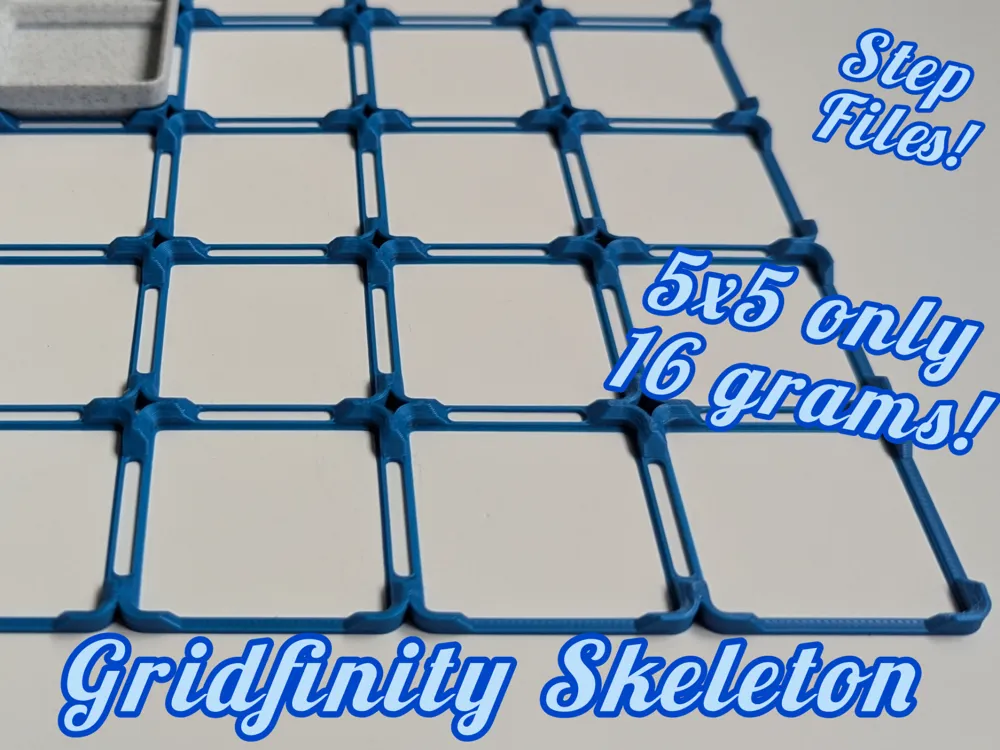

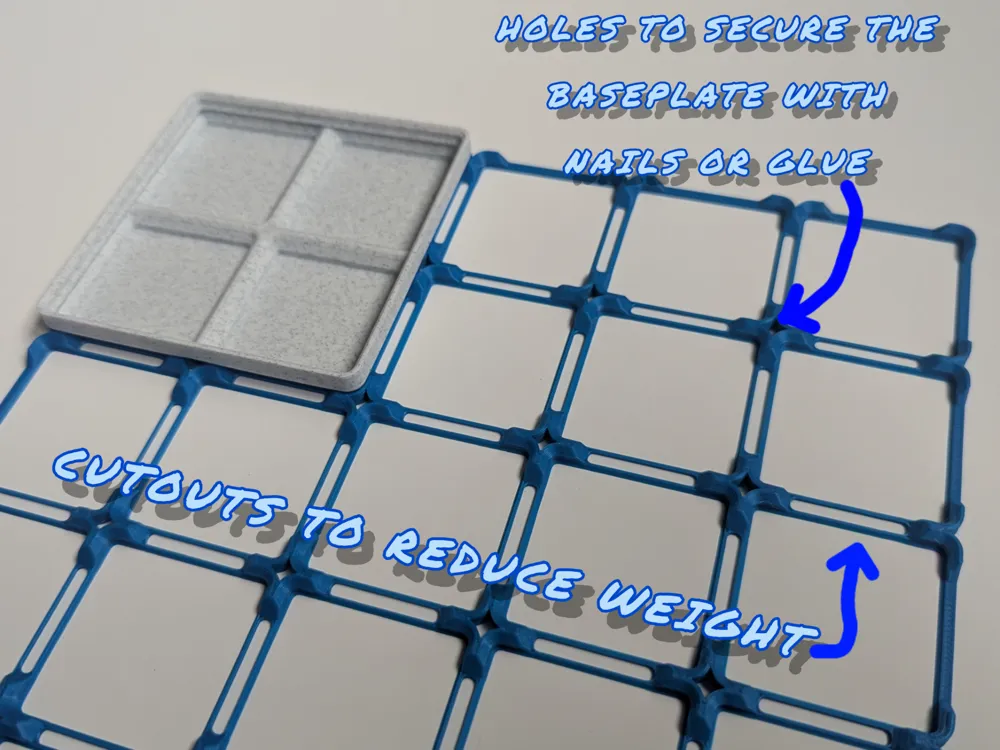

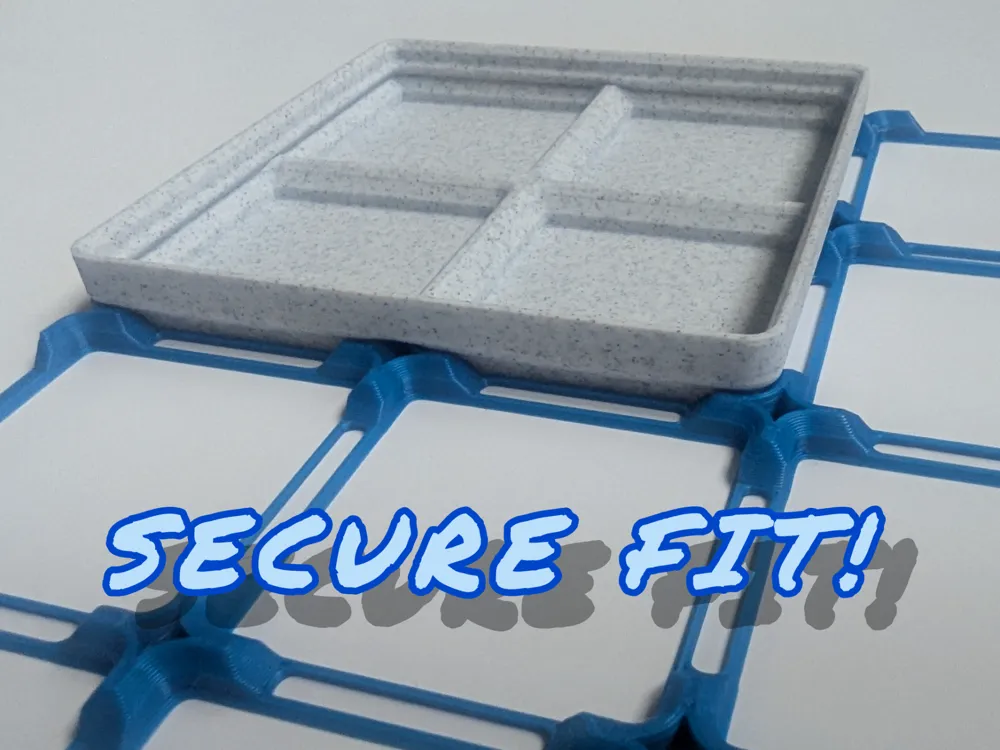

Gridfinity Skeleton is a baseplate with the goal to use as little filament as possible. Since the baseplate will be generally be placed on a hard flat surface the baseplate does not need to resist bending but rather needs to be strong in the horizontal plane. With that in mind a LOT can be removed from the original design while still holding the bins well.

At only 16 grams for a 5x5 grid it's worth giving a try!

Let me know what you think and if there are requests for certain sizes. I have also included the step files so that it's easier to make improvements on my design.

As stated by @user_3538569814. Make sure to let the print cool before taking it off the build plate. The pla is easy to deform when it is still warm.

The ultra light bin featured in the photo can be found here.
https://makerworld.com/en/models/227937?from=search#profileId-245542

Thanks, and happy printing!
