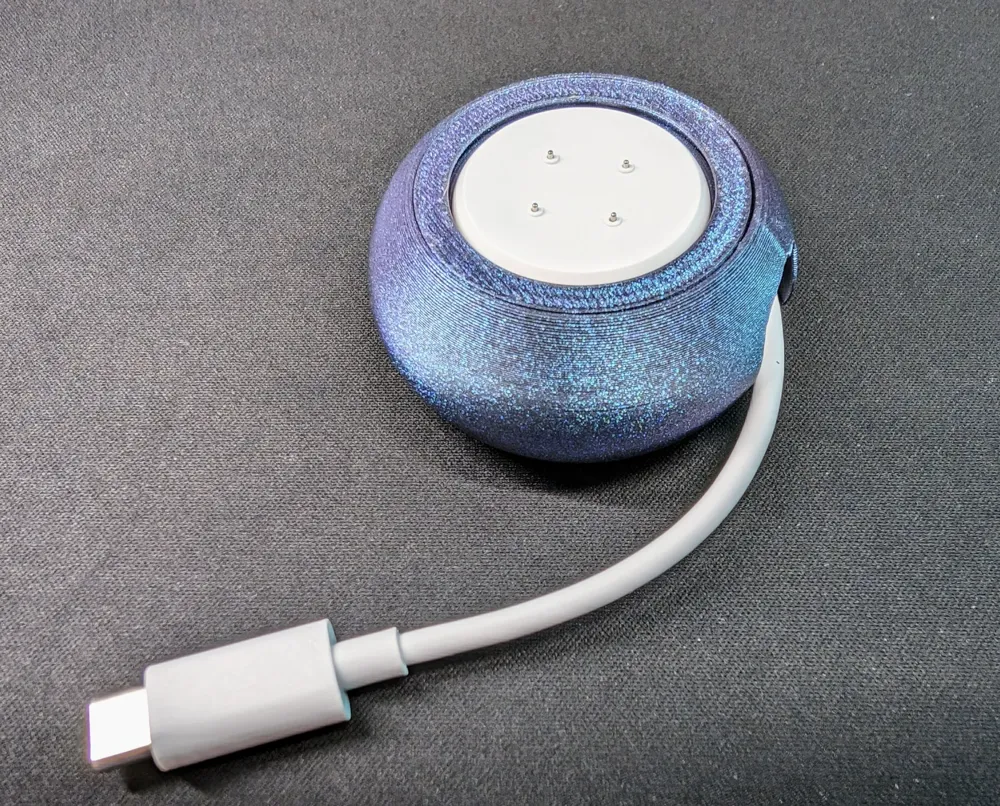

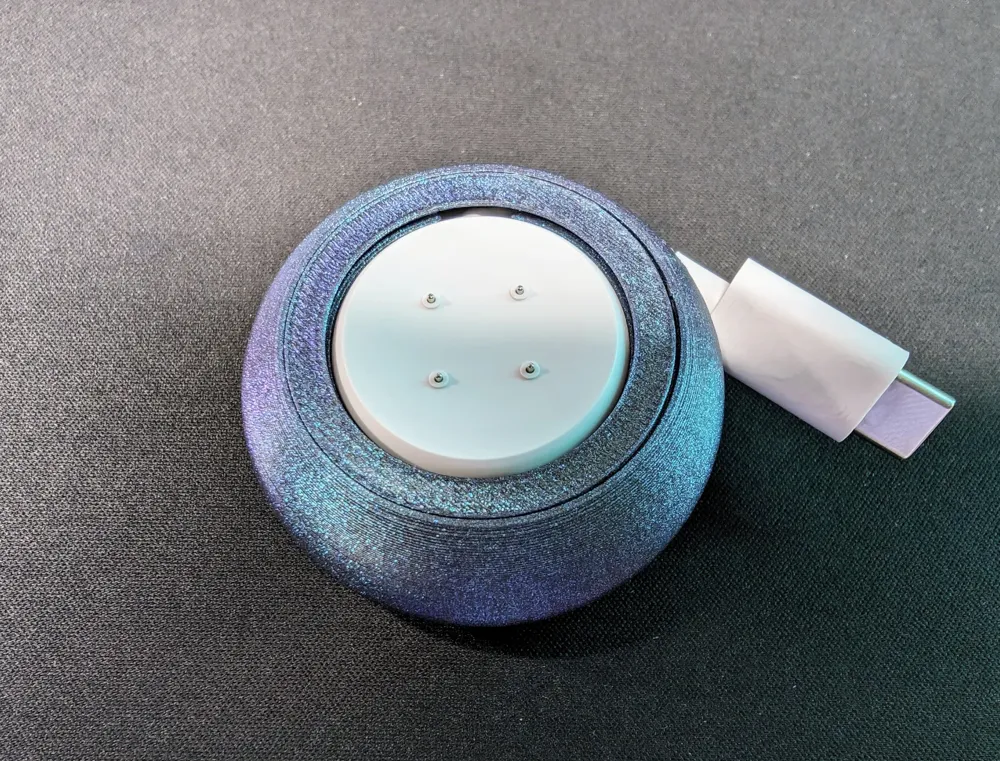

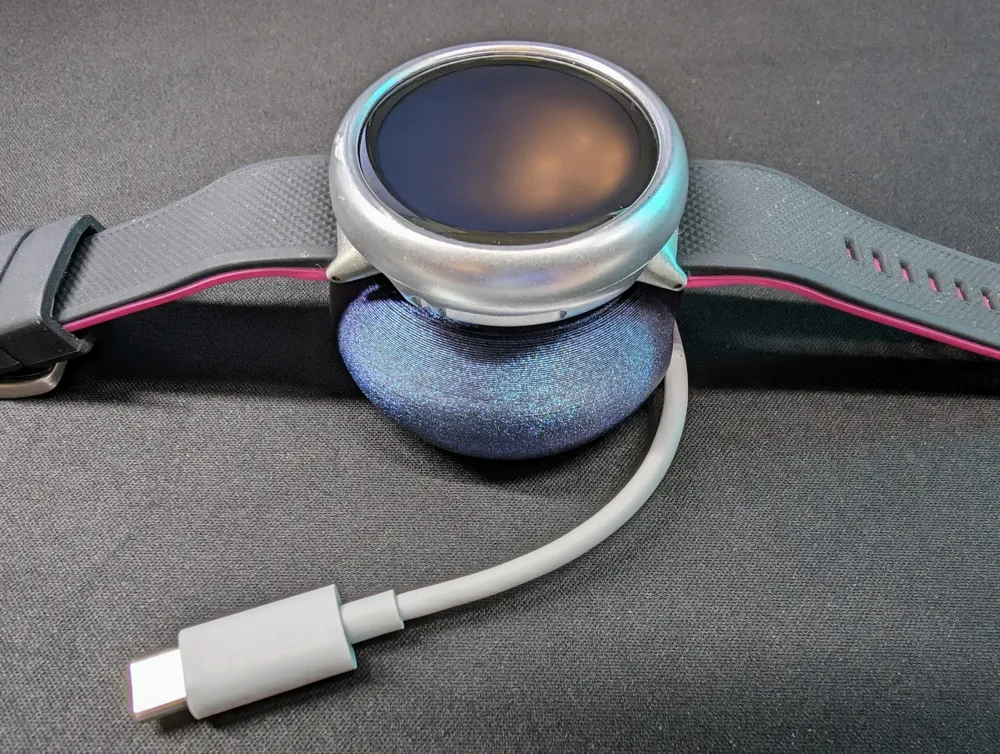

Pixel Watch 2 & 3 charger with cable winder

This design is for the Pixel Watch 2 & 3
For the Pixel Watch 1, check this model.

For the Pixel Watch 4, check this model

Note: a USB-A compatible version is available. Simply click the “Download STL/CAD files” button to find the 3mf file :-)



Printing:

The case should be printed in place without any support.

The power adapter clip I printed with support.

Assembly/disassembly:

1. Align the core's cable hole with the ring's cable hole.

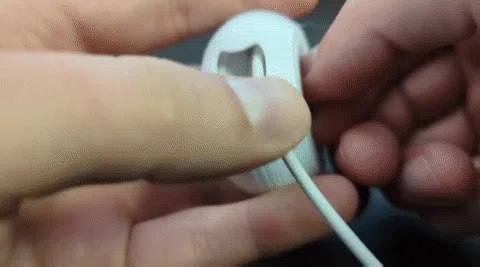

2. Feed the cable through all the way, and clip the pad in place.

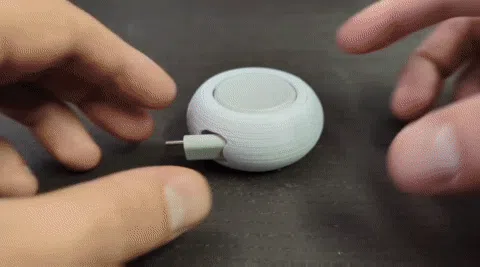

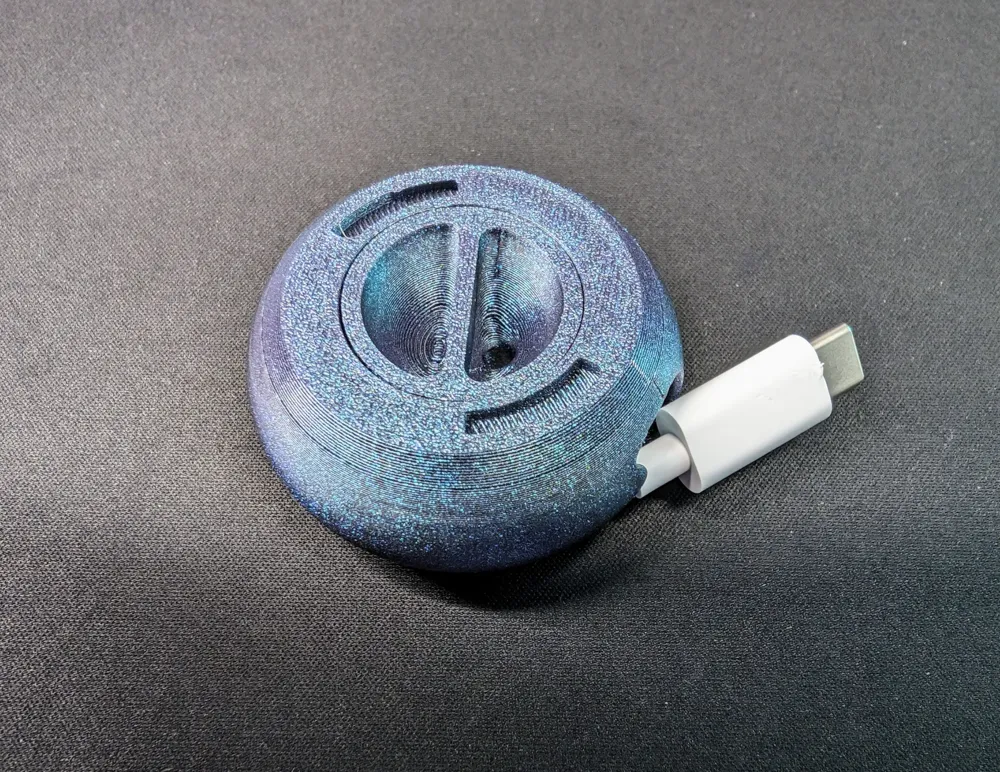

3. Use the bottom handle to roll the cable up in the case. Keeping some tension on the cable while doing so can help.
4. To disassemble, unwind all of the cable, and pop the charging pad out of place by pushing through the bottom hole.
