Pocket safe version 2, big upgrade

Please note that you can set the code yourself during the assembly with the ring orientation (it is a frequently asked question…)

This is the upgraded version of my quite successfull Pocket safe,

(a safe that fits in your pocket. With its 100 000 000 combinations brute force isn't an option. It makes good uses of its space and can easily contain small usb key, sd card, samll keys, important paper, snacks, …).

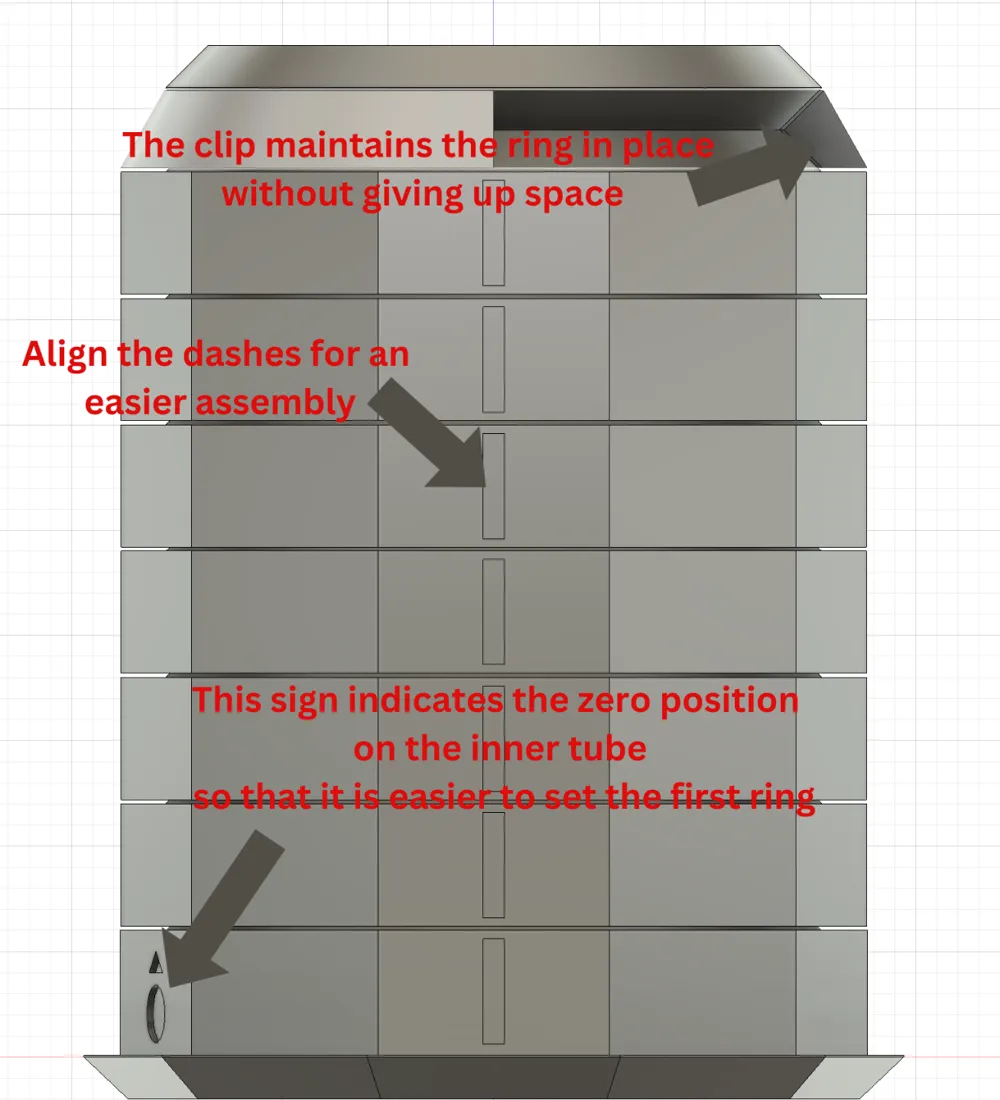

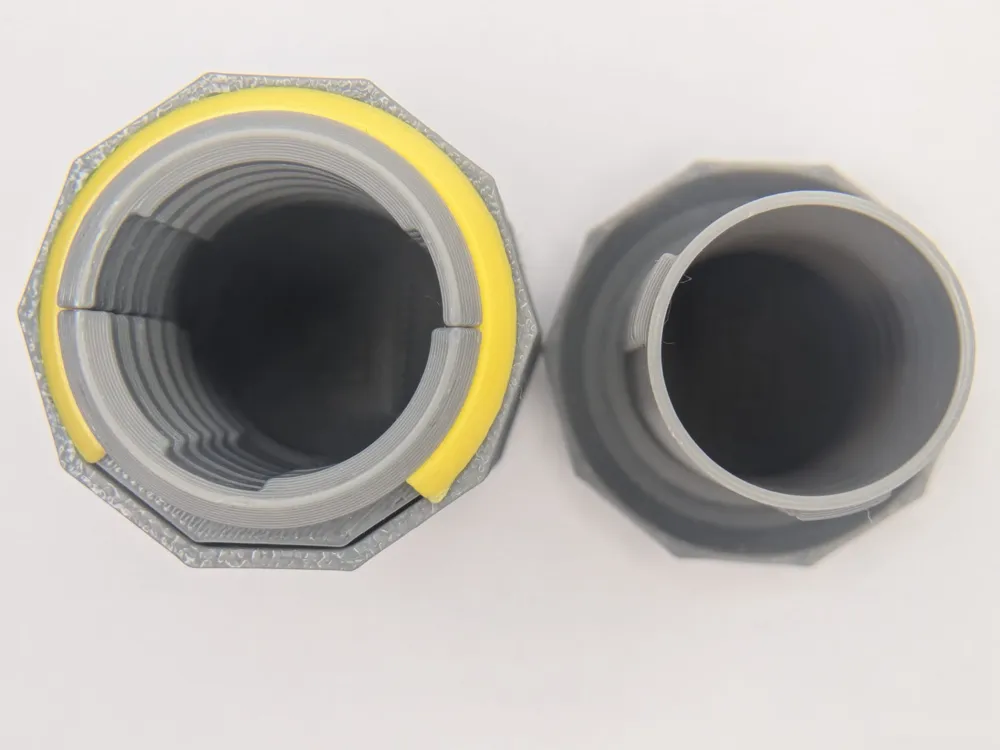

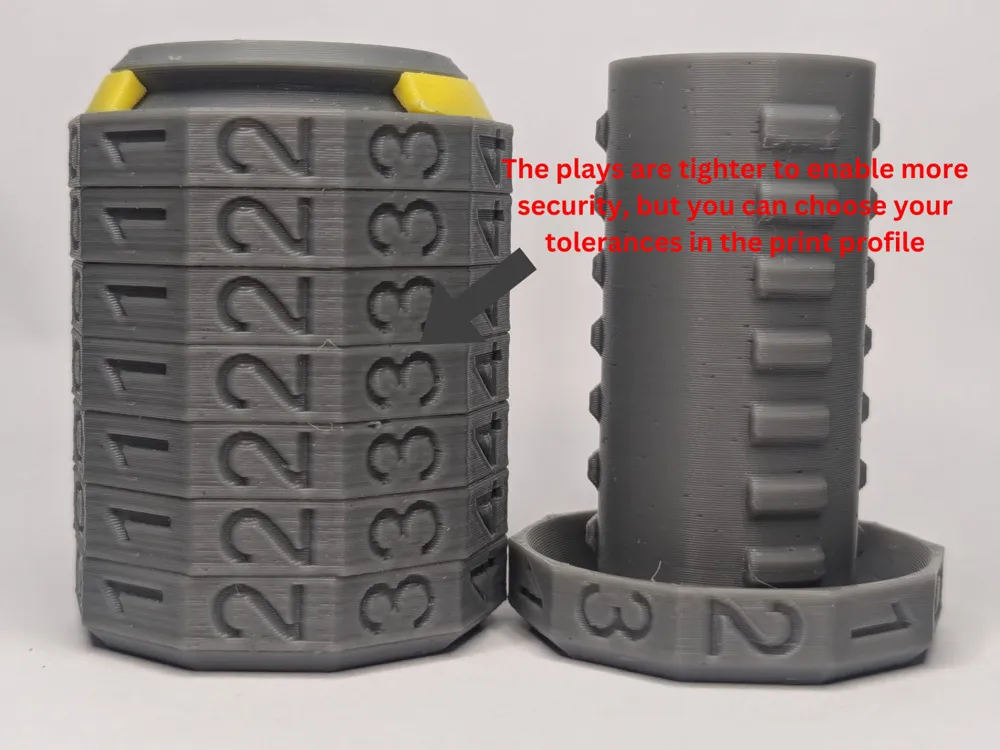

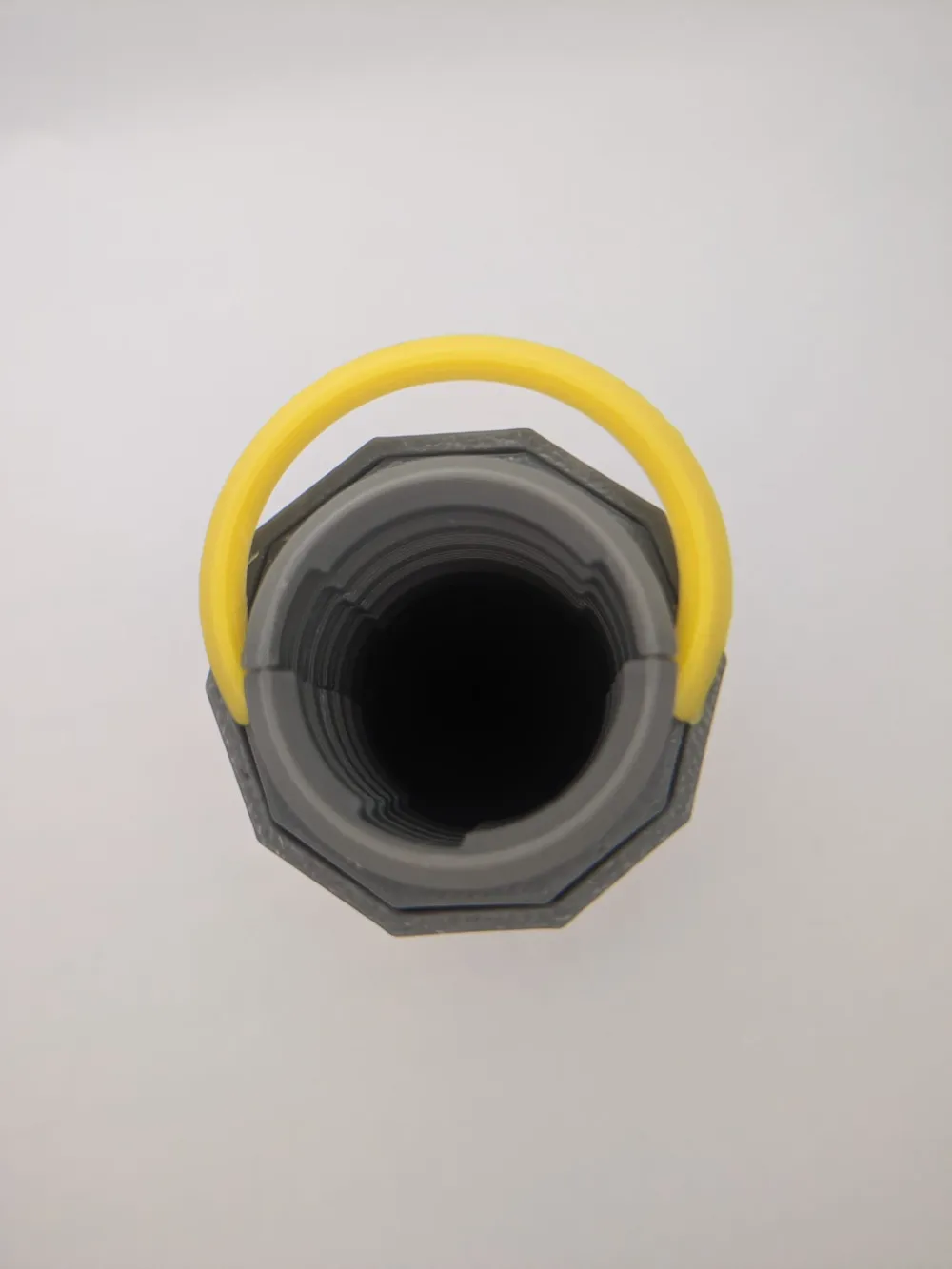

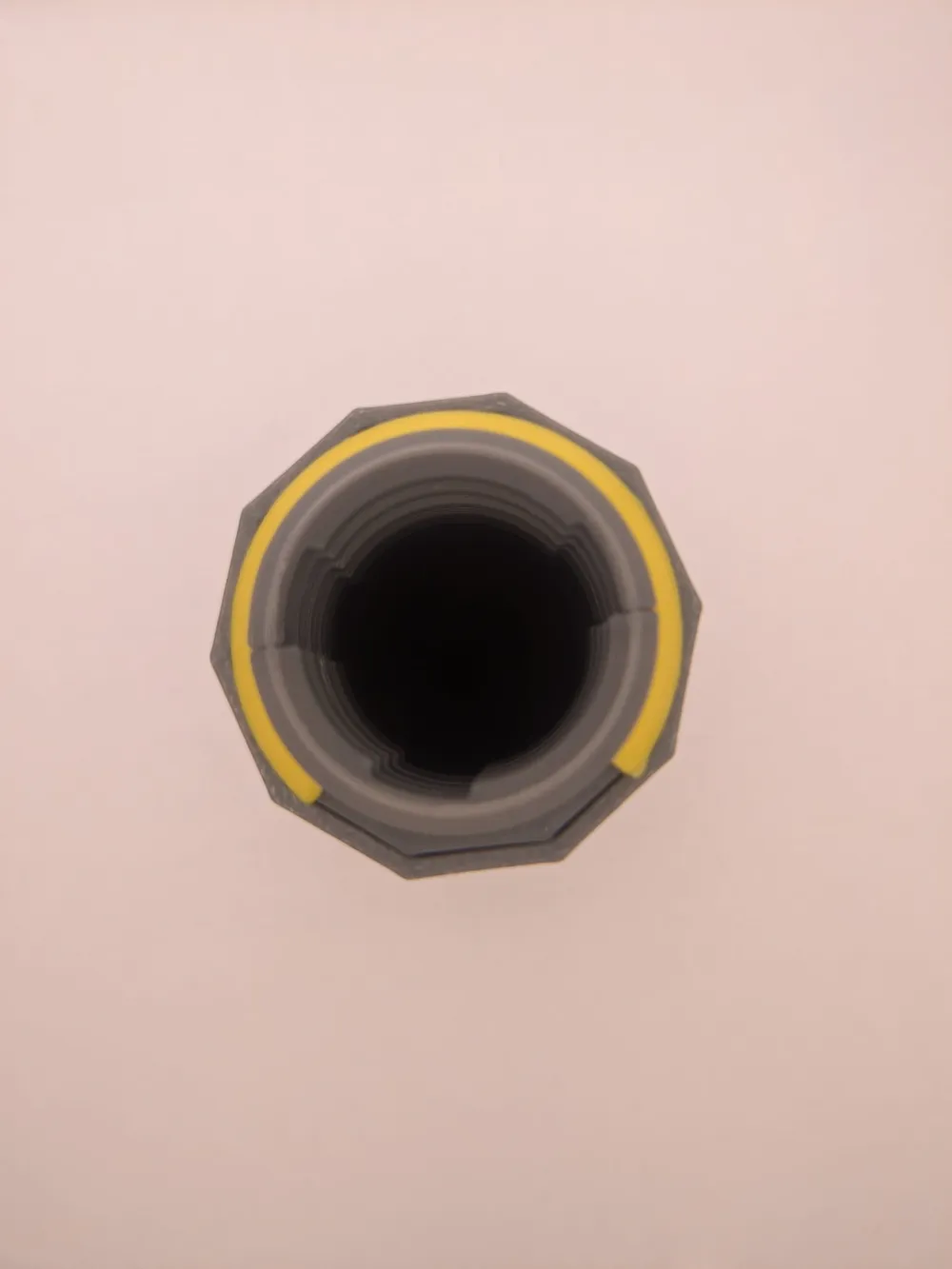

I added a lot of improvements such as tighter play between the rings (if you don't want to bet about your printer quality you can chose another less challenging play in the print profiles)(with a lot of play you can theoretically align the lign of the two halvesrings and find the correct combination in less than 2^8 tries, It is now impossible…) . There is also a clip holding everything together because testing showed that people oppening it for the first time tended to ripe it apart not knowing where to pull.

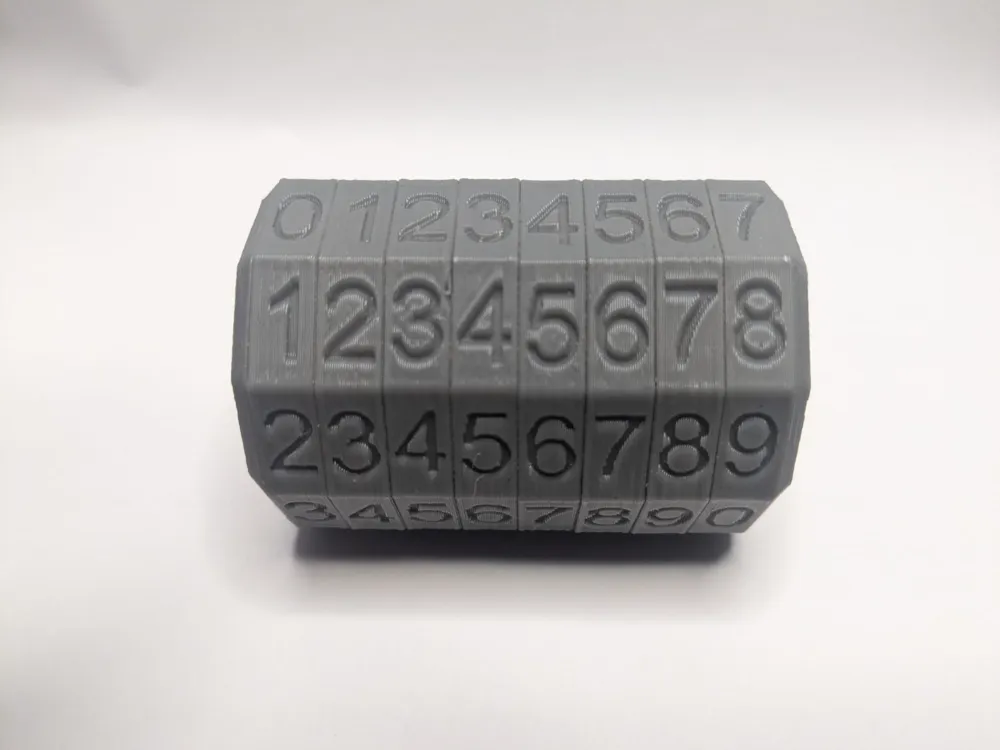

Because I know that the Assembly is quite a tideous process I added little lines to align not visible from the outside.

The zero position of the tube relative to the base is also shown.

If you allready have the original pocket safe just print the upgrade kit.

If you want more freedom and to be able to change the setting, check out v3

If you have any idea of improvments, problems, etc. let me know in the comment section and I will try to help you.

(the youtube video just have better quality)

Lien vers v1: https://makerworld.com/en/models/727900#profileId-659393
