Description

Boost Me (for free)

Thanks for your support!

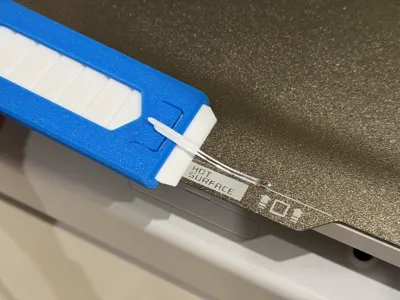

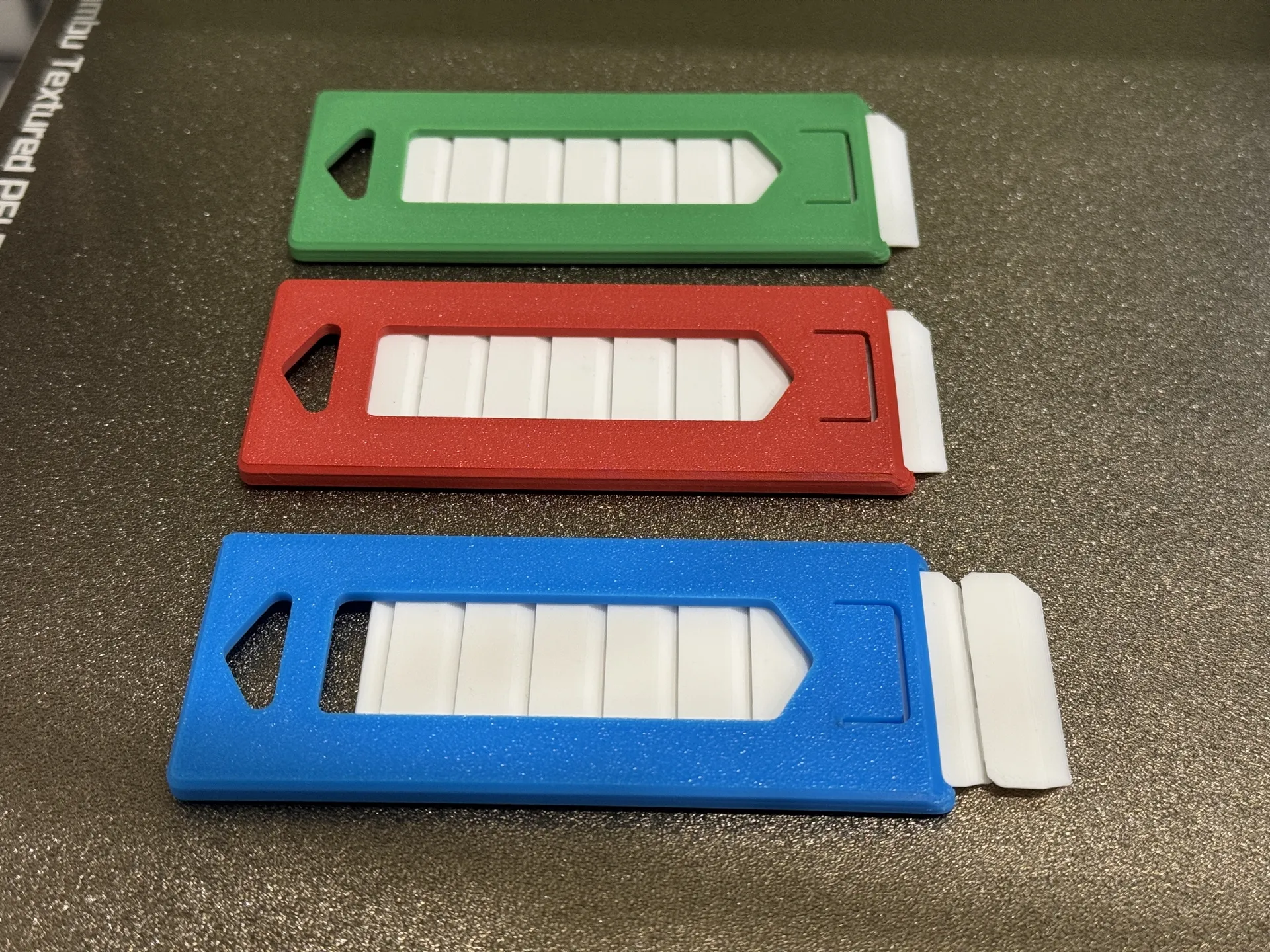

A bed scraper with an integrated blade magazine (9 blades). If your blade is damaged, you can push it one notch position forward until it clicks into place and then bend the blade up until it breaks. It works like a classic cutting knife. The blade can only be moved in one direction, so you don't have to worry about the blade coming loose while you're scraping.

Features:

Good size to fit comfortably in the hand
Integrated blade magazine with 9 blades
Defect blade can be cracked. Afterwards you have directly a new blade
Easy and fast print

Materials:

Blade: I have successfully tested PLA+ and PETG, but I prefer PETG.

Base part: You can use any material for it.

Print settings:

Layer height: 0,12mm for the base part / 0,20mm for the blade.

Infill: 20% Gyroid

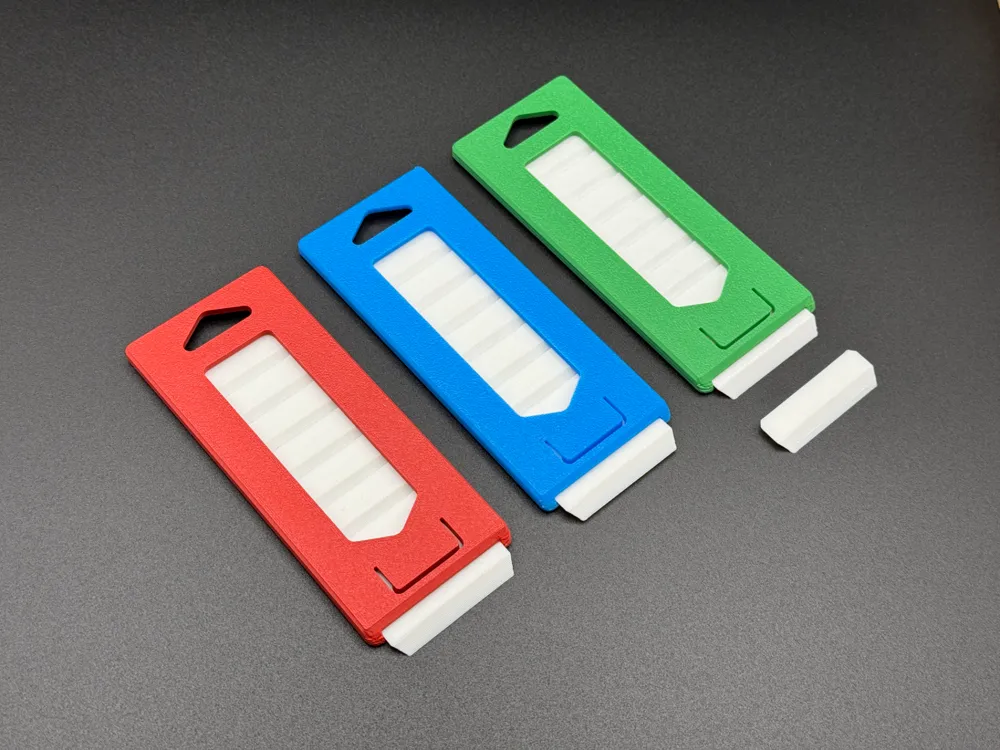

Blade change:

Blade change step 1: Push the blade one notch position forward

Blade change step 2: Bend the blade up until it breakes
