108x144 Lithophane Frame for BBL Backlight (KC009)

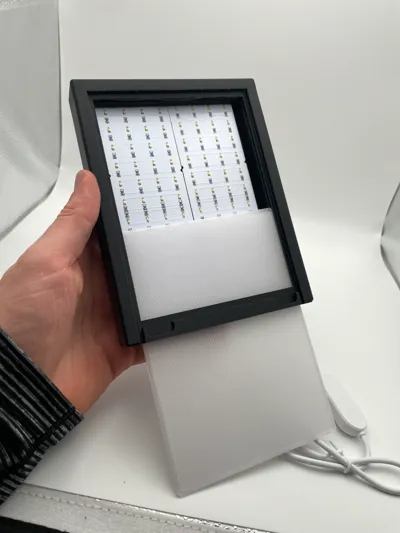

Lithophane frame for 108x144mm bambu labs backlight model KC009. If you're like me and followed this tutorial: https://wiki.bambulab.com/en/knowledge-sharing/CMYK-color-lithophane-printing-instructions but bought this light board kit: https://us.store.bambulab.com/products/lithophane-led-backlight-board-kit?srsltid=AfmBOoq6VxvWXk1tWN1gQH2s5ke867X717cFFoyUai3KuagDTMFHzwGt then you probably realized that the included frame design doesn't fit the lightboard. I've reverse engineered the as-printed frame and added features to allow the new modular light board design to fit. You can insert the backlights by sliding them into the top groove past the first row of LEDs, which allows the bottom edge of the board to clear the bottom edge of the frame. The rests on the back face of the plane are slightly past the plane of the backlight, which holds the boards in place with a bit of bending stress. The diffuser and light plate fit the same. This model is 100% print in place.
