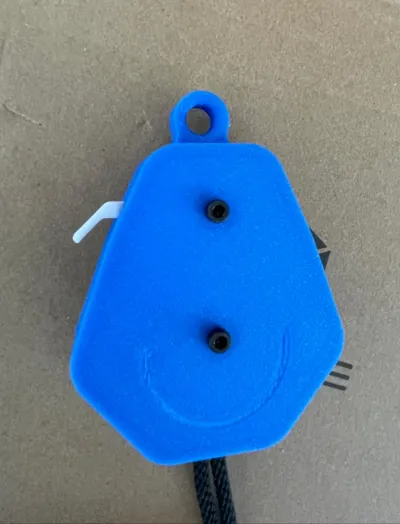

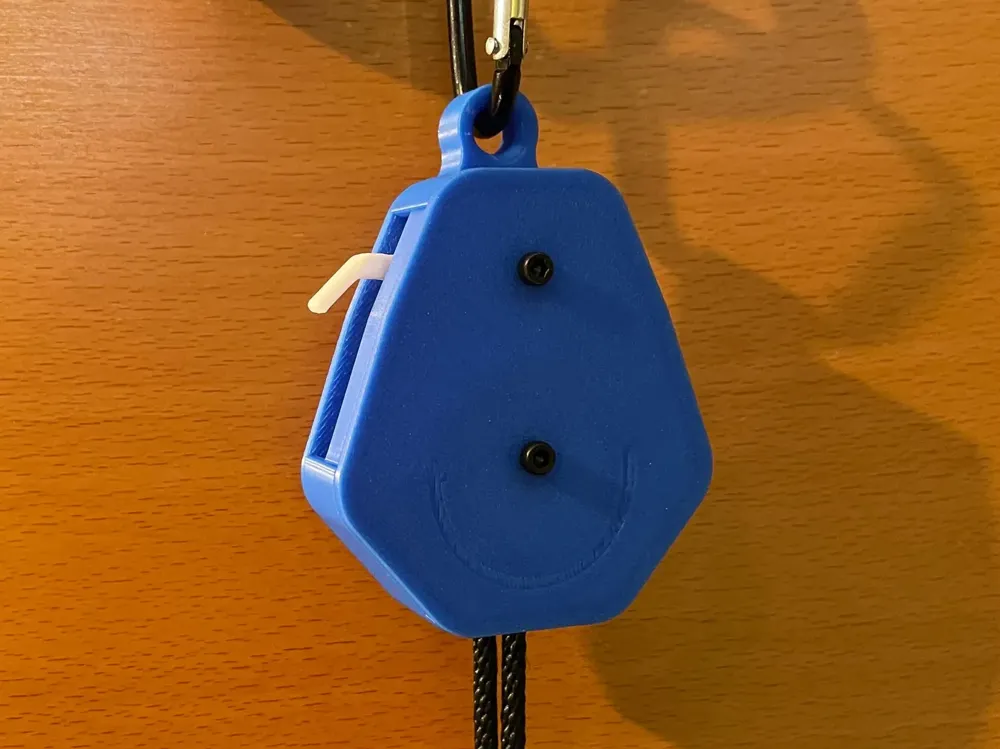

Cord Rope Ratchet with Ballpoint-Pen-Spring
Print Profile(2)
Description
A ratchet for various usecases.
Boost Me (for free)
Thanks for your Support!
Printing: No supports, 0,2mm layer height, 4 perimeters, 15% infill

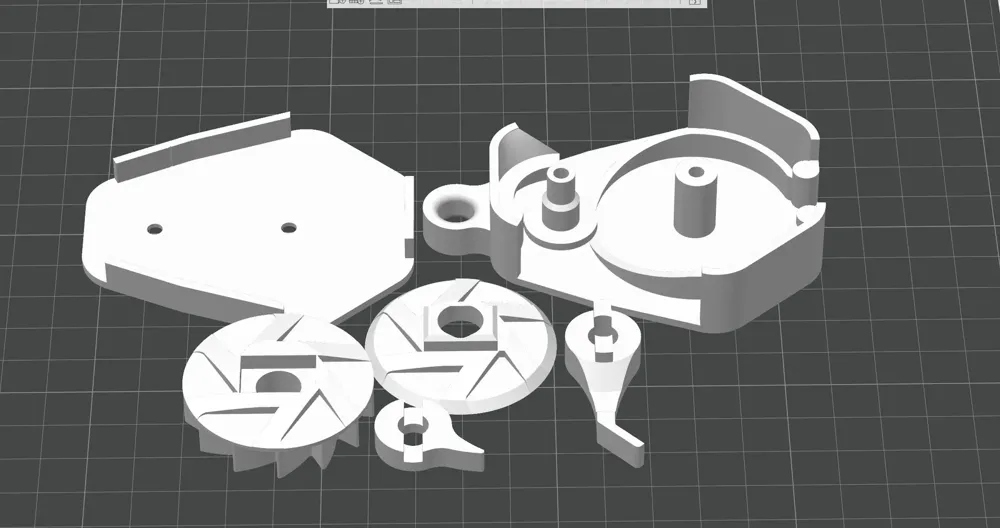

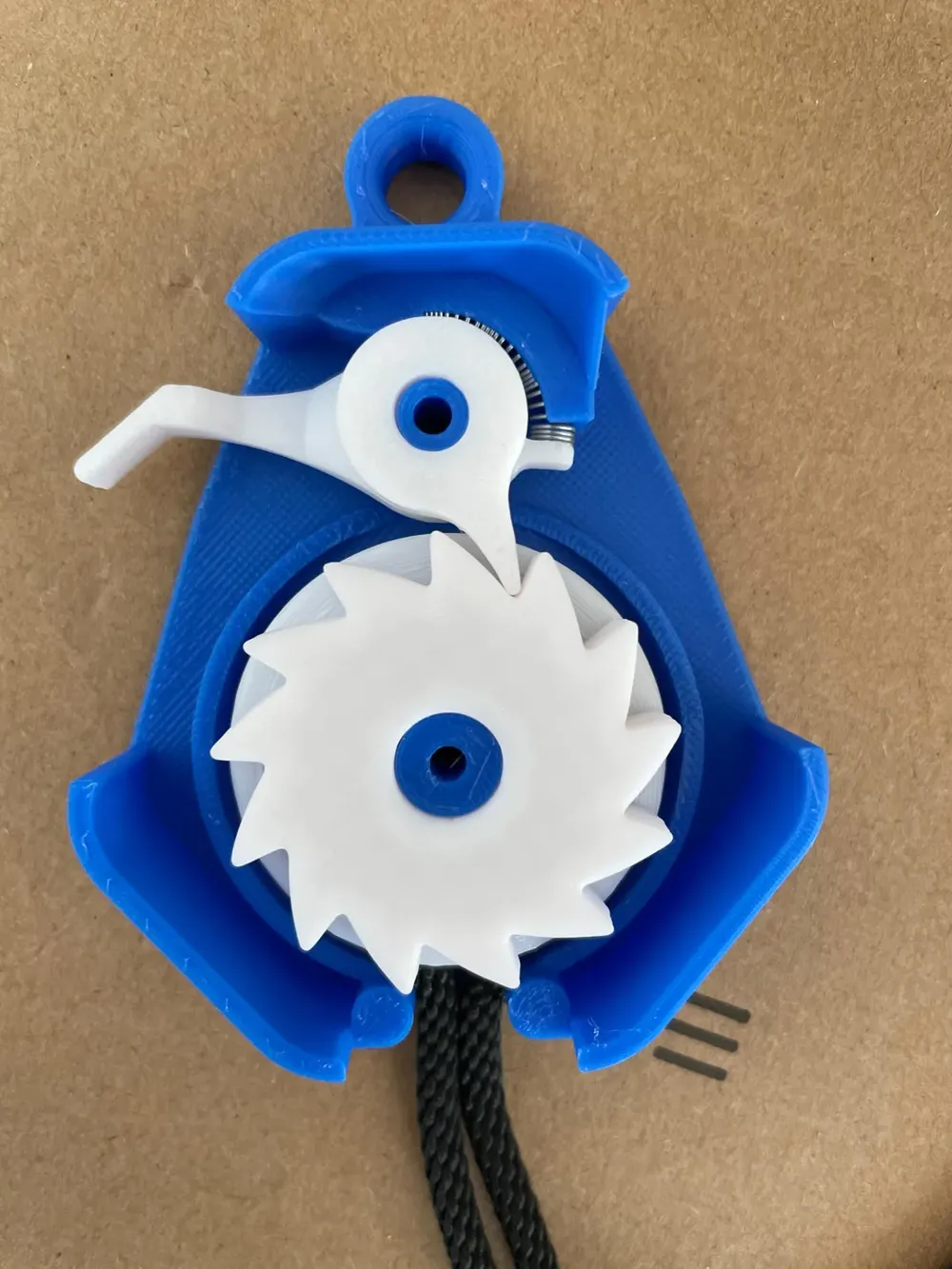

Assembley: Baseplate > Spring + Stopper bottom + Ratchet bottom > Rope/Cord
> Ratchet top > Stopper top > Topplate
Tools req.: You will need a basic spring from a Ballpoint-Pen and a 4mm diameter Rope.
Version 1: 2x M3x20 (or longer) and M3 nut - The M3 goes all the way through - more stable.
Version 2: 2x M3x10 - The M3 screws right into plastic.
TIP: Might be useful to grease some of the moving parts to improve lifetime and workflow.
DO NOT GREASE WHERE THE ROPE/CORD RUNS. Otherwise it will slip.
