0.2mm layer, 2 walls, 15% infill

Designer

1.4 h

1 plate

4.0(1)

Open in Bambu Studio

Boost

Released

Bill of Materials

Bambu Filaments

Select all

Matte Ivory White (11100) / Refill / 1kg

PLA Matte

List other parts

Screw x 2: M2x6mm
Fabric x 1: Speaker-Fabric
USB-C-Port x 1: USB-C-Click-In-Port

Description

Enhanced Description for a ReSpeaker Lite Enclosure with Screw Fixation

Upgrade your ReSpeaker Lite project with this custom-designed enclosure, meticulously redesigned for ease of assembly and professional aesthetics. Now enhanced to allow secure mounting of the ReSpeaker Lite board using M2 screws (6mm), this enclosure is perfect for makers looking for a robust and stylish housing solution.

Features:

Material Compatibility: Optimized for PLA, but any rigid plastic works perfectly for durability and customization.

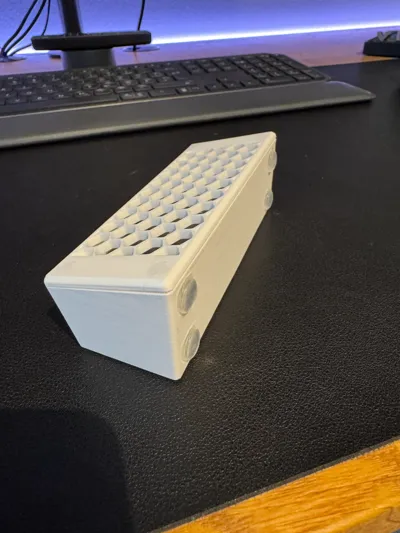

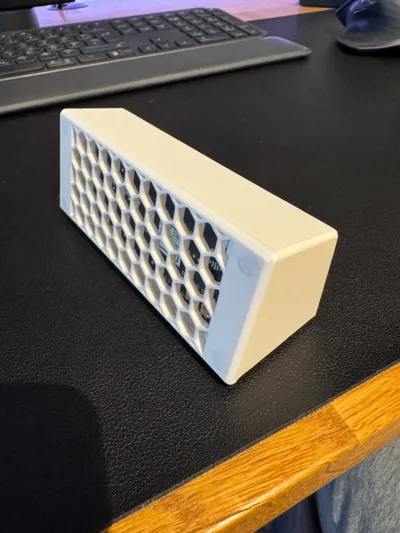

Magnetic Grill Attachment: The grill is elegantly secured using 6x3 mm neodymium magnets, ensuring easy access while maintaining a clean finish.

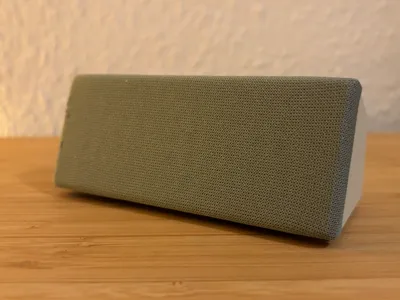

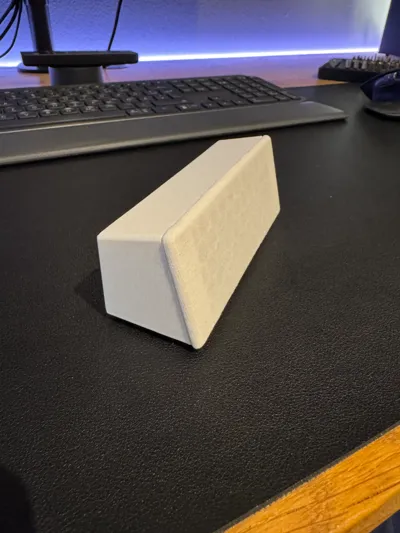

Professional Grill Design: The grill can be covered with speaker fabric for a refined appearance—tailor it to fit your design preferences.

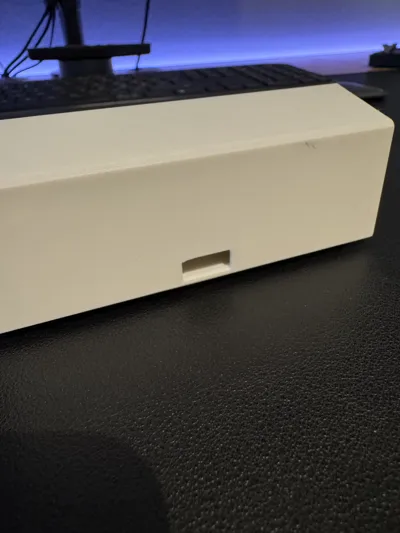

Improved Cable Management: Includes a feature for soldering a USB-C output directly to the 5V pins of the ReSpeaker Lite, allowing cables to exit neatly from the back instead of the side.
Compact Dimensions:
- Width: 114 mm (4.65 in)
- Height: 45 mm (1.73 in)
- Depth: 39 mm (1.6 in)
Voice Satellite Focus: Specifically designed as a Voice Satellite for Home Assistant, ensuring an ideal setup for voice control without integrating a 5-watt speaker. Use external solutions like Sonos speakers for TTS responses.

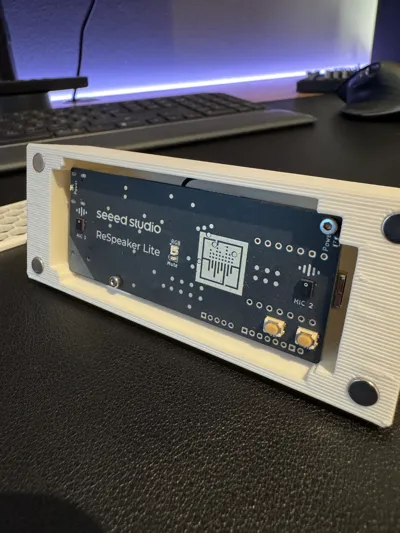

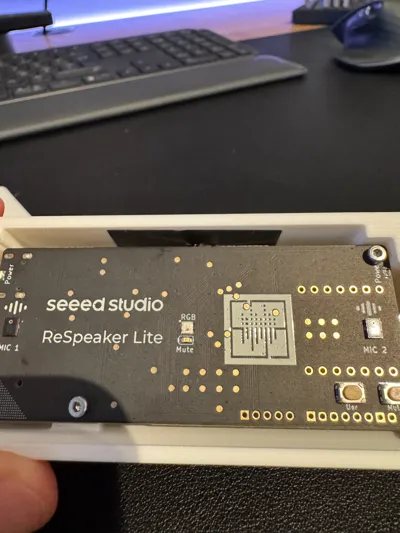

Easy Assembly: Redesigned mounting points for the ReSpeaker Lite board with screw support ensure a hassle-free and secure installation.
Proudly Designed in Germany: This enclosure reflects German engineering precision and care, making it a standout addition to your smart home setup.

Why Choose This Enclosure?

Not only does this enclosure protect your ReSpeaker Lite, but its sleek, modern design integrates seamlessly into any environment. Whether you're enhancing your smart home or crafting a voice assistant device, this enclosure is built to impress.

Download the files today, print your own, and take your smart home to the next level! 🎨🔧

Thank you @schlauheimer for your great design!
