Description

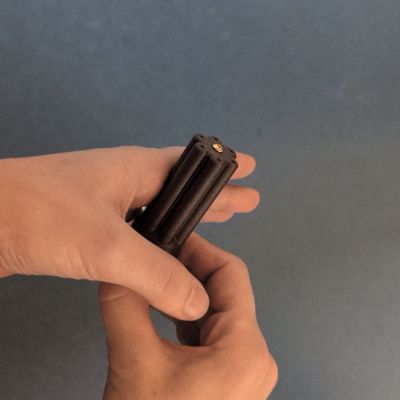

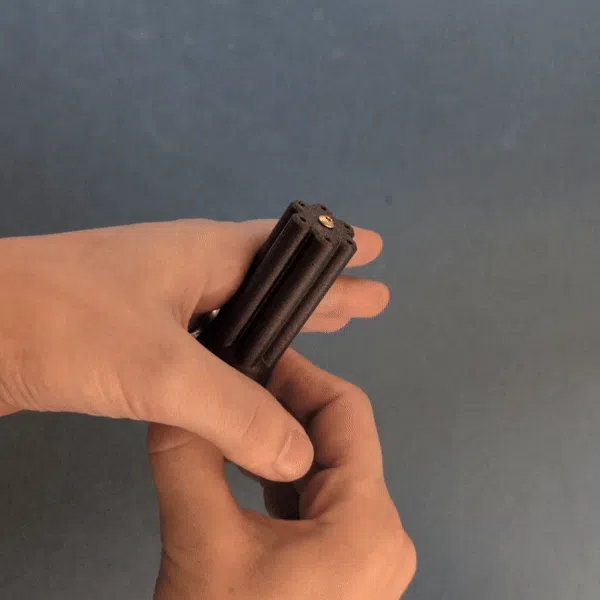

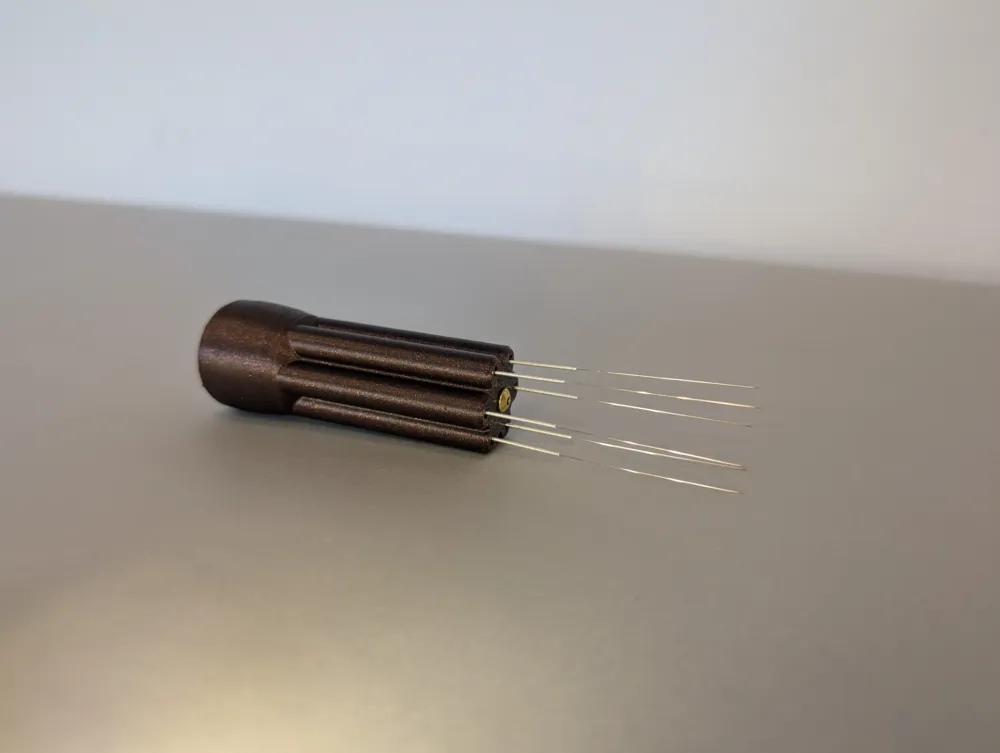

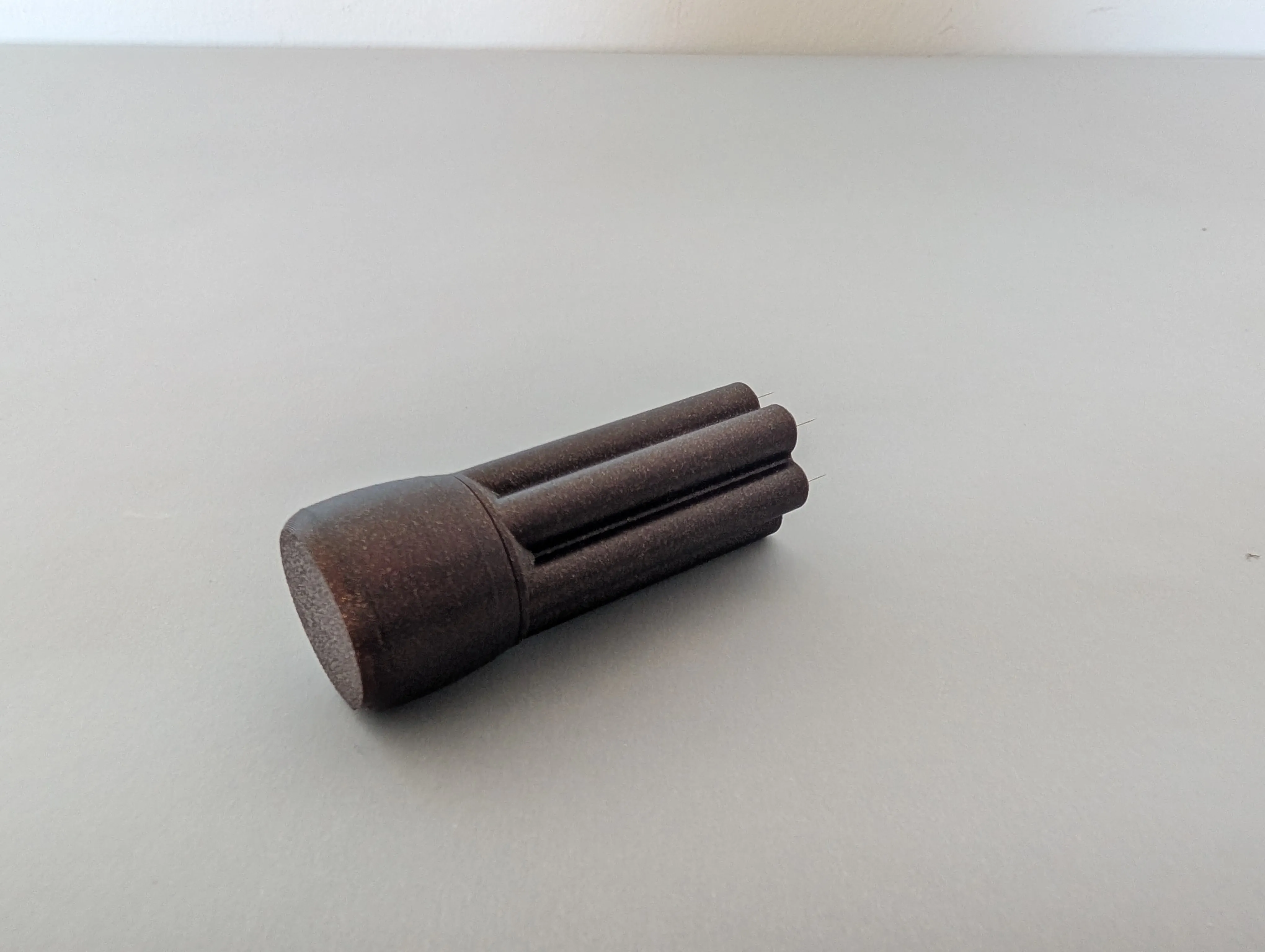

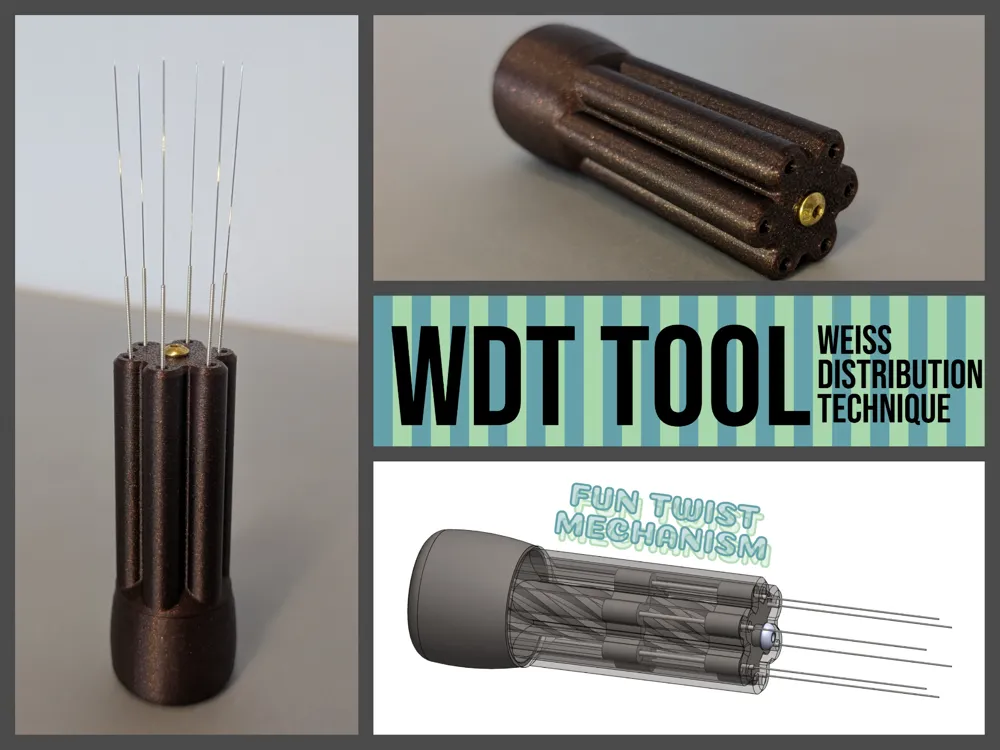

Retractable WDT Tool With Twist Mechanism
Easy to print and assemble.
Bill of materials
3D printed:
1 x all parts in the file
other:
1 x M3x5 Button Head Cap Screw
6 x Acupuncture Needle 75 mm long 0,25 mm diameter
1x linear rail grease

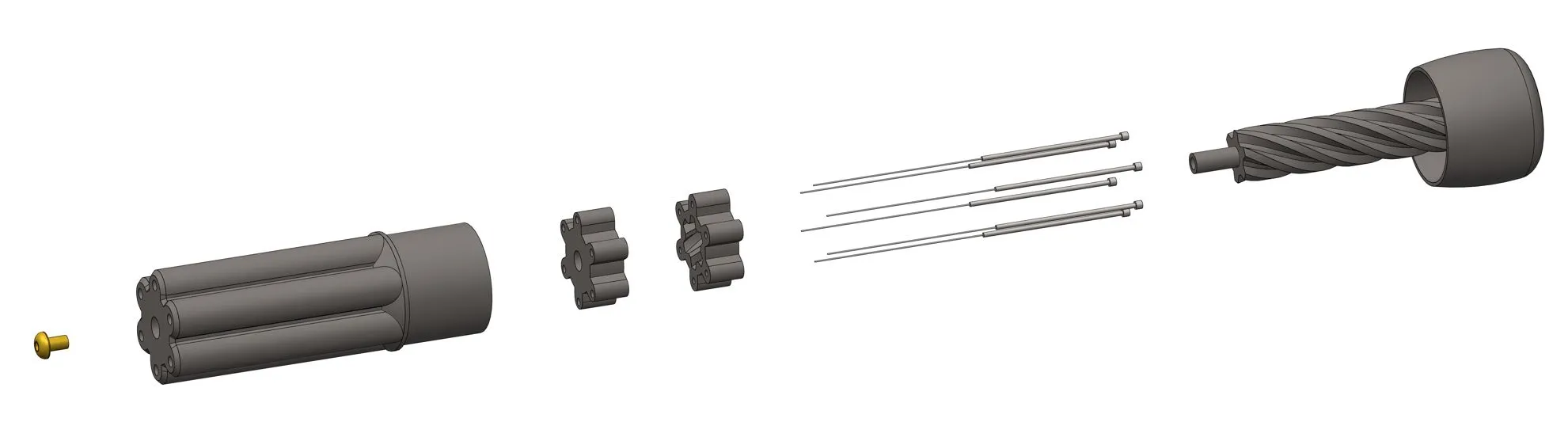

Assembly

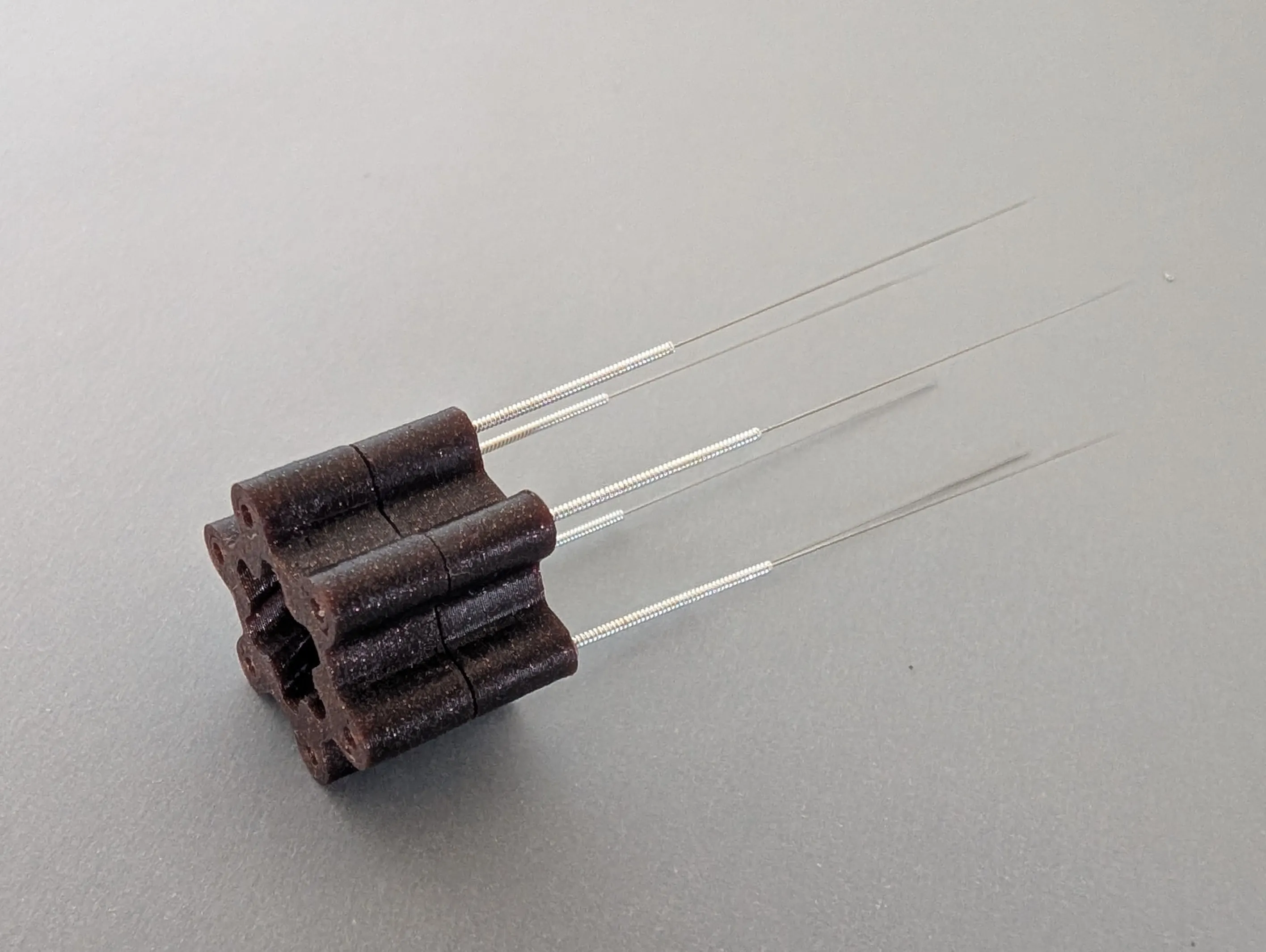

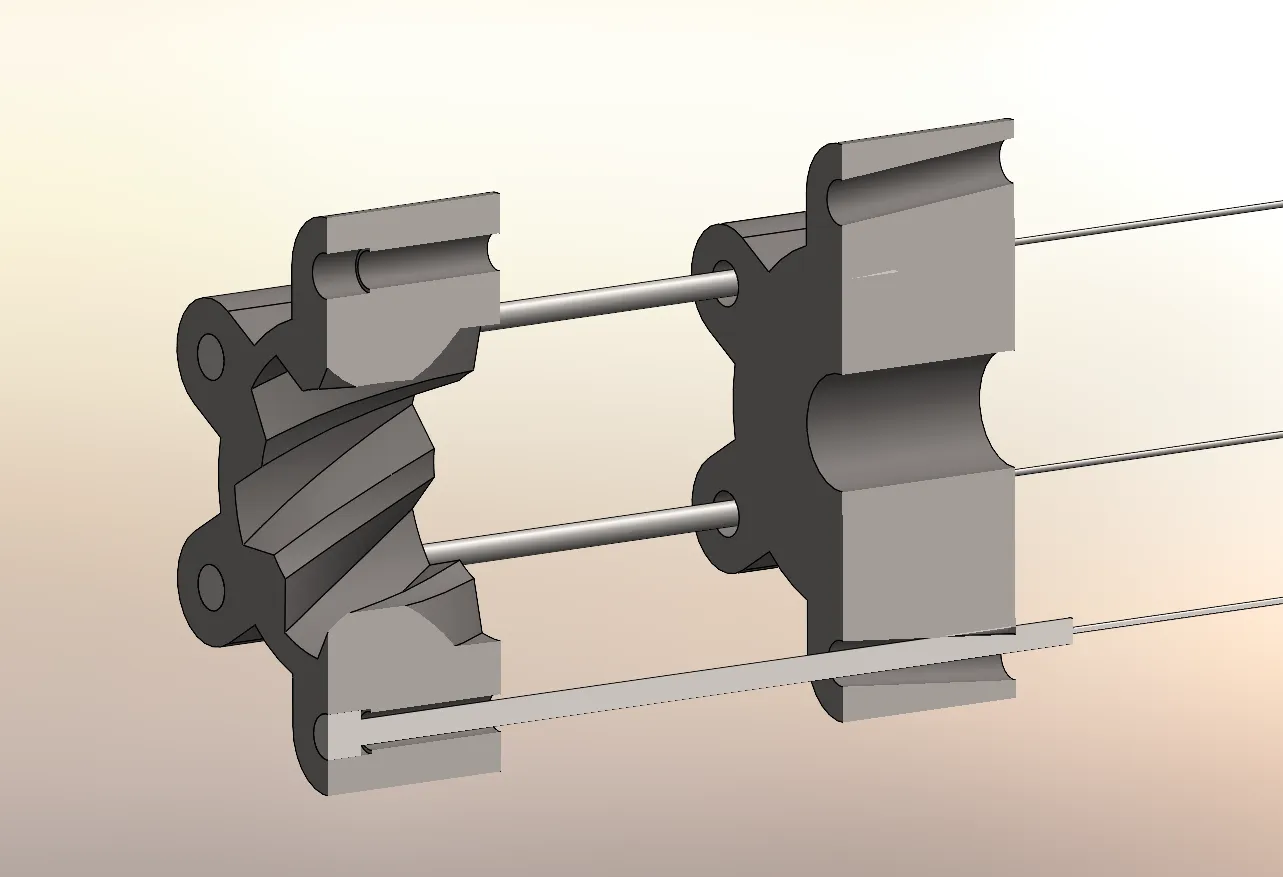

| Take the two inner parts, line them up like shown in the picture and insert the six needles through both parts. Notice how the part with the spirals has a bigger hole on one side. This is for the bigger head of the needle. |
 |
Pull the needles all the way in. To get the head in there is a small resistance and then it pops in and ends up beeing flush with the end. This way the needles are secured from falling out → also add grease all around the finns of this part. Screw dont need grease. This is crucial for a smooth operations. Without grease it wont work! You dont need much grase tho the part in the picture has grease already and you cant see |
 |

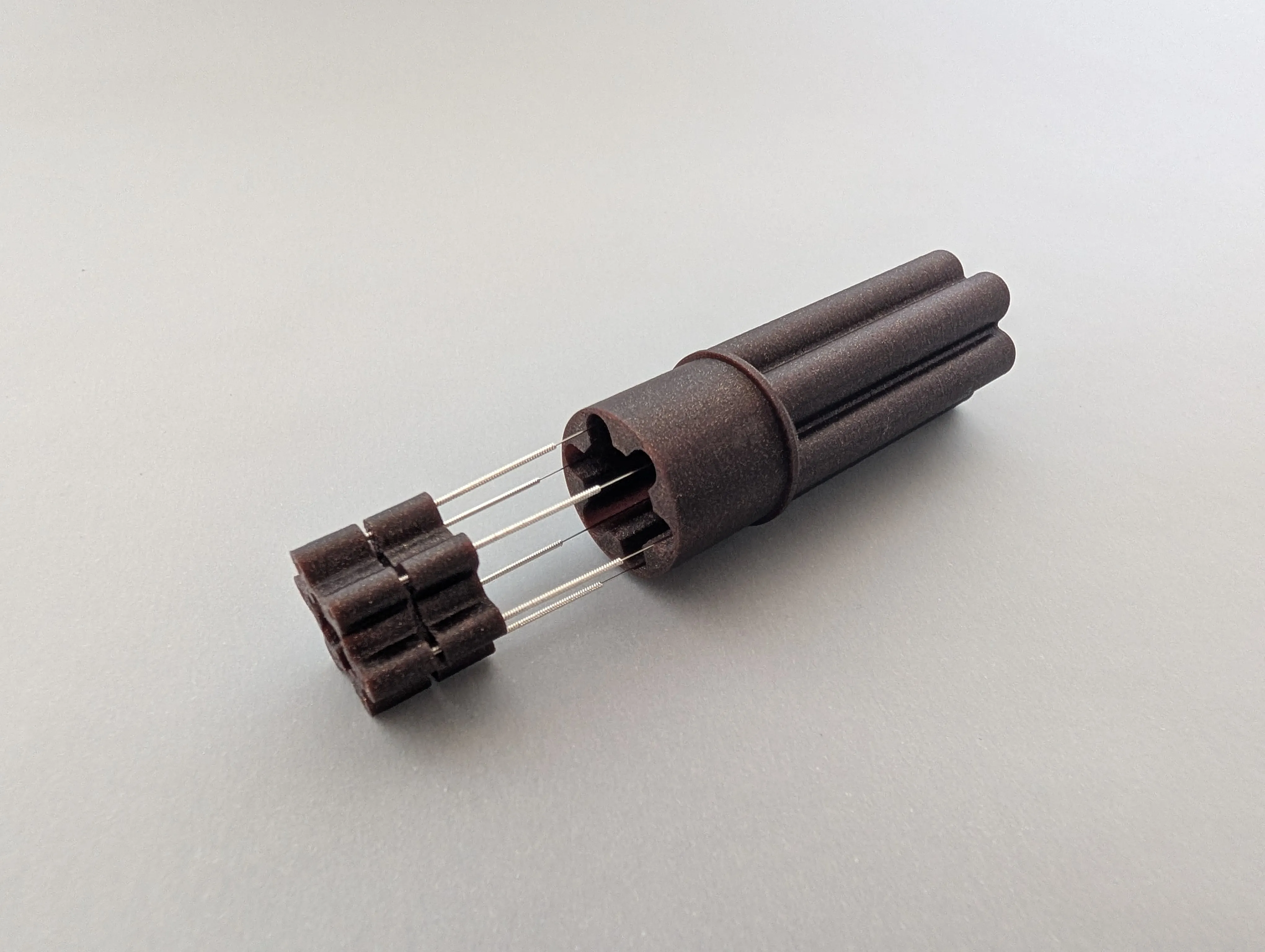

| Take the outer shell and insert the needels one in each barrel |
 |

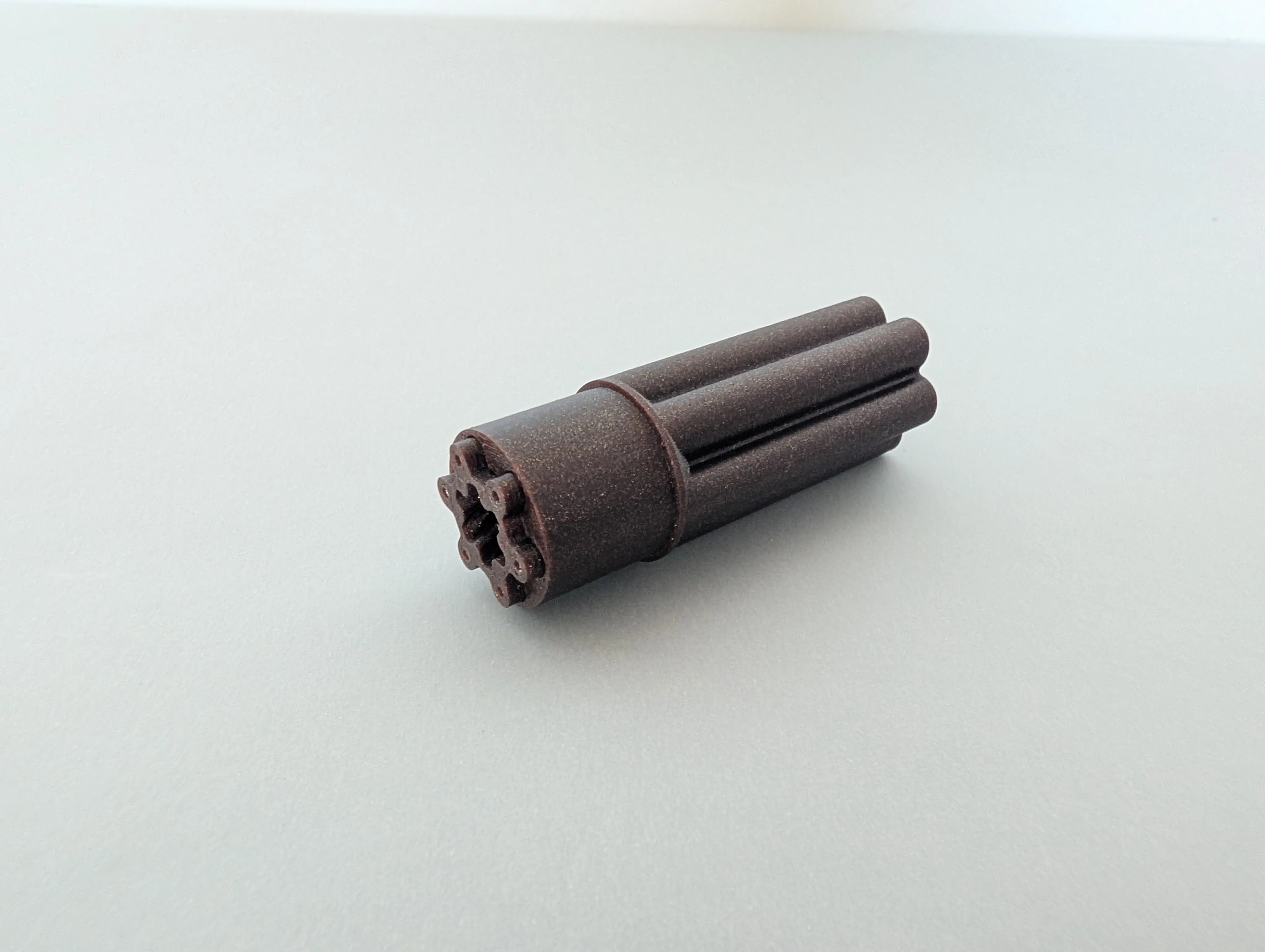

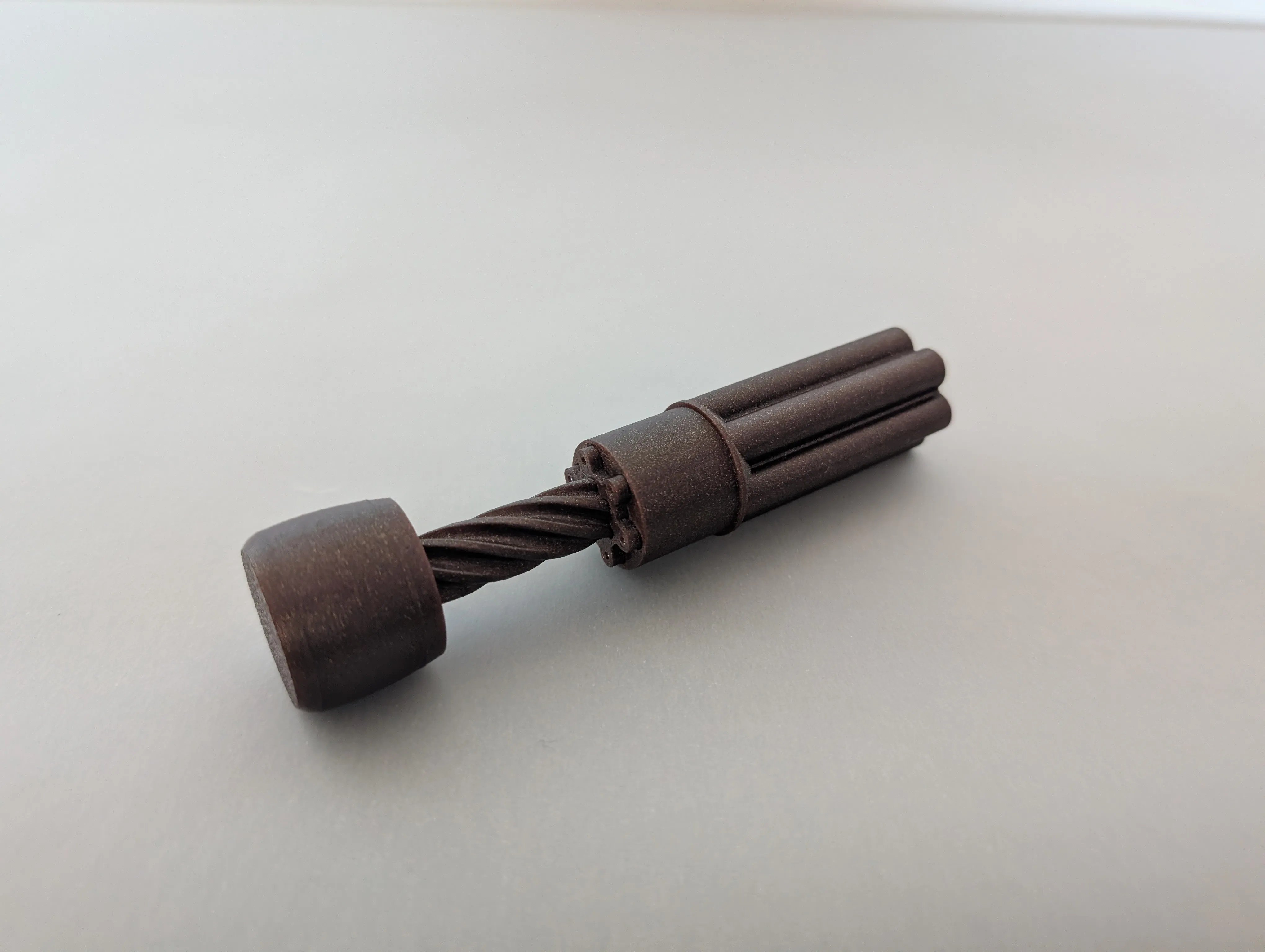

| Push the whole unit just about this deep into the shell |
|
| Insert the endcap and carefully screw it all the way in. The needles should then automatically allign with the holes of the outer shell. |
|
| To hold everything togehter insert the screw from the front and tighten is slightly |
|
Enjoy!
