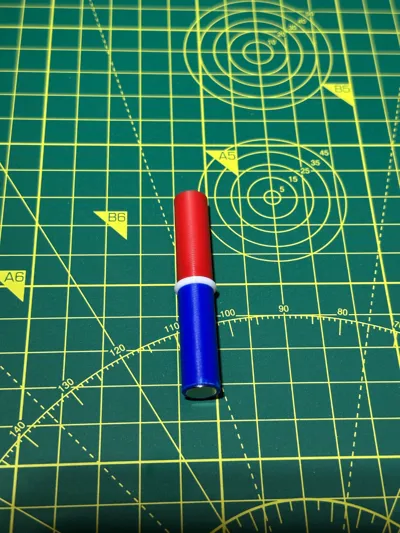

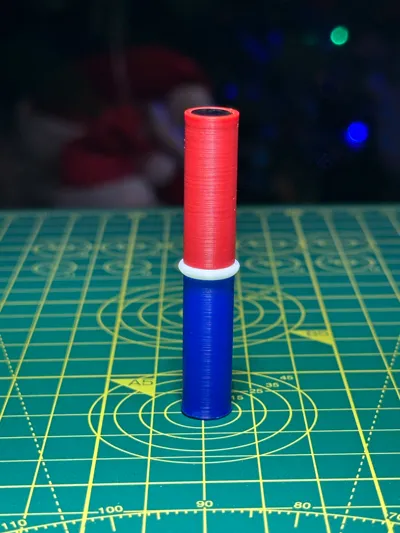

I made this to ease my work when glueing multiple magnets and ensure I don't put the same polarity on both faces.

As an example:

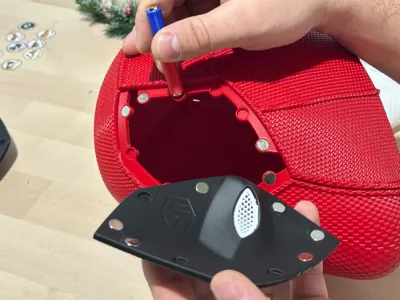

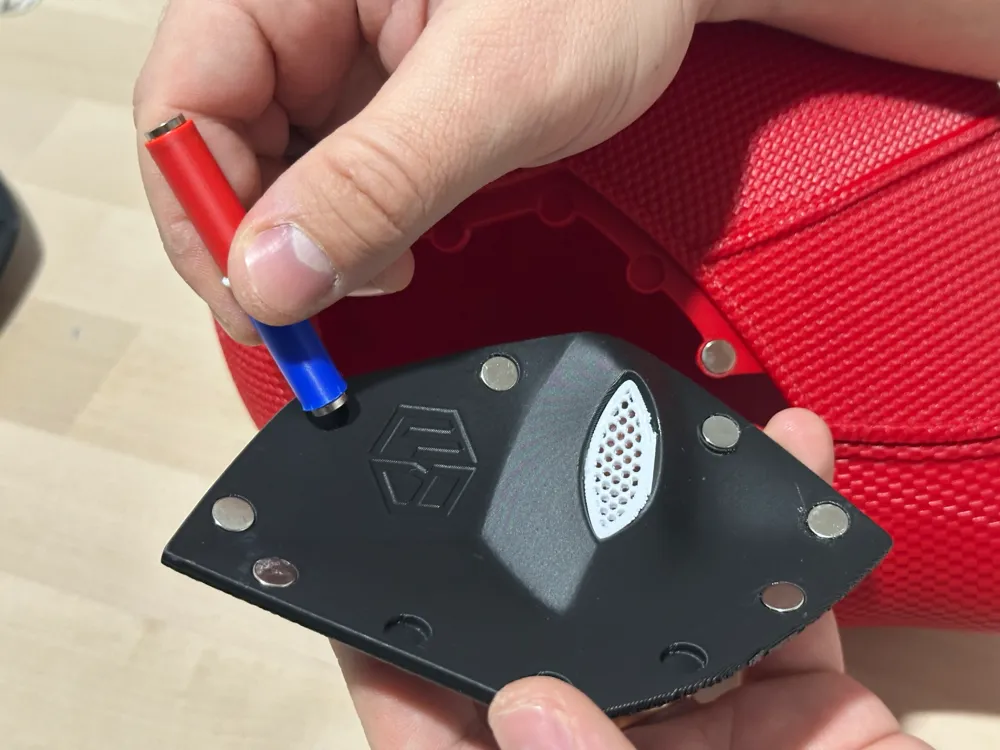

Use blue side when inserting magnets into a box.

Use red side when inserting magnets into the lid.

I usually store the magnets on the opposite side of where I'm working and move one magnet at a time to the tip of the tool.

This is made to work with 8x2mm magnets.

This requires two 8x2 magnets to be permanently gued to the rod.

Make sure to check poloarity of magnets are North at one end and South at the other before gueing them.
