Four-position Polydryer+ and Sanlu S4 combined dryer and dehydrator, compatible with AMS lite

Important Reminders:

• Remove the fan label before installing the fan. Prolonged exposure to the PTC may cause the label to melt and obstruct the air vent
• During assembly and testing, activate the fan first to ensure proper operation before testing the PTC heating element. This prevents the PTC from overheating
• If the fan fails to operate, press and hold OK to access settings: Set L to 5, H to 99, and C to 0. Avoid P-1 mode initially, explore it only after familiarization (ignore this if unfamiliar with P-1)
• The temperature control switch has two wiring configurations, detailed below. Connection may vary depending on the source of purchase. If the first method fails, try the second
• For amslite compatibility, consider printing my first design: amslite rotary shaft bracket. This beam support is recommended for the feed assembly (no additional hardware required): https://makerworld.com.cn/zh/models/550466#profileId-478972

Enhance your experience with these optional components

Controller Box (Non-PWM): (Only print the components in Plate 3)

A single controller (non-PWM) version is available, offering lower costs. Save money to upgrade to a WIFI timer and temperature controller. The top cover is removable for easy wiring

Without amslite:

Filament Spool Rack for Dryer:4-spool moisture-resistant drying box. The central axis design offers enhanced stability and includes a desiccant compartment, surpassing roller-based bottom designs. Contributed by 小凡不是逗逗凡 - MakerWorld

With amslite:

AMSlite Dryer Rack (Rotary Shaft Support):Filament drying box amslite enclosure and rotary shaft support. Compatible with aesthetically pleasing medicine boxes. A secondary creation - Contributed by 小凡不是逗逗凡 - MakerWorld

AMSlite Infeed/Outfeed Support (no additional hardware needed):A1AMSlite top beam support. Contributed by Noke - MakerWorld

Regardless of amslite:

Smooth Filament Feeding Companion:AMS-style dryer internal feed port. Enhances smooth filament feed and prevents PTFE tube bending that leads to jams. Only 20 grams. Contributed by 小凡不是逗逗凡 - MakerWorld

Optional Insulation Kit (faster heating, energy saving in cold weather):

Medicine drying box insulation kit

If the enclosure's seal is insufficient, print this:

Improved sealing latches for medicine box

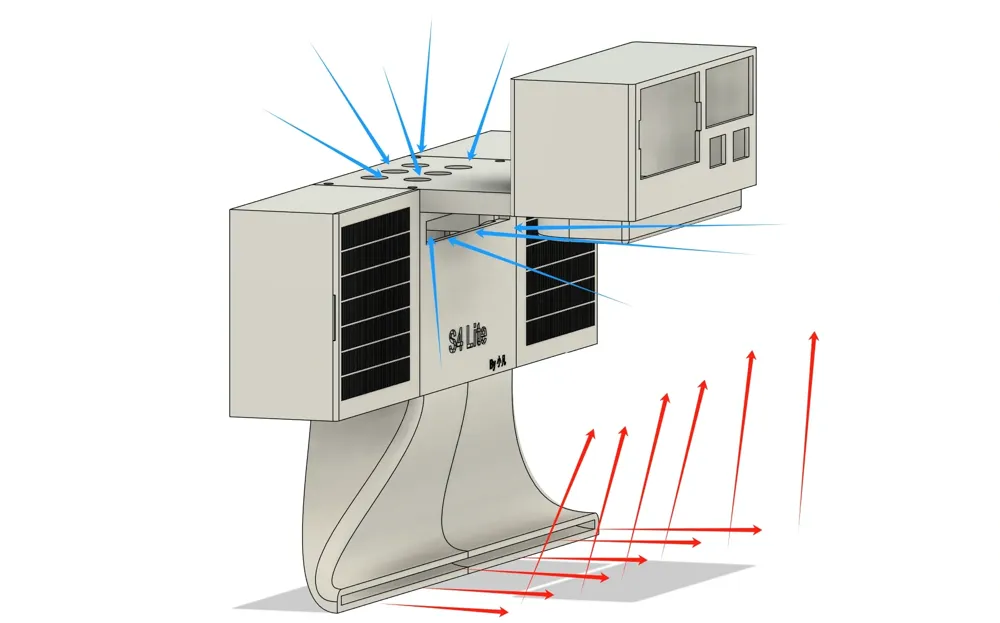

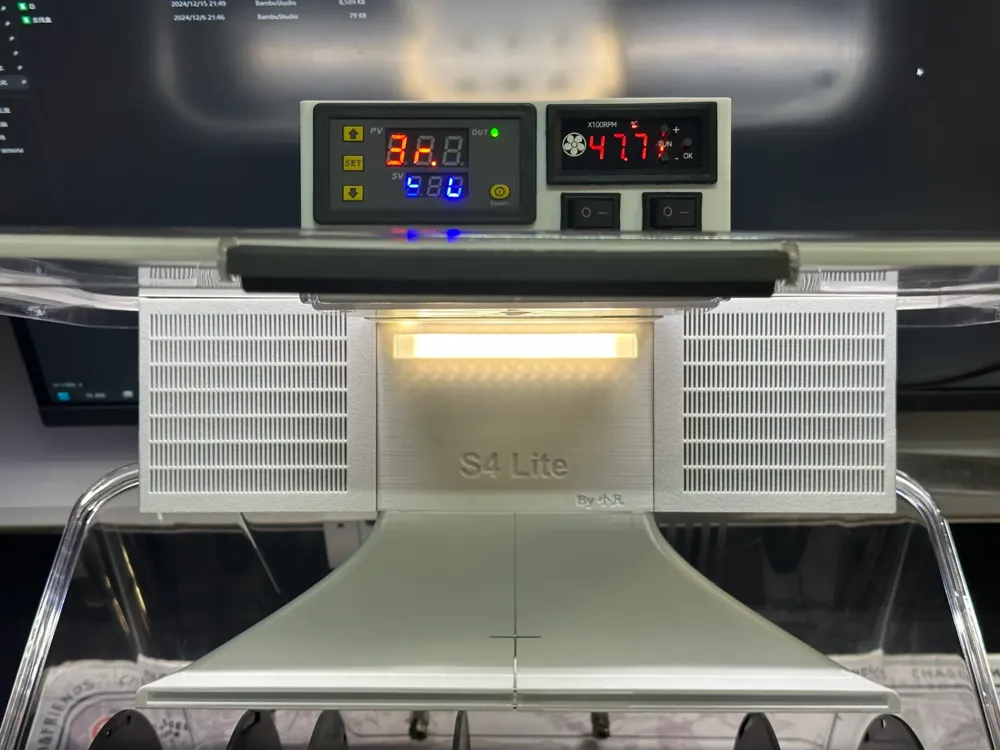

Overview

Assembly Video (Courtesy of community member 天行健)

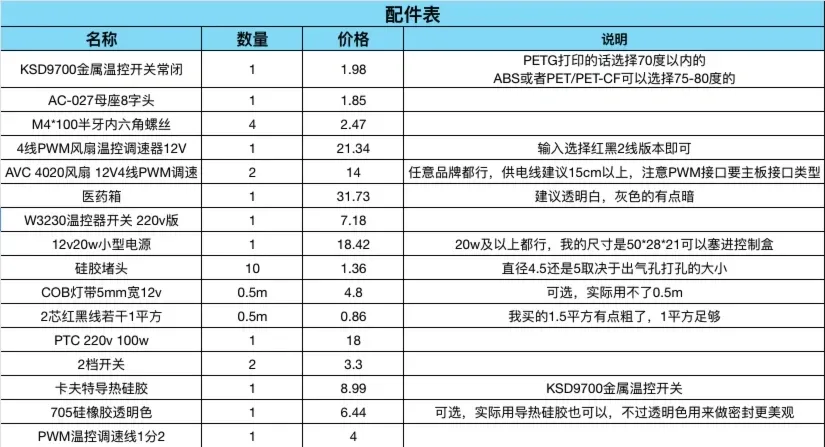

Bill of Materials:

An 8-shaped power cord is also required. I did not purchase one separately. These cost around 1-2 yuan on PDD

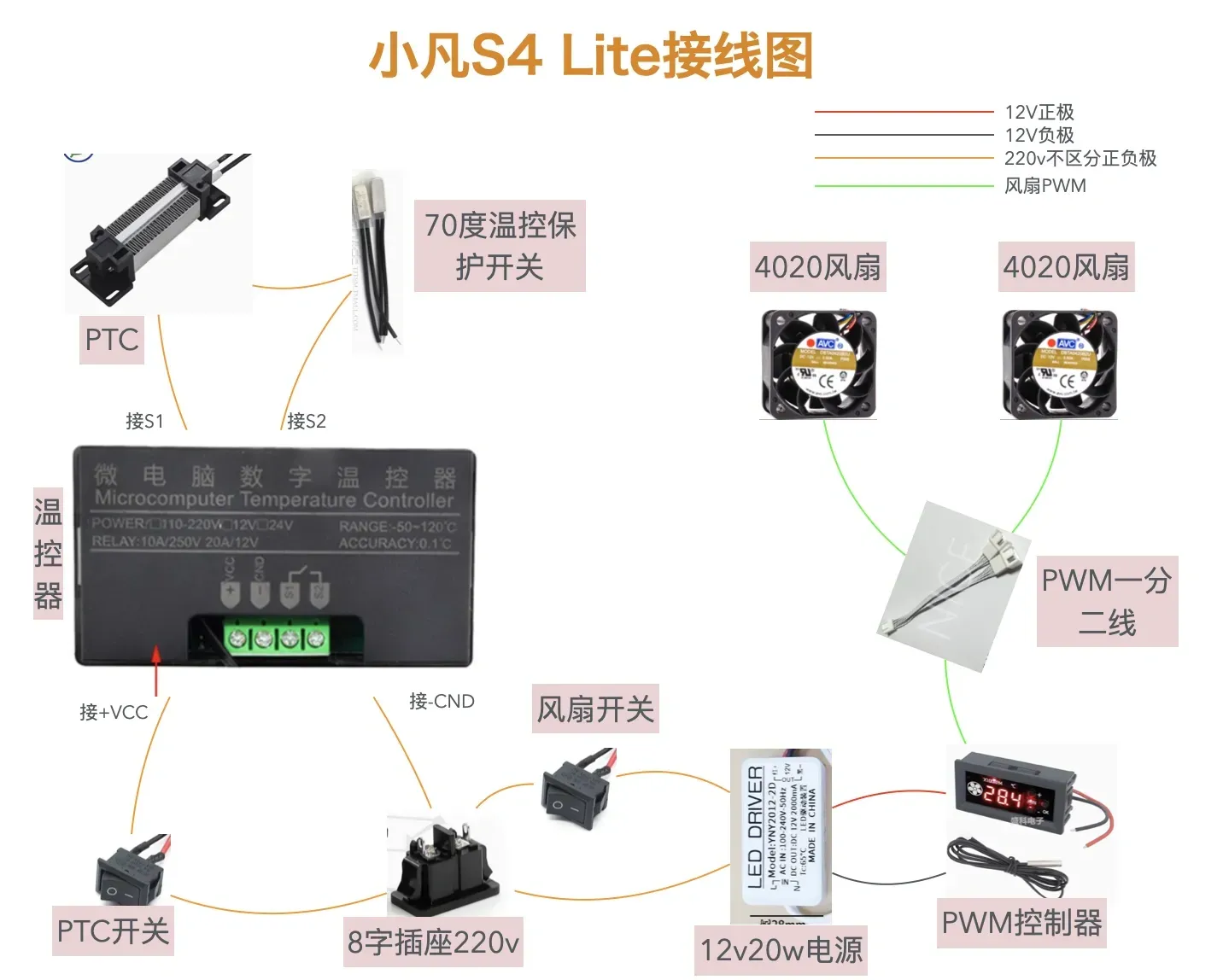

Wiring Diagram:

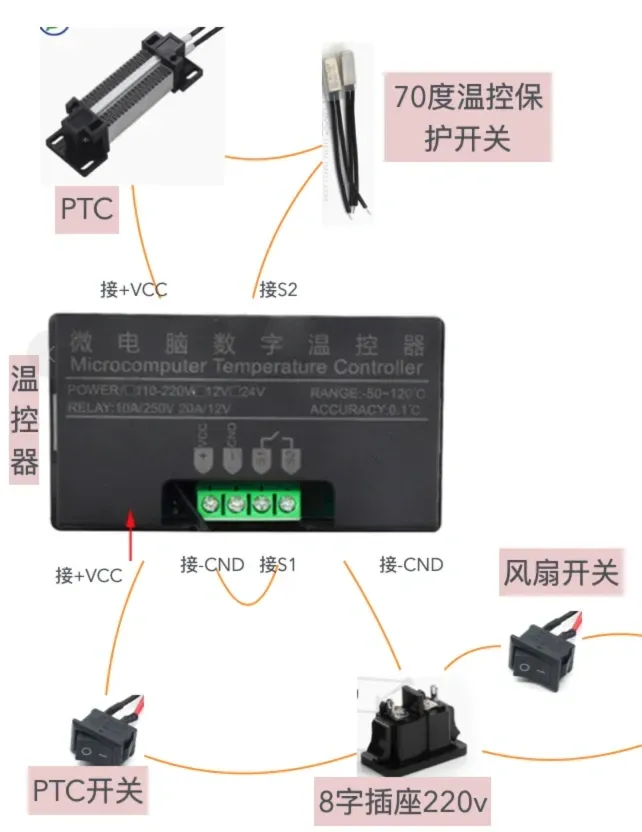

Alternative Wiring for the Temperature Control Switch. The above method worked for me. If heating fails during testing, use the method below

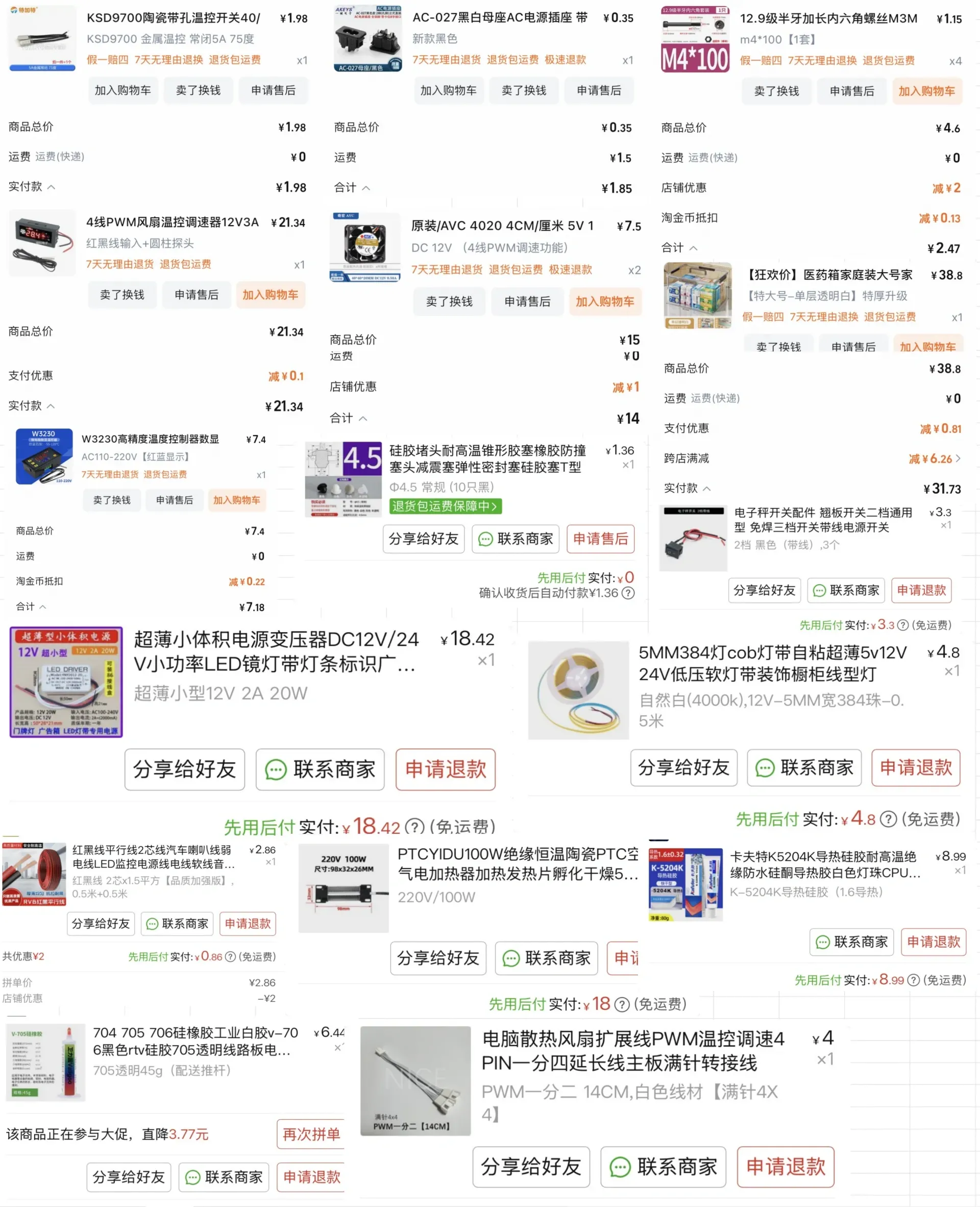

Parts Shopping List

Assembly instructions and wiring diagrams will be updated in two days
