DJI Osmo Pocket 3 & Pocket 4 Backpack Clip

！！！！！POCKET 4 is also compatible ！！！！！

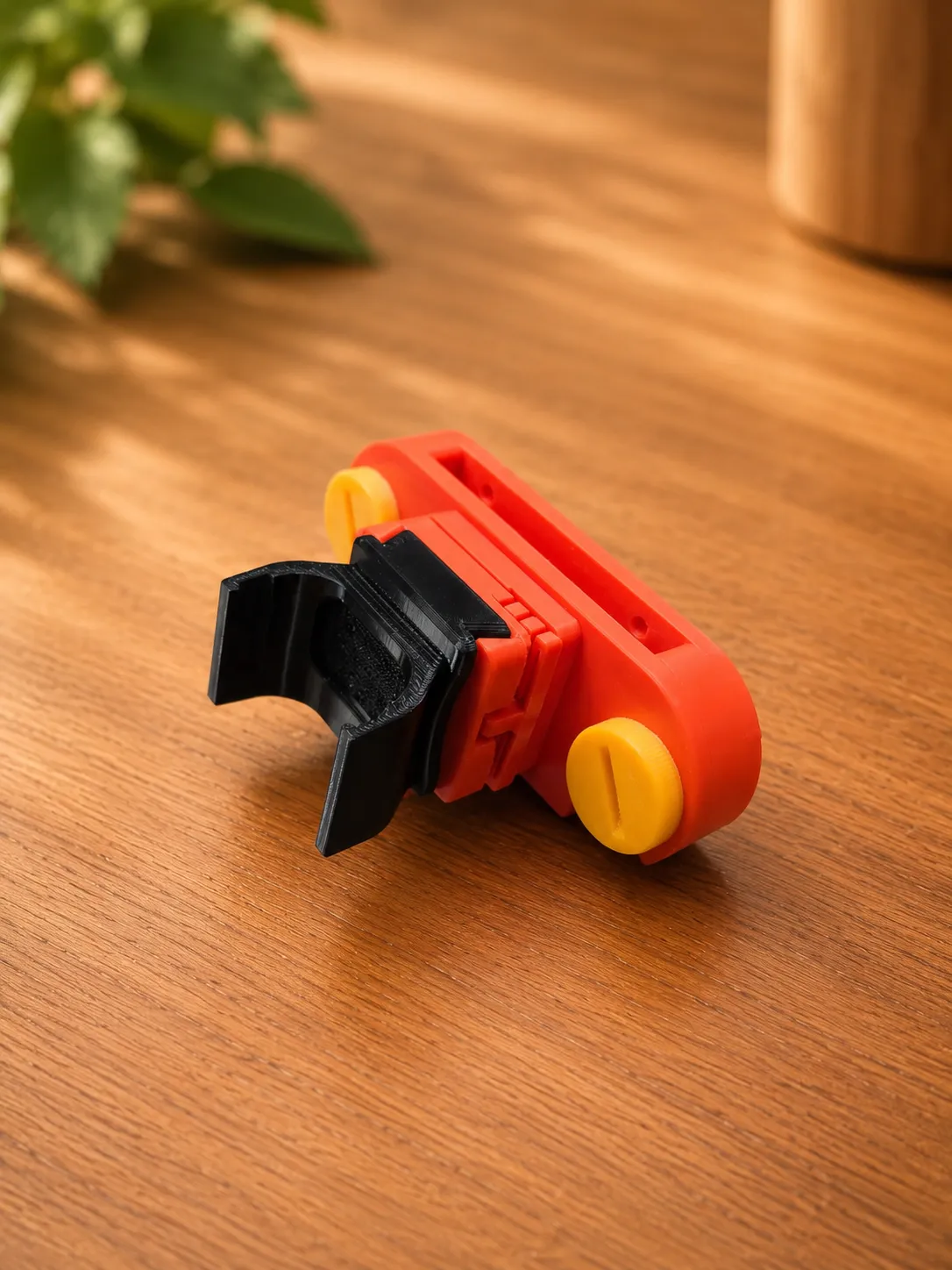

This is a DJI Osmo Pocket 3 backpack clip, designed for hands-free use anytime

First, I want to thank@marco_rc_arena DJI Osmo Pocket 3 Backpack Clip Quick Release by Marco RC Arena - MakerWorld I used his designed bracket for 10 days and found it very useful, but also encountered some issues: the snap mechanism didn't lock, and it would fall off when bending over Since this 3D model license has sharing restrictions, I referenced his model to redraw and create a new design

Additionally, I want to thank@TechBug Spring-loaded quick release plate - fully 3D Printed by TechBug - MakerWorld, This 3D model license also has sharing restrictions, so I could only use@user_4100640359 's model as a remix basis, thank you

This device is suitable for:

1. Backpack straps 63mm wide, with an optimal thickness of 6mm, and can accommodate up to 11mm thickness
2. If the backpack strap thickness is less than 6mm, I also designed a 2mm thick accessory that can be added, making it suitable for thinner straps
3. The two fixing screws can be hand-tightened; if difficult to tighten, the central groove can be tightened with a coin
4. For printing, I used PETG as it feels sturdier; PLA should also work
5. Apart from the Pocket3 cage which requires supports, the rest do not need any

Below is for Nano

https://makerworld.com/zh/models/2557079-dji-osmo-nano-backpack-clip#profileId-2904354

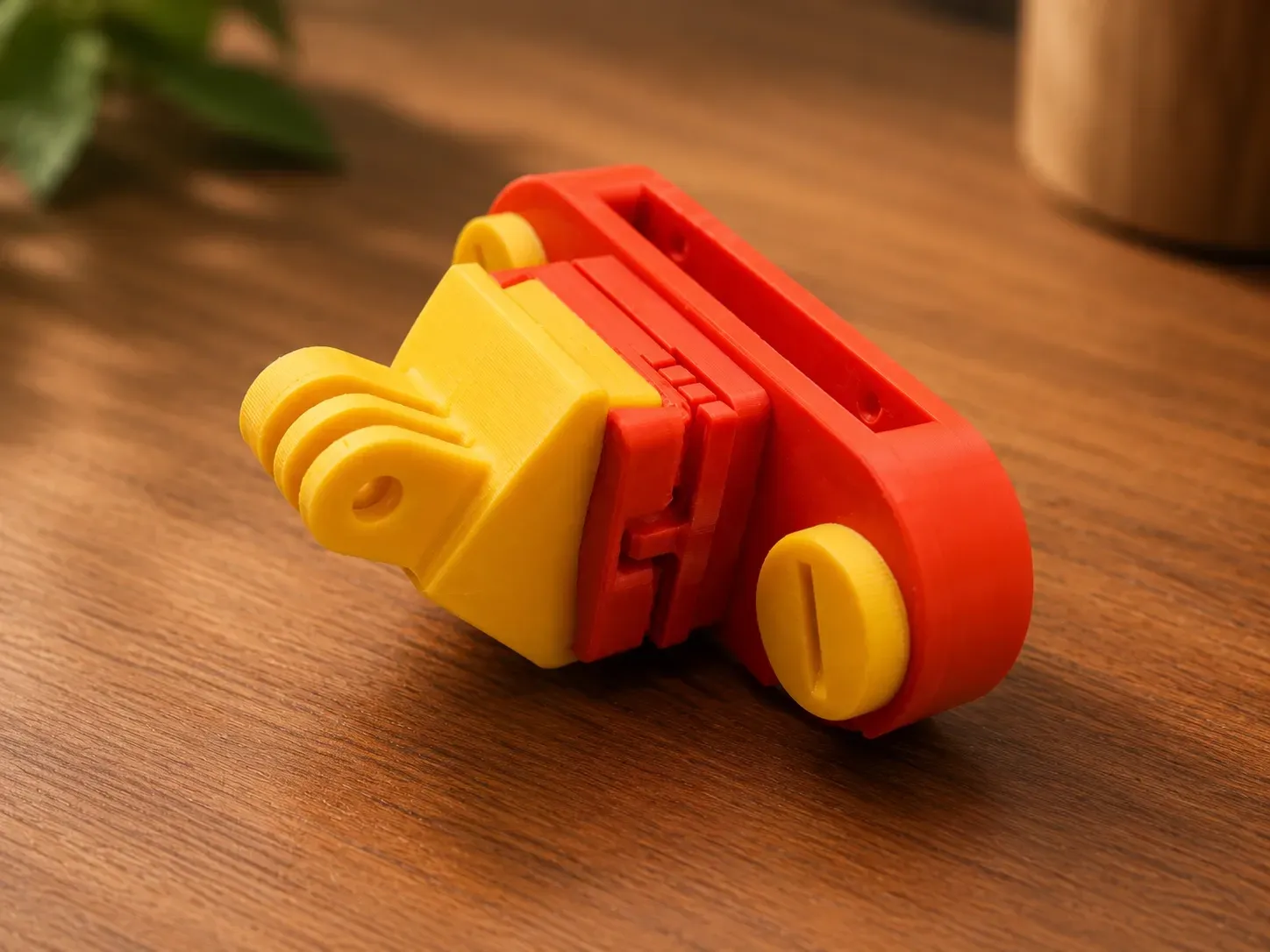

Below is for GoPro

https://makerworld.com/zh/models/2771665-gopro-backpack-clip-with-vertical-and-horizontal-m#profileId-3078803

Below is for Insta360 Luna Ultra

https://makerworld.com/zh/models/3019702-insta360-luna-ultra-backpack-clip#profileId-3392564

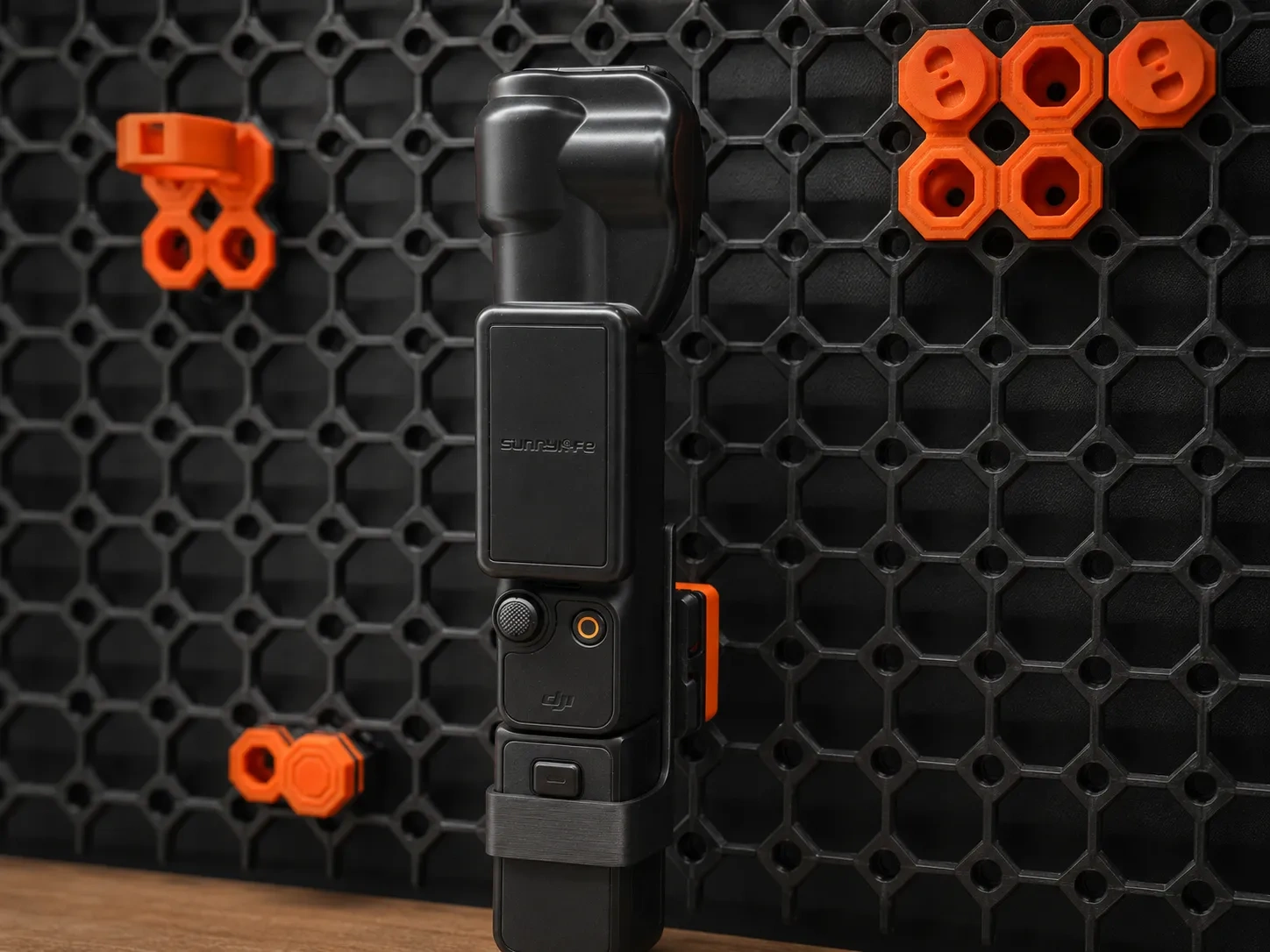

Below are mounts for Multiboard and IKEA Skadis When you return home, you can free your Pocket3_4 from your backpack and secure it onto a Multiboard or IKEA Skadis board

Multiboard accessory

https://makerworld.com/zh/models/2954447-pocket3_4-multiboard-mount#profileId-3310706

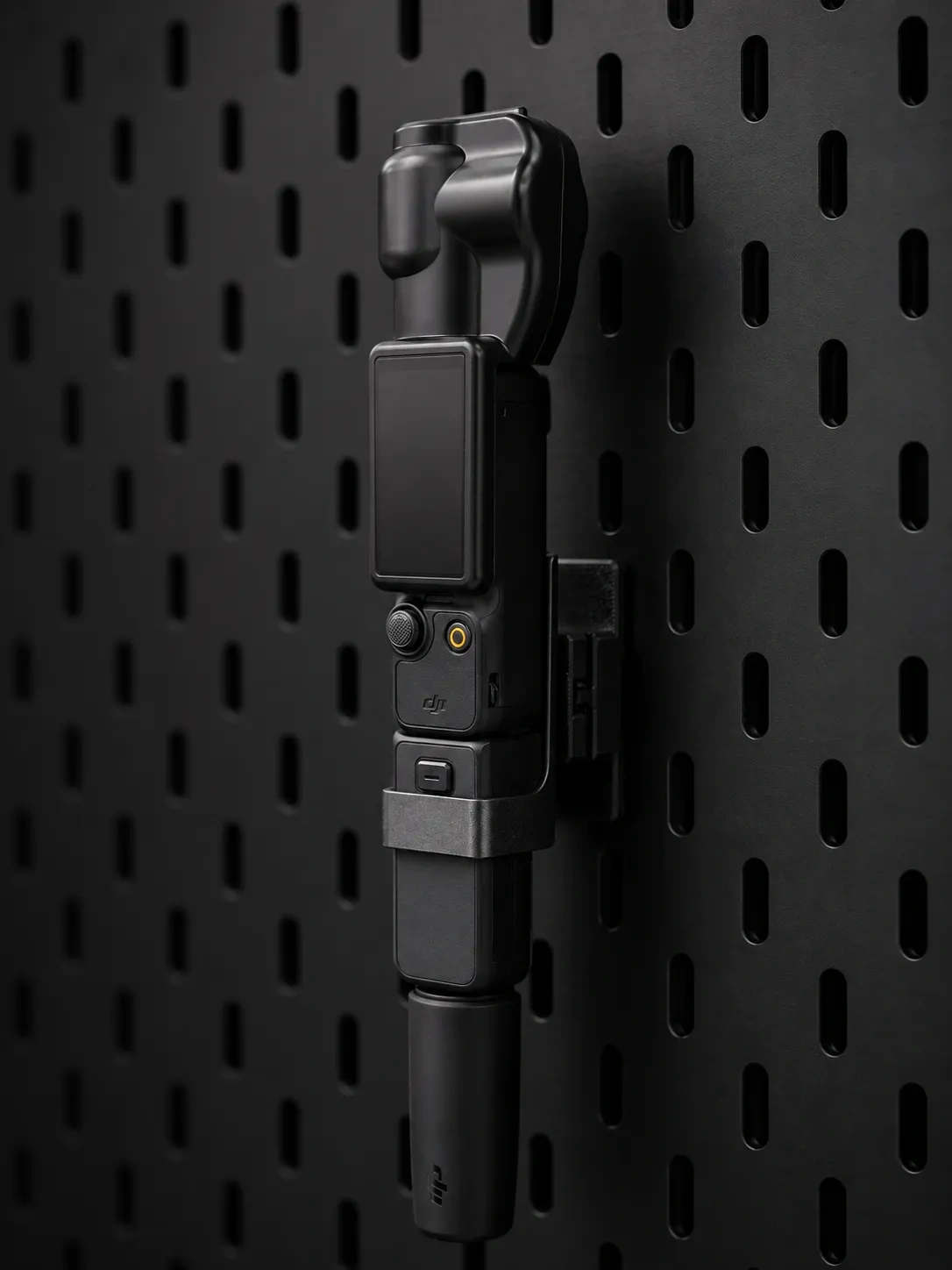

IKEA Skadis accessory

https://makerworld.com/zh/models/2954413-dji-pocket3_4-enterprise-ikea-skadis-board-mountin#profileId-3310661
