Amazon Echo Spot (2024) Angled Wall Mount Bracket

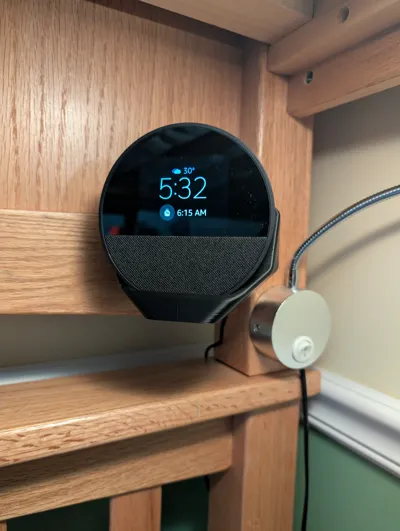

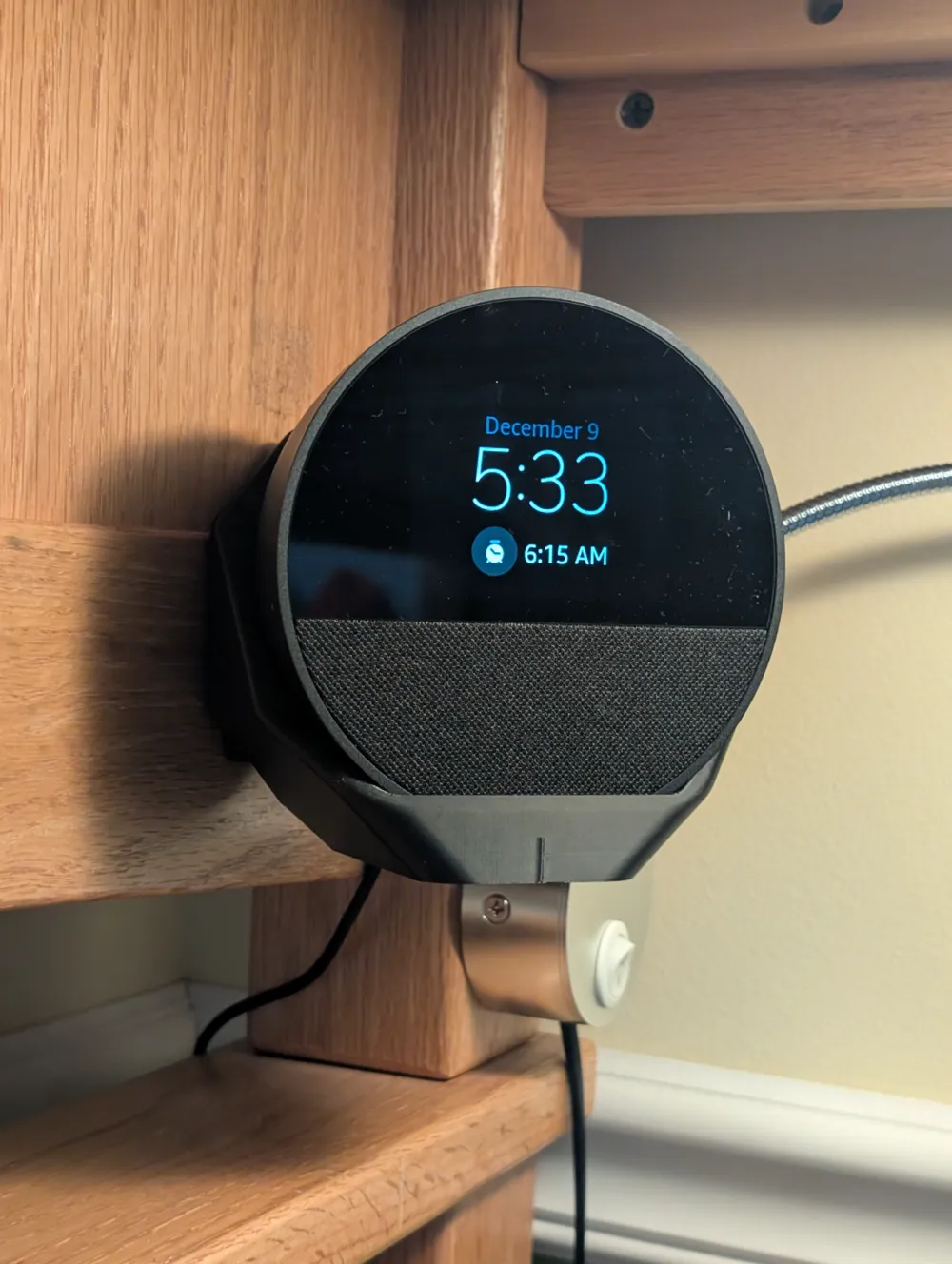

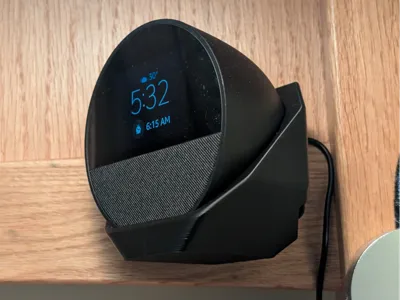

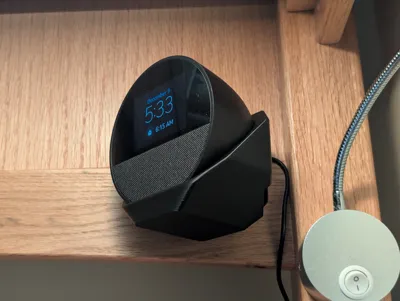

My son loves to listen to audiobooks. So I made an angled wall mount for the Amazon Echo Spot (2024) he uses to listen to audible audio books. Now it tucks nicely into the unused space in the upper corner of his bunk bed.

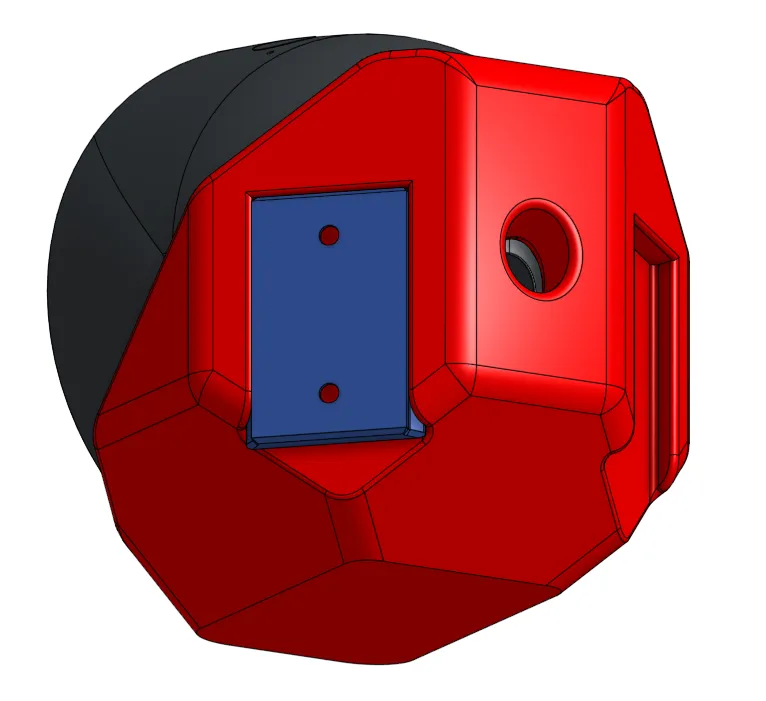

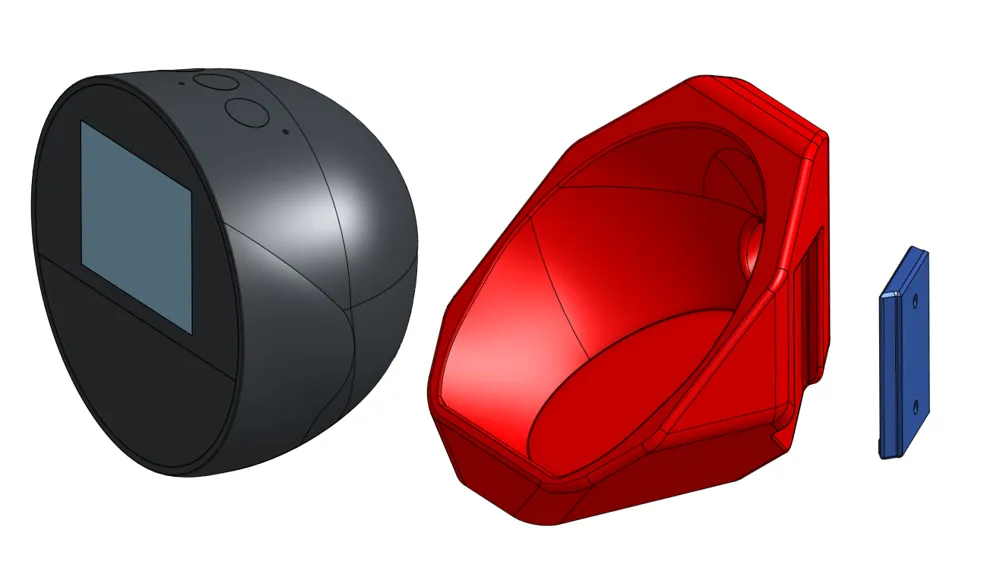

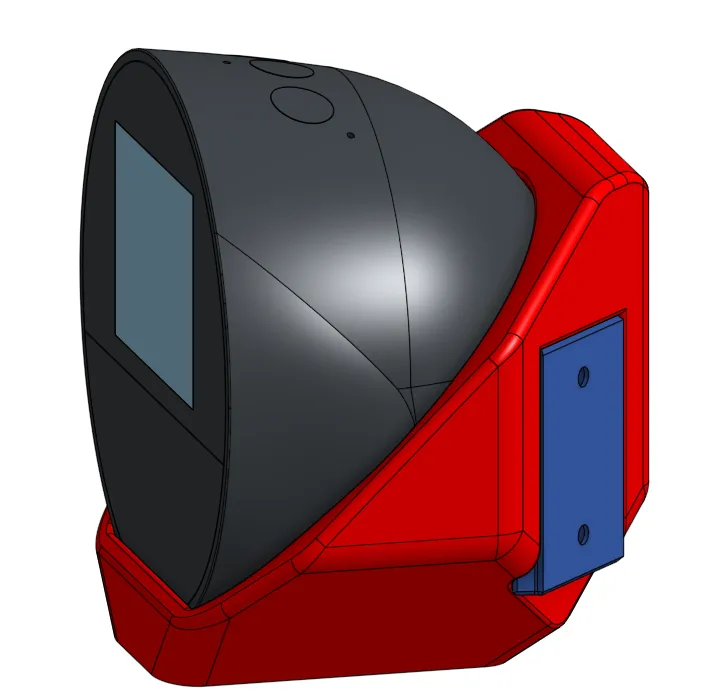

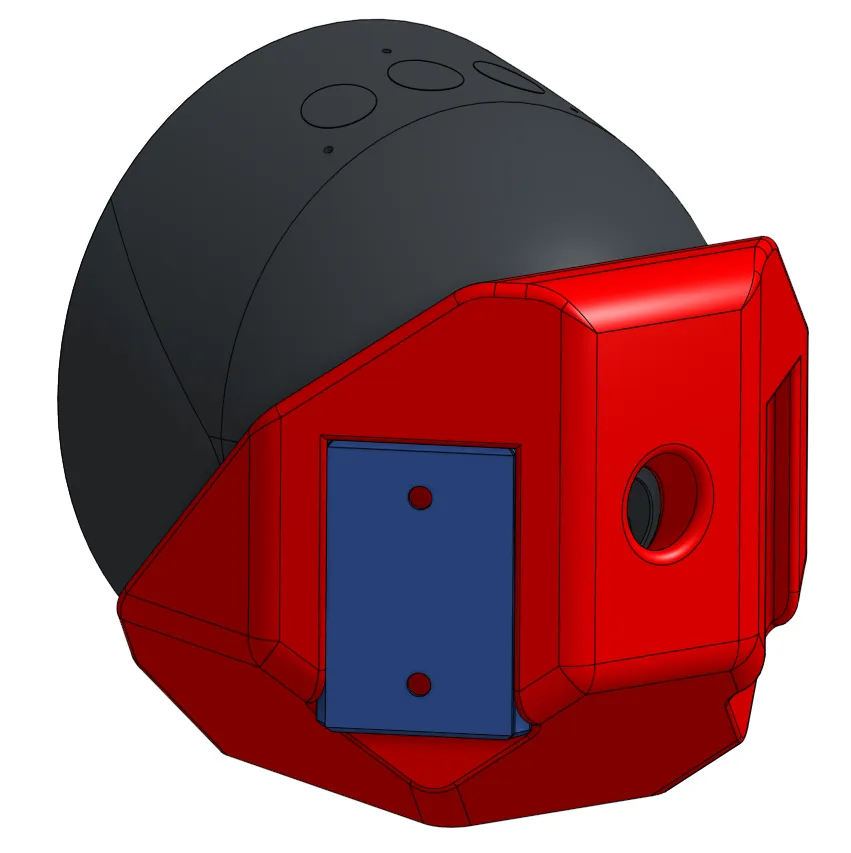

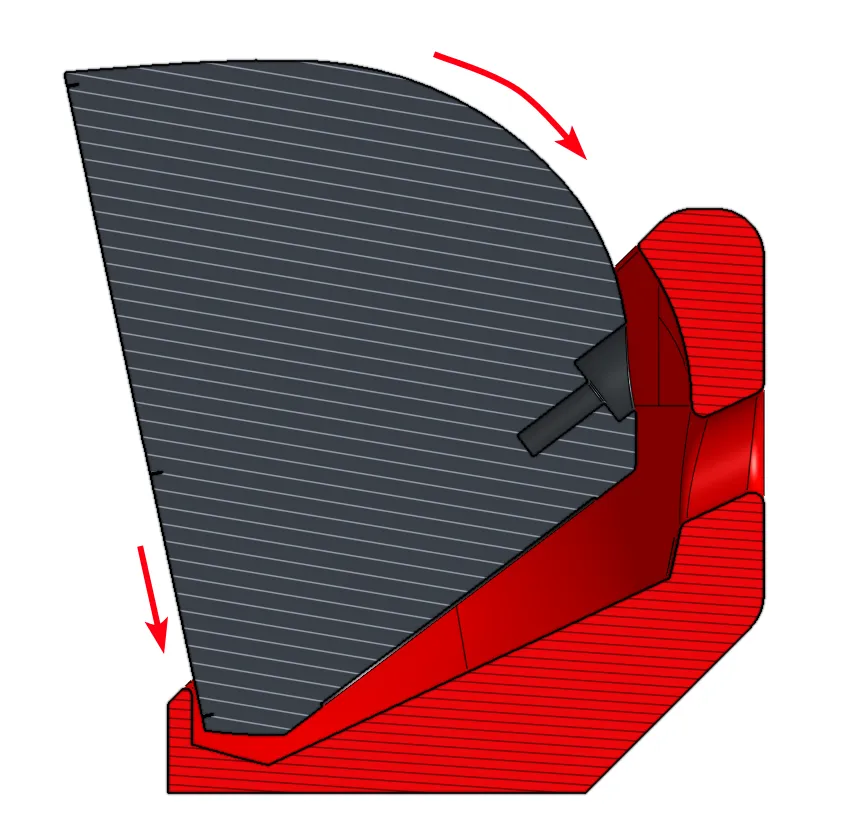

Instructions: Screw the dovetail male clip onto the wall (with the raised nub down), place the Echo Spot (2024) into the pocket in the wall bracket, plug in the barrel power jack into the Echo Spot through the rear access hole, then slide the wall bracket female dovetail over the male dovetail clip. It should get tight right as it bottoms out due to the raised nub. And the mount is mirrorable so it is reversable to angle either direction.

Hope someone else finds this handy.

I have included STEP and STL in the CAD downloads for Makerworld.

I also have linked the native Onshape file: https://cad.onshape.com/documents/16713182c79da01bff1cfeec/w/bad53f00d8625da9e0900227/e/45632720c8824daa3228068a?renderMode=0&uiState=675e1e776836ba1b7f5d6d19
