Optimized Nerf LEON LONGINUS L07 pusher (compatible with Craftsman Master inner tube)

As you can see, this is a high-flow nozzle designed for the Longinus L07 blaster produced by Leon Studio

This nozzle's design incorporates structural features from several renowned domestic blaster designs. Following a year of rigorous durability testing, I can confidently assert this 3D-printed nozzle offers considerable resilience. I hope this more cost-effective FDM manufacturing method enhances your enjoyment of this blaster. XD

Nozzle Features:

FDM manufactured, requiring minimal support structures and bill of materials;

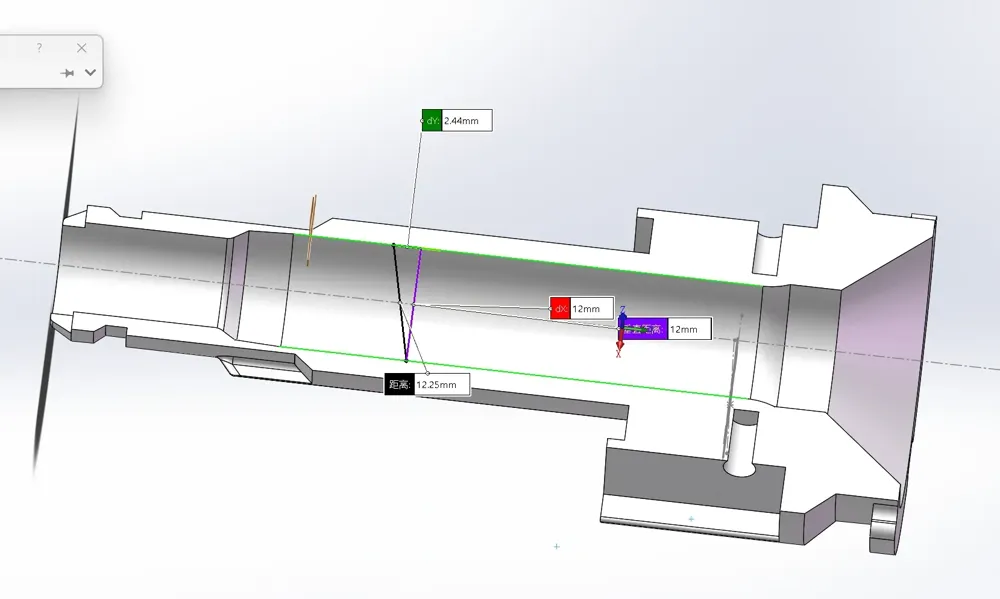

Boasts a maximum air passage diameter of 12mm, exceeding that of some metal nozzles on the market. Reinforcing ribs contribute to its robust durability.

Hot-swapping is not supported after installation!!

Hot-swapping is not supported after installation!!!

Hot-swapping is not supported after installation!!!!

Construction Notes:

In addition to the original hardware, you will need two O-rings to achieve optimal performance.

Specifically:

1. One 10x2mm (outer diameter x cross-section) fluororubber O-ring; (for the pusher)

2. One 36x3.1mm (outer diameter x cross-section) fluororubber O-ring;

3. One buffer pad of any suitable material;

*Please prepare a Gongjang Daishi stepped inner barrel exceeding 310mm in length to complement this nozzle

*Slicing recommendations prioritize robust construction. The parameters provided in the included slicing file are:

*Five walls, 35% infill; Recommended materials include PLA+, PLA Max, ABS, and PETG, or other similarly rigid filaments

*If feasible, utilize silent mode for dedicated printing of this model.

*For enhanced durability, I advise against reducing the specified parameters.

*If you lack a suitable buffer pad, please refrain from dry firing the blaster.

*Compatibility has only been verified with genuine L07 and Avida version 07 blasters. Other versions may present issues.

Performance Expectations:

Hot-swapping is not supported after installation!!

Hot-swapping is not supported after installation!!!

Hot-swapping is not supported after installation!!!!

With a 1.8mm diameter spring and 63mm pre-compression, using a standard Gongjang Daishi orange-purple configuration, expect muzzle velocities between 57-61 m/s.

Without a buffer pad, using the aforementioned configuration, the nozzle should withstand approximately 100 dry fires.

Acknowledgements & Shout-outs:

1. This project draws inspiration from the designs of Shou Dong Xi Yi Ji, Yusaka Hiro, She Lie, Da Shi, and Mo Fa. My sincere gratitude to these accomplished creators whose work illuminated my path as a novice. (Note: Permission to reference these pseudonyms was not obtained.)

2. Thanks to Prana for gracing the cover (without explicit permission).

3. This nozzle was originally titled "Pursuer". My initial intent was to commercialize it, but various factors ultimately thwarted this ambition (a low-energy creator's monetization failure!). With Mo Fa’s optimized version 07 hardware imminently launching, I am open-sourcing this nozzle.

(This story serves as a reminder to focus on quality and collaboration before focusing on monetization. This approach is vital for learning and growth.)

Hoping this benefits users of older hardware kits.

(Kids, the Pursuer ultimately didn't catch its target! manba out!)

Wishing you enjoyable gameplay,

2024/12/14

Yi Ge
