Casio Pomrie stamp machine cardboard template—10mm round and square

Casio Pomrie stamp machine special size template

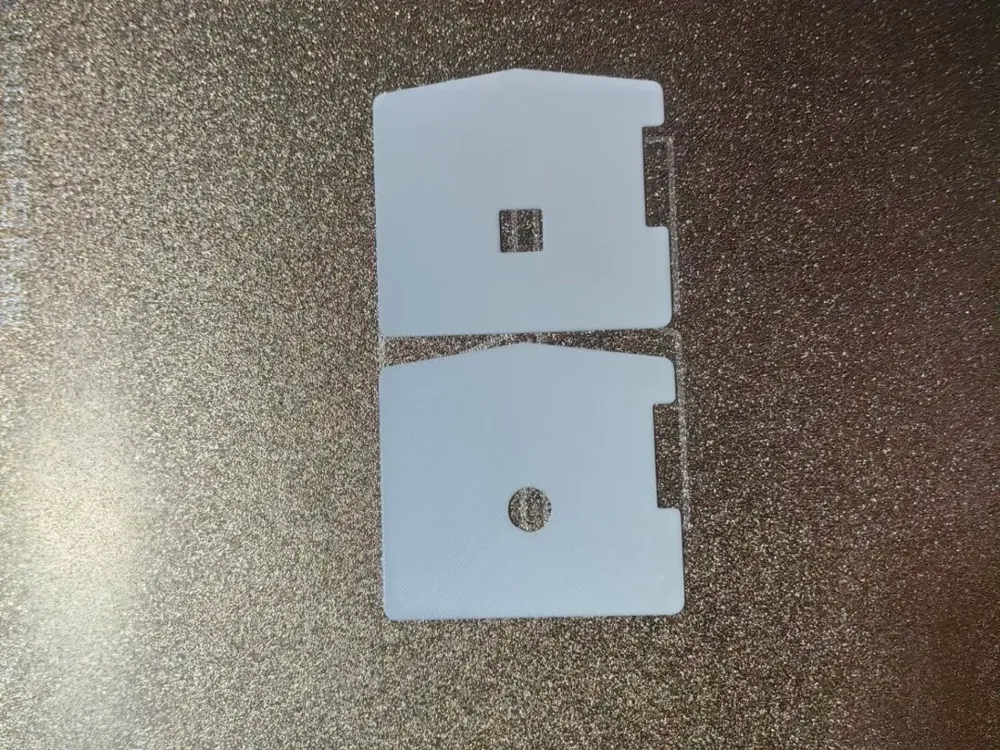

10mm x 10mm square and 10mm round.

Made based on a 15 x 15 mm template size.

A piece of paper needs to be affixed to the bottom of the model; otherwise, the machine cannot scroll and recognize it. Testing materials used: 2mm photosensitive pad + 1.9-micron PET film (I used double-sided tape to adhere the PET film)

Design processing reference:

Because Pomrie, unlike Mint, does not offer convenient image resizing and positioning (I haven't found a way), I've included corresponding template images. Designs ensured within the white area should print correctly.

Reference image download link: https://pan.baidu.com/s/1sNHQizALiZdWFOkksWt0tA?pwd=xqax Extraction code: xqax

The template images use a resolution of 170 and a size of 15mm x 15mm. I import them into the software without needing to resize them.

Because the 10mm version cannot accommodate offset allowances, if there is an offset in the actual print, please adjust the design position yourself. (The image and the actual stamp surface are reversed horizontally and vertically.)

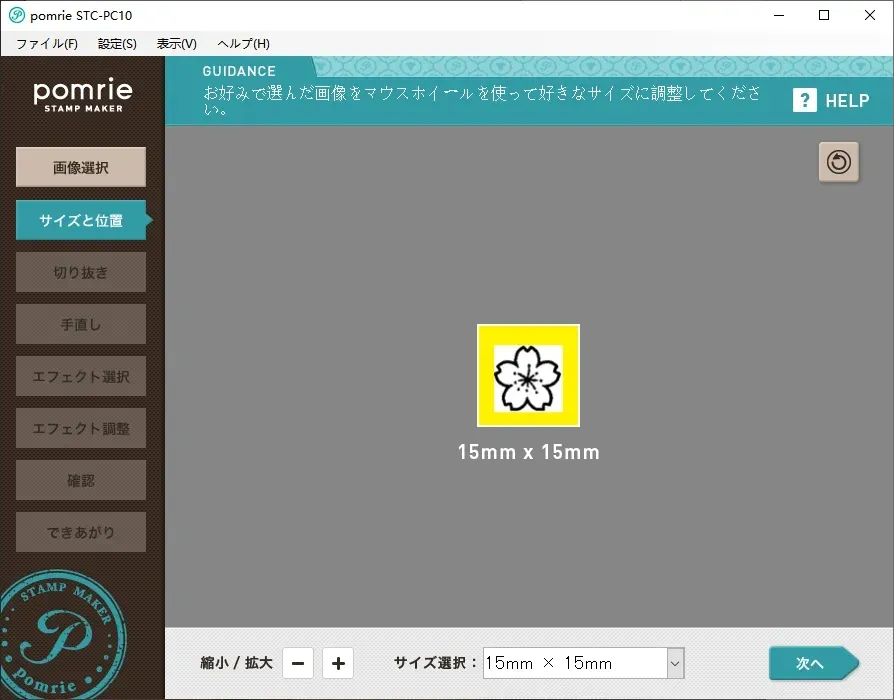

Reference images:

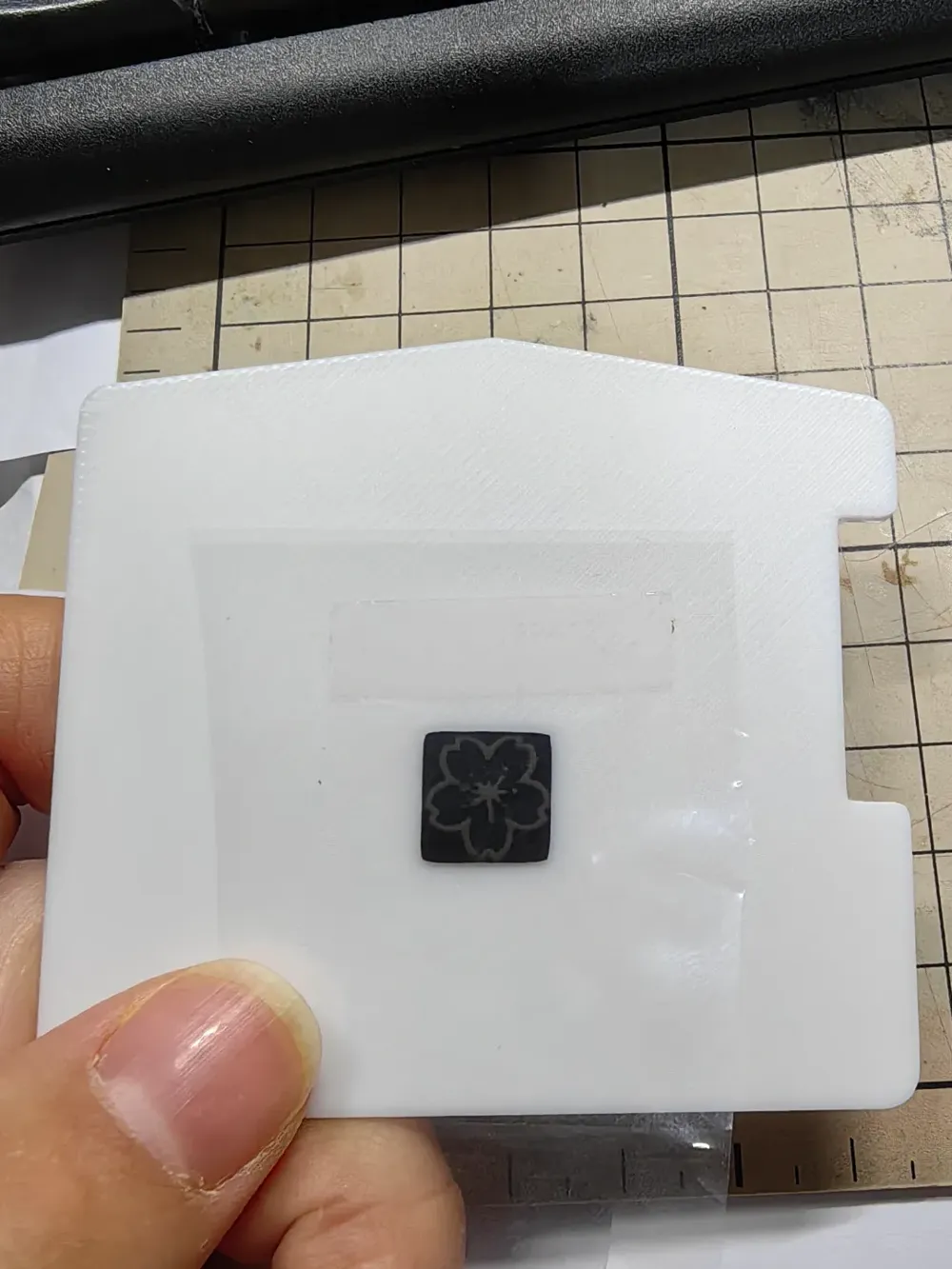

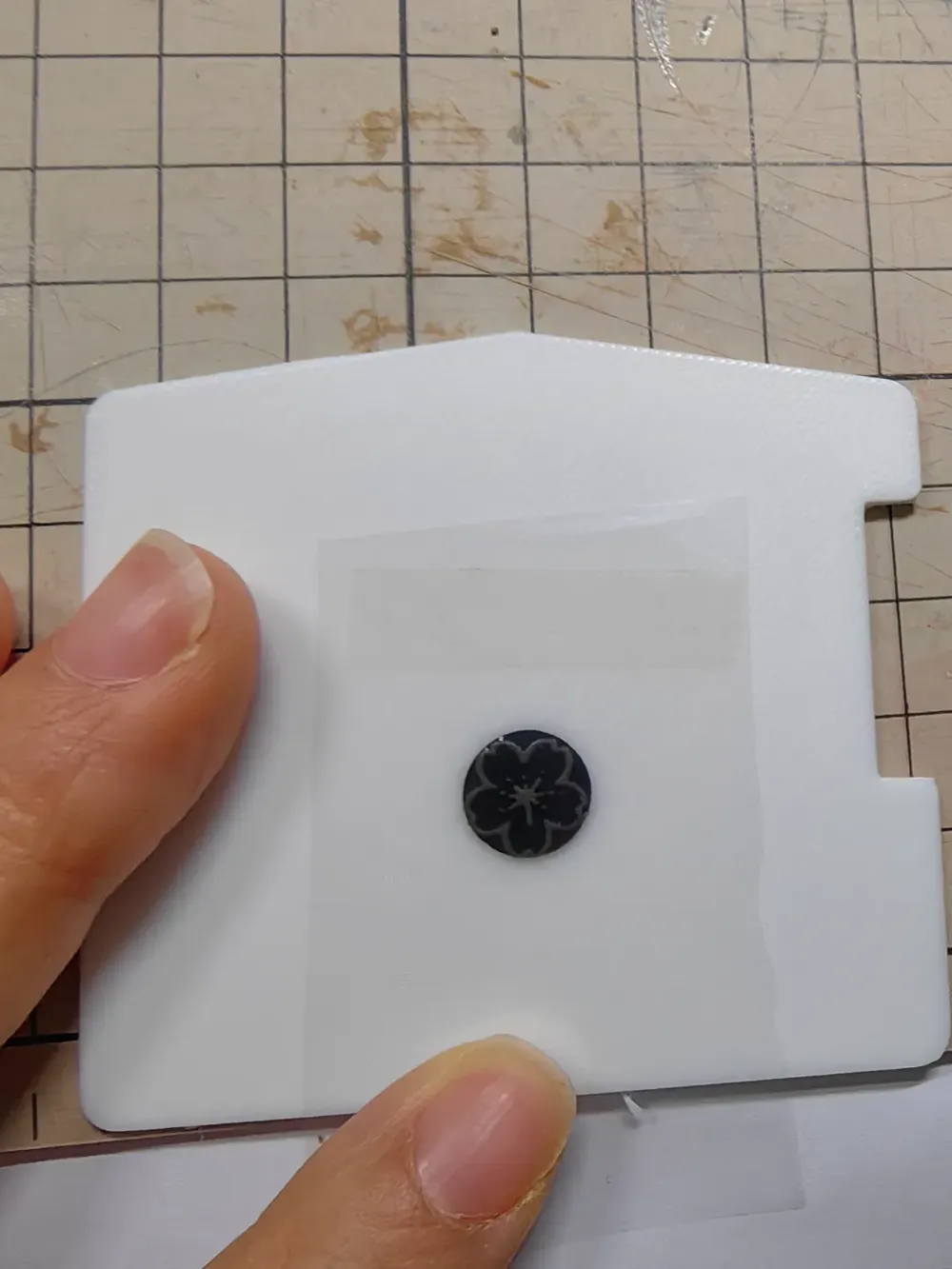

Test images (designs from the Pomrie built-in material library):
