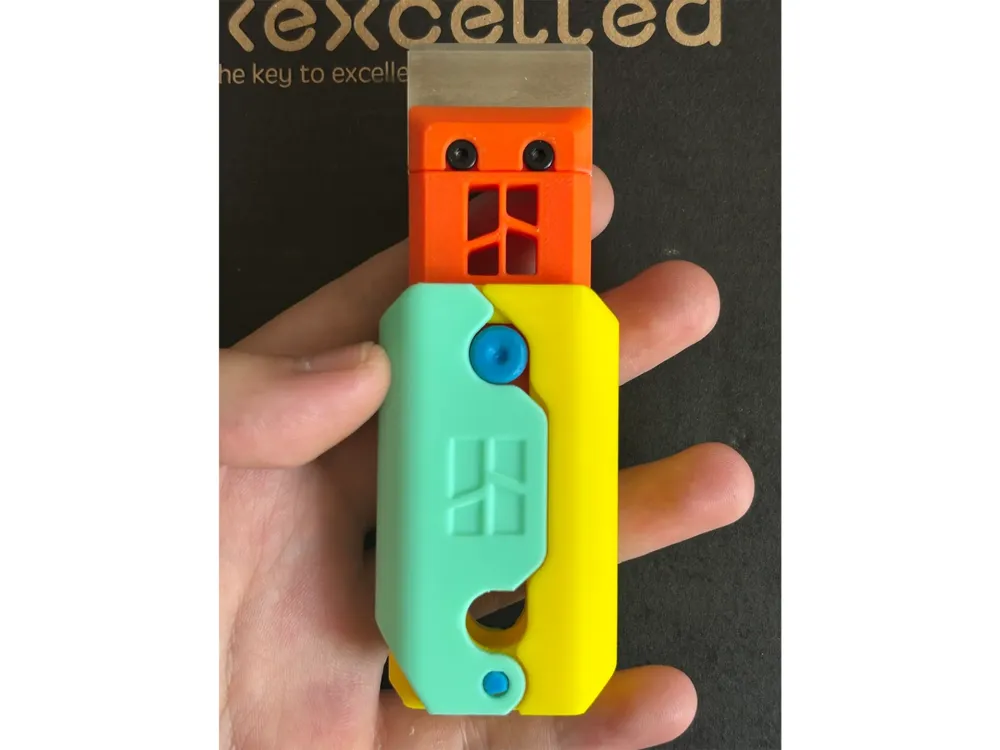

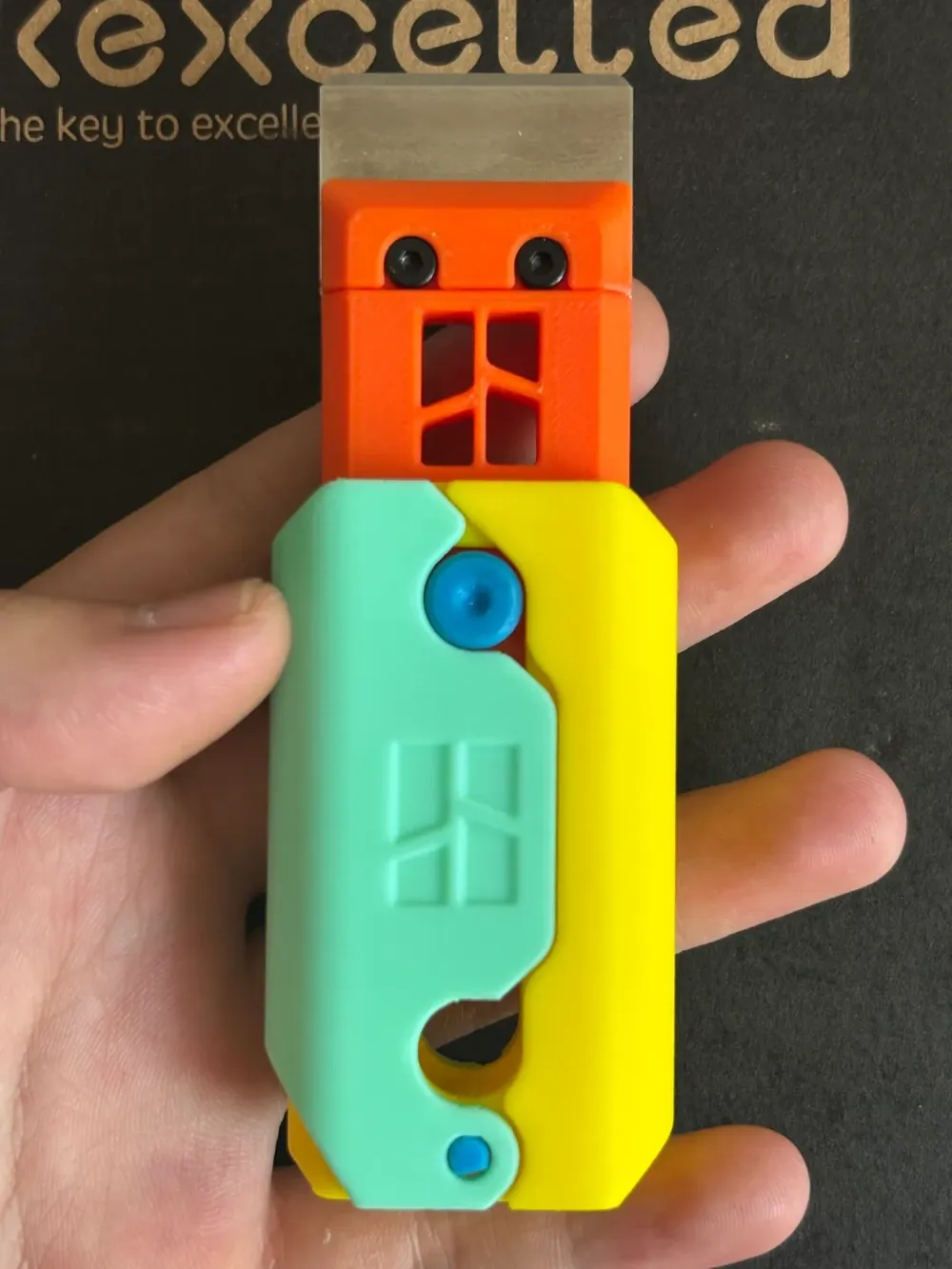

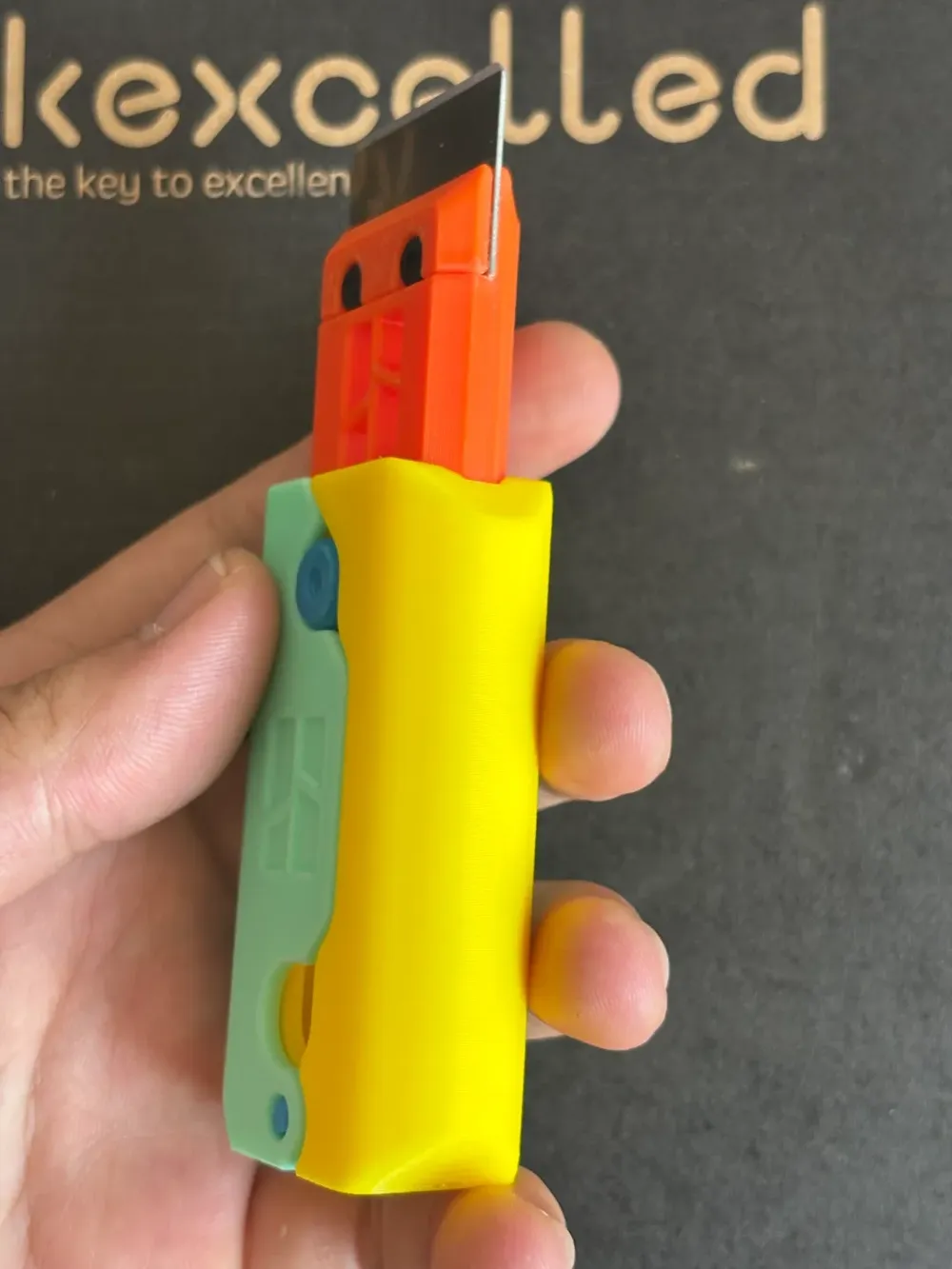

A gravity radish knife shovel for Tuozhu factory blades. No separate screws needed. Single-color molding, multi-color printing in separate batches.
Print Profile(1)
Description
Introduction:
Radish knife shovel suitable for Tuozhu factory blades
Compatible with 32mm*23mm Tuozhu blades
Assembly:
No need to buy screws separately for the knife body, only two drops of 502 glue are needed for assembly and fixing
Use the two M2.5 screws provided by Tuozhu for the blade
Parameters:

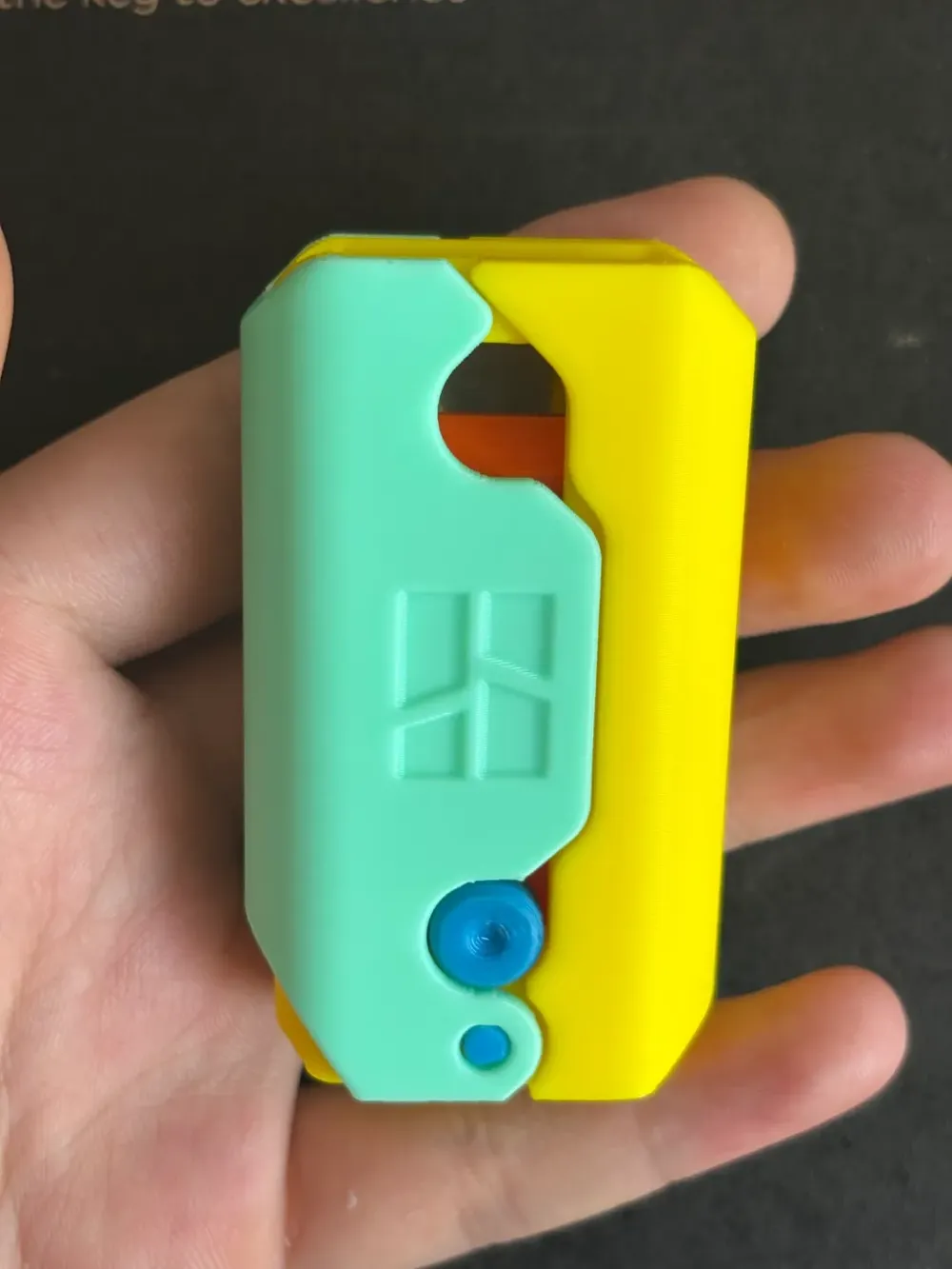

Matching gap 0.25-0.4mm, overall flexible folding, but not too loose
Due to the shrinkage rate of materials such as ABS, there will be some friction between the blade and the shell, and repeated movement several times will do
Printing:
Arrange the build plate as shown, only the outer movable shell requires tree supports, others require no supports.
Single-color printing can be done in one batch, if you want multiple colors, you can print in separate batches. Multi-color in one batch is too wasteful.
