Description

Content has been automatically translated.

Show original

Recommended filament: Bambu PLA Matte

If the bolts are too tight, adjust the shell compensation to -0.1mm; if too loose, adjust it to 0.1mm. Alternatively, directly scale the bolt size.

Please follow these steps for assembly:

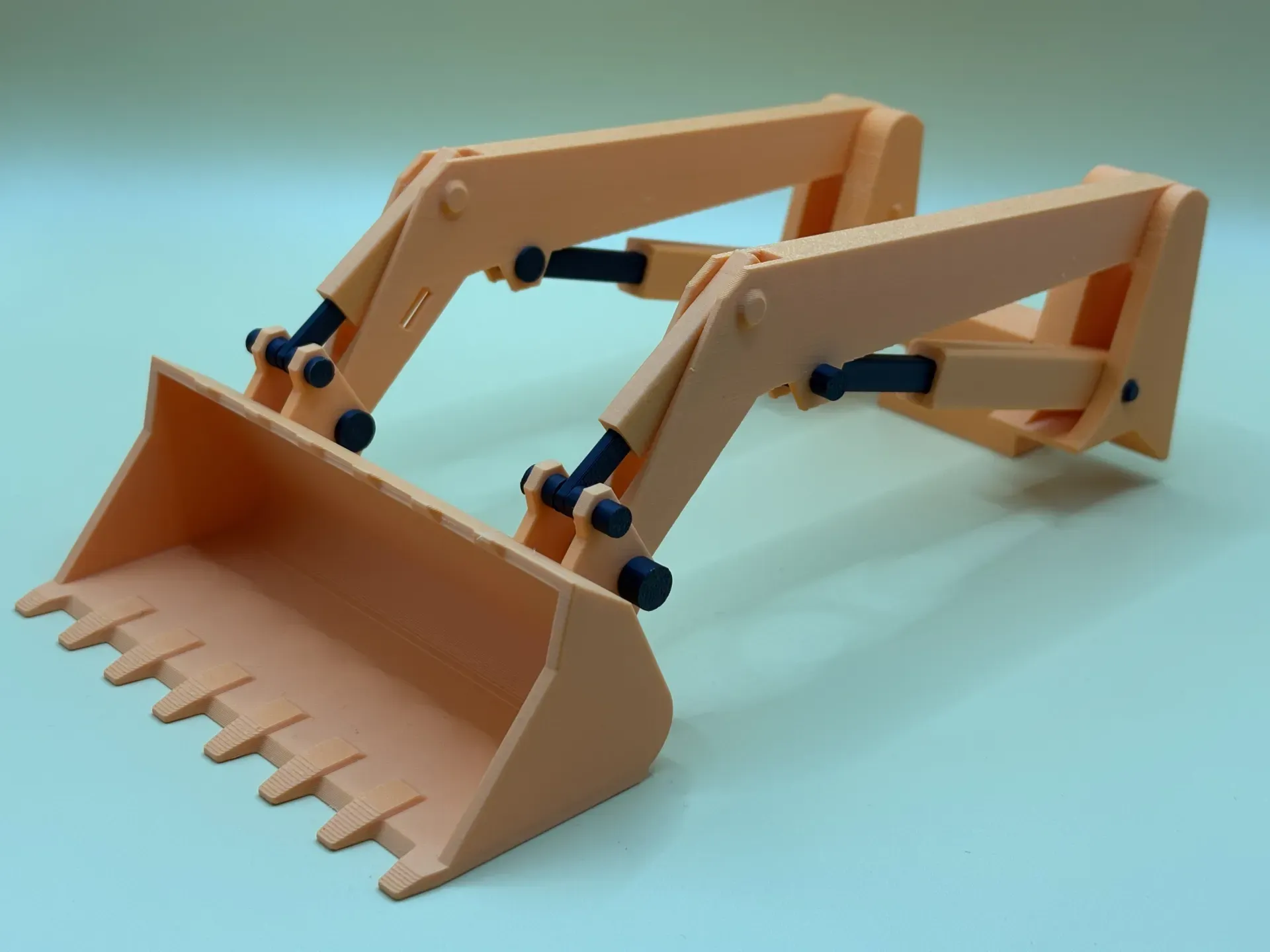

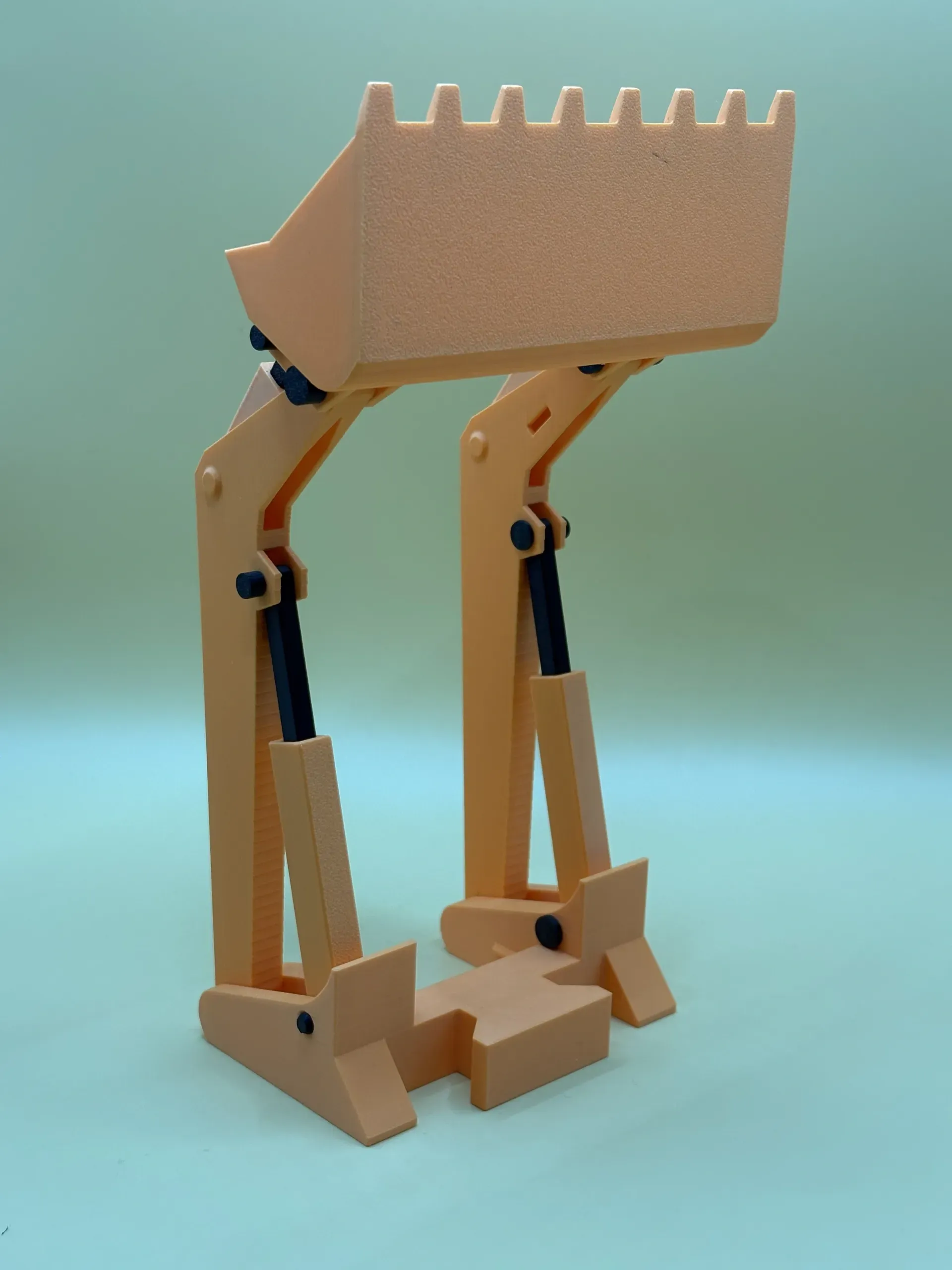

Insert the small robotic arm

Rotate to the angle shown

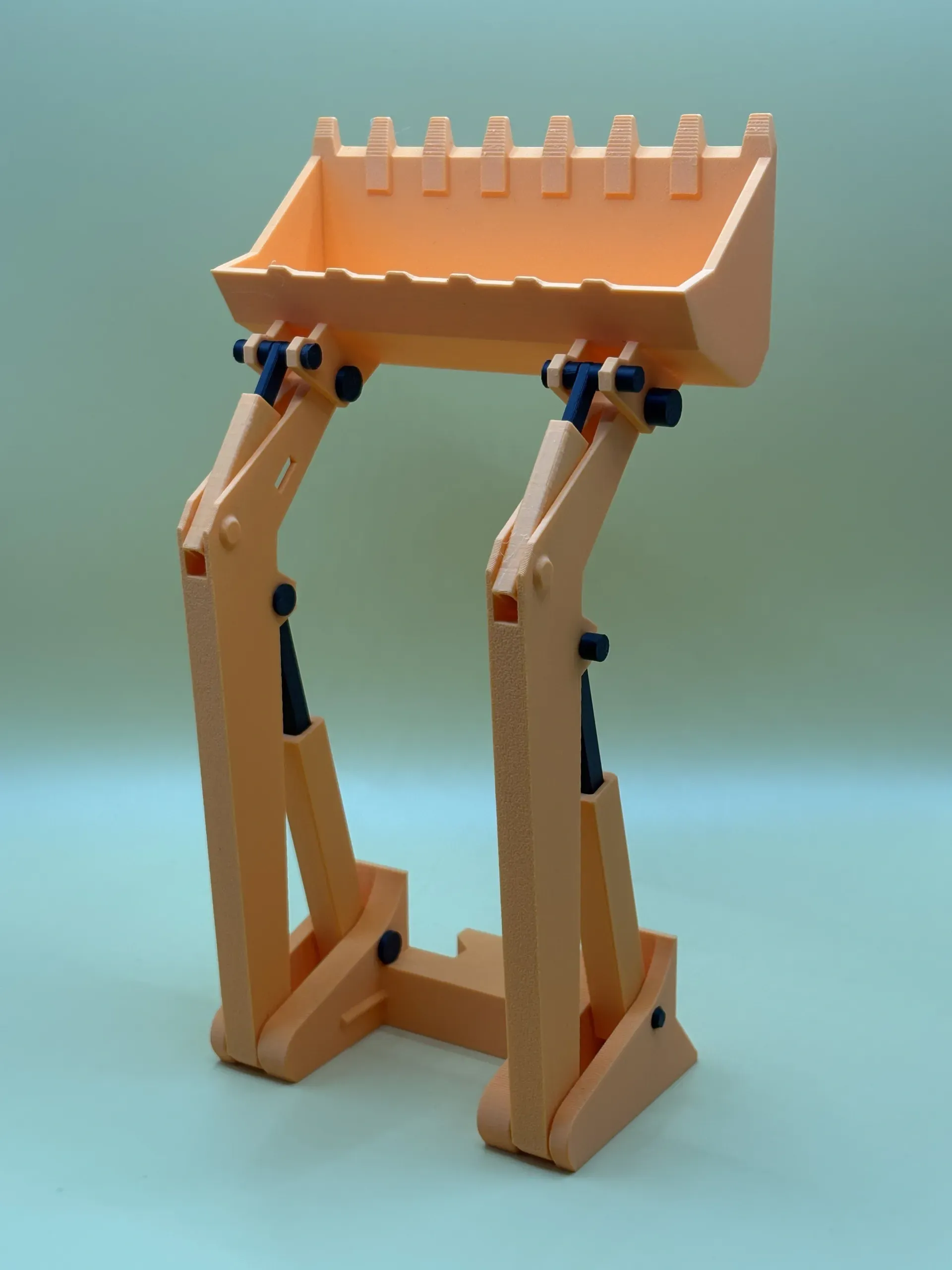

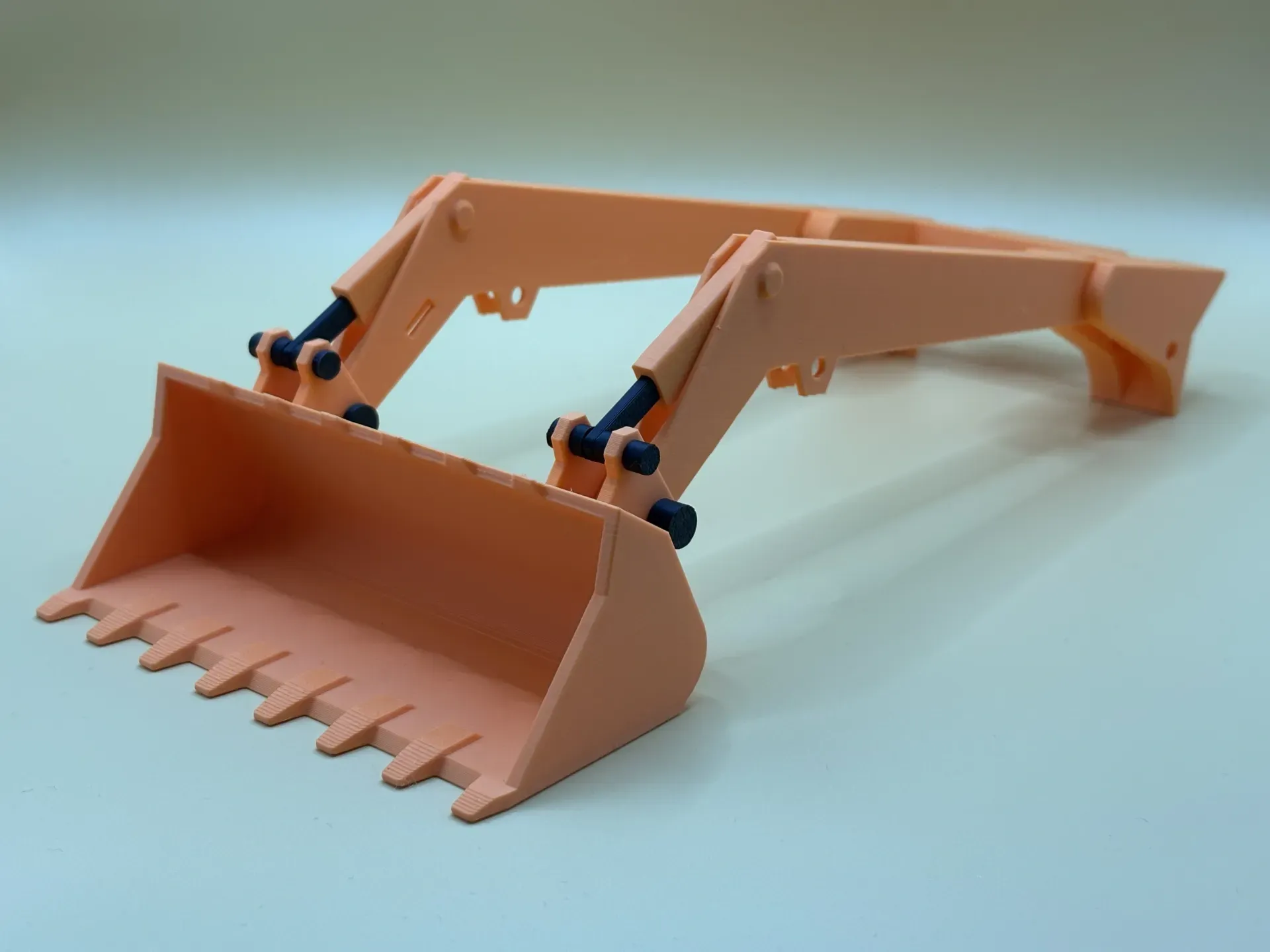

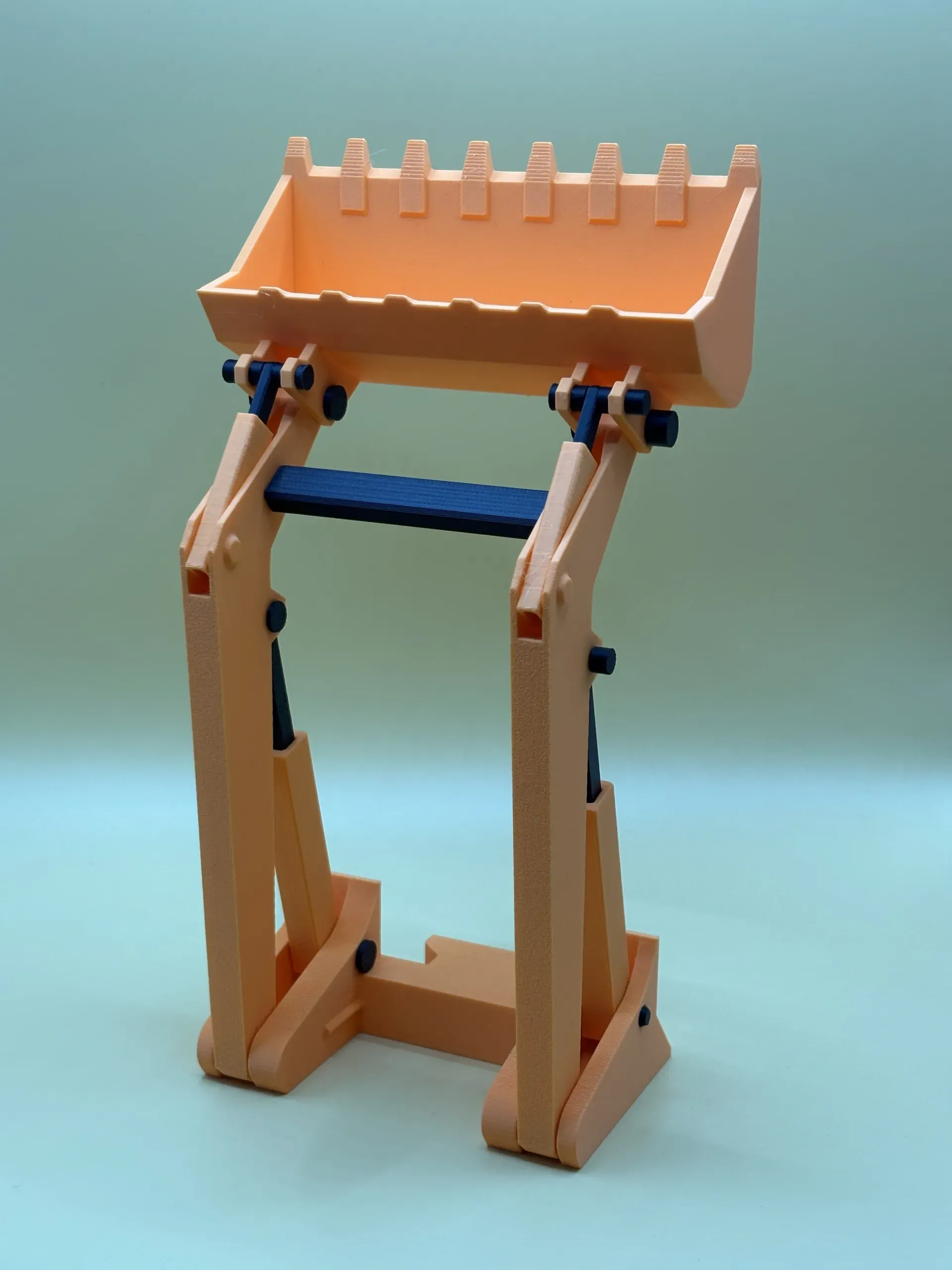

Shovel installation; insert bolt, nut, and washer

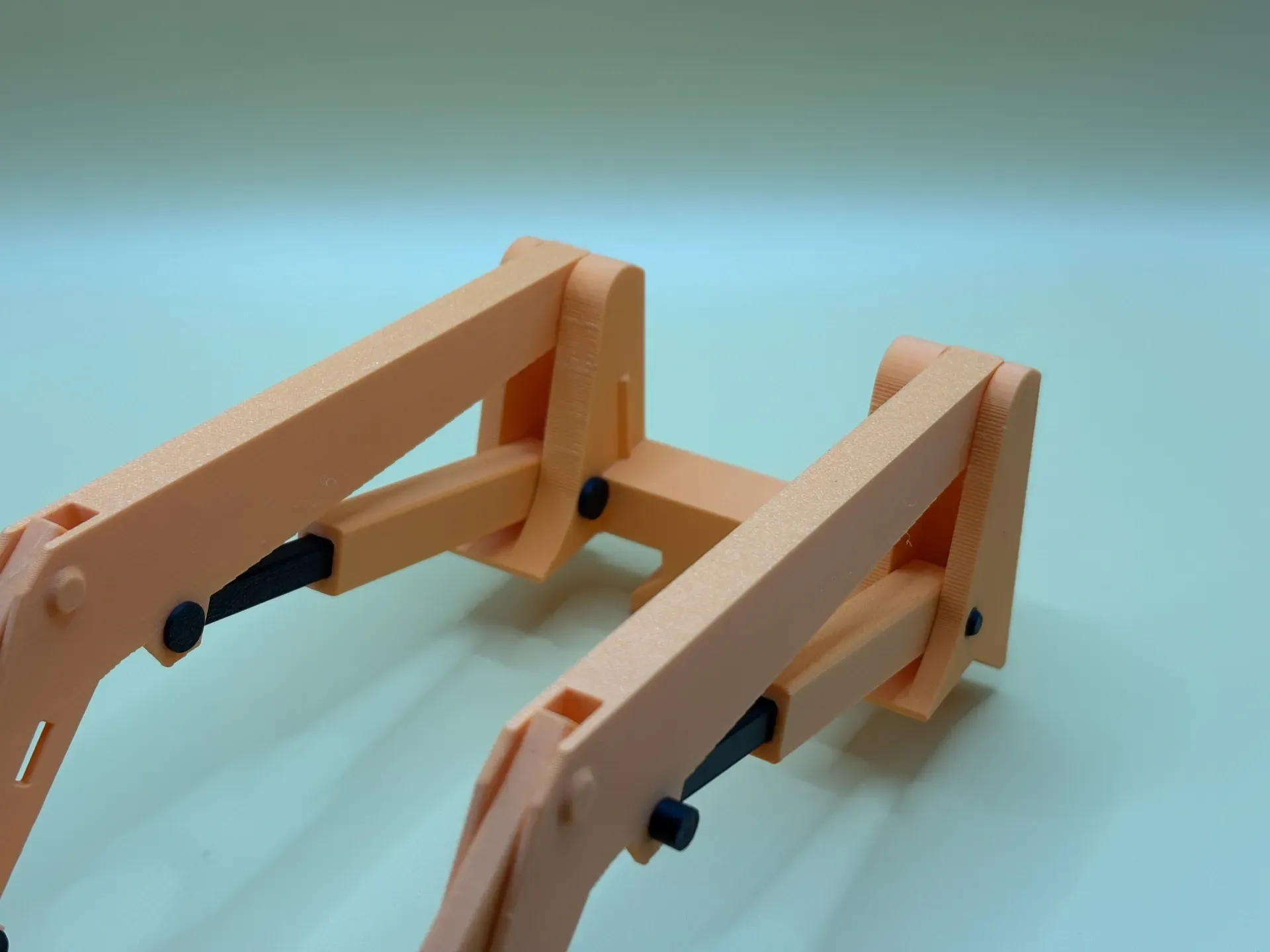

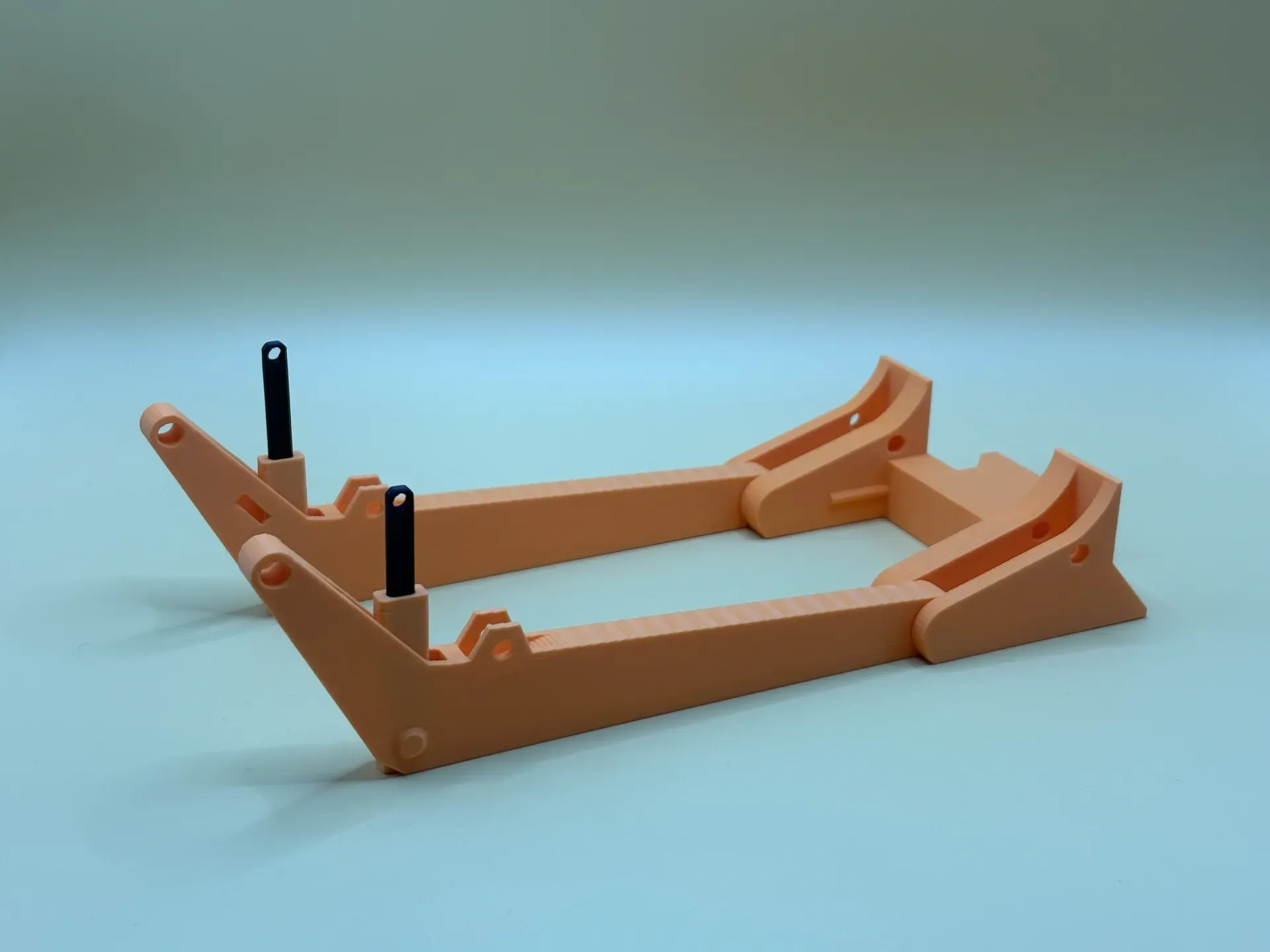

Insert the large robotic arm

Secure the large robotic arm with bolts and nuts

Insert the root bolt from the inside

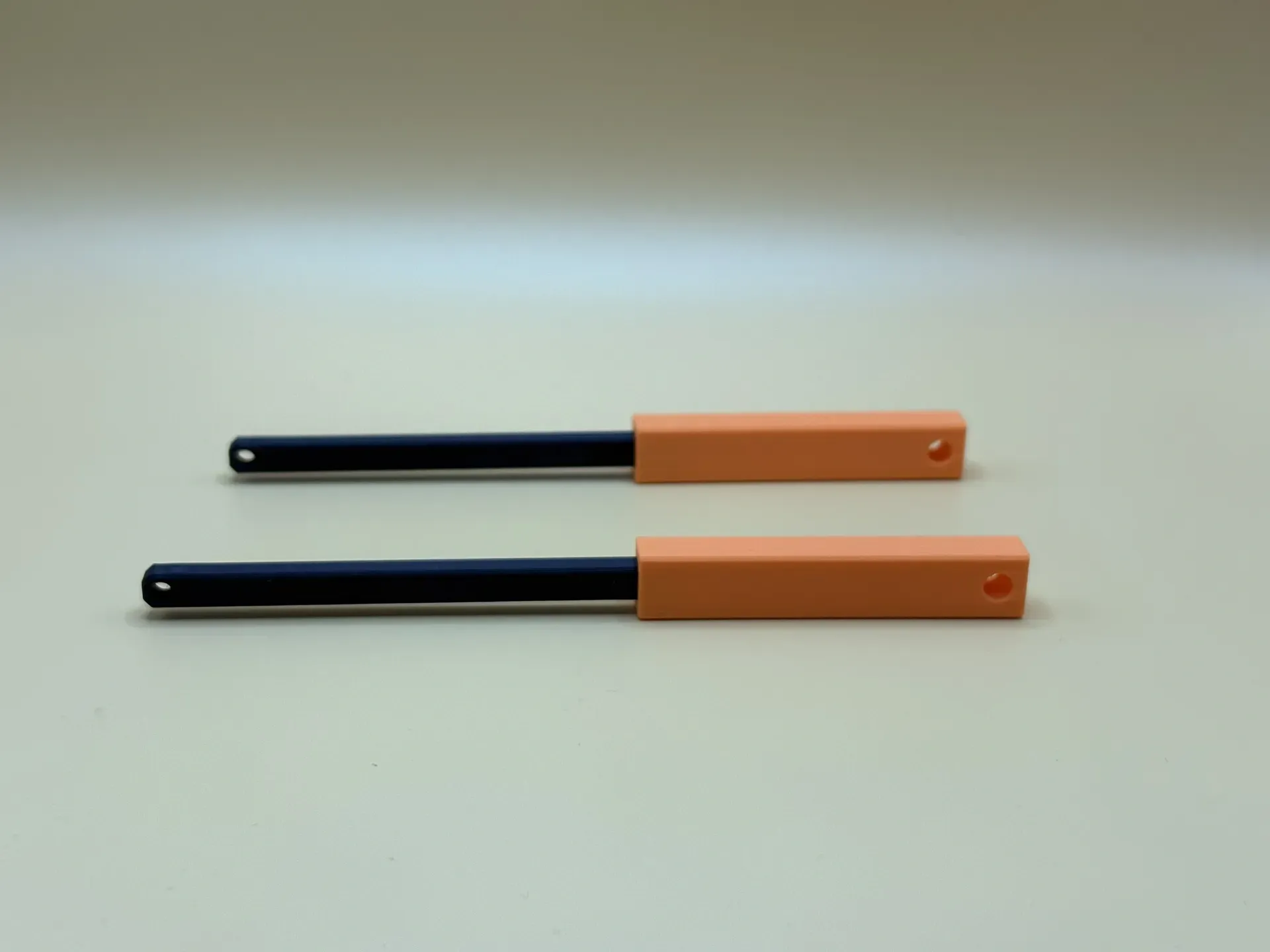

Insert the connecting rod

Insert the exhaust pipe into the chassis

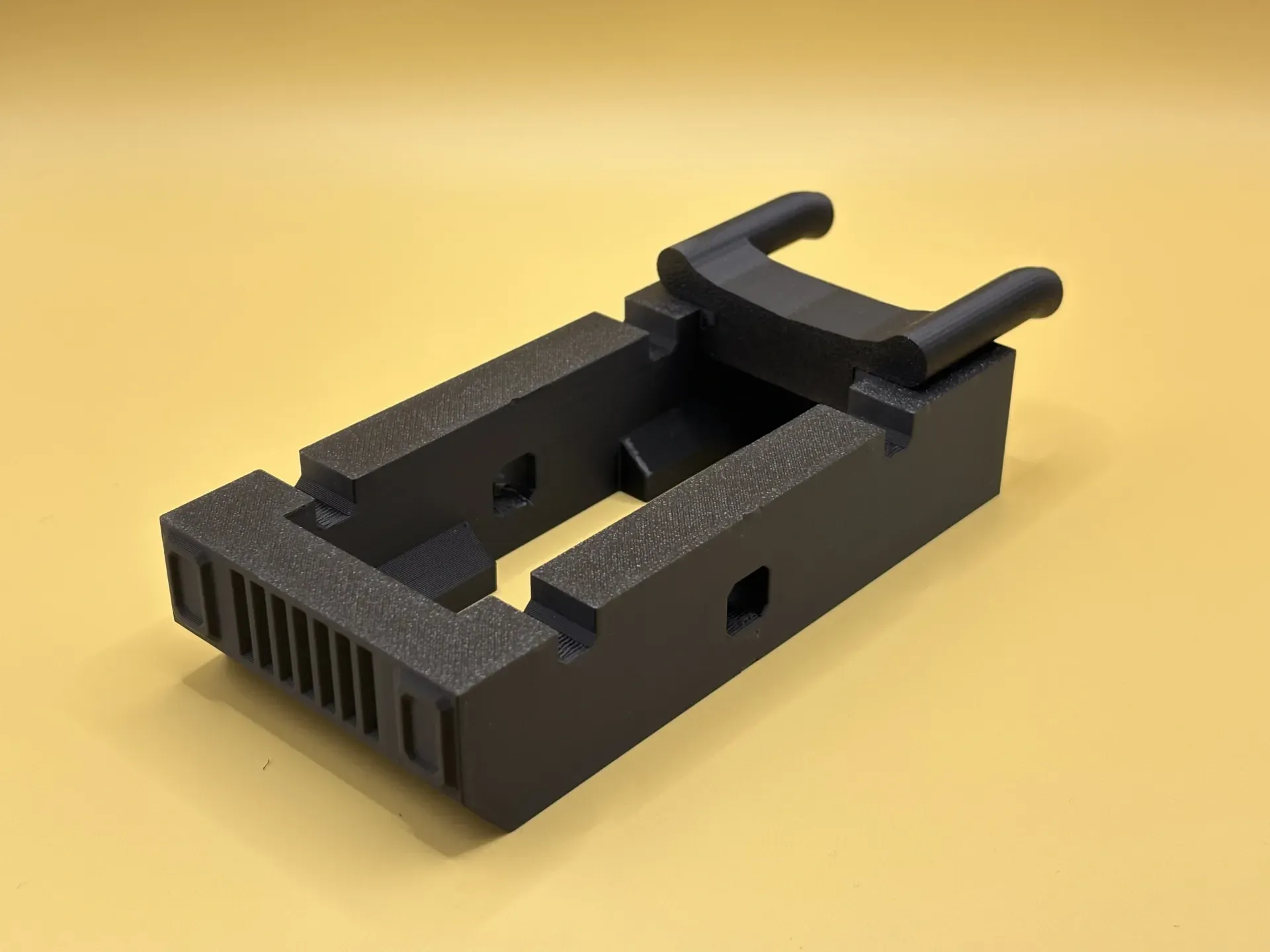

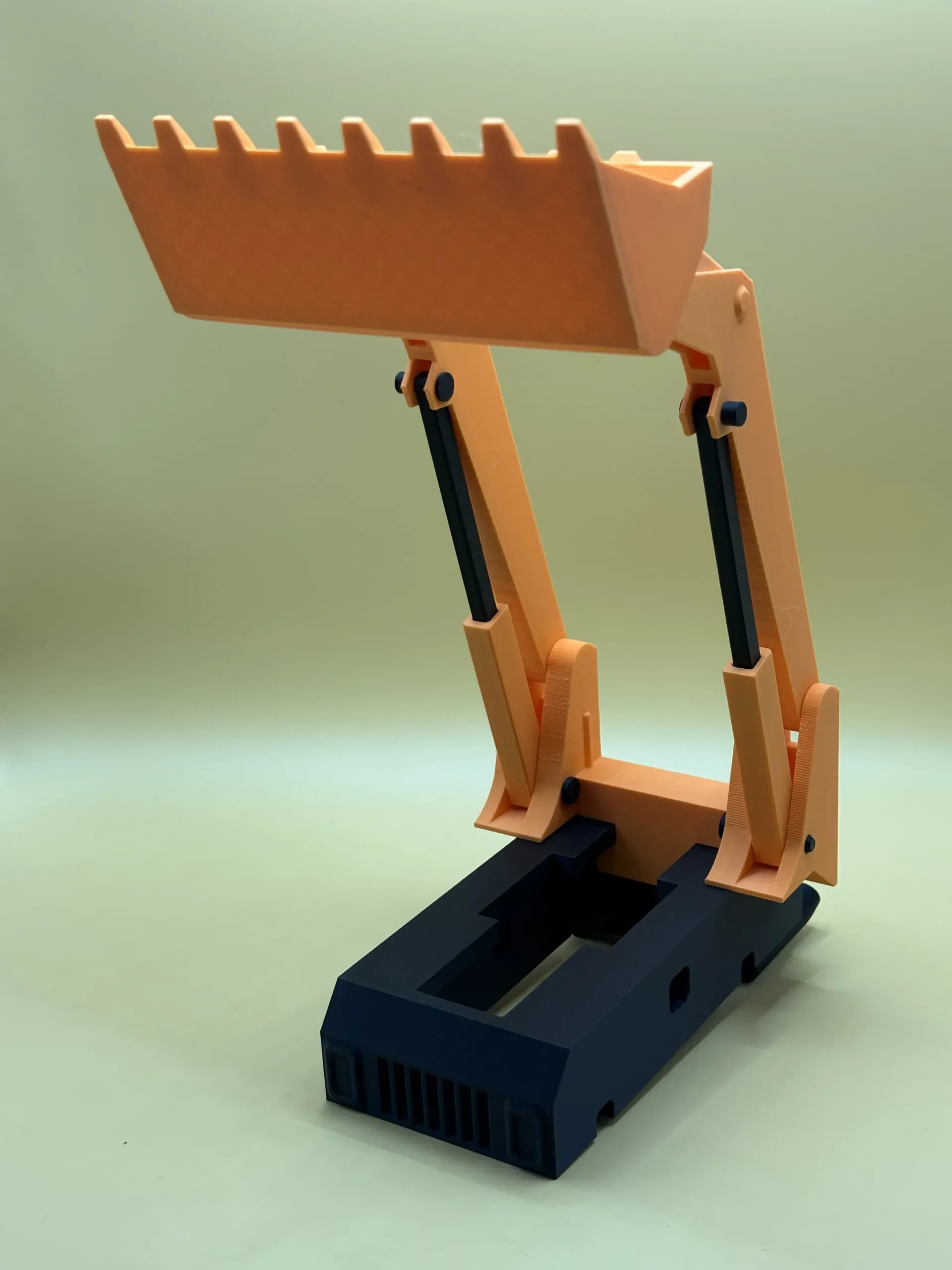

Insert the excavator module into the chassis

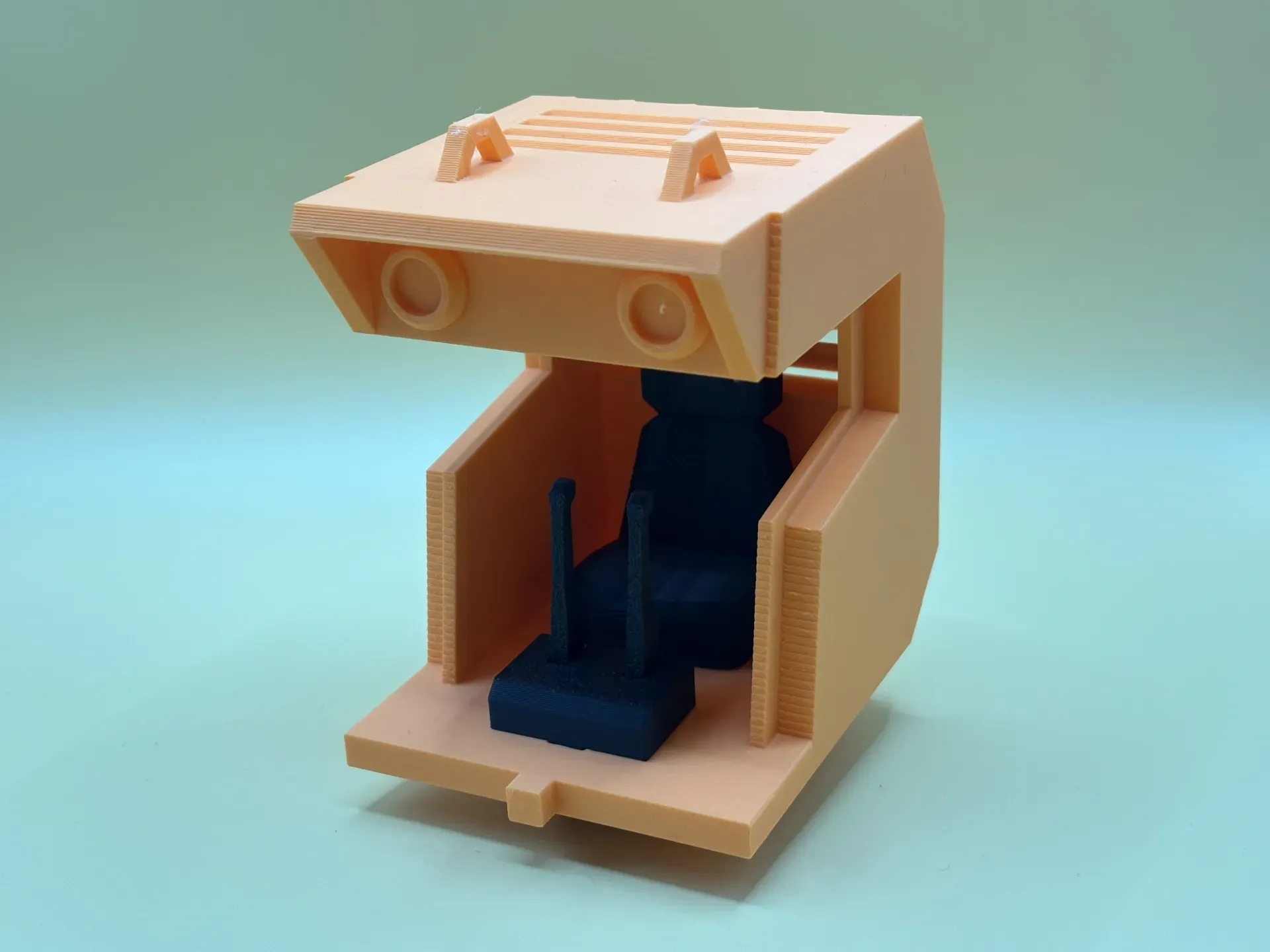

Insert the seat and console into the cockpit

Insert the cockpit into the chassis

Insert the safety net into the cockpit

Insert the front of the vehicle into the chassis

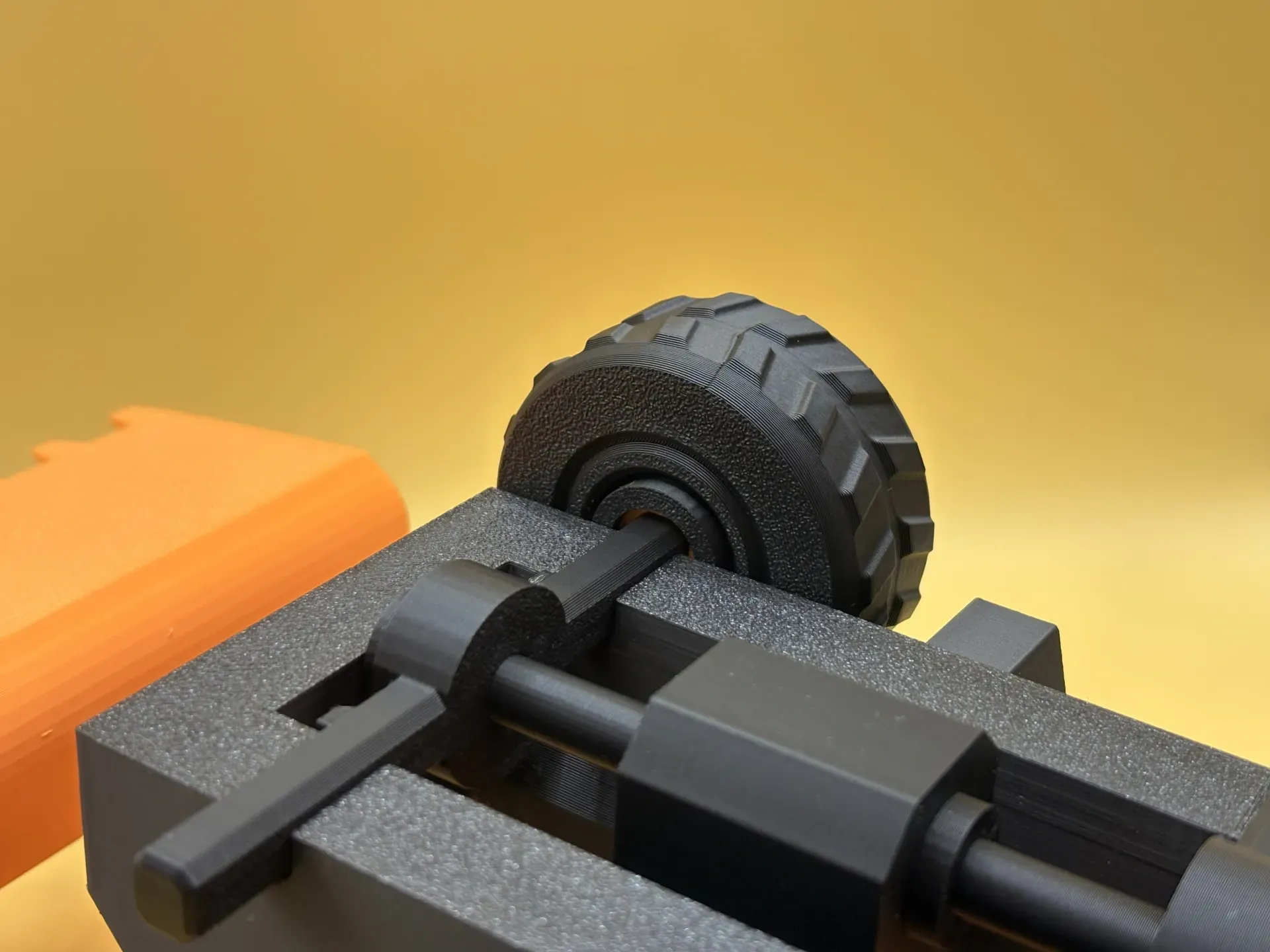

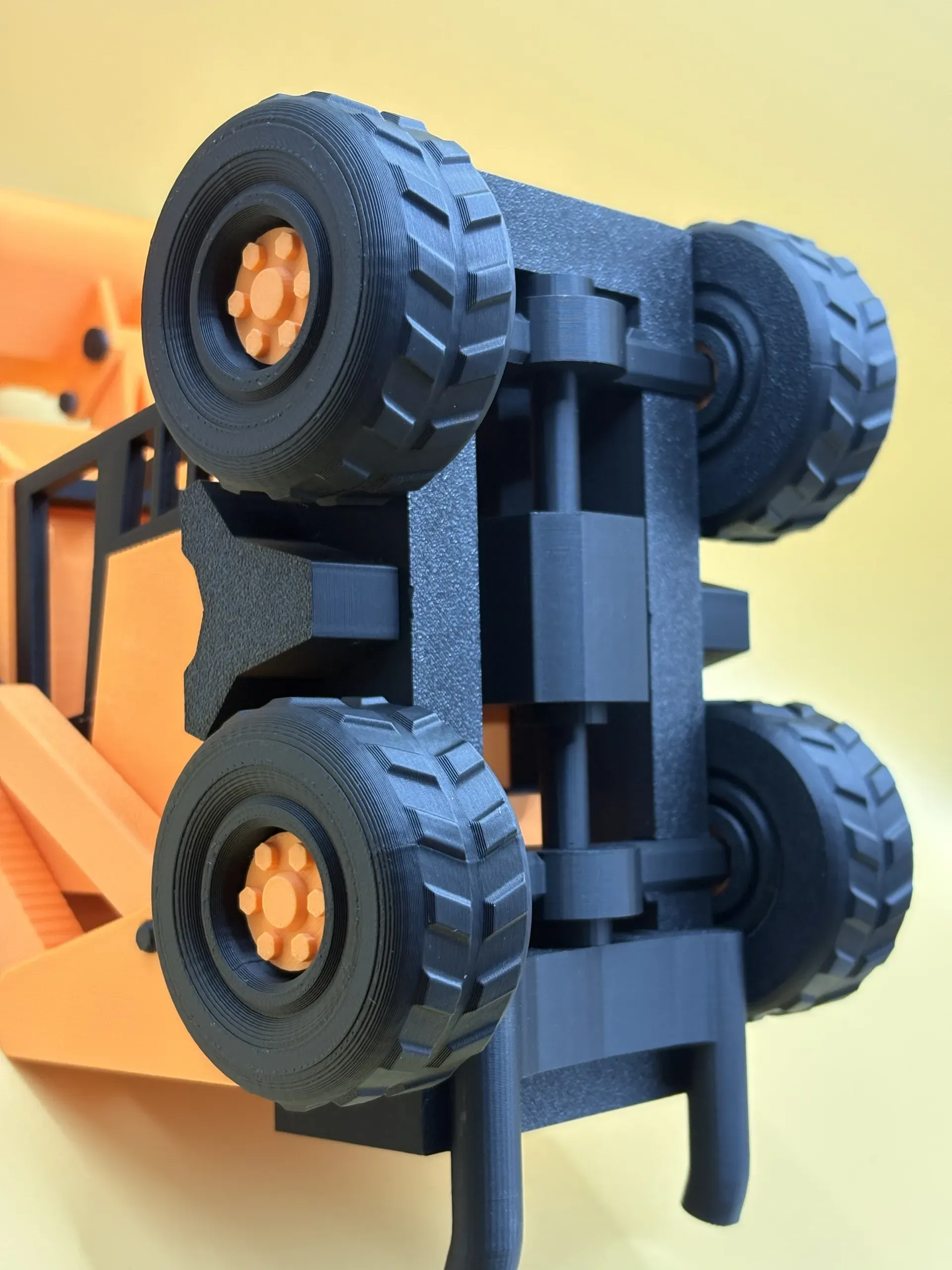

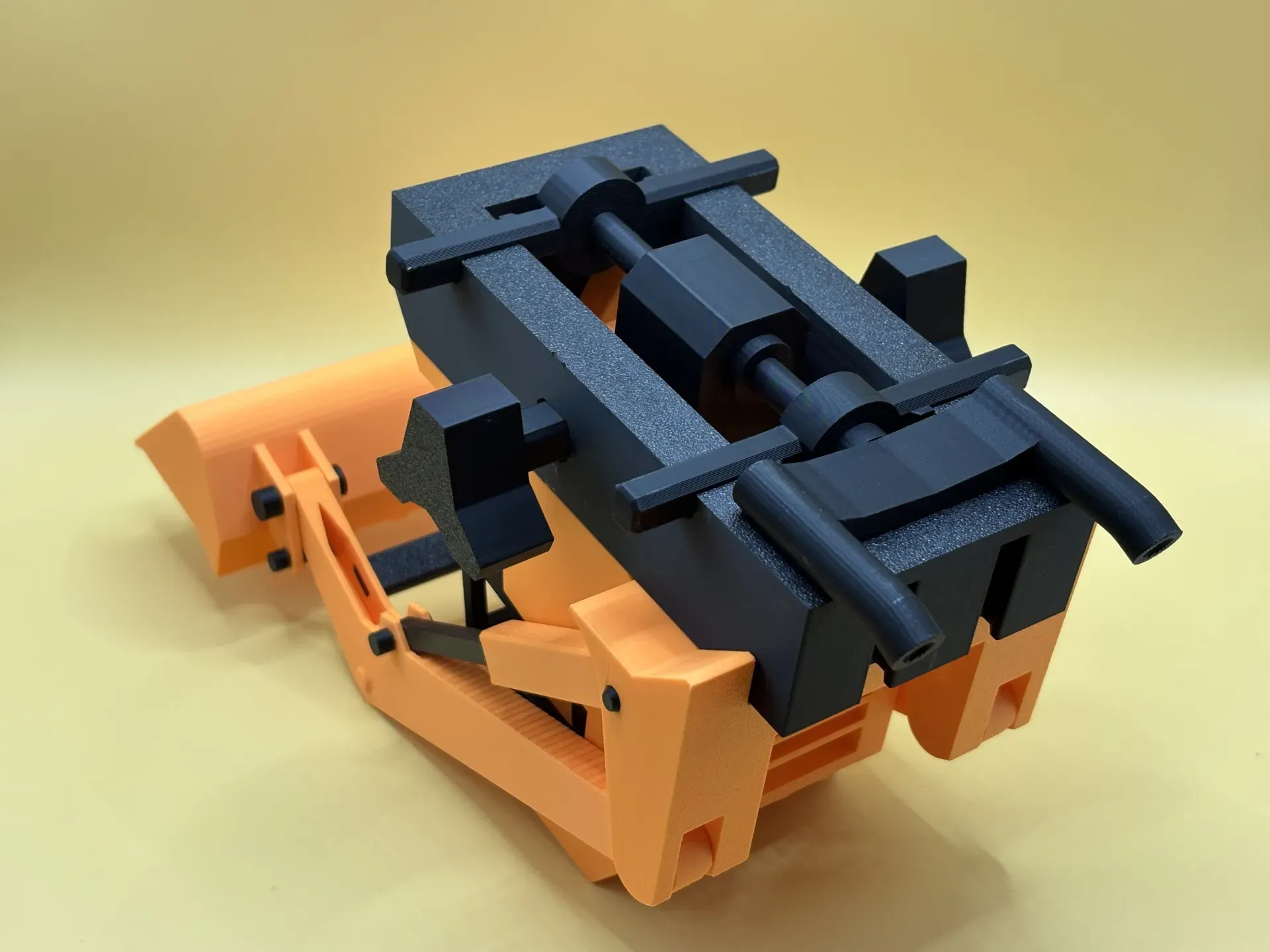

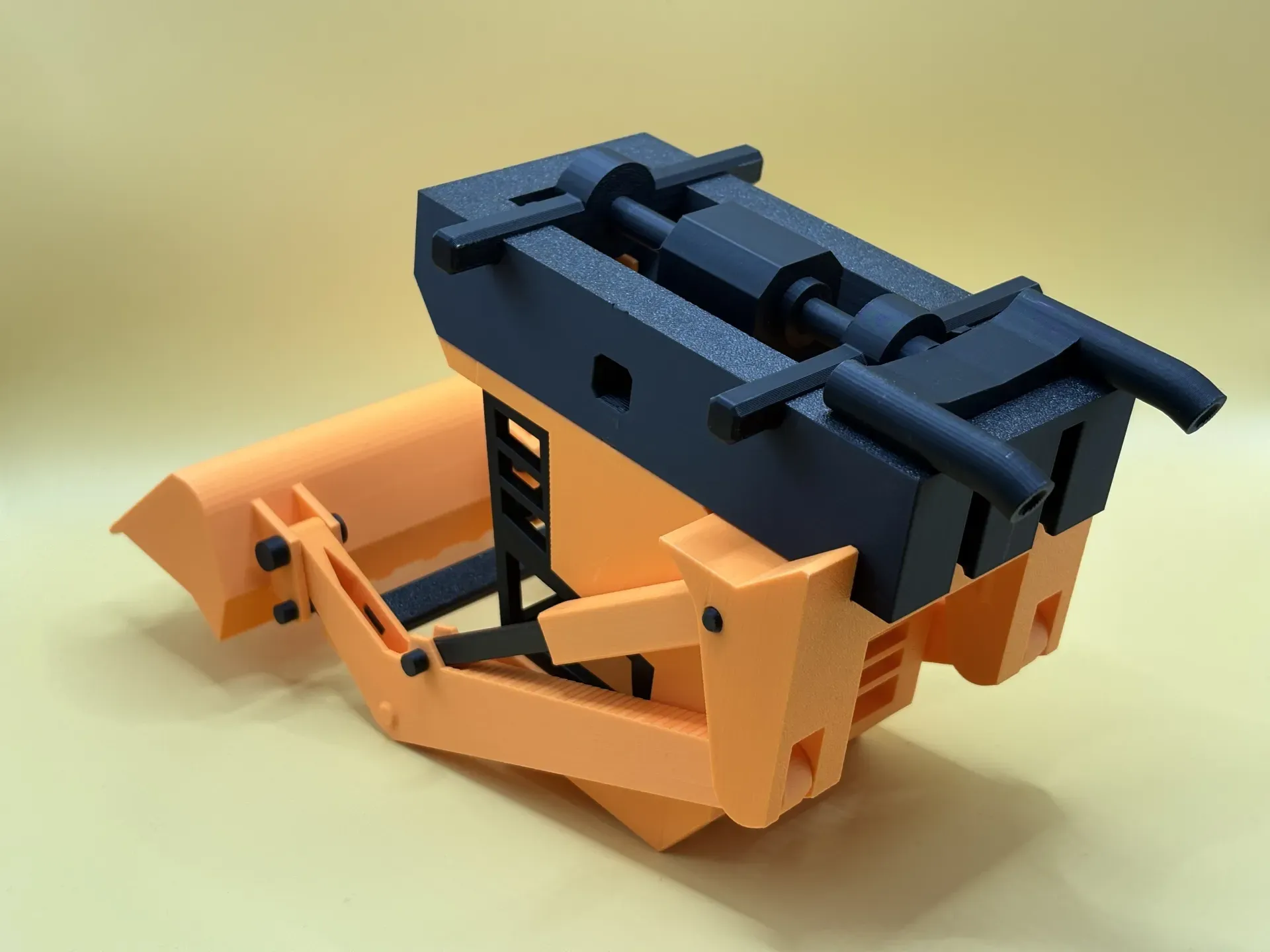

Install the axle and engine as shown

Insert the axle into the chassis

Insert the mudguards into the chassis

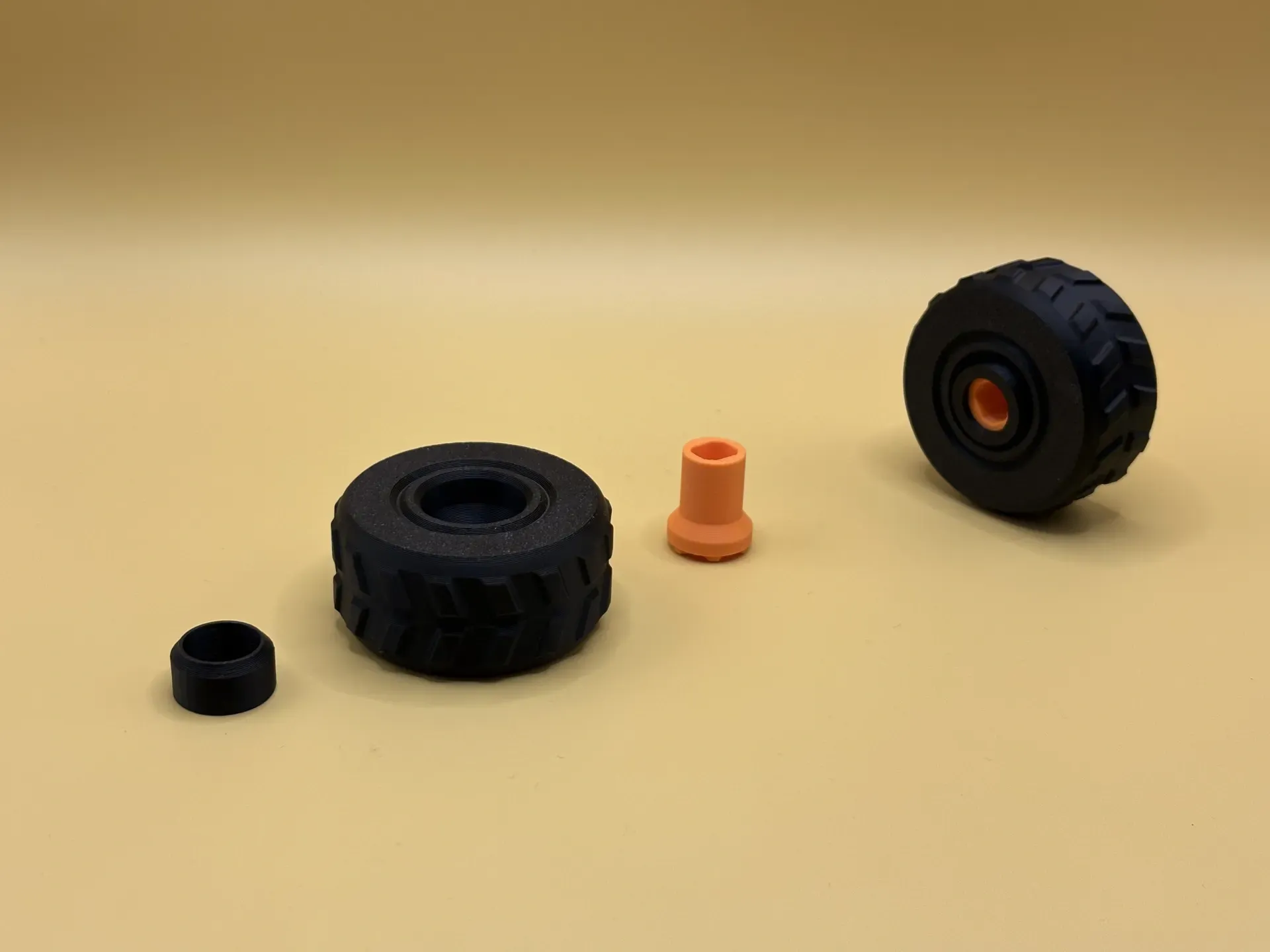

Install the wheels as shown

Insert the wheels into the axle

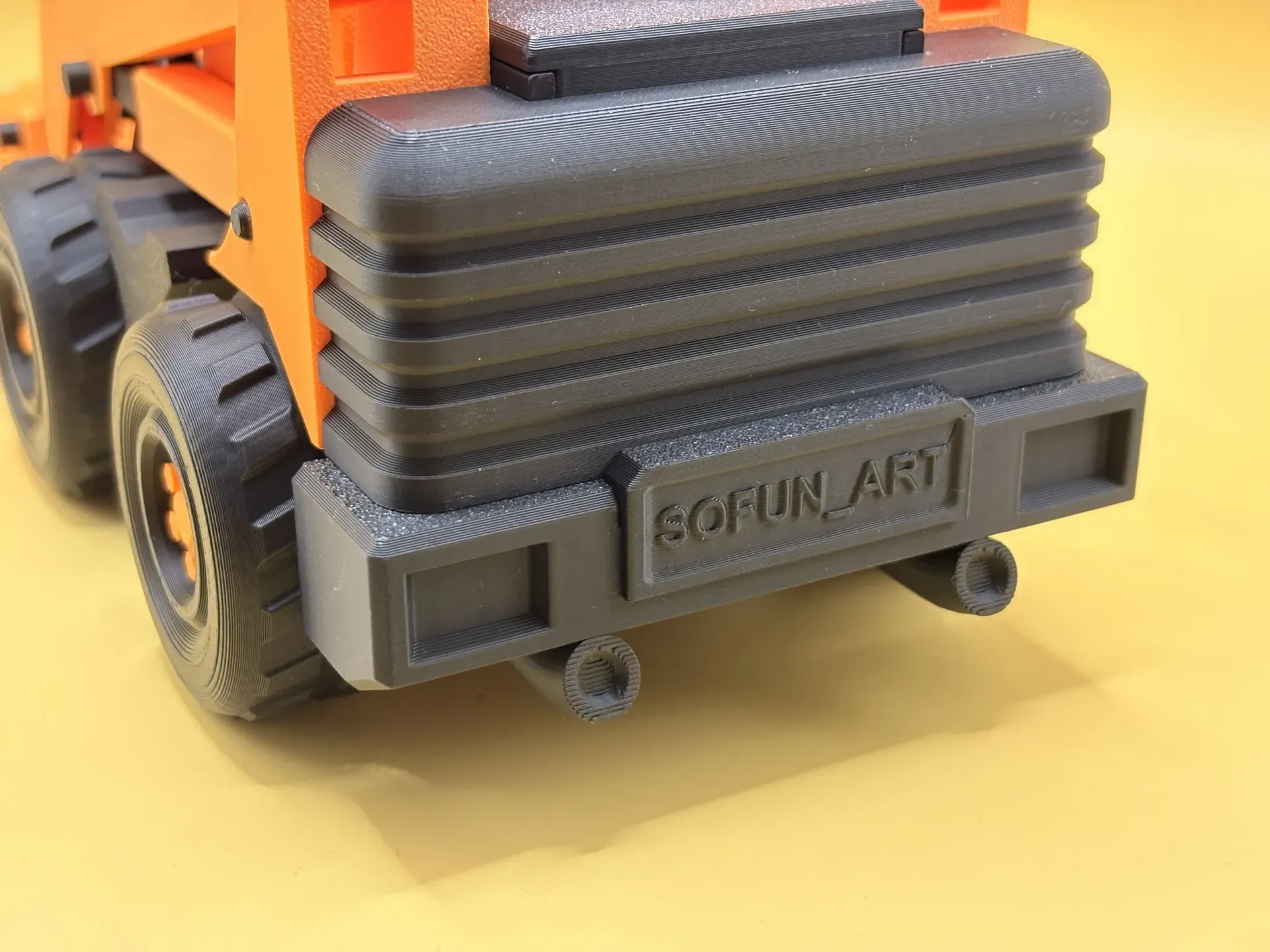

Insert the bumper into the chassis

Insert the radiator into the chassis

Insert the trunk

Insert the license plate

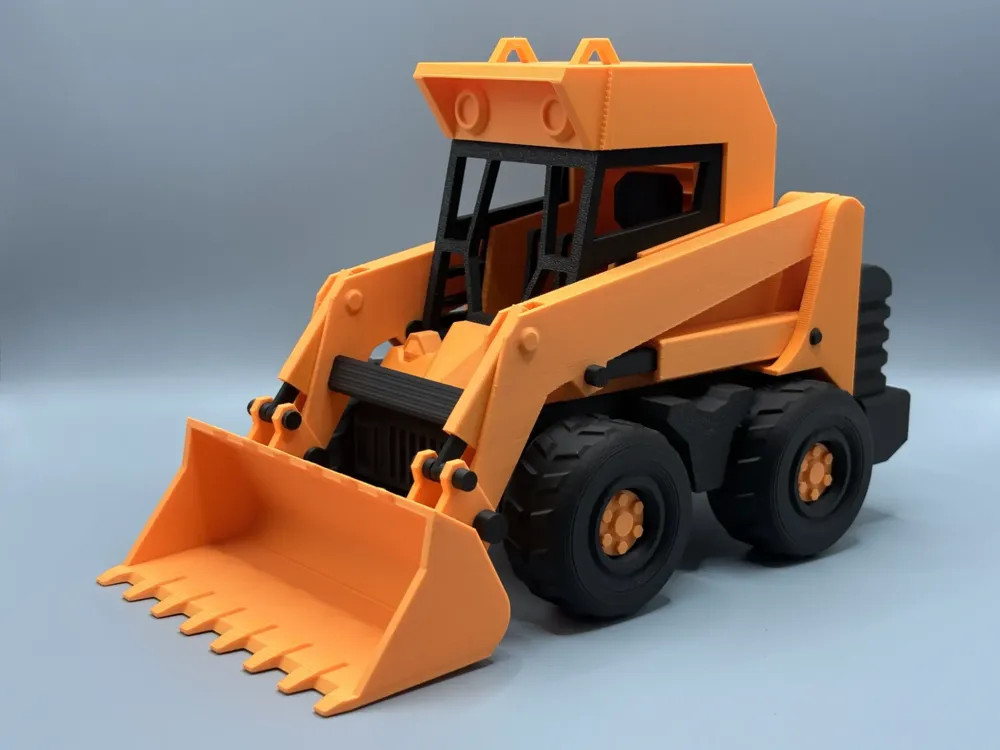

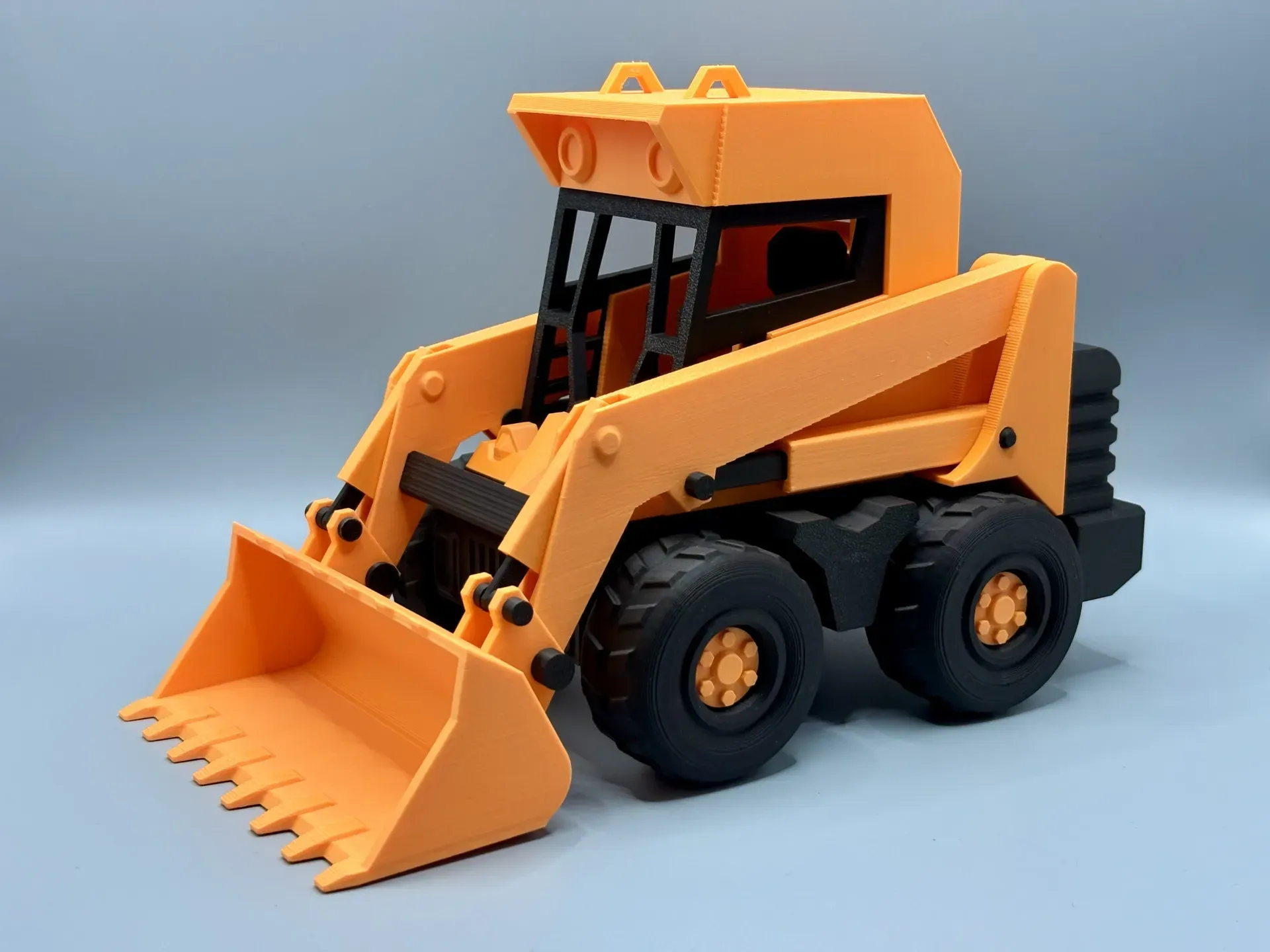

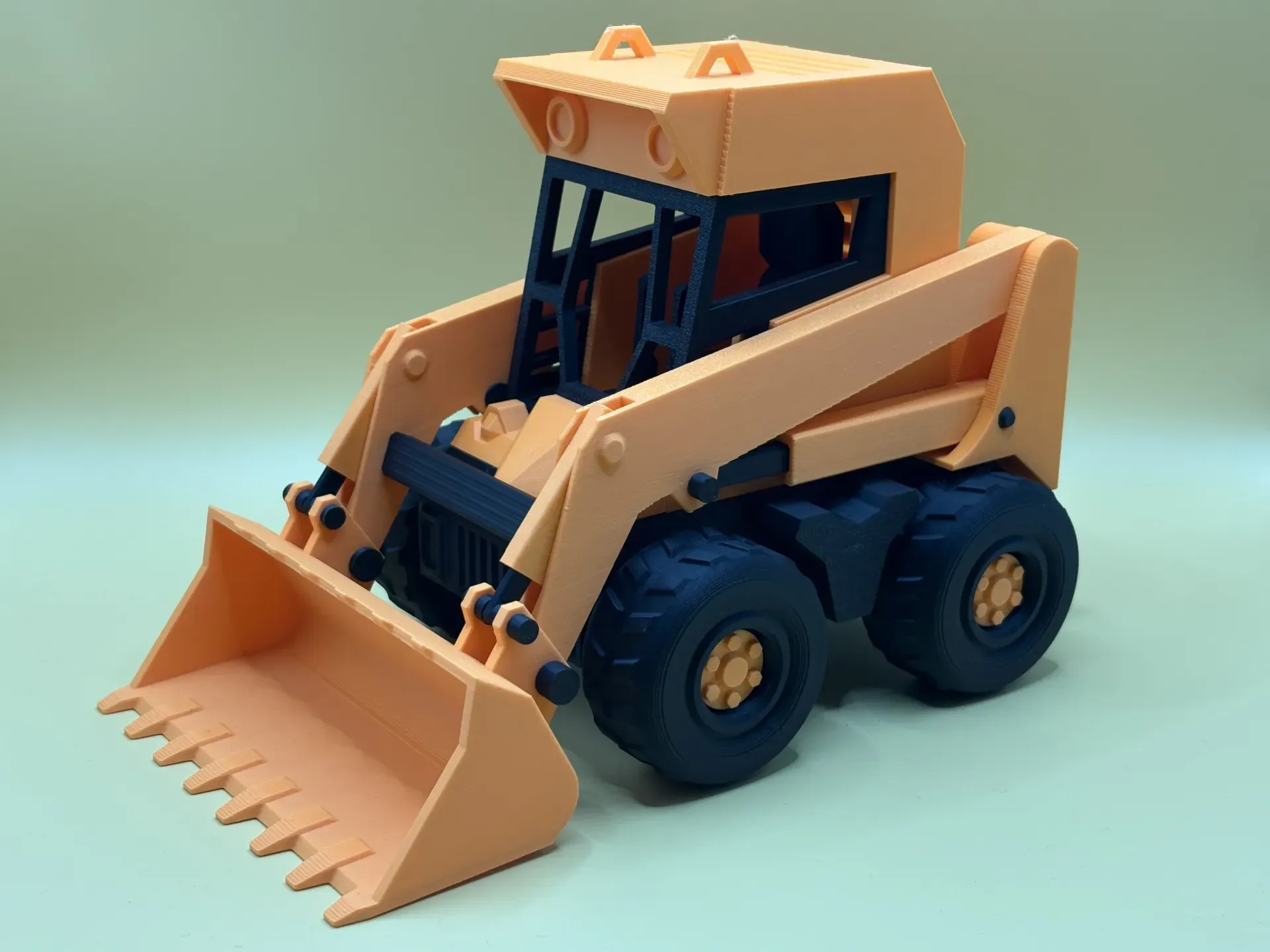

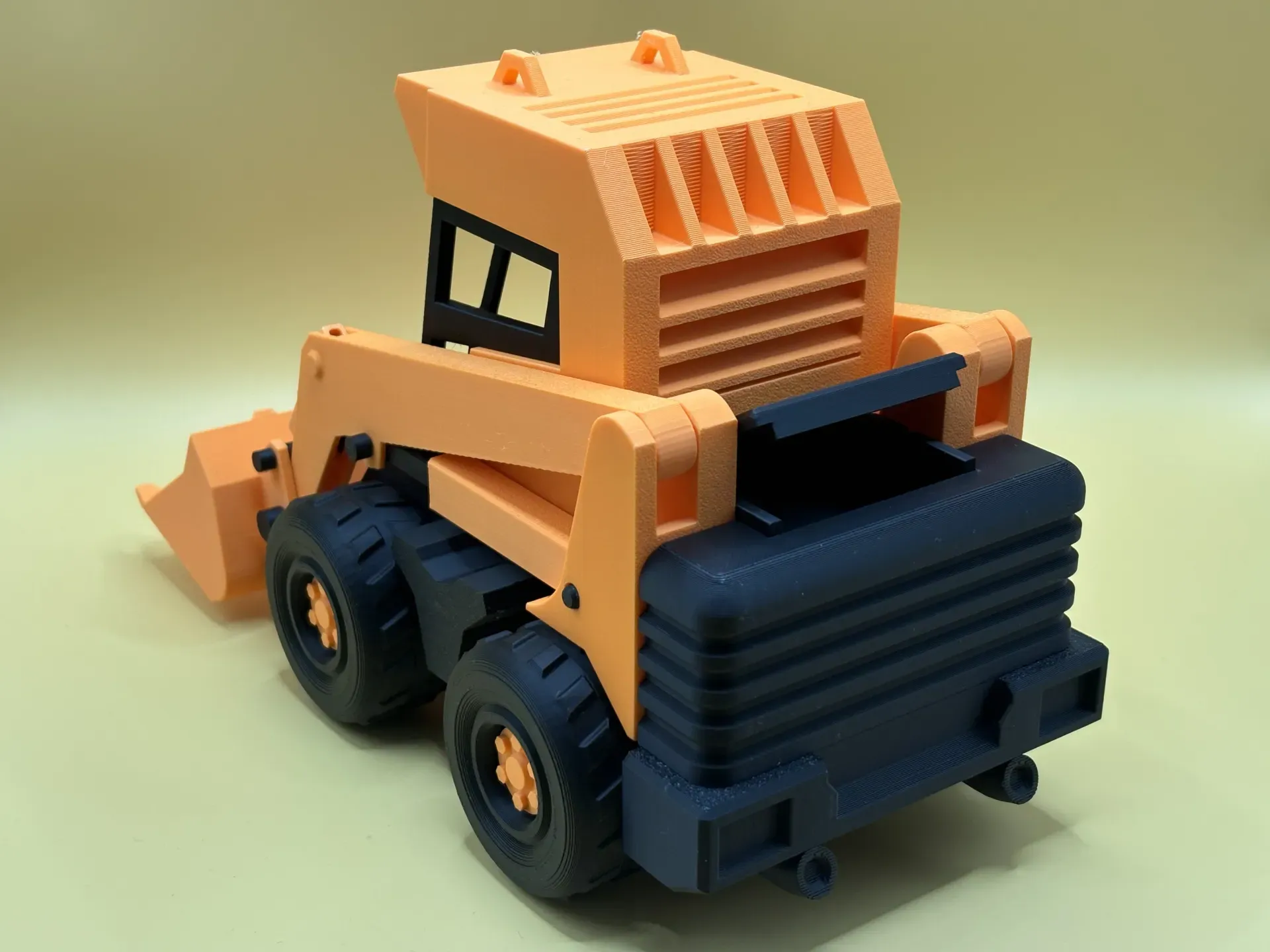

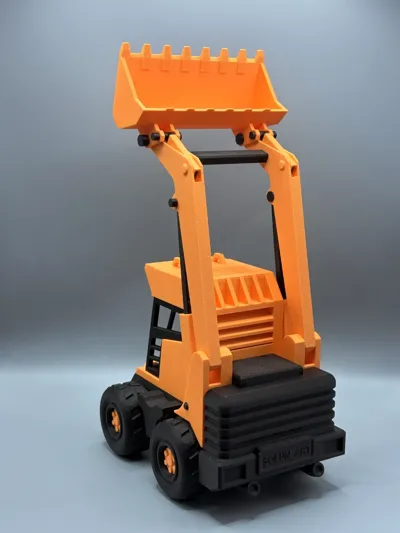

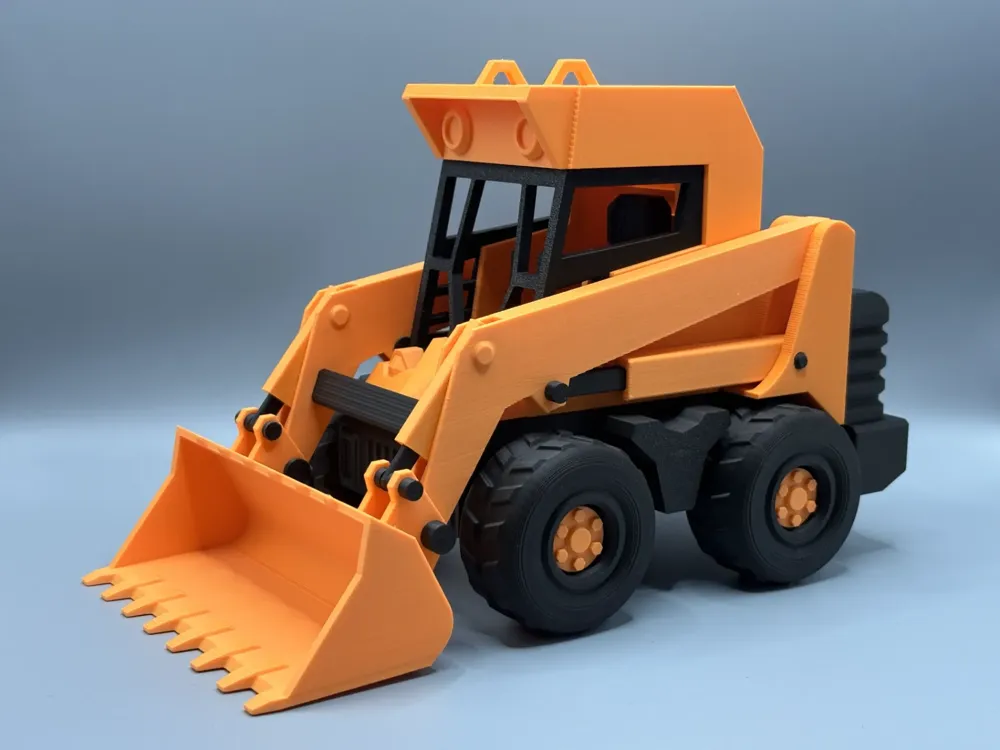

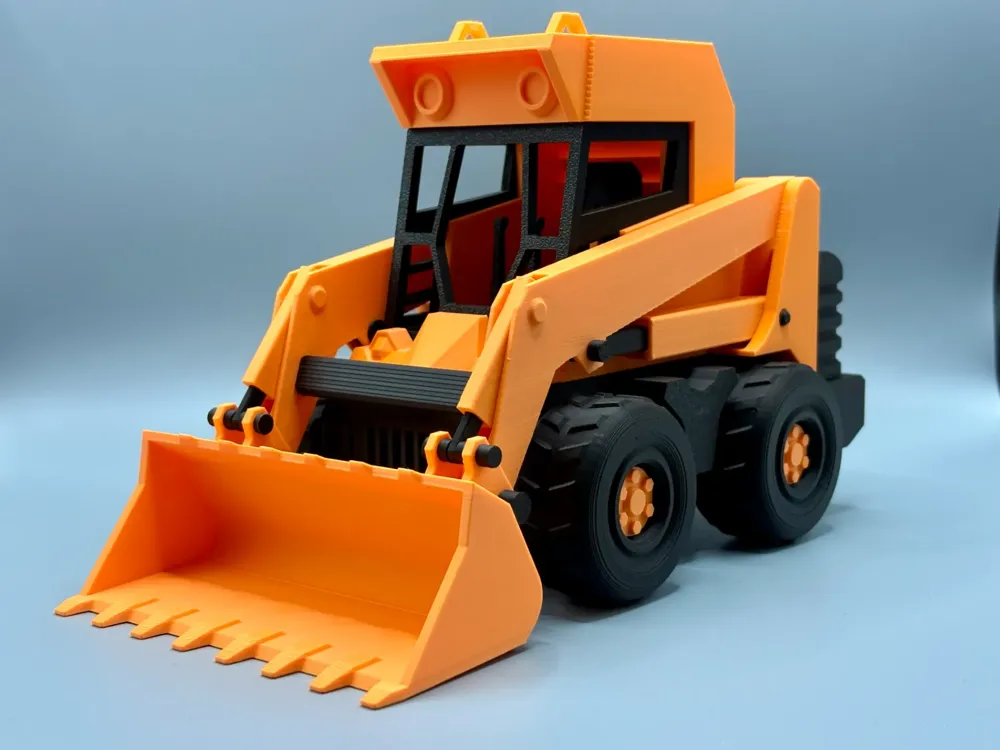

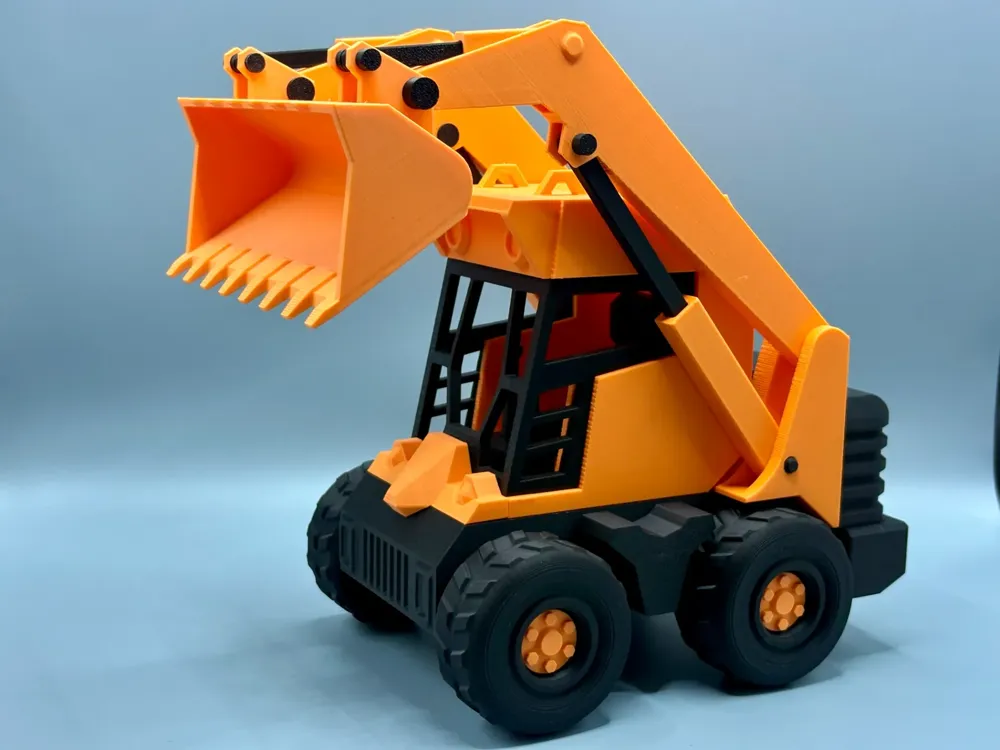

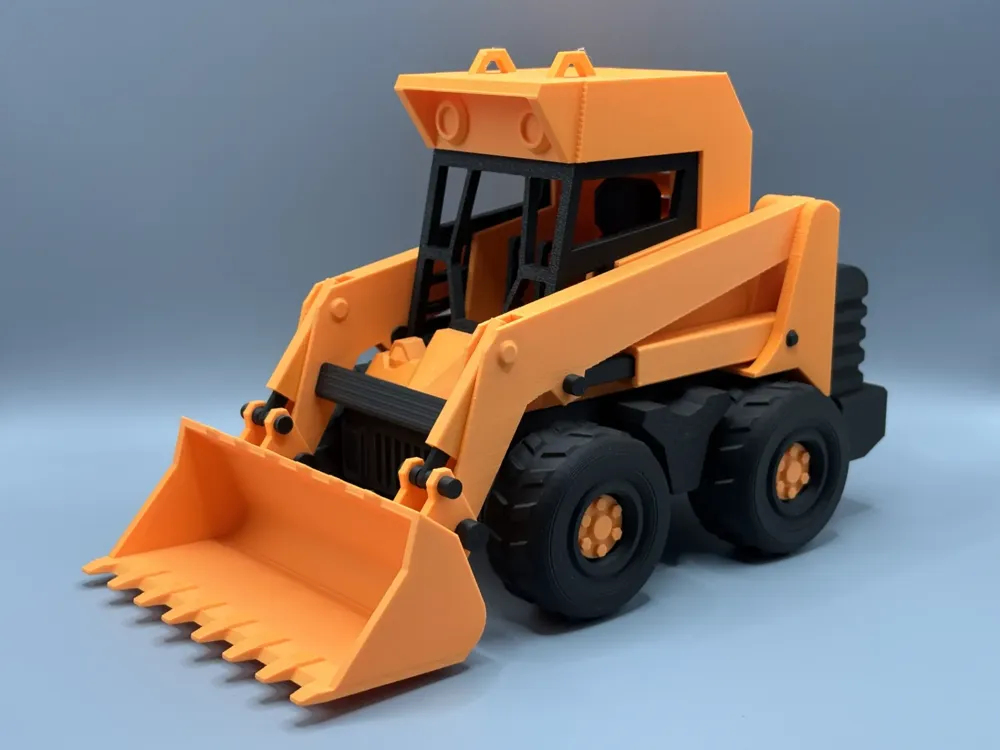

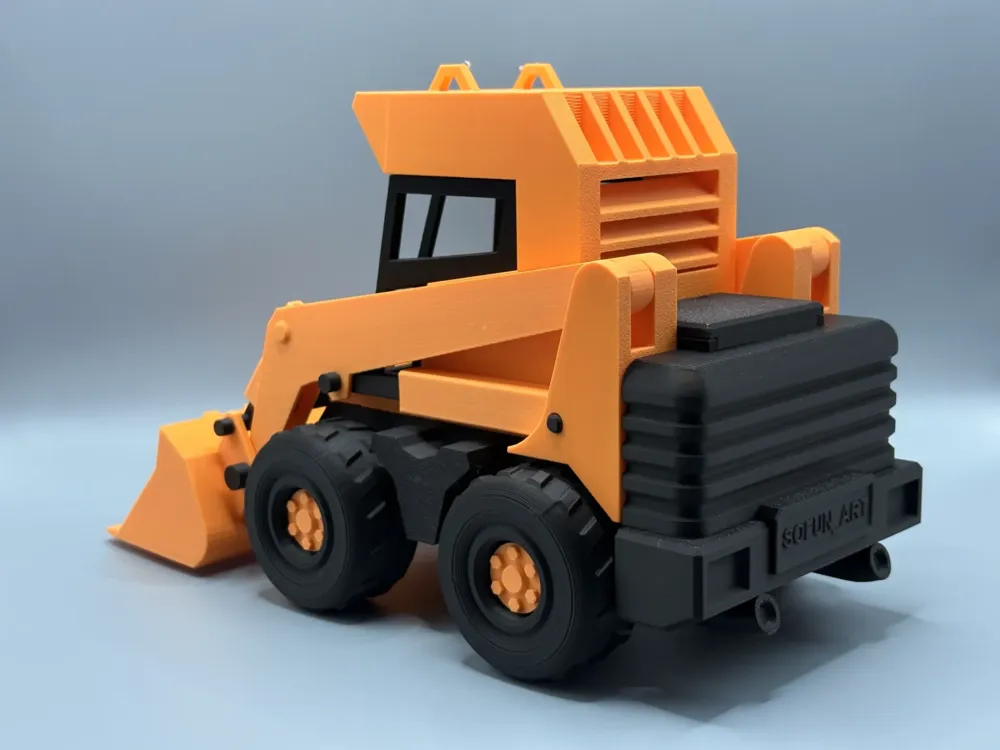

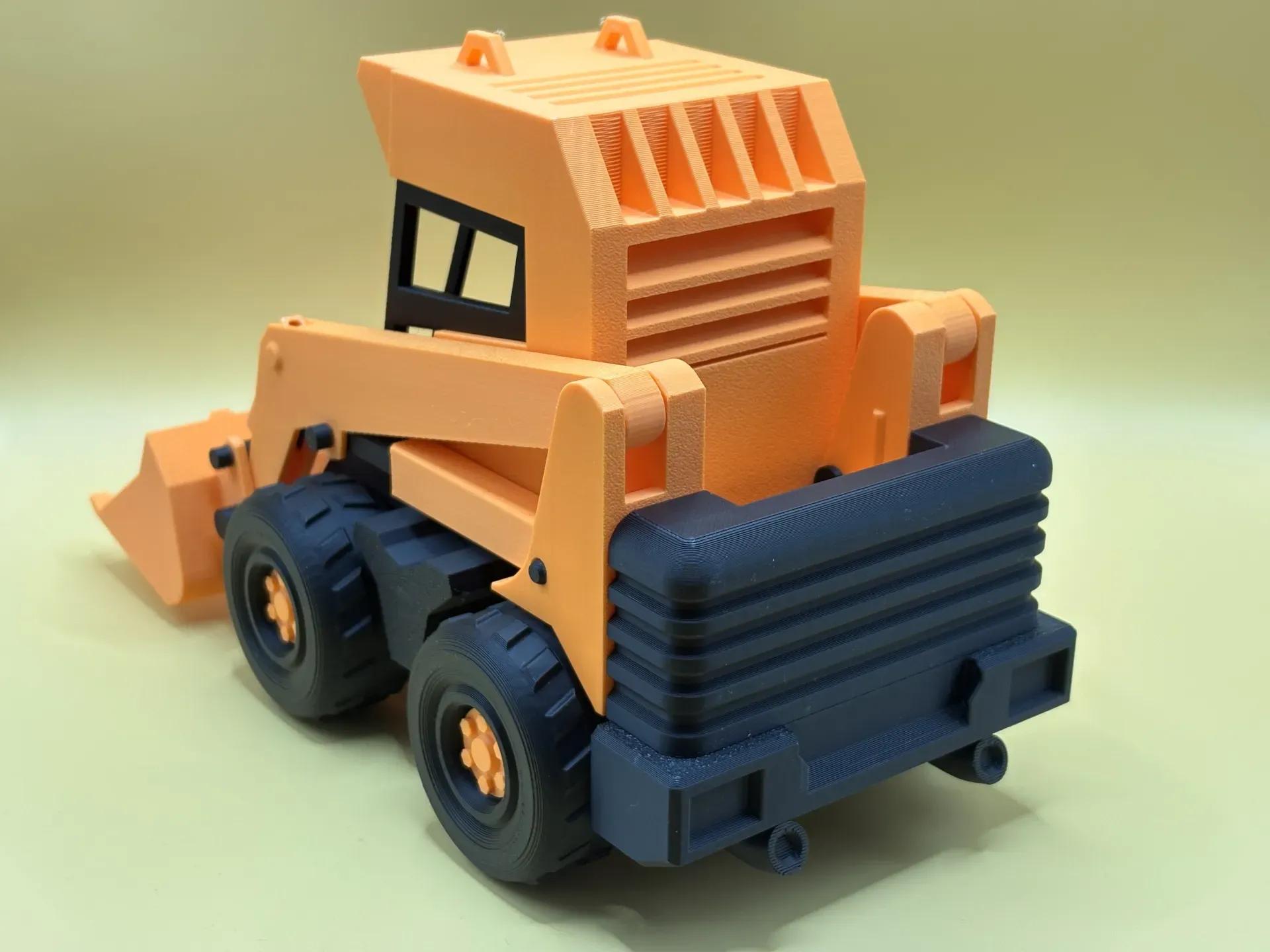

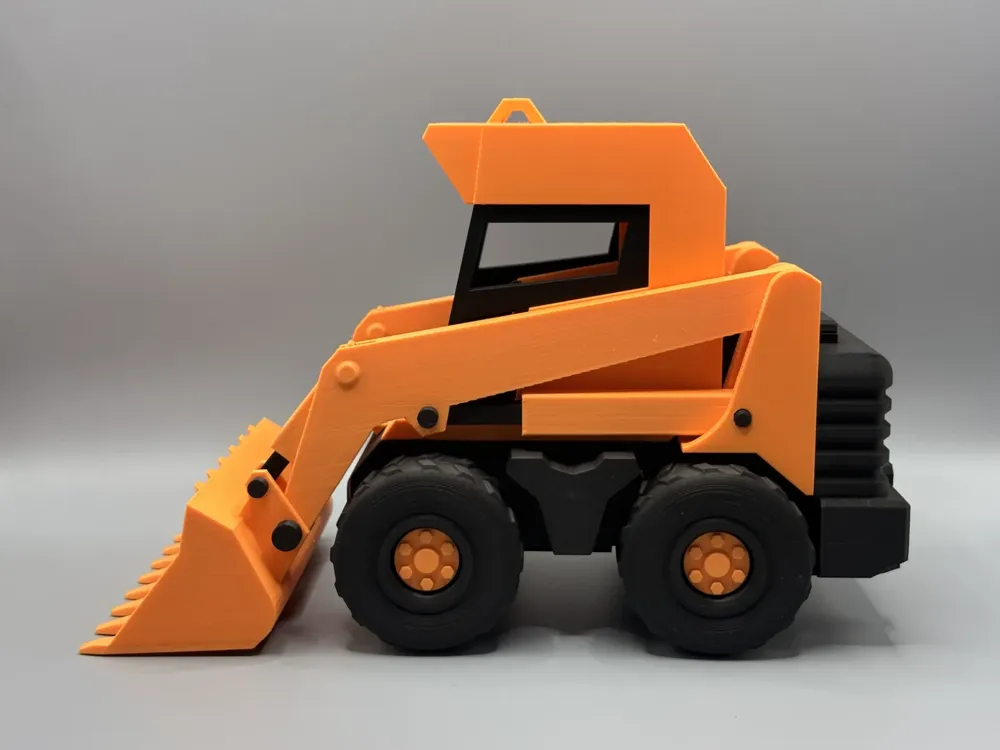

All done

If you enjoy this, please like, subscribe, and share! More fun assembly series to come~~~~~~~~~~
