Pump flowgiver mag holder for inflatable jacuzzi

IP Report

Print Profile(1)

All
X1 Carbon
P1S
P1P
X1
X1E

0.12mm layer, 3 walls, 95% infill
0.12mm layer, 3 walls, 95% infill
Designer
28 min
1 plate

Open in Bambu Studio
Boost
4
7
0
0
5
1
Released

Description

Flow rate magnet sensor:

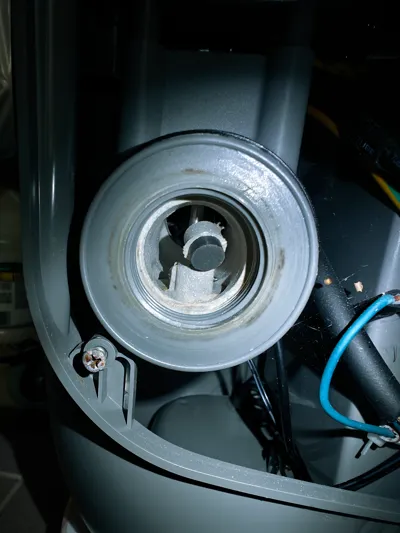

Had problems with the pumps on my Mspa Camaro inflatable jacuzzi giving E01 fault messages. Inside the pumps there are flow sensors with a small magnet suspended from the roof of the pump inlet/outlet, which make it possible for the magnet to swing freely. The plastic surrounding the magnet deteriorates over time, the magnet falls off and the E01 fault message show. It's not possible to buy the magnet holder alone, you have to purchase the complete sensor (at least I haven't found any alternatives).
It might fit other inflatable spa's as well, but this is specifically designed for the Mspa product line.

How to:

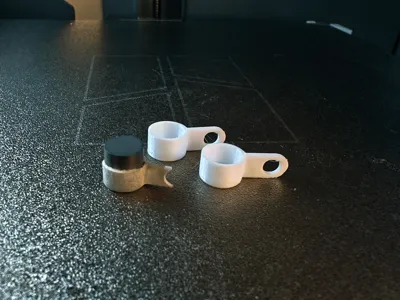

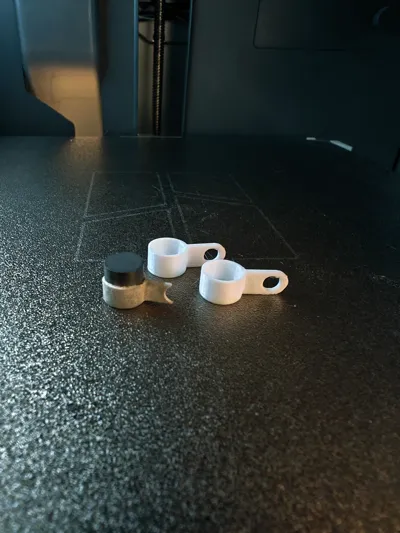

Cut away the old plastic from the magnet with a sharp knife, press the magnet inside the printed holder. It's a tight fit so no glue is required.

PS: Mind the polarity of the magnet. Don't flip it around when inserting it to the new printed part.
