Description

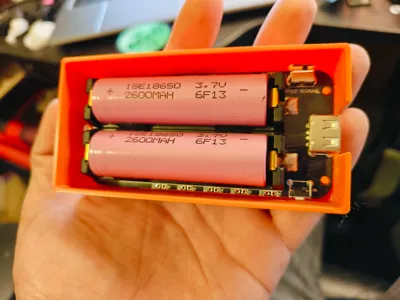

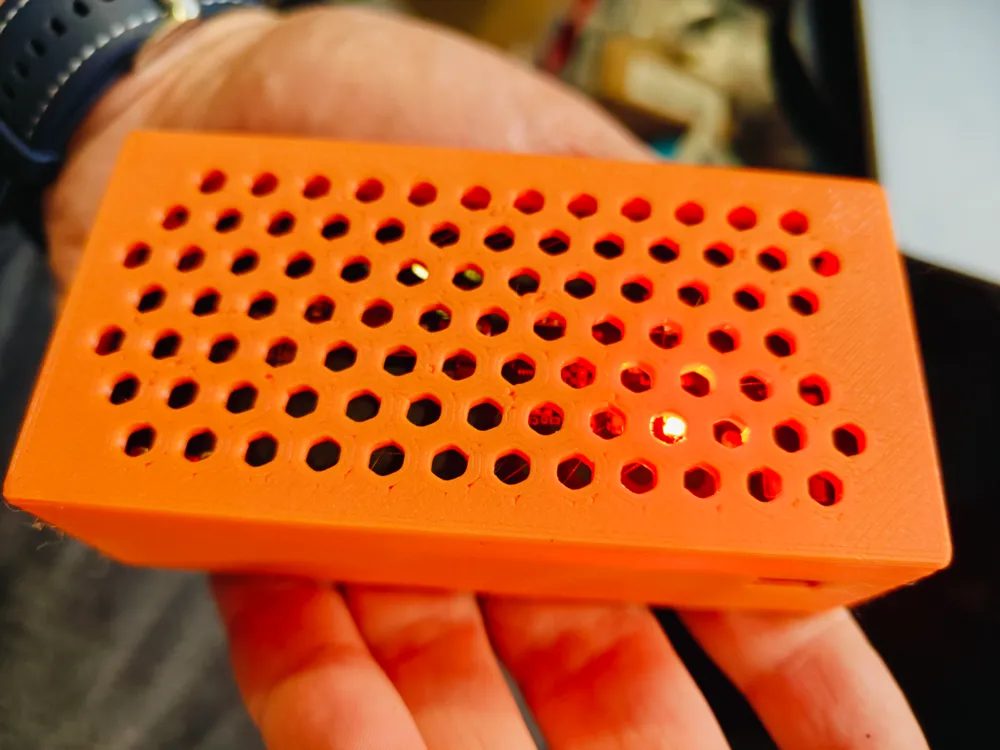

A simple box for this PCB:
https://a.aliexpress.com/_EHzbc5k

No hardware is required, top snaps to the bottom using friction.

If you have any ideas for improvements or you just want something to change, feel free to post it in the comments section.

Any boosts are highly appreciated 🙏

Boost Me (for free)

Thank you for your support 💪 Happy printing 🙂

Have a nice day.

Change log:

10.5.2026 - Updated the link to correct PCB

Comment & Rating (15)

@j3gbsb

Your board clearly has a USB-A port and the one you linked (which is the one I have) is type C only. It's not the same.

The designer has replied

@Crypton

Sorry, the product was replaced by the vendor on the AliExpress. I updated the link to correct product .

@user_2302414305

This does not fit the linked module. I think you have added the incorrect aliexpress link.

The designer has replied

@Crypton

Can you post a photo of your module? Maybe they changed the PCB, the link is correct.

@user_2302414305

Replying to @Crypton :

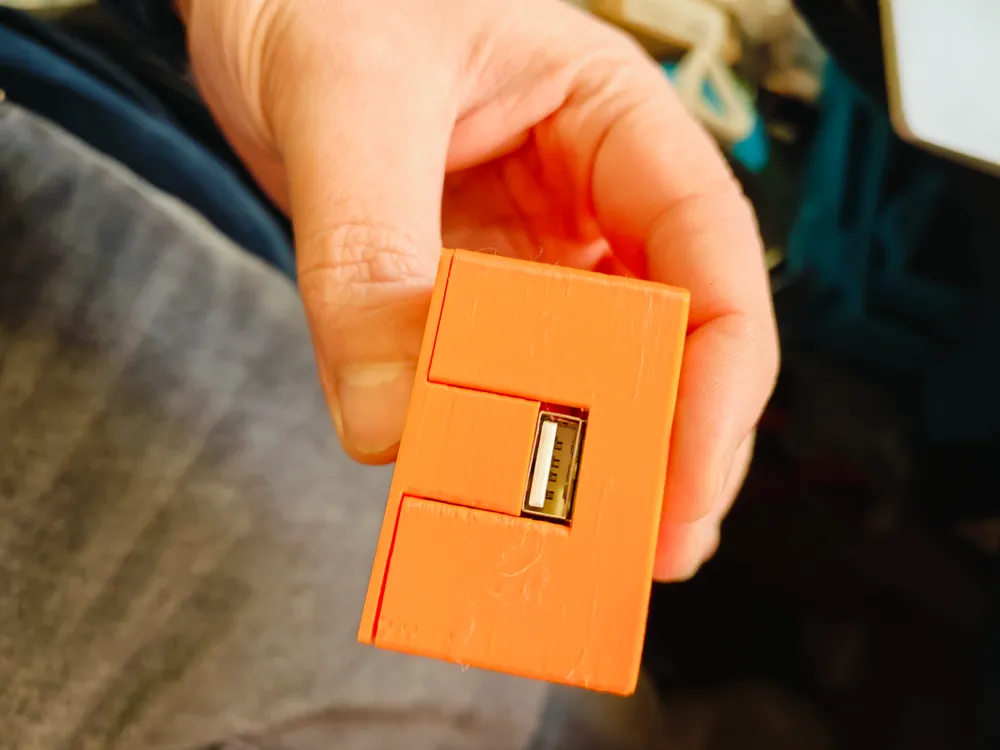

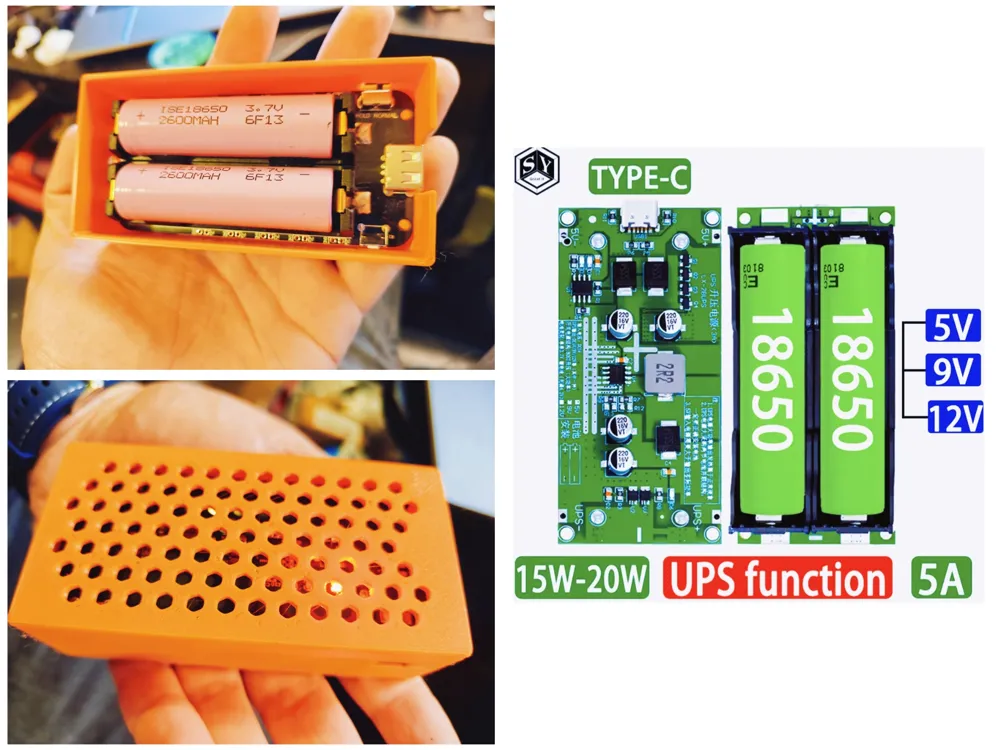

Hi, Thanks for the quick reply. My board looks exactly like the one in the link, and as the illustration here - however the board in the pictures on this page has a USB-A connection and different dimensions from the linked board (and the one in the first picture) with USB-C.

@Crypton

Replying to @user_2302414305 :

I have updated the link 😅 it took me a year, don't judge 😆

@Jdibble

Could you provide a link to the usb a female pcb?

@HanGarySol

is it 5/9/12V?

The designer has replied

@Crypton

You can select the desired voltage.

@GhostRecon

Print Profile

0.2mm layer, 3 walls, 15% infill

Impeccable

Show original

@SirFixer

Boosted

printed and worked fantastic with my many 18650 ups boards

@user_2742764267

Print Profile

0.2mm layer, 3 walls, 15% infill

@user_2423269129

Print Profile

0.2mm layer, 3 walls, 15% infill

@user_3597047468

Print Profile

0.2mm layer, 3 walls, 15% infill

@Omri_Makes

Print Profile

0.2mm layer, 3 walls, 15% infill
