Nintendo Gameboy DMG/GBC Clear Case 20 Game Holder

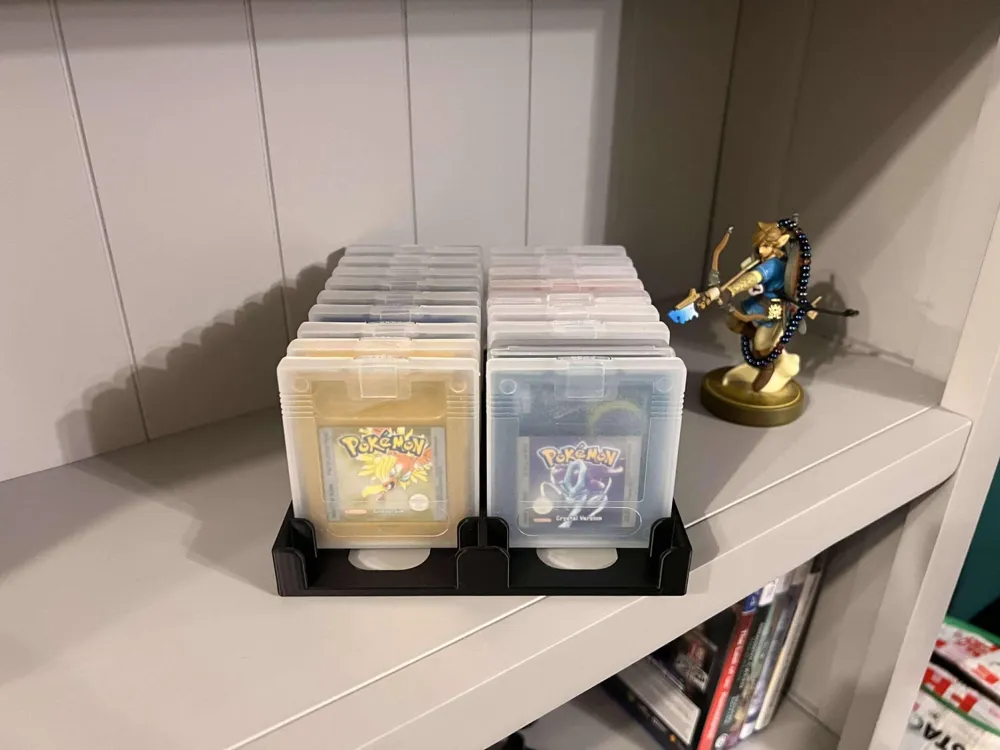

Designed to hold 20 generic Clear Gameboy DMG/GBC protective cartridges/cases. I designed these for my own collection and for others to be able to print to hold theirs. All nicely chamfered. As with protective cases differing brands may be different sizes. These are tested with a few brands and designed to fit the average. From experience the generic cheap clear cases fit best.

Approx closed size of the clear cases required to fit are: 65mm wide x 13mm deep (height does not matter)

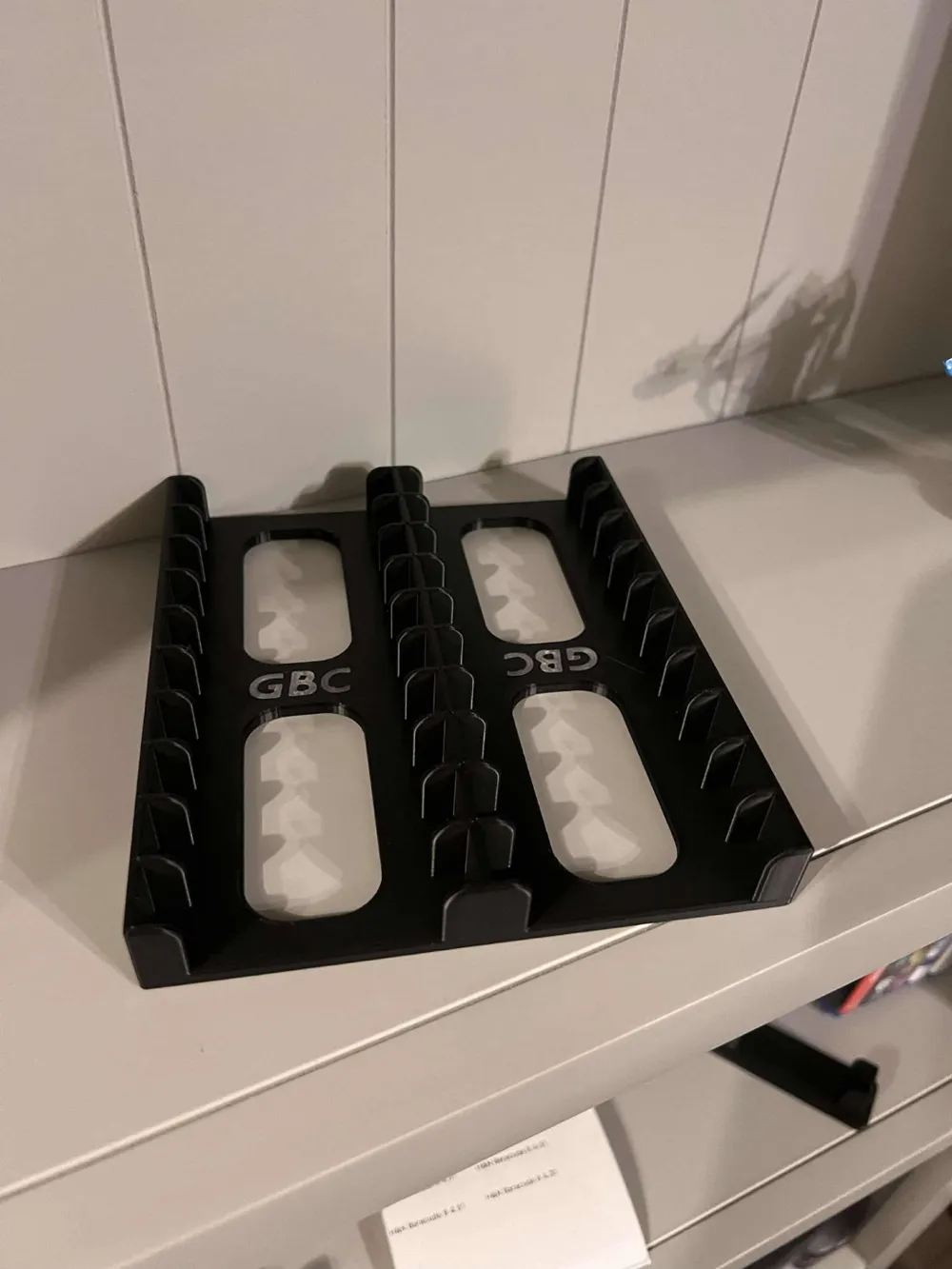

Approx size of the stand is: 160mm deep x 137mm wide x 20mm high

Tested only with PLA so any feedback in regards of PETG/ABS etc would be appreciated.

Coloured slightly raised logo added.

Profiled for a P1S although it should print well on any printer should your bed size allow.

I'm not the biggest fan of the traditional cheap holders as i'd rather my games inside of a protective case. Our games are getting rarer and more expensive as time goes on!

I usually print them in black or clear but they look good in any chosen colour or two tone black base and clear sides.

I do sell these holders myself and i am wanting to freely share my designs for owners of 3D printers to use, so i ask kindly you do not modify/sell them yourself.

UPDATE:-

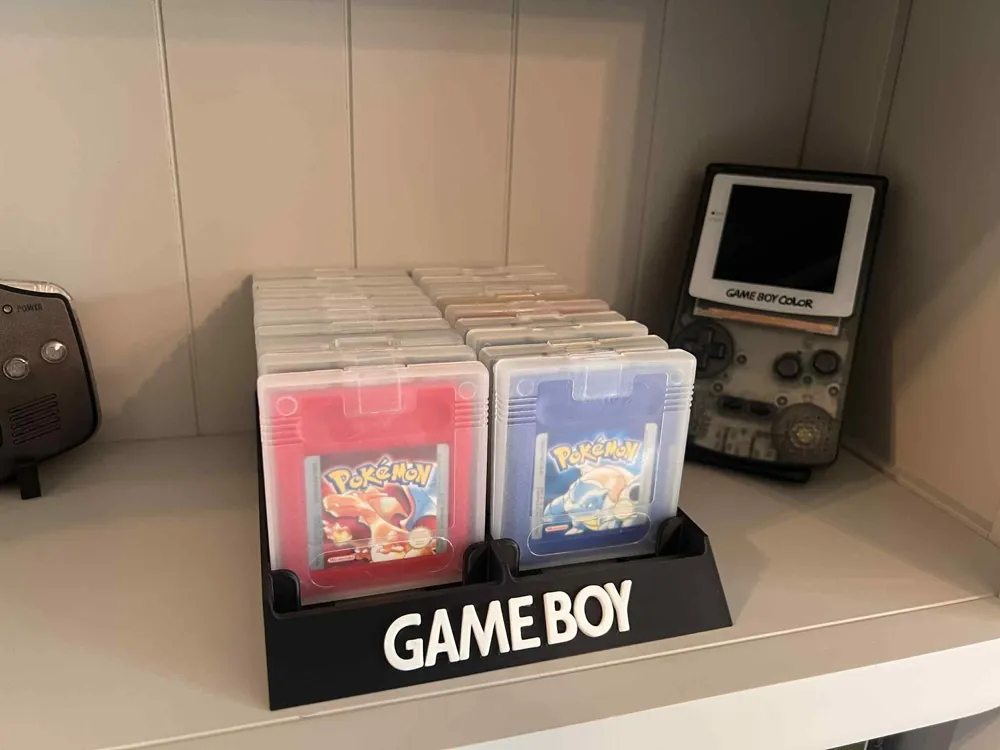

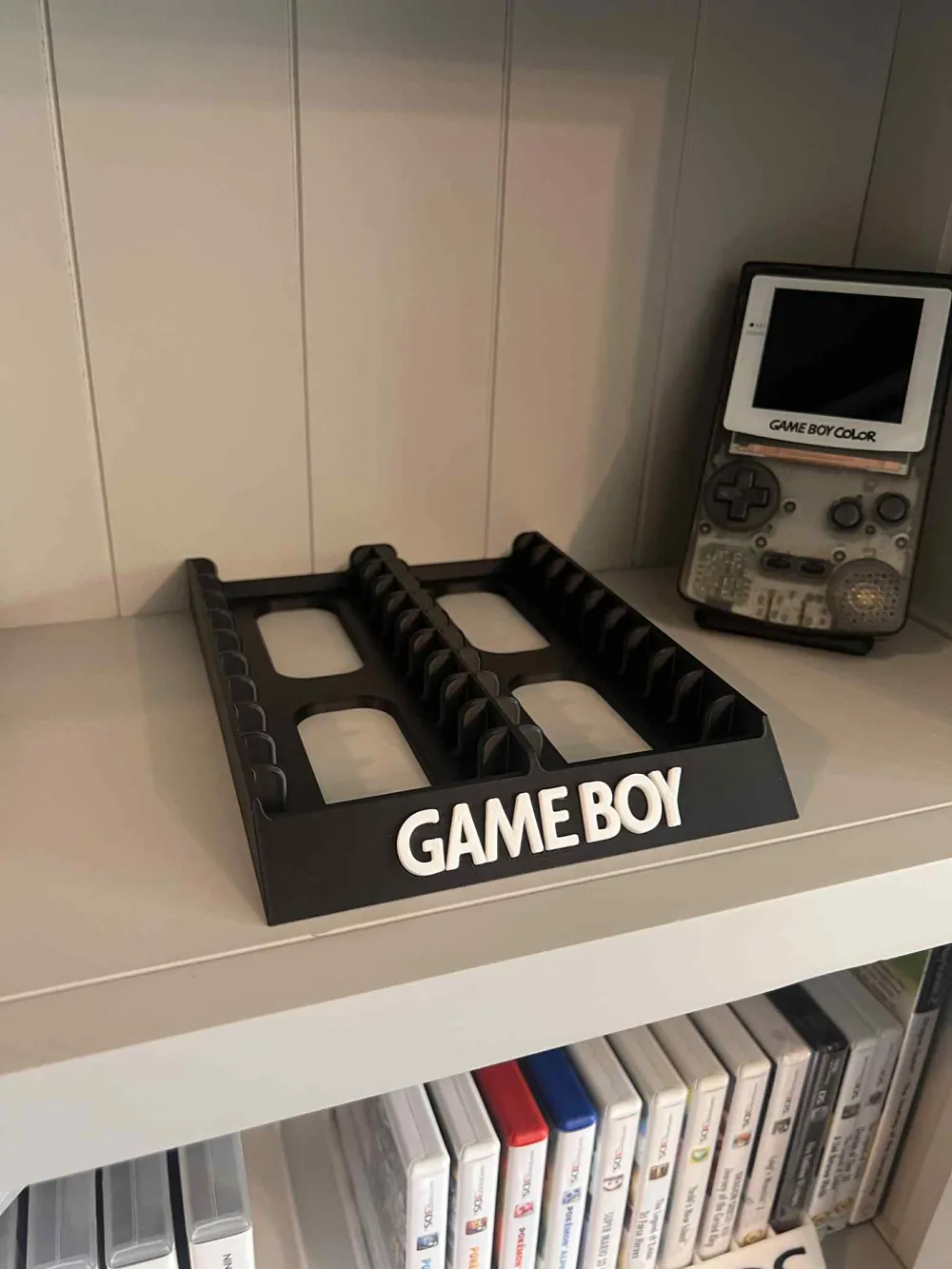

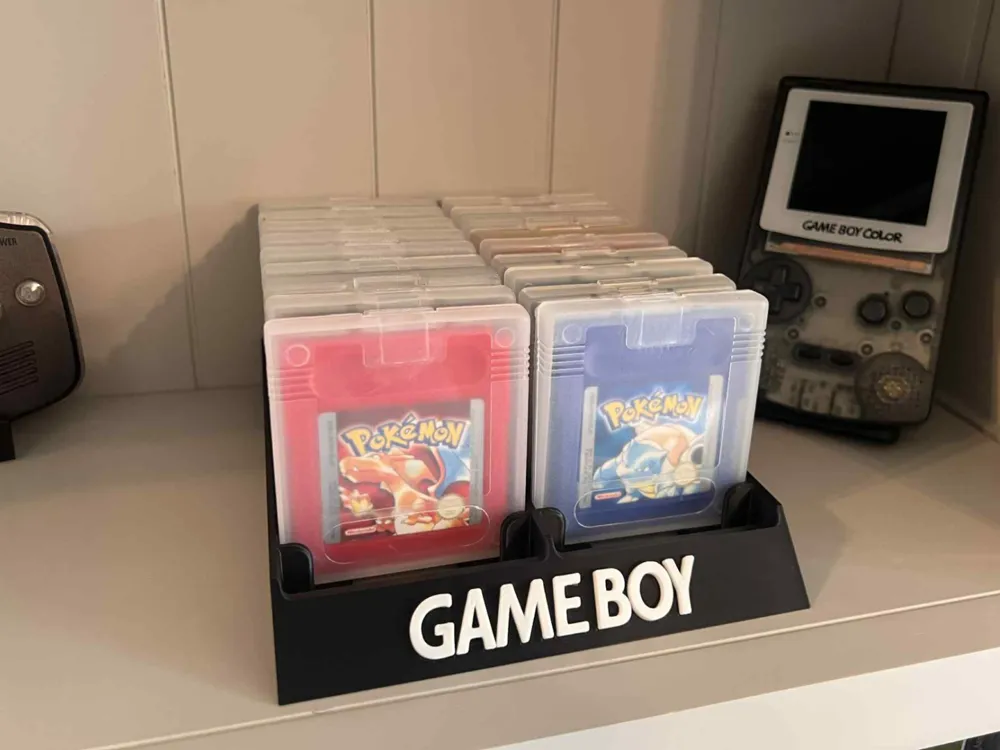

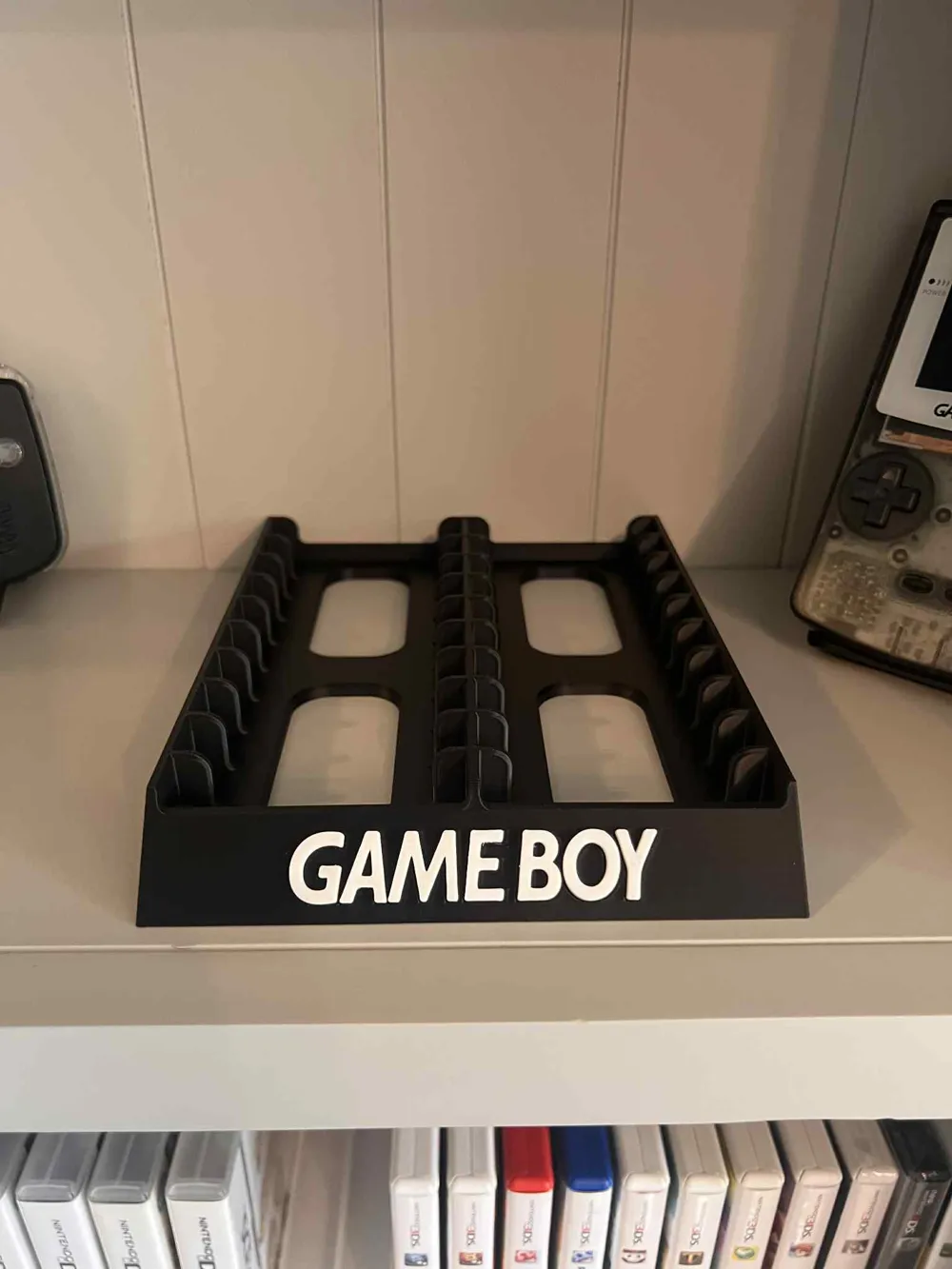

Now added a print profile with full gameboy logo.

Now added a dual game option so it holds 10 of each cartridge both Game Boy and Game Boy Advance.

How to print:-

Print the Design with the frontal logo

Print the Insertable Text print profile

Print my simple hammer print profile (optional - it is on my upload page)

Insert the text chamfer side into the stand then tap them into place with the hammer or

alternatively a small plastic mallet or scrap piece of wood until fully inserted
