0.2mm layer, 3 walls, 15% infill

21.7 h

3 plates

5.0(5)

Open in Bambu Studio

Boost

106

326

291

Released

Description

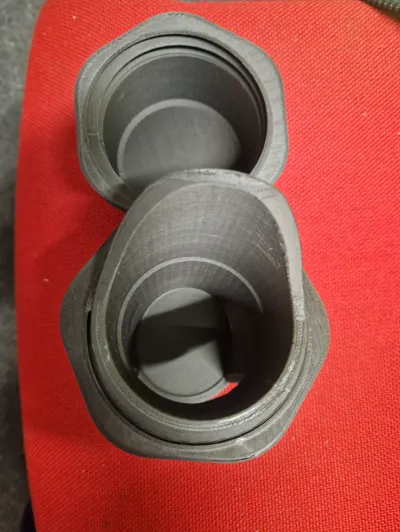

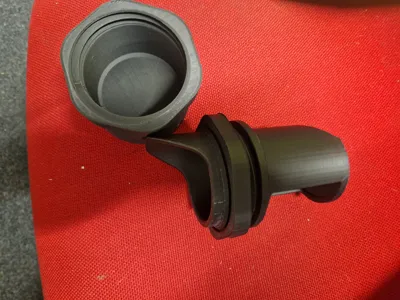

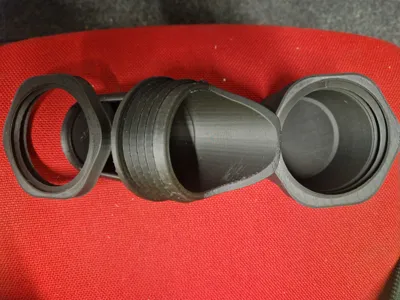

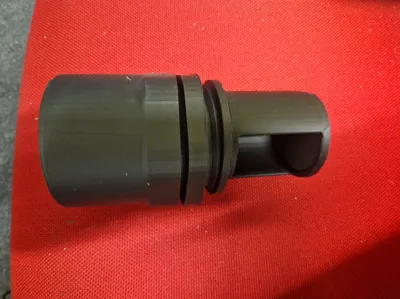

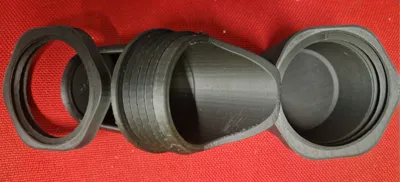

Made this feeding port for my chickens, it has worked a treat. However, I noticed that we had some little visitors who also liked the chicken feed. So I went into solid works and made a cap that would screw onto the front of the cover and stop any visitors helping themselves to the food through the night.

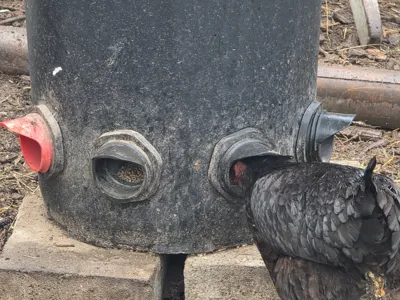

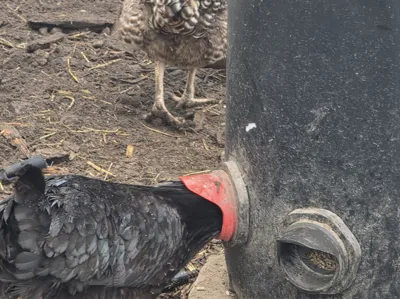

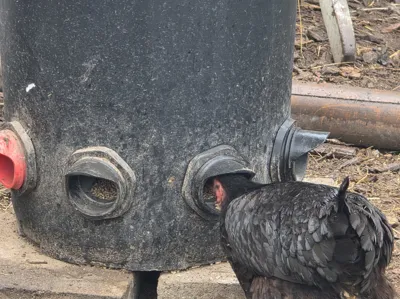

It has worked beautifully and I have made a total of 8 of these as I'm putting them in a plastic bin with a lid so I can cut down on the refilling times, not too sure on bin size but it holds 4 x 20kg bags of layers pellets. Which I top up every month or so, however if I leave it to run out, it takes 15 hens about 4 months to get through 80% of the bin, during summer and while free ranging around the garden.

Really made a difference in the smaller test container I used, less waste of food from knocking over the food container, less waste from contamination from scratching. All round great little stress reliever for me lol.

Hope it helps someone, feel free to use, remix ect

Comment & Rating (21)

@zatarcz

Beautiful 50% scale

The designer has replied

Show original

@andrew.chapman2

Glad you like it. I've used the 50% on my bantam chickens and it works well.

@MyuFoxy

This is awesome for my backyard coop we started this summer. Waiting for one of my new 4 pullets to figure out how to use it and see how they like it. Thank you for sharing this print.

@Daddy2

not sure why but it won’t let me print this from my phone? anything you can do to upload it so we can?

The designer has replied

@andrew.chapman2

not sure, it allows me to print direct. It's very strange. if anybody knows of any settings that I can change to help I will sort this out.

@Daddy2

maybe you have to upload it to Bambu handy?

@Daddy2

Replying to @andrew.chapman2 :

can you try reuploading to maker world

@RBCreations

Did you know you cut out the front lip that keeps the food from being pulled out?

The designer has replied

@andrew.chapman2

I didn't realise. I've not noticed much spill from my hens. I appreciate the feed back though, thank you.

@RBCreations

Replying to @andrew.chapman2 :

that's good. I scaled down to 90% And I'll be testing these tomorrow. do you take off the outside ring to put the cap on?

@andrew.chapman2

Replying to @RBCreations :

no the ring stays on and the cap fits on with it. let me know how you get on.

@4nth0

did you use supports or did you print it directly I don't have a Bambu I have a Sidewinder X2 thanks

The designer has replied

Show original

@andrew.chapman2

Hi, good question. I printed in a vertical position and I used tree supports for the spout collar and the opening of the internal section, the threads didn't need supports. I printed a couple on my Sidewinder X1 using these supports and it worked out pretty good. Thanks for the comment, Happy printing.
