Asus ROG Ally - Elite 2 Swappable Stick Mod - Free 3D Print Model

Search models, users, collections, and posts

YesItsKira

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

PLA, 0.08mm layer, Hand Painted Support, 100% infill

26 min

1 plate

5.0(9)

Open in Bambu Studio

Boost

118

245

551

175

Released

Description

Hi!

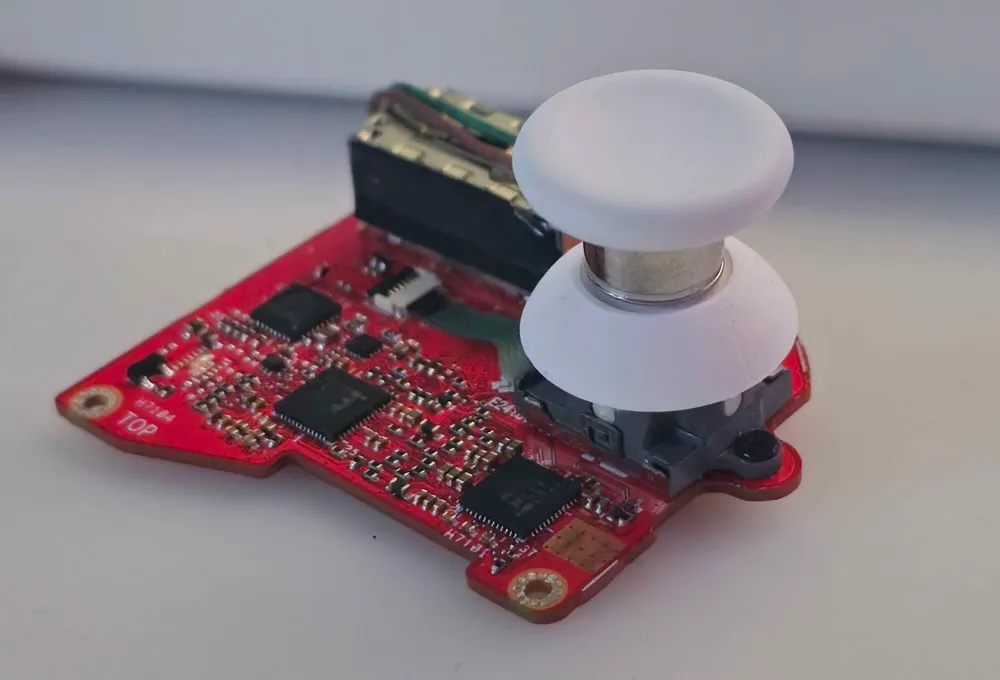

I have adapted my Joystick mod for the Ally X to fit on the base Ally!

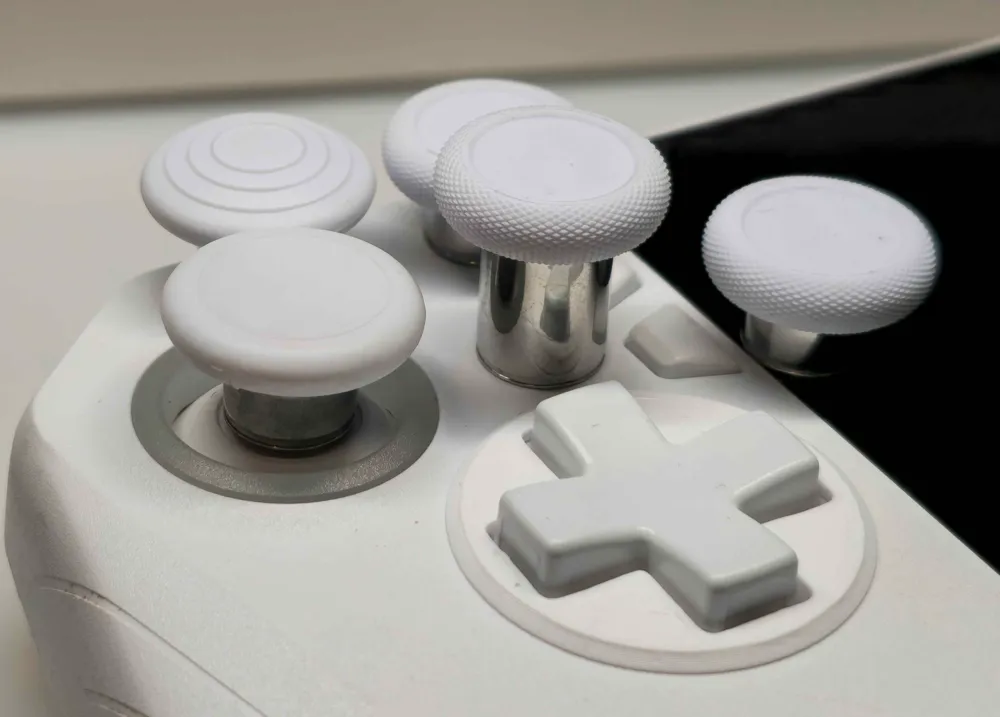

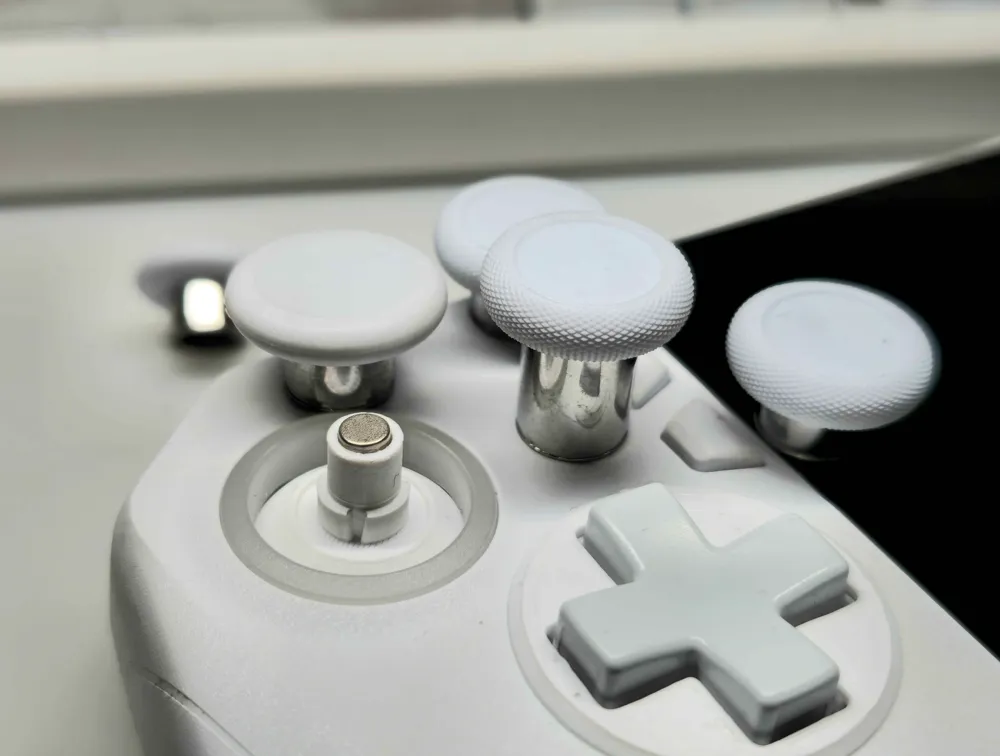

It lets you use the swappable sticks from the Xbox Elite 2 controller.

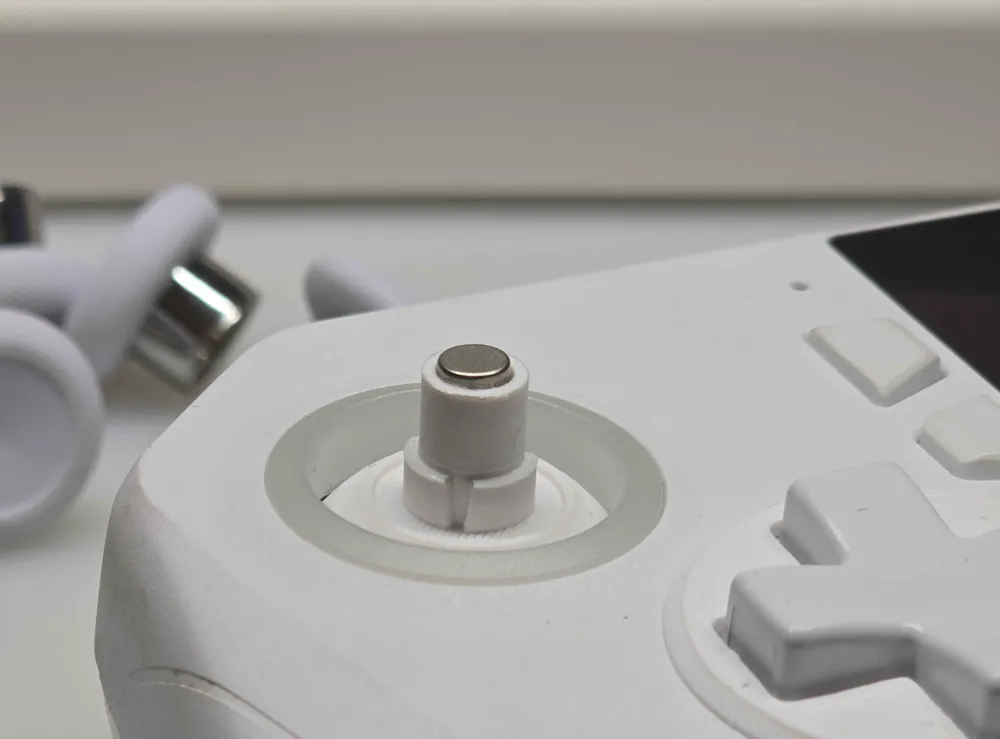

The magnets are 4mm diameter and 2mm thick.

The extention is for added security when using the longest sticks. Make sure that the magnets are in the orientation that the stick and extention will attract each other.

Comment & Rating (33)

@LayeredDoom

Boosted

Printed at .08mm height in PLA and it came out great! Added a print profile for my print as well.

@user_618051072

did you use support or anything? mine are not coming out right on the bottom were it connects to the joysick

@user_1127891593

Replying to @user_618051072 :

Same with me.. The tolerances seem to be very tight and there is a floating piece where the stem goes in that requires support. I dont think it needs that much open area so would be nice if the area where the stem goes in was thicker.

@arcanazen

Boosted

Print Profile

PLA, 0.08mm layer, Hand Painted Support, 100% infill

Works great!

@saunderez

Boosted

Print Profile

PLA, 0.08mm layer, Hand Painted Support, 100% infill

Printed in Bambu Lab PLA Matte originally and accidentally pushed the shaft into the dome when testing out the sticks. Reprinted in in Overture PETG and superglued magnet in place.

@jhujhustine

Boosted

Print went perfect ty so much!

@BigK3D

Boosted

Print Profile

PLA, 0.08mm layer, Hand Painted Support, 100% infill

excellent. thank you very much. Will boost when I have some available! thank you again

@ColinMCMXC

does adding a magnet have any negative effects on hall effect stick mod?

The designer has replied

@YesItsKira

None at all! Although if its for the base ally, dont do hall effect. The triggers magnets interfere with the hall sensors meaning that you have to set a huge deadzone that defeats the purpose of hall sticks

@ColinMCMXC

Hi Kira, when I fitted I only did the RH stick, no interference but the LH did when I tried it

@The23rdMacro

would this work with ABS? or is it specifically designed to be printed with PLA?

The designer has replied

@YesItsKira

Hi! As long as your prints dimensions match the models, it will work with any filament :)

@The23rdMacro

Replying to @YesItsKira :

I don't own a printer yet I was planning on ordering it off PCB way but I figured id make it out of ABS like the sticks that come with the elite series 2 controller. Does PCB way have all the parameters i can configure for them to print it properly?

(Edited)

@user_3476246066

I cant seem to find the extension piece that you show in videos

@PROblemdetected

Hi! Can you confirm if the file size is the exact size of the piece, or do I need to make any changes?

The designer has replied

@YesItsKira

The file is the exact size. No changes need to be made :)

@TimeDilemma

Your video shows an extension piece but I'm not seeing it in the print files. Can I use the extended stick still?

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
