【Color Distribution Positioning Compass】 Suitable for dual-color and tri-color silk filaments

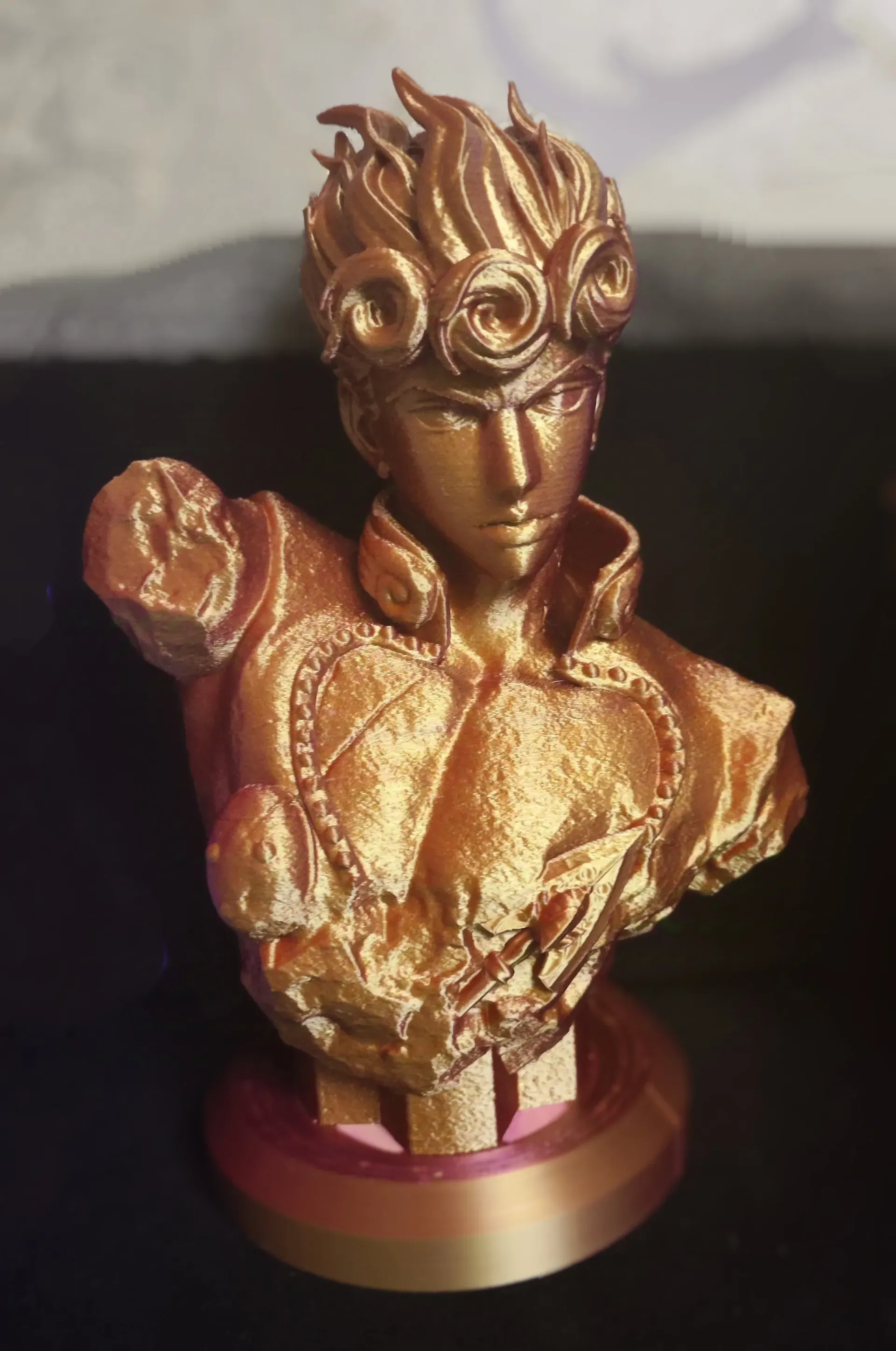

I wonder if you have encountered the same problem as me when using multicolor silk filaments? When printing large works with multicolor silk, you need to determine the color orientation in advance to achieve the best printing effect. For example, this fluffy model I printed in purple and gold, perfectly displays the gold on the front, with the purple as the shadow.

To obtain this data, you need to print a small, unnecessary model first to locate the color distribution of the multicolor silk. However, this small model for positioning seems rather useless and may not be very accurate. Over time, you might forget the model's orientation, leading to errors.

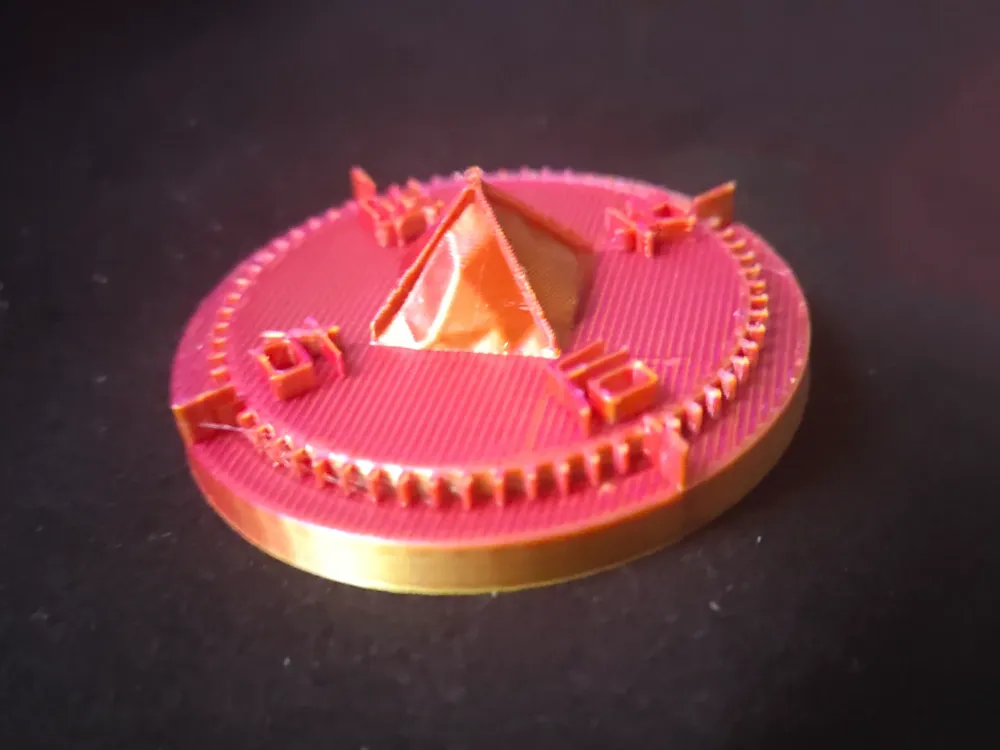

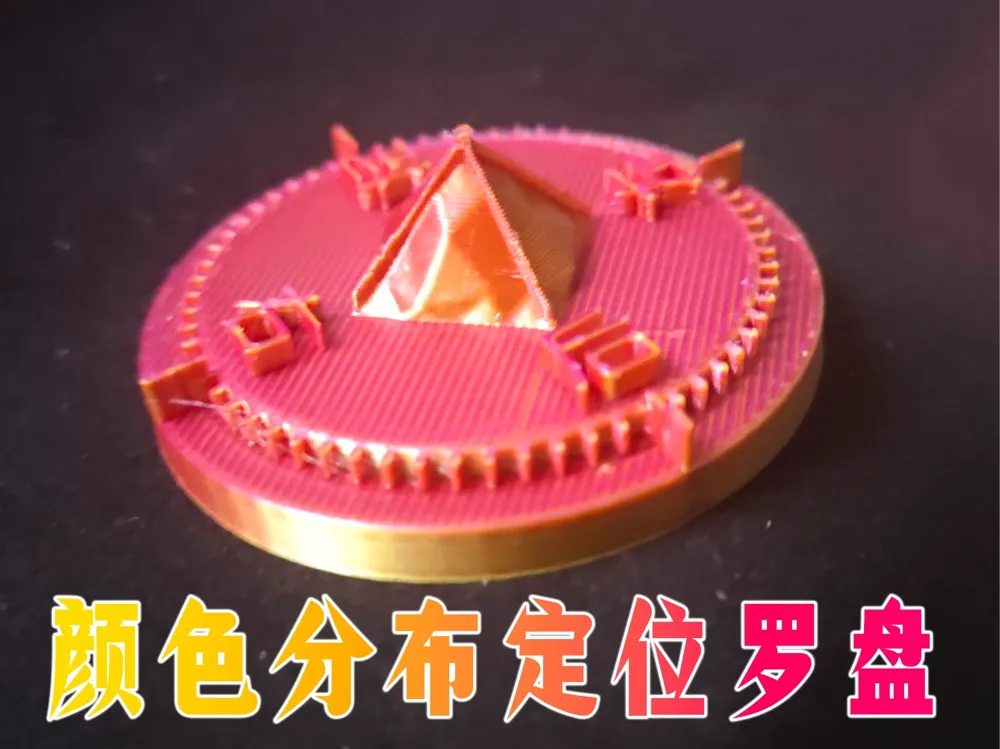

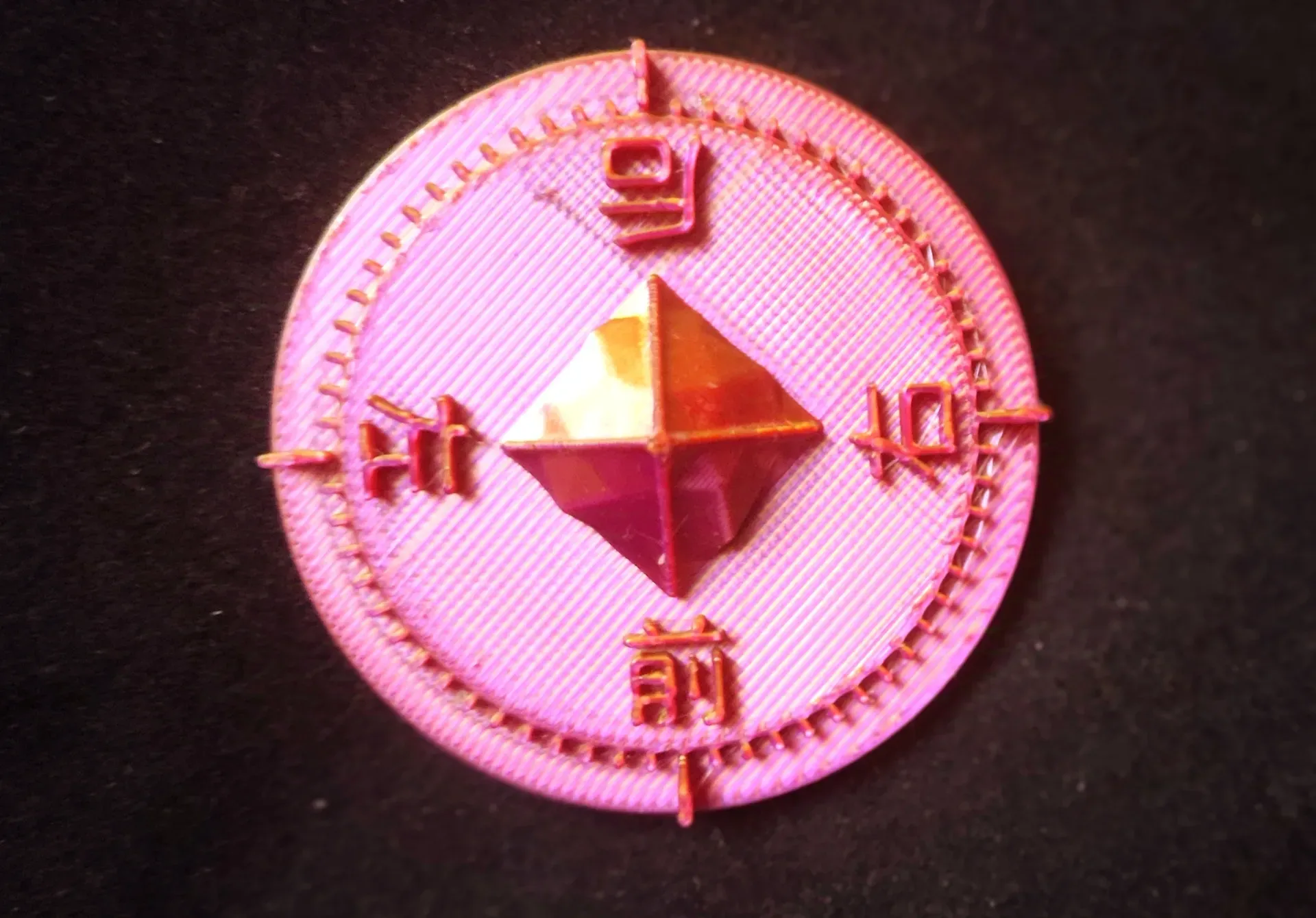

Therefore, I created this color distribution positioning model, which not only indicates the front, back, left, and right but also divides the angle into 64 parts like the software, making it easier to locate and helping us to observe the color distribution more accurately. Meanwhile, the conical shape in the middle can test the silk effect, and the square protrusions can test the filament pulling.

I hope this small tool can help everyone.
