Note: This is an ongoing project and I will be making modifications to the design as I'm able to test it out. I'm open to any design suggestions the community may have!

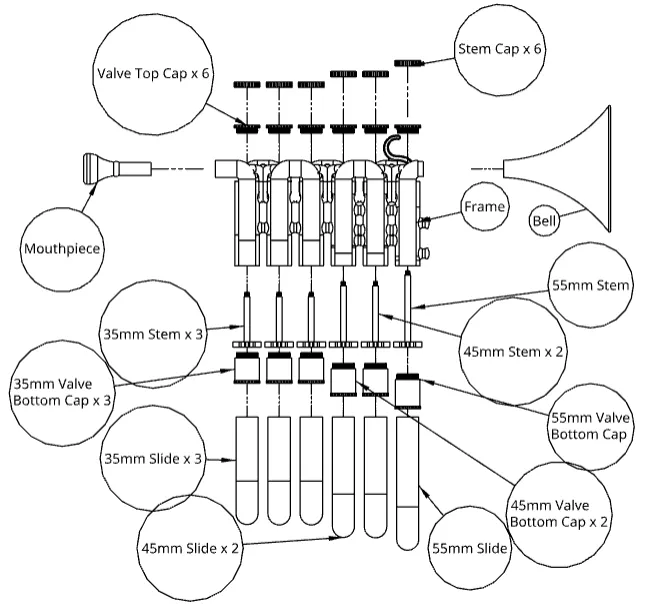

I designed this slightly overly-complicated twist on a trumpet that is fully 3d printed! Typical brass instrument valves function by redirecting flow of air to different lengths of tubing to change the pitch of the instrument, and thereby play different notes. Instead of doing that, I decided to just have several valves that move slides (similar to a trombone) to extend the tubing length. All-in-all there are 6 valves at play here and they have the following lengths:

1st, 2nd, 3rd = 70mm (valve only needs to be depressed by 35mm since the U-tube doubles it)

4th, 5th = 90mm

6th = 110mm

I based the slide lengths off of a typical B-flat trumpet's valve combinations, and how much those lengthened the tubing, and made the conversion chart below:

Extended Length of Tube	Standard B-flat Trumpet Fingering	Overly-Complicated Trumpet Fingering
160mm	1	(1 or 2 or 3) + (4 or 5)
70mm	2	1 or 2 or 3
230mm	1 + 2	(1 + 2 or 1 + 3 or 2 + 3) + (4 or 5)
430mm	1 + 3	(1 + 2 or 1 + 3 or 2 + 3) + 4 + 5 + 6
340mm	2 + 3	(1 + 2 or 1 + 3 or 2 + 3) + (4 or 5) + 6
500mm	1 + 2 + 3	1 + 2 + 3 + 4 + 5 + 6
